Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01

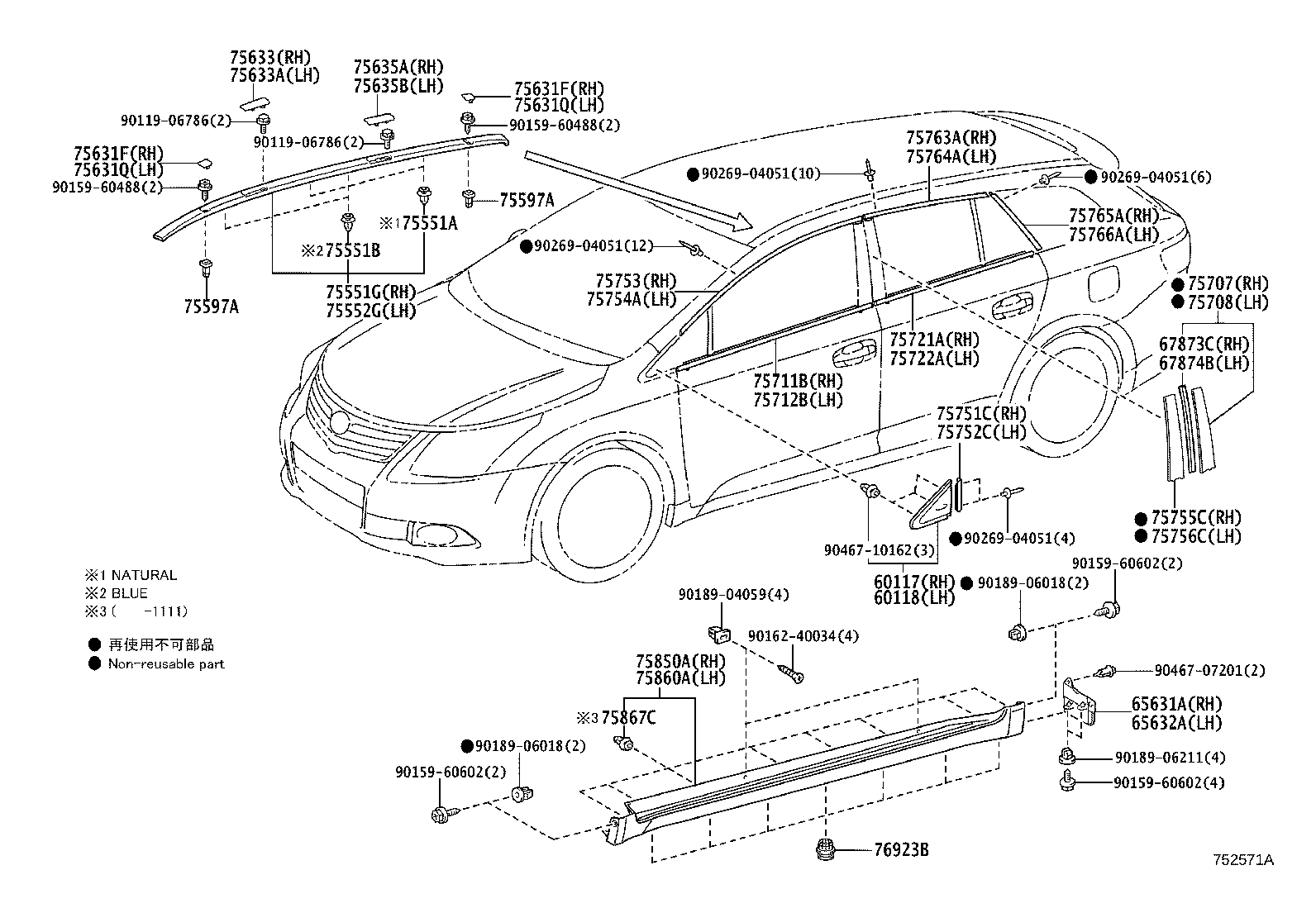

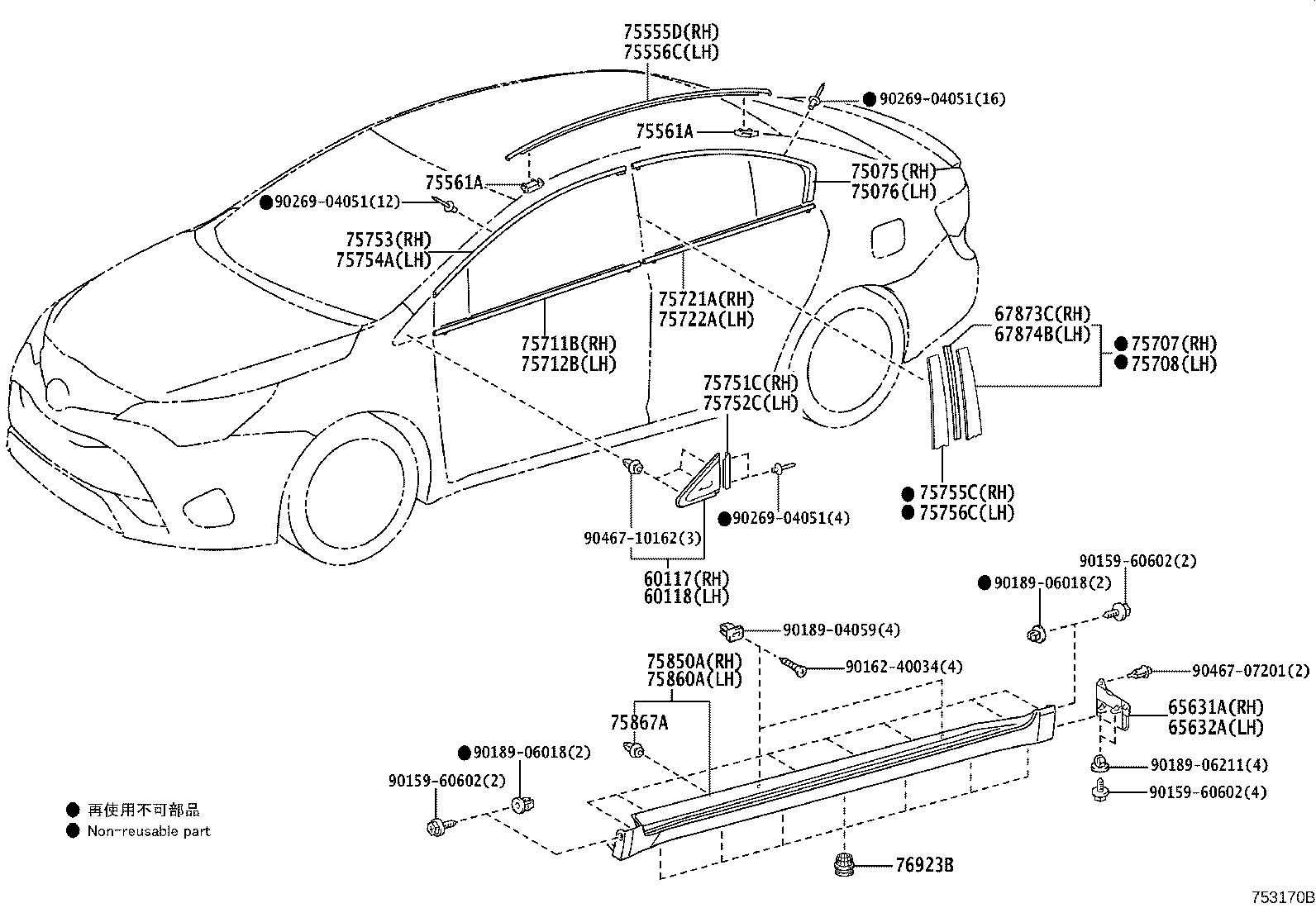

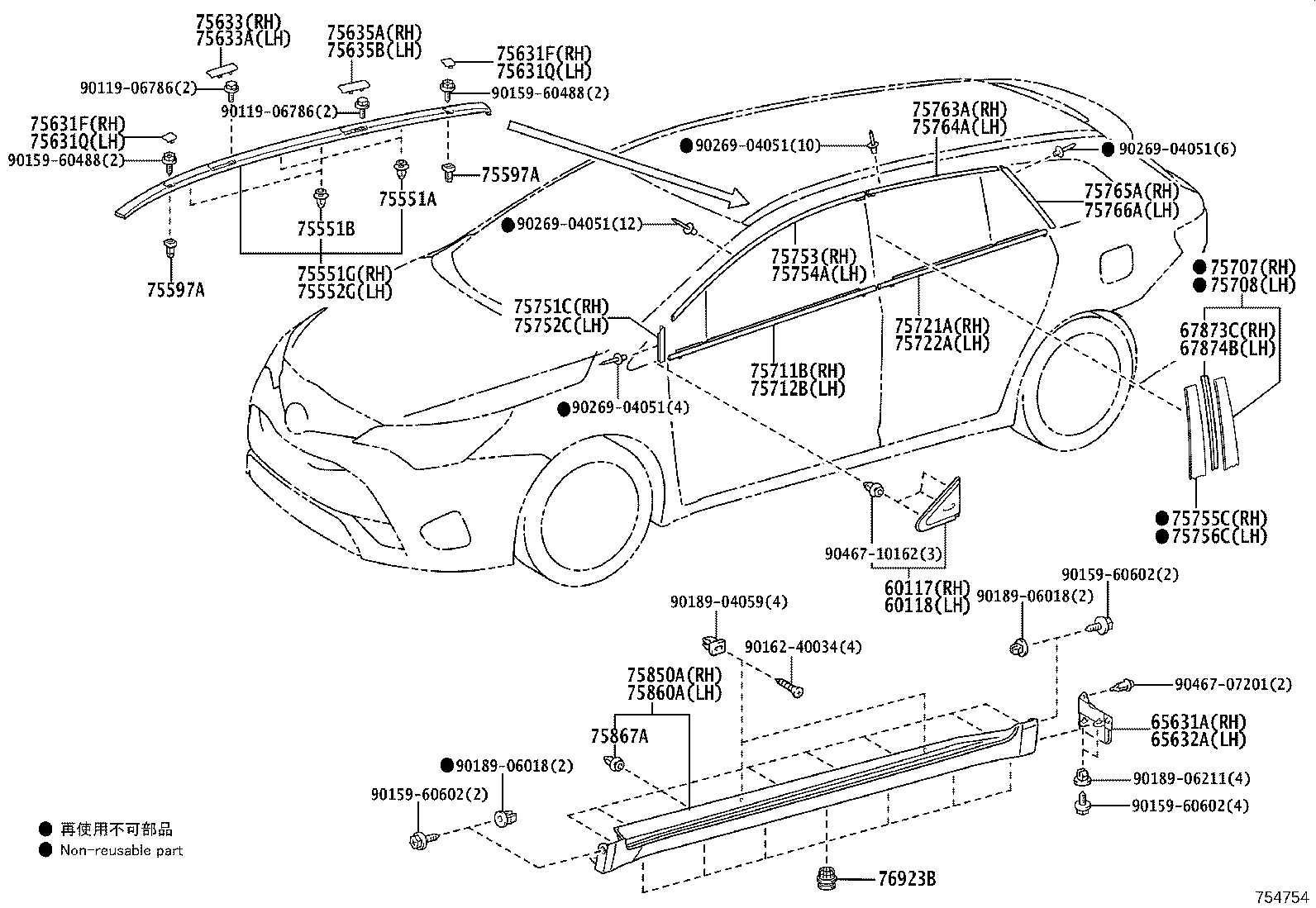

Side Moulding
43 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 60117 | Cover Sub-assy, Front Pillar, Upr RH |
| 60118 | Cover Sub-assy, Front Pillar, Upr LH |
| 65631A | Plate, Rear Wheel House, Front RH |
| 65632A | Plate, Rear Wheel House, Front LH |
| 67873C | Weatherstrip, Center Door, Upper NO.1 |
| 67874B | Weatherstrip, Center Door, Upper NO.2 |
| 75075 | Moulding Sub-assy, Rear Door, Outside RH |
| 75076 | Moulding Sub-assy, Rear Door, Outside LH |
| 75551A | Clip, Roof Drip Moulding, NO.1 |
| 75551B | Clip, Roof Drip Moulding, NO.2 |
| 75551G | Garnish, Roof Side, Front RH |
| 75552G | Garnish, Roof Side, Front LH |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75597A | Clip, Roof Side Garnish |
| 75631F | Lid, Roof Side Garnish, NO.1 RH |
| 75631Q | Lid, Roof Side Garnish, NO.1 LH |
| 75633 | Lid, Roof Side Garnish, NO.2 RH |
| 75633A | Lid, Roof Side Garnish, NO.2 LH |
| 75635A | Lid, Roof Side Garnish, NO.3 RH |
| 75635B | Lid, Roof Side Garnish, NO.3 LH |
| 75707 | Moulding Sub-assy, Rear Door Window Frame, RH |
| 75708 | Moulding Sub-assy, Rear Door Window Frame, LH |
| 75711B | Moulding, Front Door Belt, RH |
| 75712B | Moulding, Front Door Belt, LH |
| 75721A | Moulding, Rear Door Belt, RH |
| 75722A | Moulding, Rear Door Belt, LH |
| 75751C | Moulding, Front Door Window Frame, Front RH |
| 75752C | Moulding, Front Door Window Frame, Front LH |
| 75753 | Moulding, Front Door Window Frame, Upper RH |
| 75754A | Moulding, Front Door Window Frame, Upper LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75763A | Moulding, Rear Door Window Frame, Upper RH |
| 75764A | Moulding, Rear Door Window Frame, Upper LH |
| 75765A | Moulding, Rear Door Window Frame, Rear RH |
| 75766A | Moulding, Rear Door Window Frame, Rear LH |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75867A | Clip, Rocker Panel Moulding |
| 75867C | Clip, Rocker Panel Moulding |
| 76923B | Retainer, Side Mudguard |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
