Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

20 part groups · 8 illustrations

Illustrations

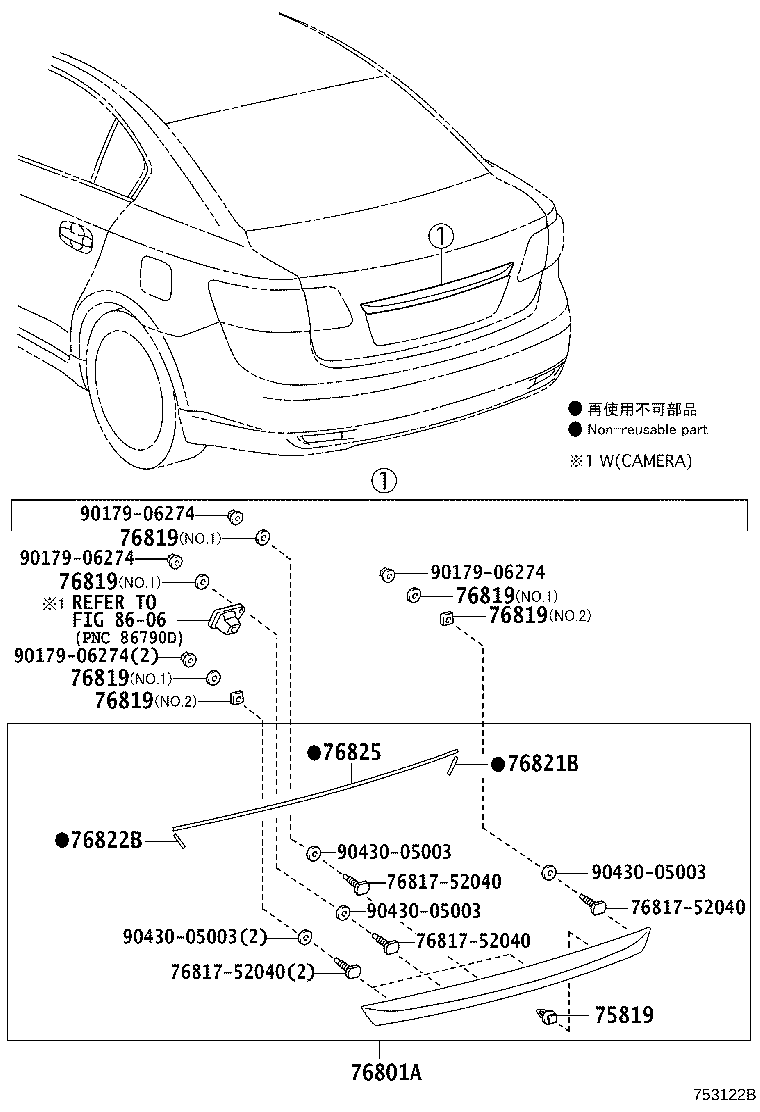

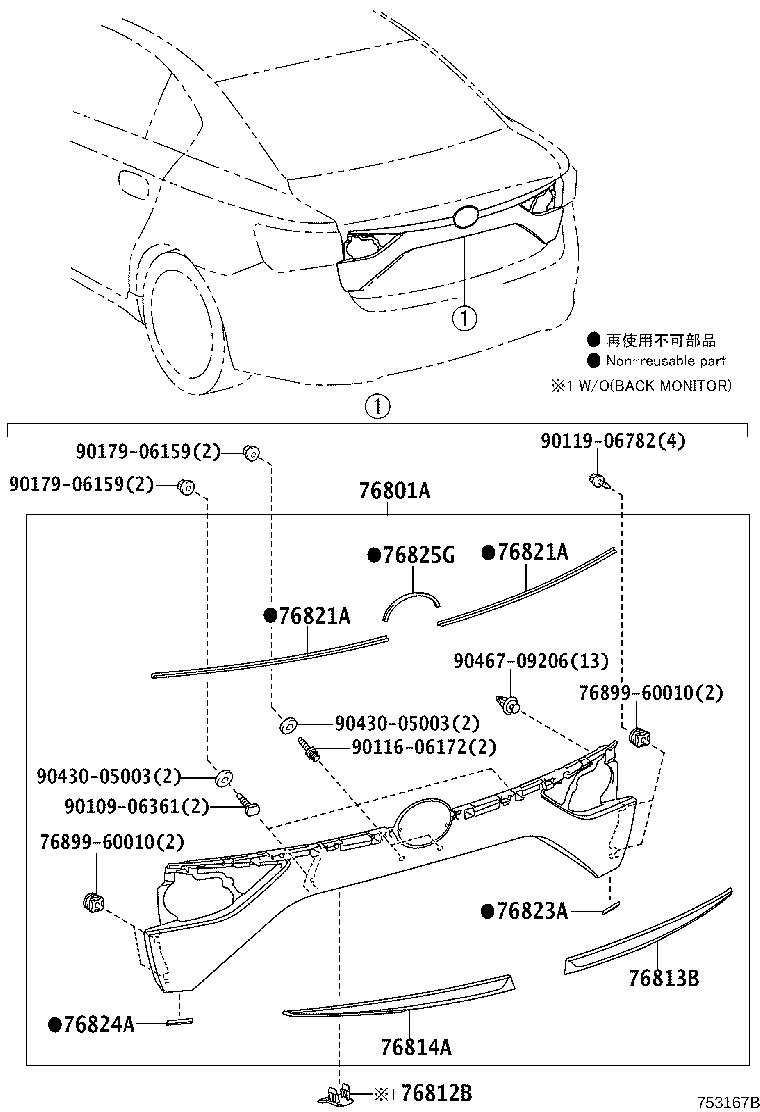

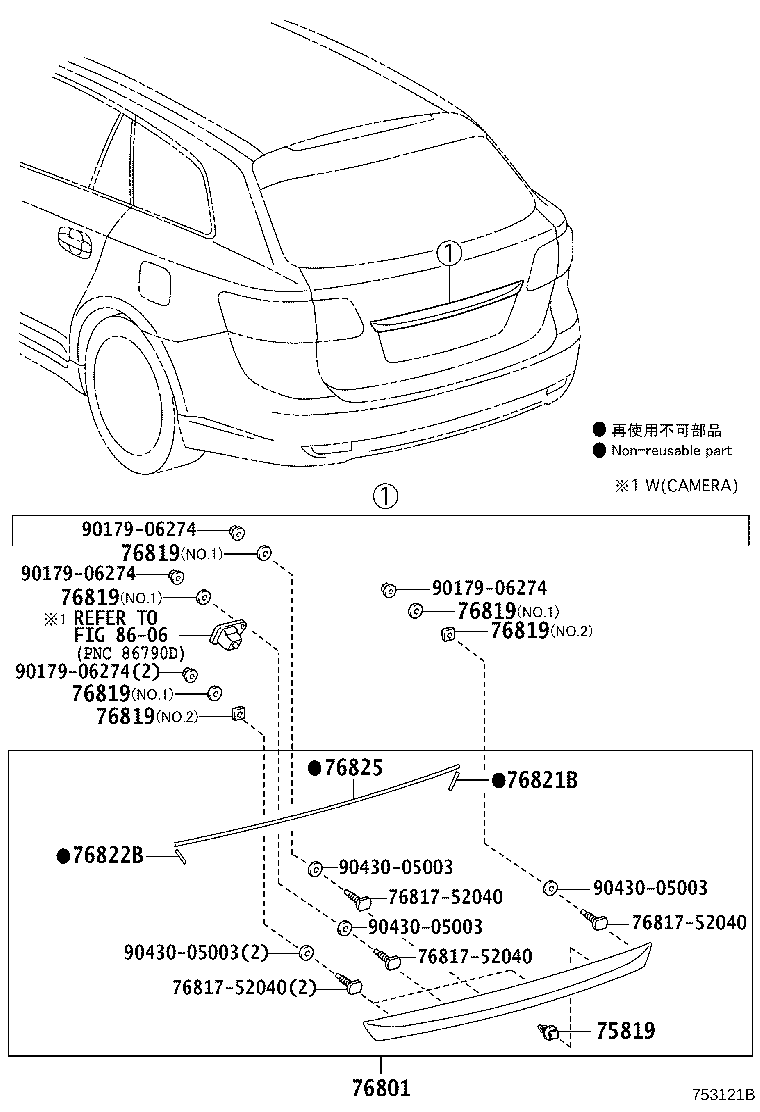

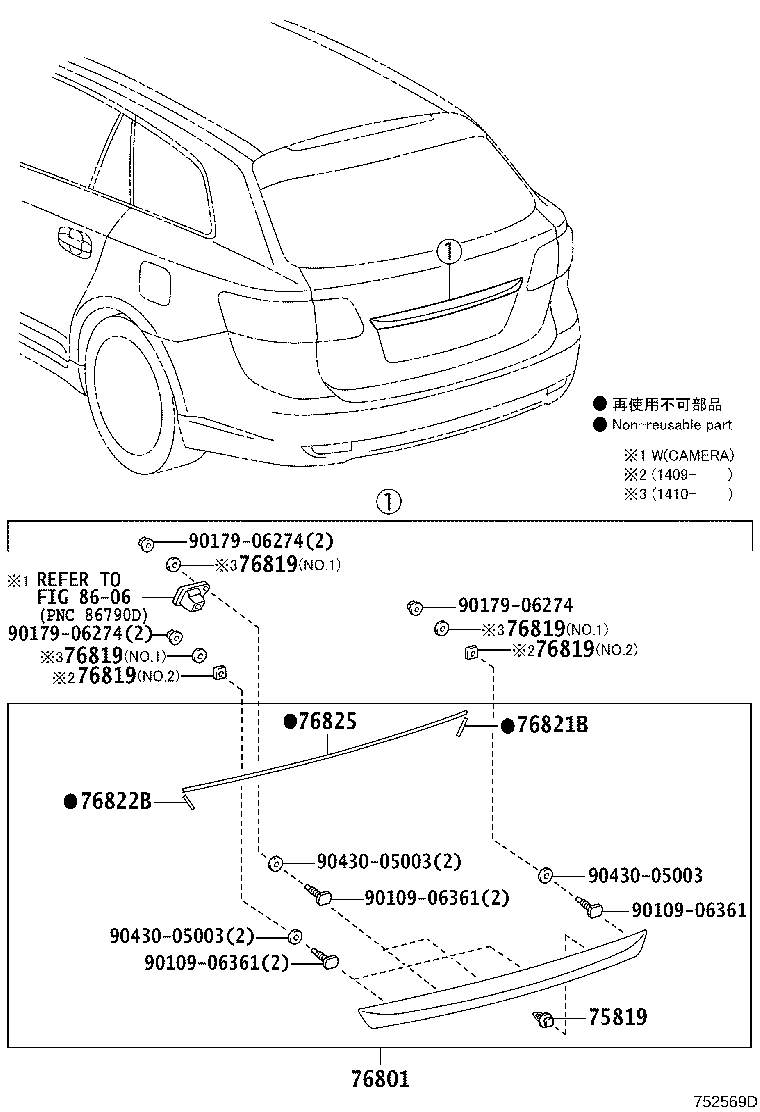

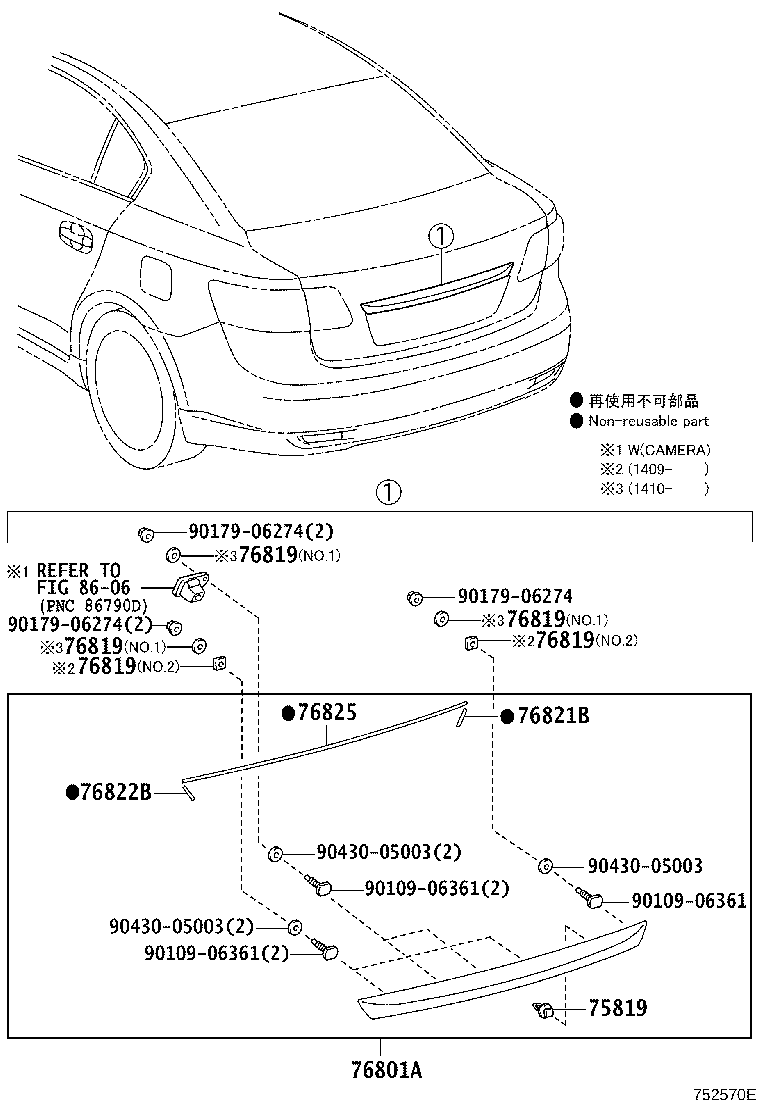

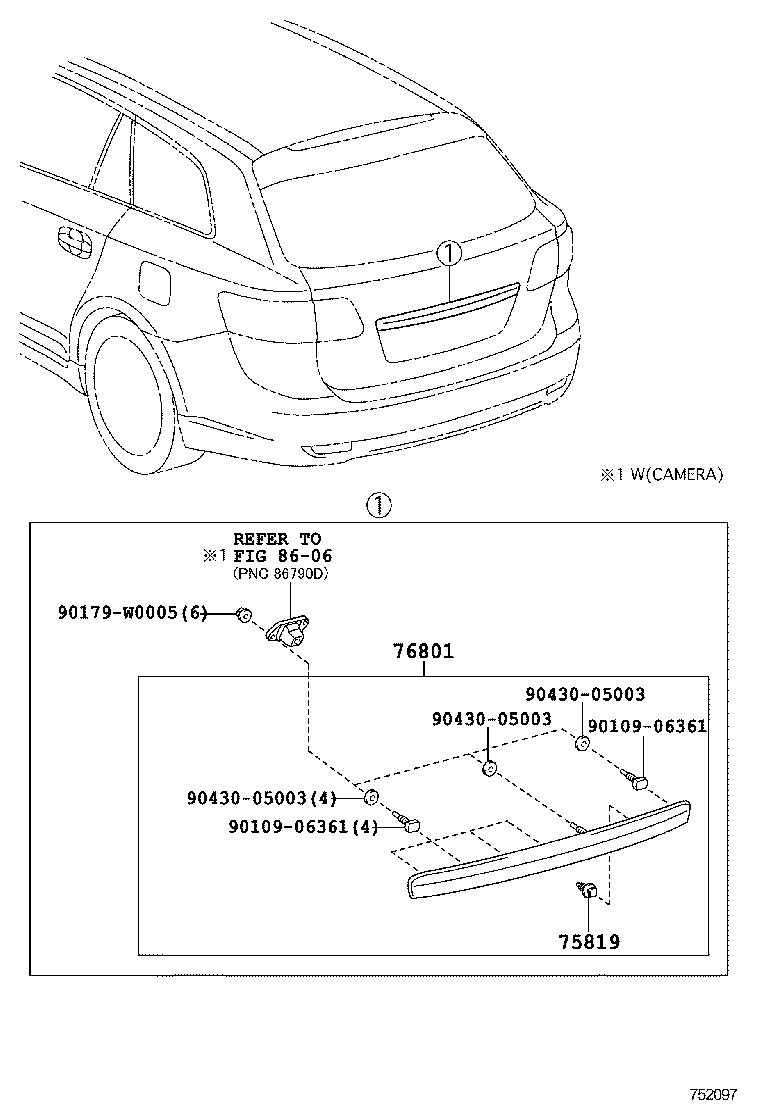

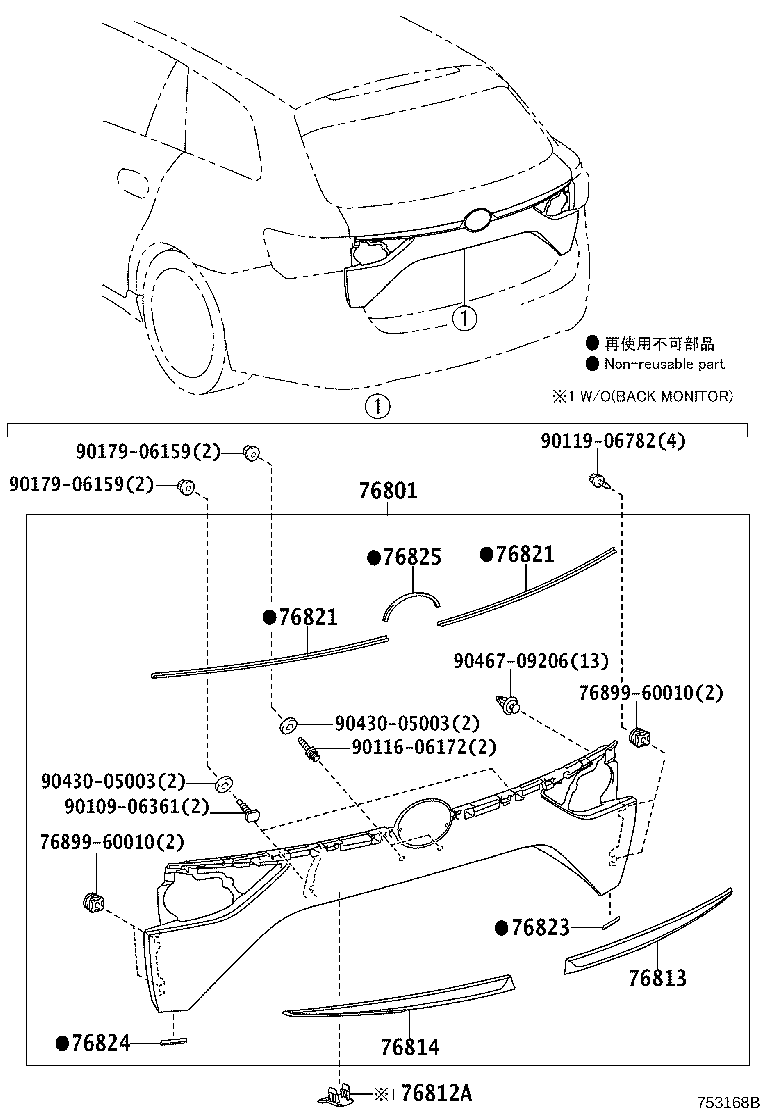

Figure 752098 752098 2008-11 → 2011-11 Figure 752570E 752570E 2011-11 → 2014-12 Figure 753122B 753122B 2014-12 → 2015-05 Figure 753167B 753167B 2015-05 → — Figure 752097 752097 2008-11 → 2011-11 Figure 752569D 752569D 2011-11 → 2014-12 Figure 753121B 753121B 2014-12 → 2015-05 Figure 753168B 753168B 2015-05 → —

Part groups

PNCDescription
75819 Clip, Luggage Compartment Door Moulding
76801 Garnish Sub-assy, Back Door, Outside
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76812A Garnish, Back Door, Outside NO.2
76812B Garnish, Luggage Compartment Door, Outside NO.2
76813 Garnish, Back Door Outside, Upper RH
76813B Garnish, Luggage Compartment Door Outside, Upper RH
76814 Garnish, Back Door Outside, Upper LH
76814A Garnish, Luggage Compartment Door Outside, Upper LH
76819 Seal, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76821A Protector, Luggage Compartment Door Outside Garnish
76821B Protector, Back Door Garnish Side, RH
76822B Protector, Back Door Garnish Side, LH
76823 Protector, Back Door Garnish Moulding, RH
76823A Protector, Luggage Compartment Door Garnish, Outside RH
76824 Protector, Back Door Garnish Moulding, LH
76824A Protector, Luggage Compt Door Garnish, Outside LH
76825 Protector, Back Door Outside Garnish
76825G Protector, Luggage Compartment Door Outside Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
