Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

13 part groups · 2 illustrations

Illustrations

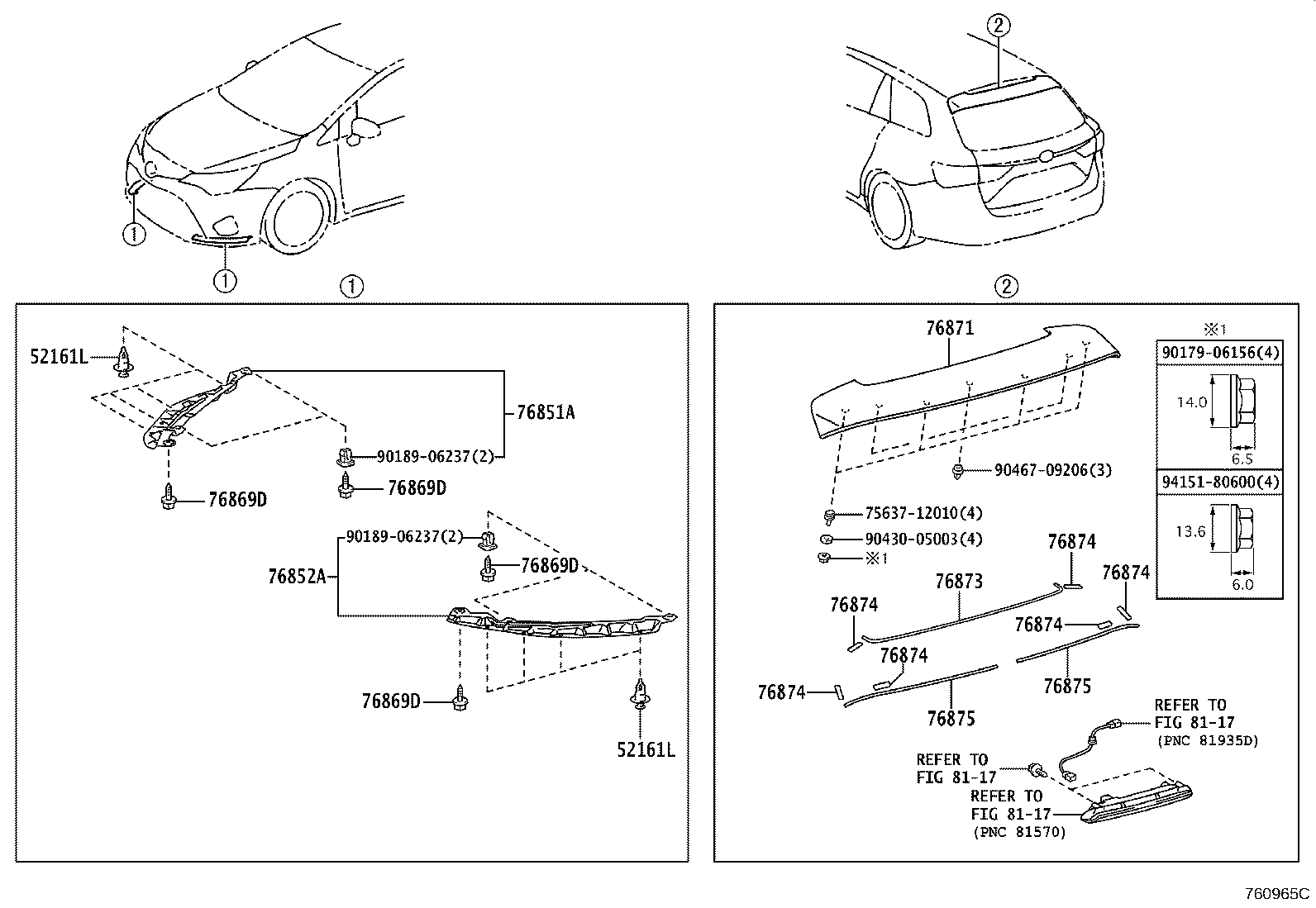

Figure 760672M 760672M 2008-11 → 2015-05 Figure 760965C 760965C 2015-05 → —

Part groups

PNCDescription
52161L Piece, Front Spoiler
76085 Spoiler Sub-assy, Rear
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76869C Grommet, Screw, NO.1
76869D Screw, NO.2
76871 Spoiler, Rear
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76879 Clip, Rear Spoiler, NO.1
76879B Clip, Rear Spoiler, NO.2
76889 Clip, Rear Spoiler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
