Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01
Fuel Tank & Tube

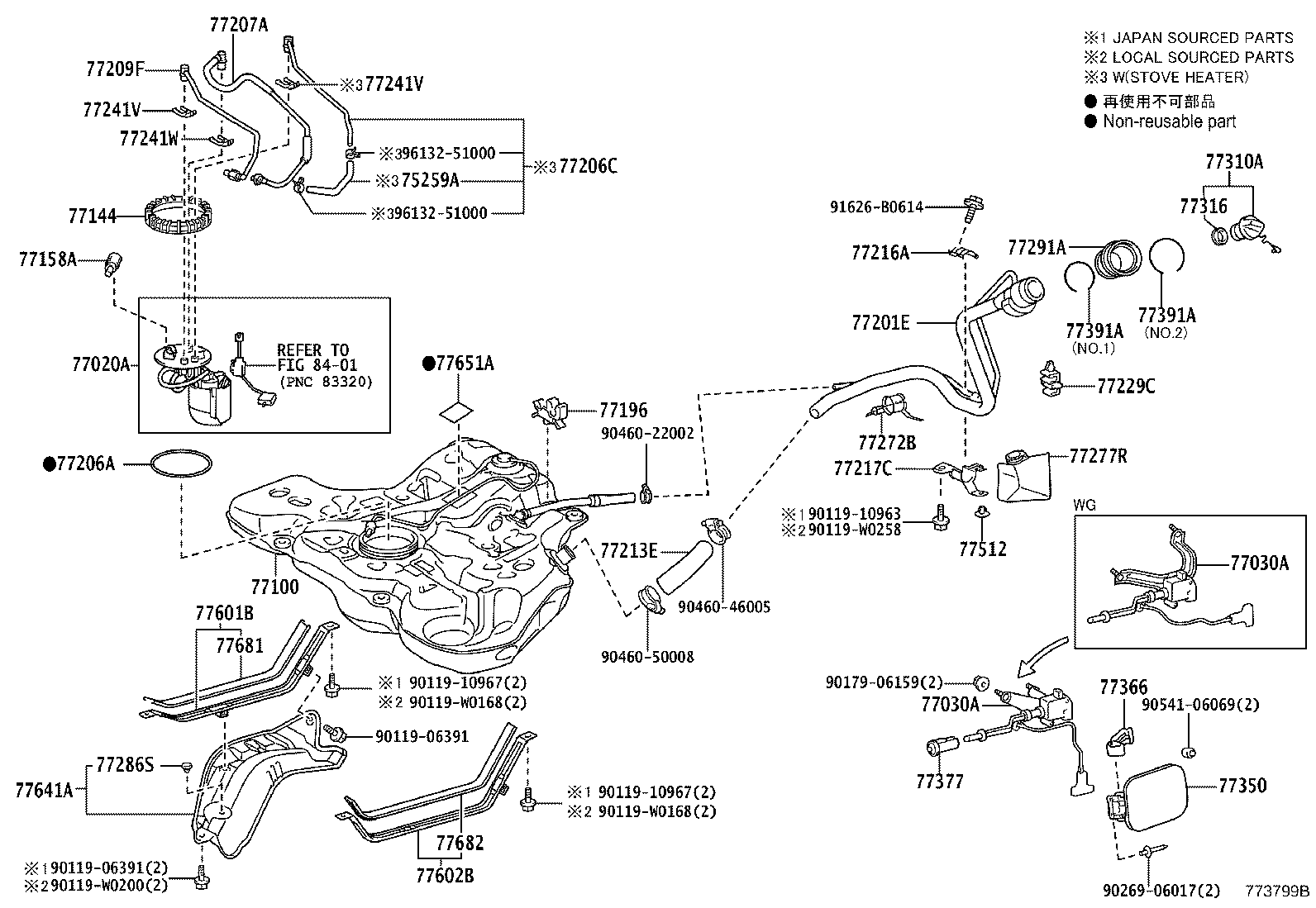

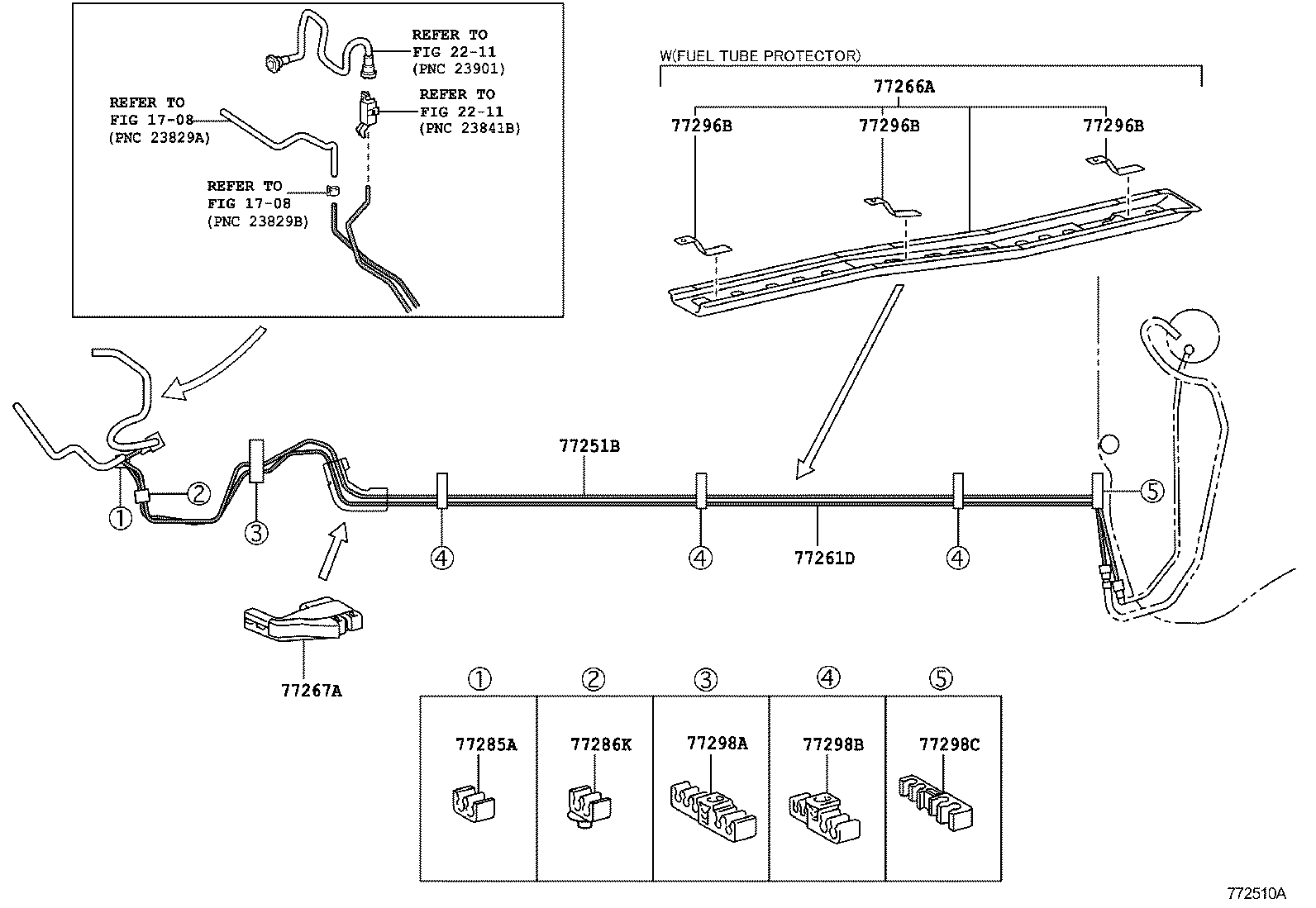

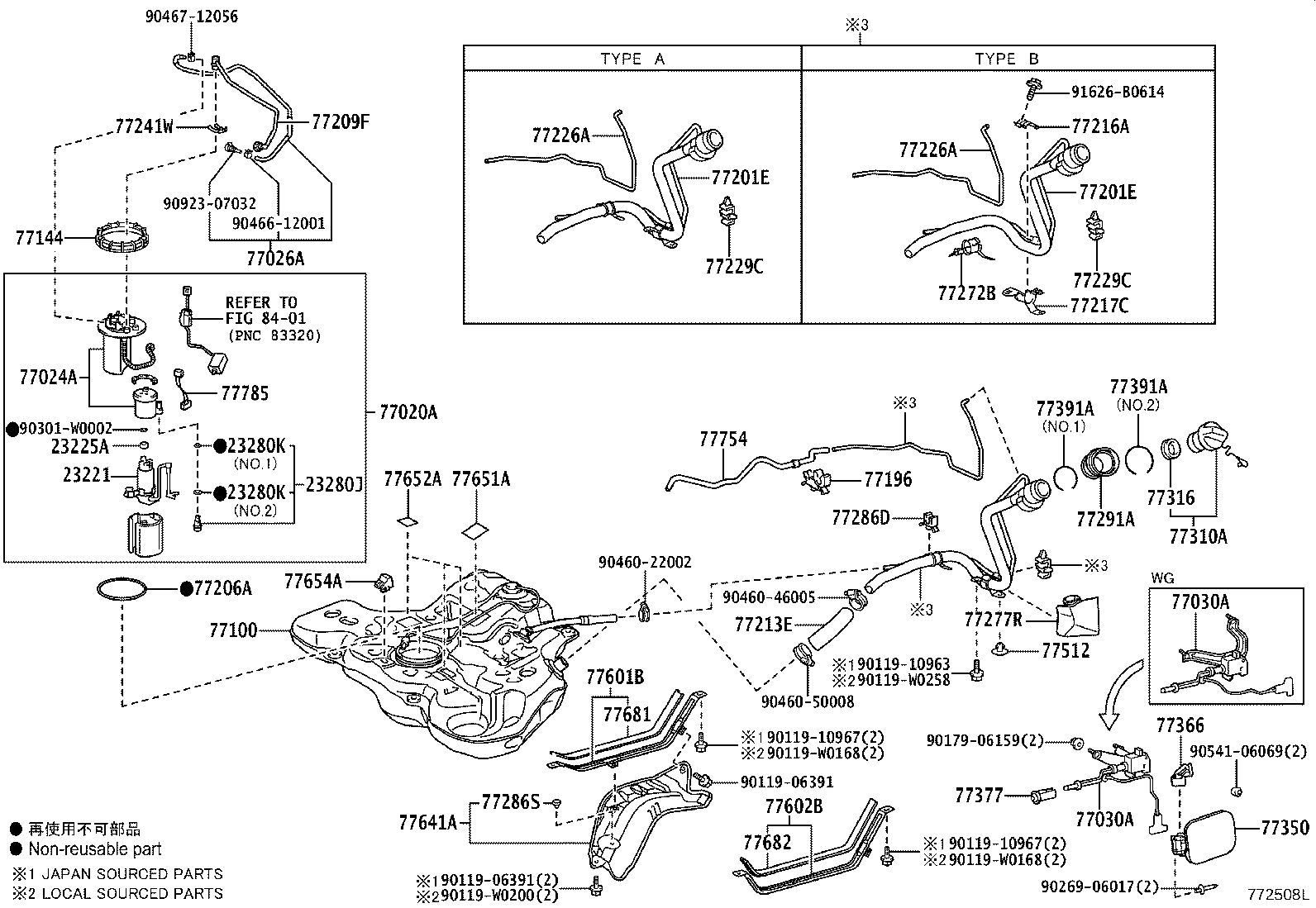

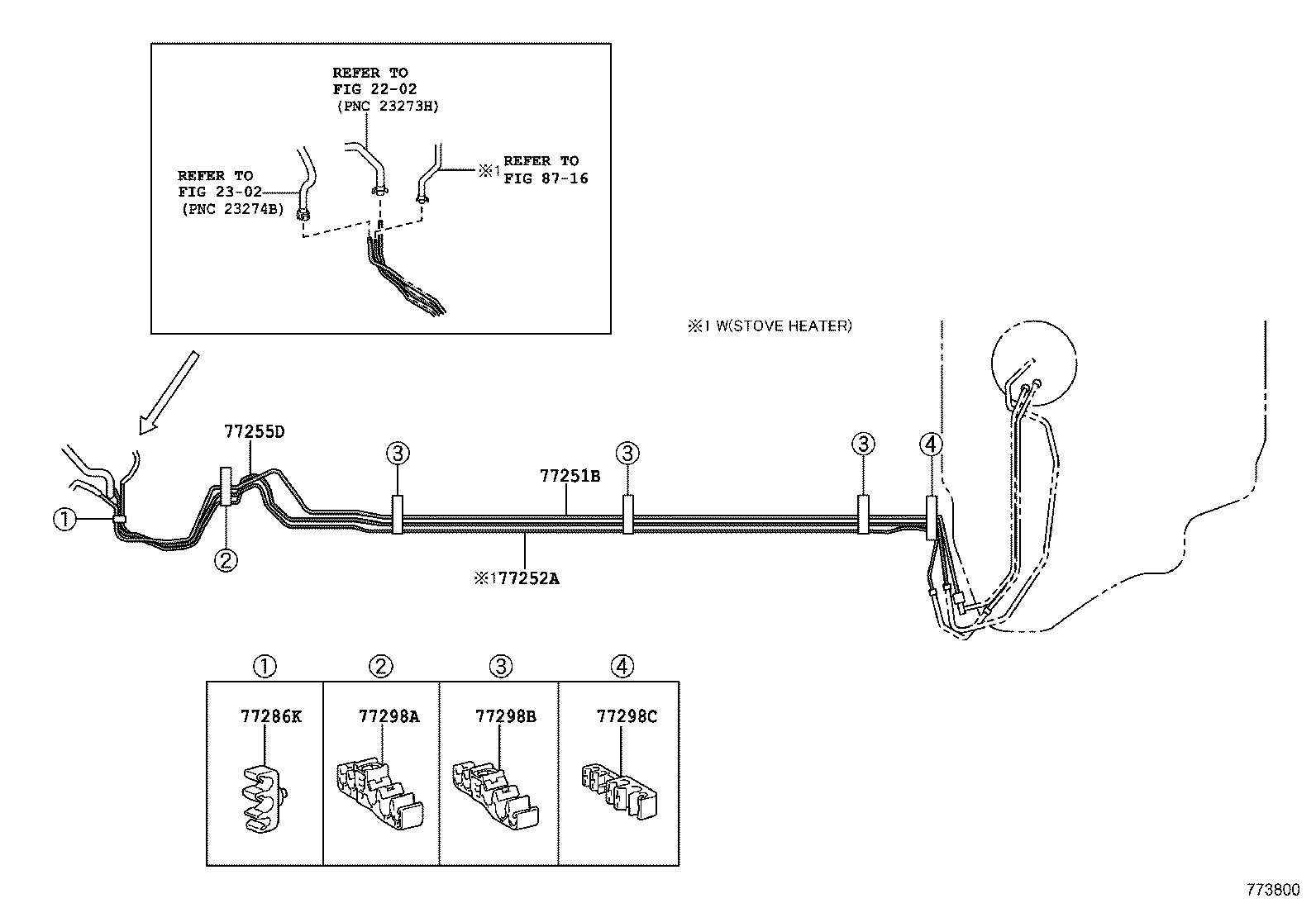

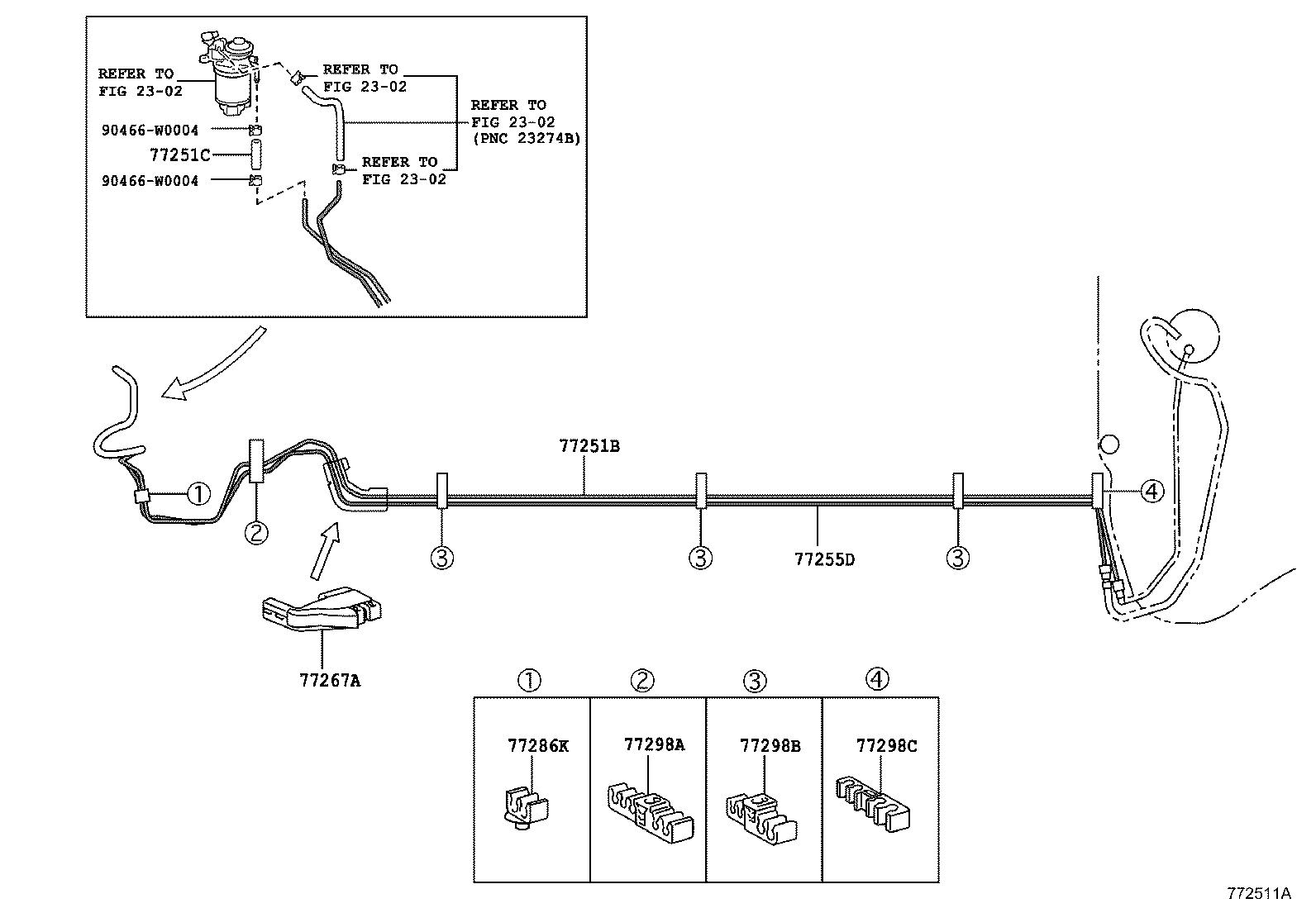

61 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 75259A | Hose, Fuel |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77025 | Tube Sub-assy, Fuel Main & Return, Rear |
| 77026A | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77030A | Lock Assy, Fuel Lid W/Motor |
| 77100 | Tank Assy, Fuel |
| 77144 | Retainer, Fuel Pump Gauge |
| 77158A | Support, Tank Suction Tube |
| 77196 | Clamp, Evaporation Vent Tube, NO.1 |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77206A | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77206C | Tube Sub-assy, Fuel Main, NO.2 |
| 77207A | Tube Sub-assy, Fuel Return |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77213E | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217C | Support, Fuel Tank Filler Pipe, NO.2 |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77229C | Clamp, Breather Tube |
| 77241V | Clip, Tube Joint |
| 77241W | Clip, Tube Joint |
| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77252A | Tube, Fuel Main, NO.2 |
| 77255D | Tube, Fuel Return |
| 77261D | Tube, Fuel Tank TO Canister |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77272B | Support, Breather Tube, NO.1 |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77285A | Support, Fuel Return And Main Tube |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286K | Clamp, Fuel Tube, NO.2 |
| 77286S | Cushion, Fuel Tank Protector |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77296B | Support, Fuel Tube Protector, NO.1 |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77298C | Clamp, Fuel Tube, NO.4 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391A | Ring, Fuel Inlet Box |
| 77512 | Bracket, Fuel Tank, Rear |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77654A | Cushion, Fuel Tank, NO.4 |
| 77681 | Seat, Fuel Tank Band, RH |
| 77682 | Seat, Fuel Tank Band, LH |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77785 | Harness, Fuel Pump |
