Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01

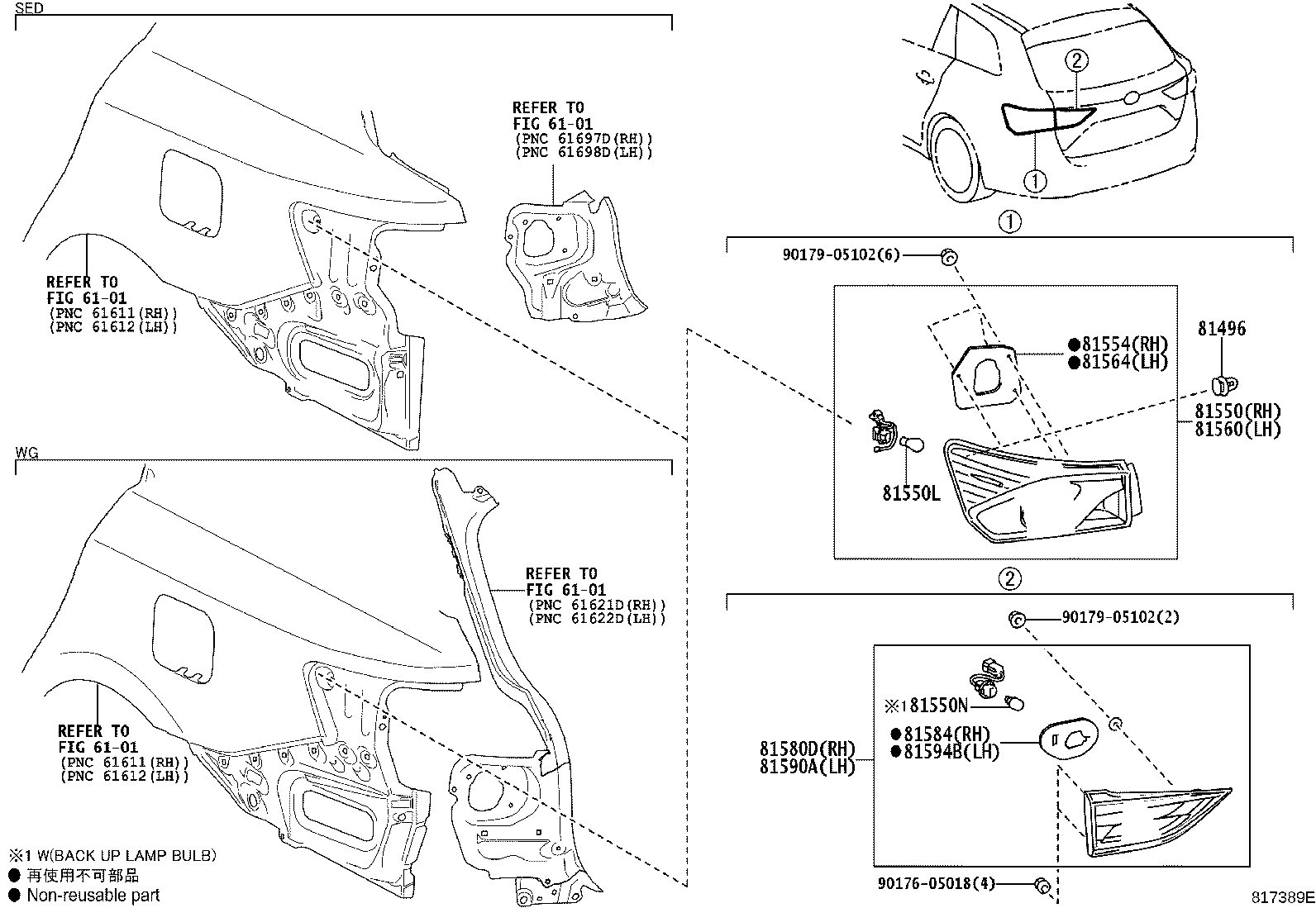

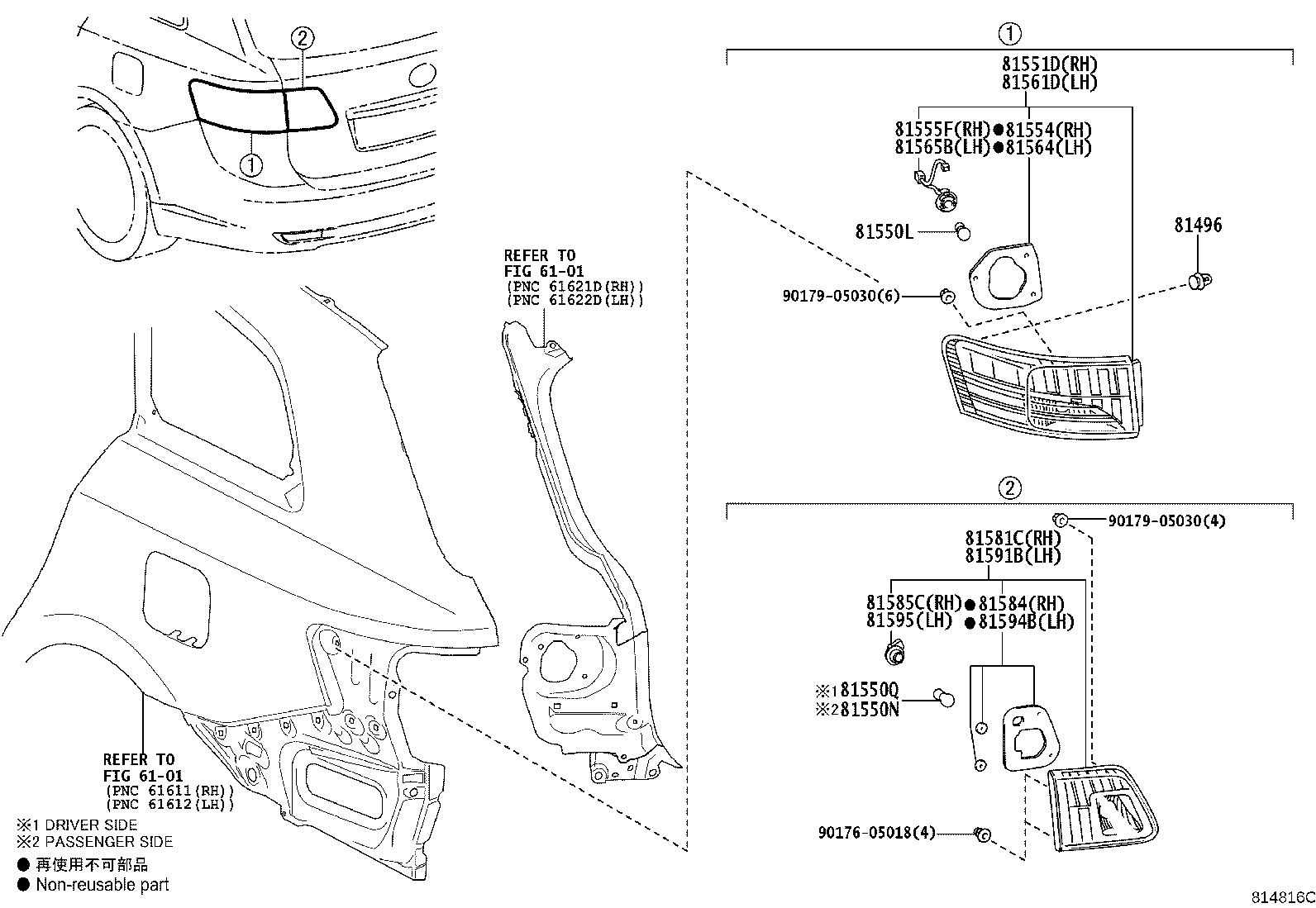

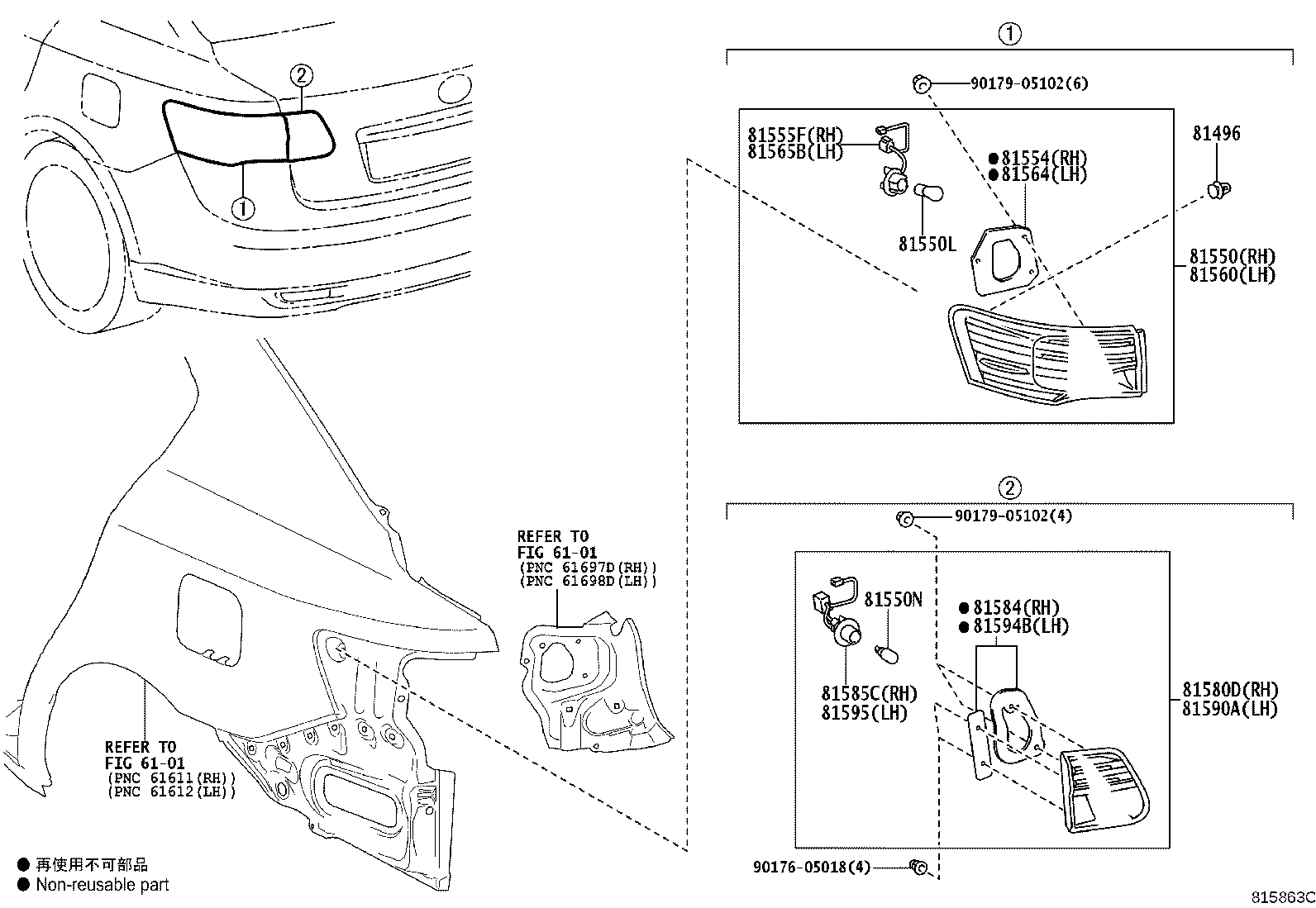

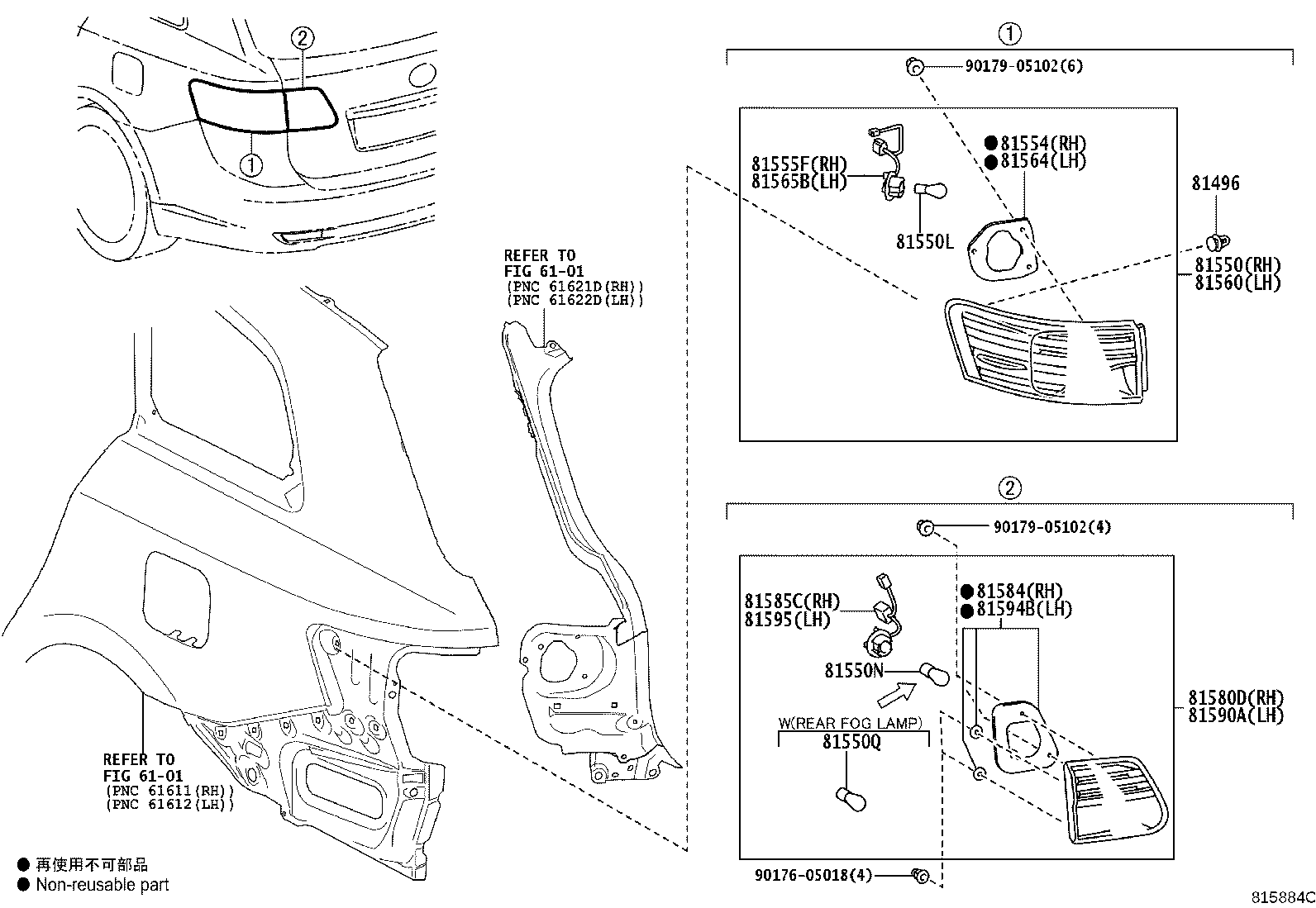

Rear Combination Lamp
20 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550Q | Bulb, Rear Fog Lamp, NO.1 |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81554 | Gasket, Rear Combination Lamp Body, RH |
| 81555F | Holder, Rear Combination Lamp Bulb, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81564 | Gasket, Rear Combination Lamp Body, LH |
| 81565B | Holder, Rear Combination Lamp Bulb, LH |
| 81580D | Lamp Assy, Rear, RH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584 | Packing, Rear Lamp RH |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 81590A | Lamp Assy, Rear, LH |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594B | Packing, Rear Lamp LH |
| 81595 | Socket & Wire, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
