Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

66 part groups · 18 illustrations

Illustrations

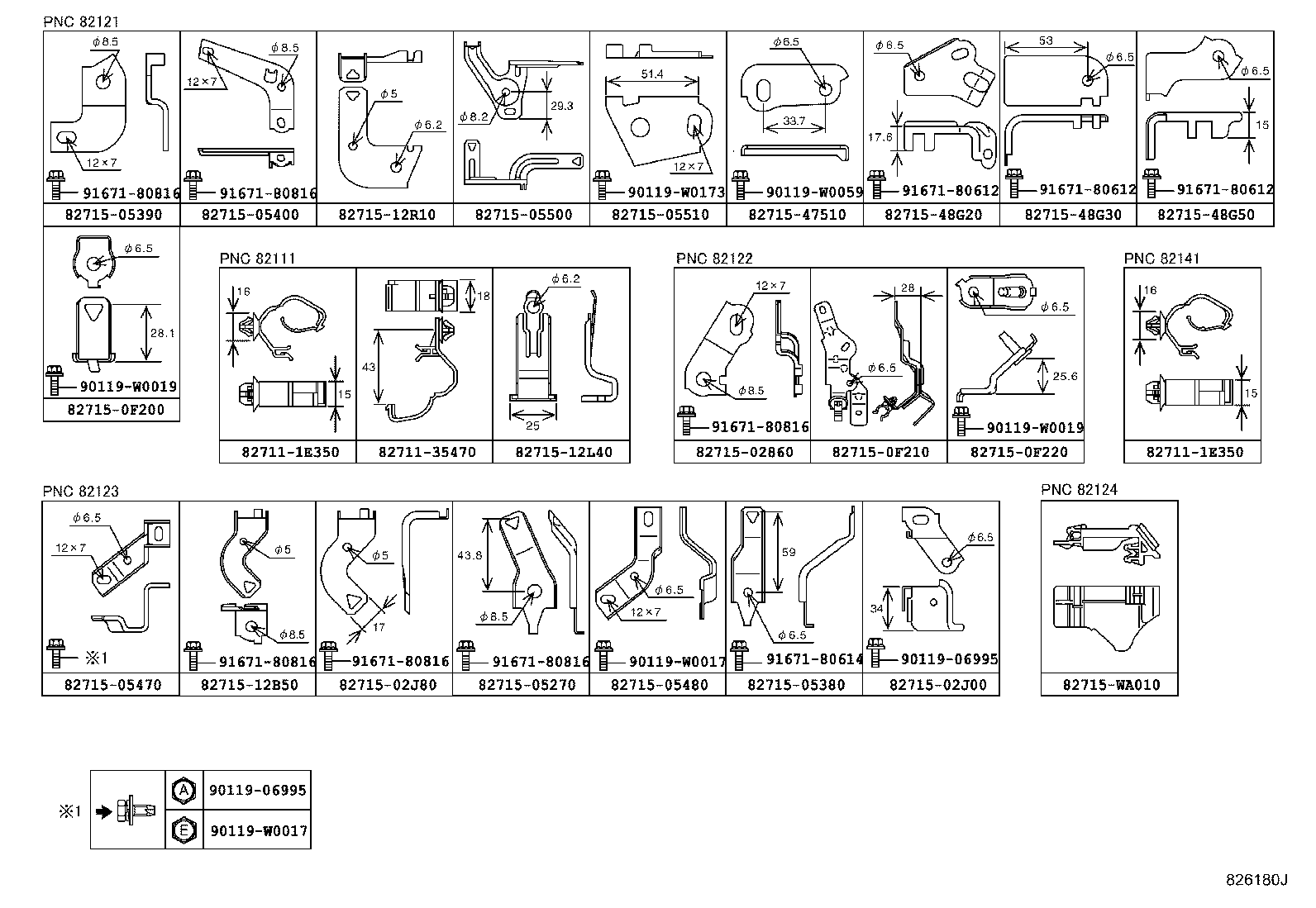

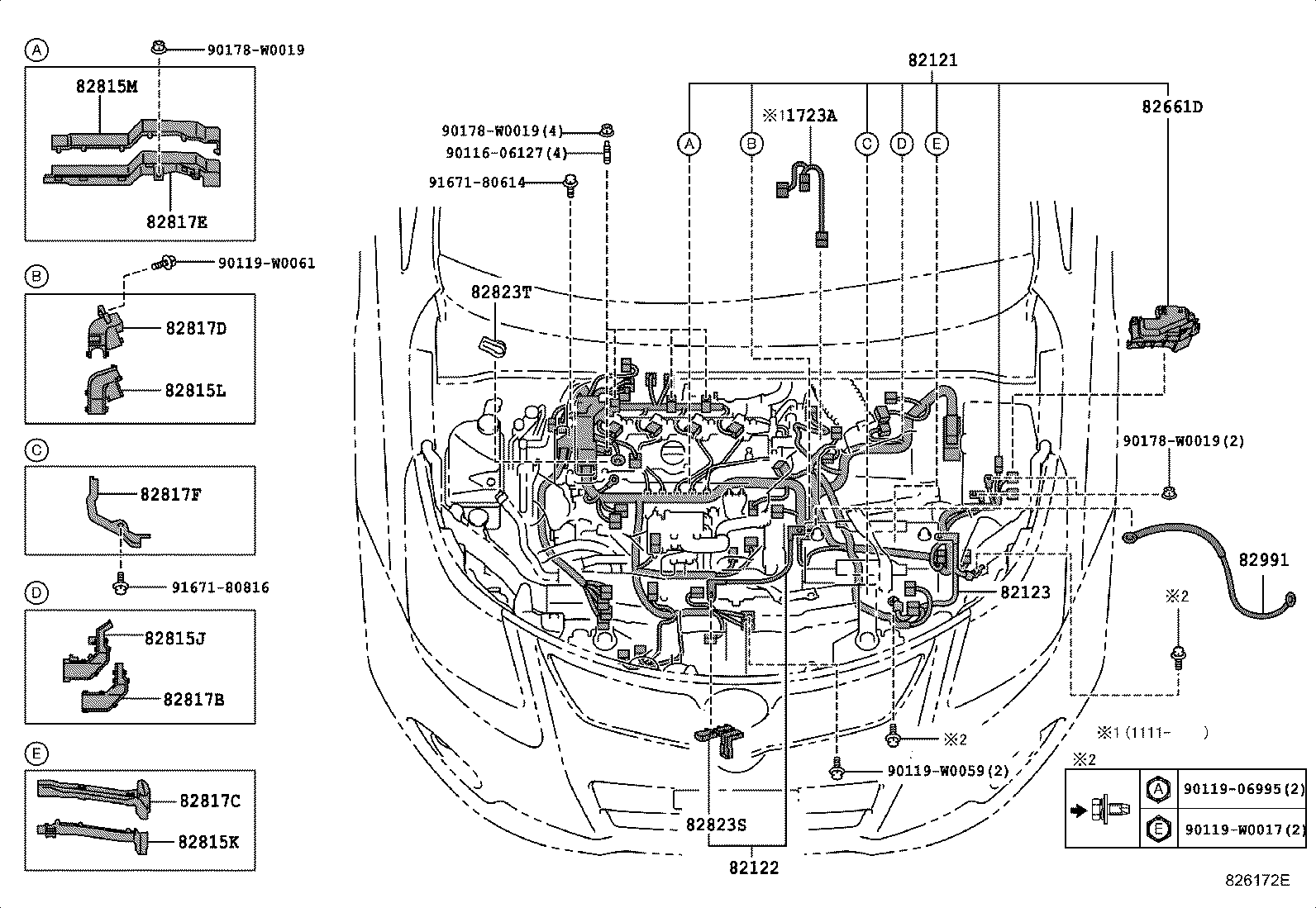

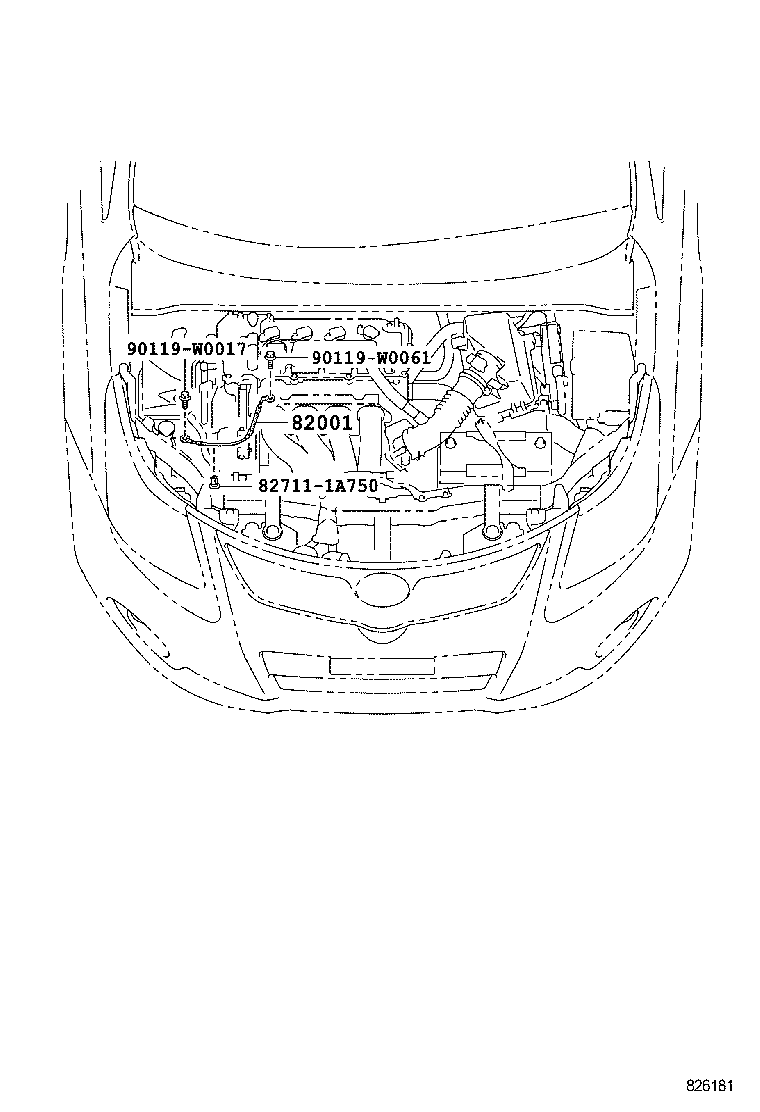

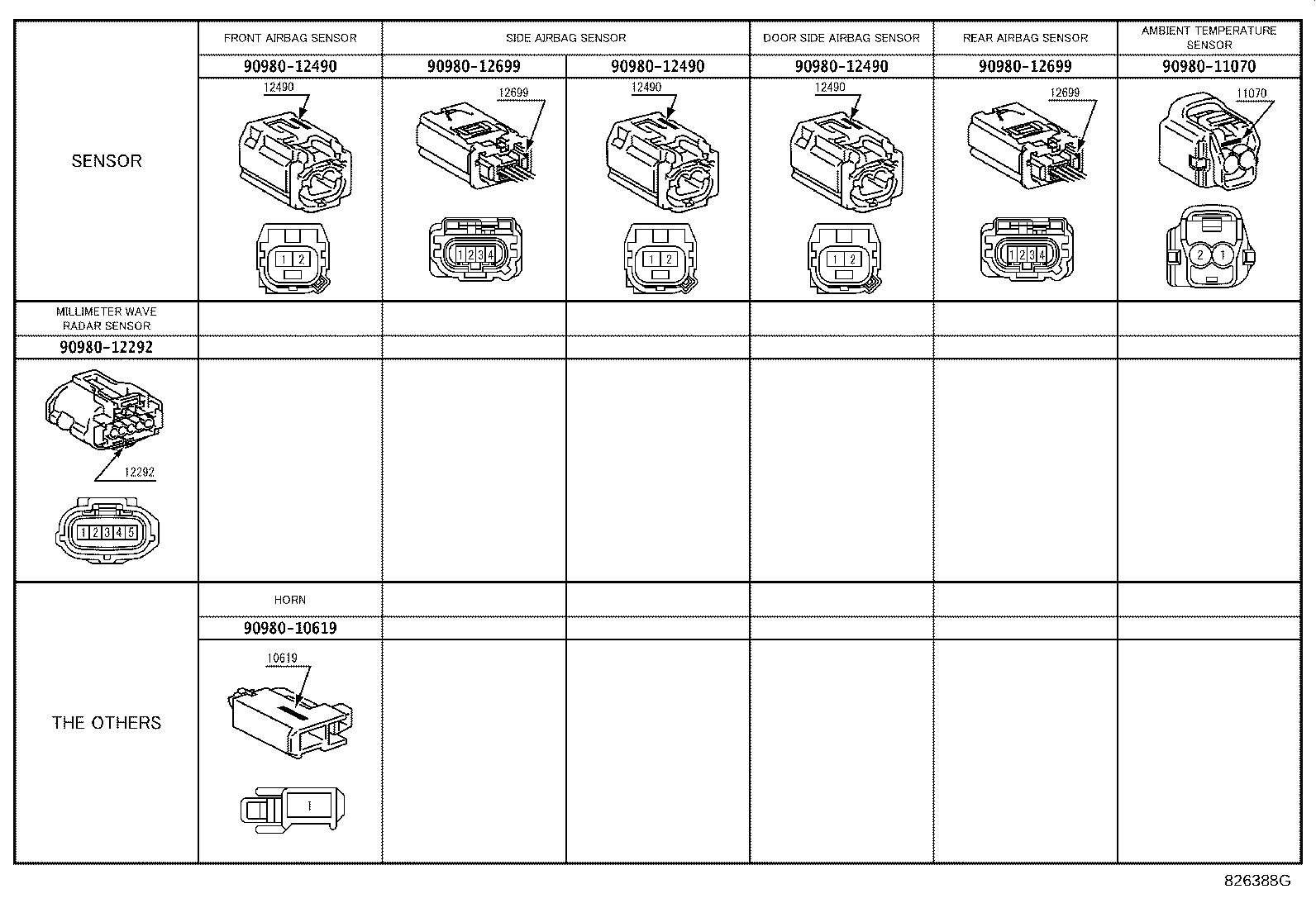

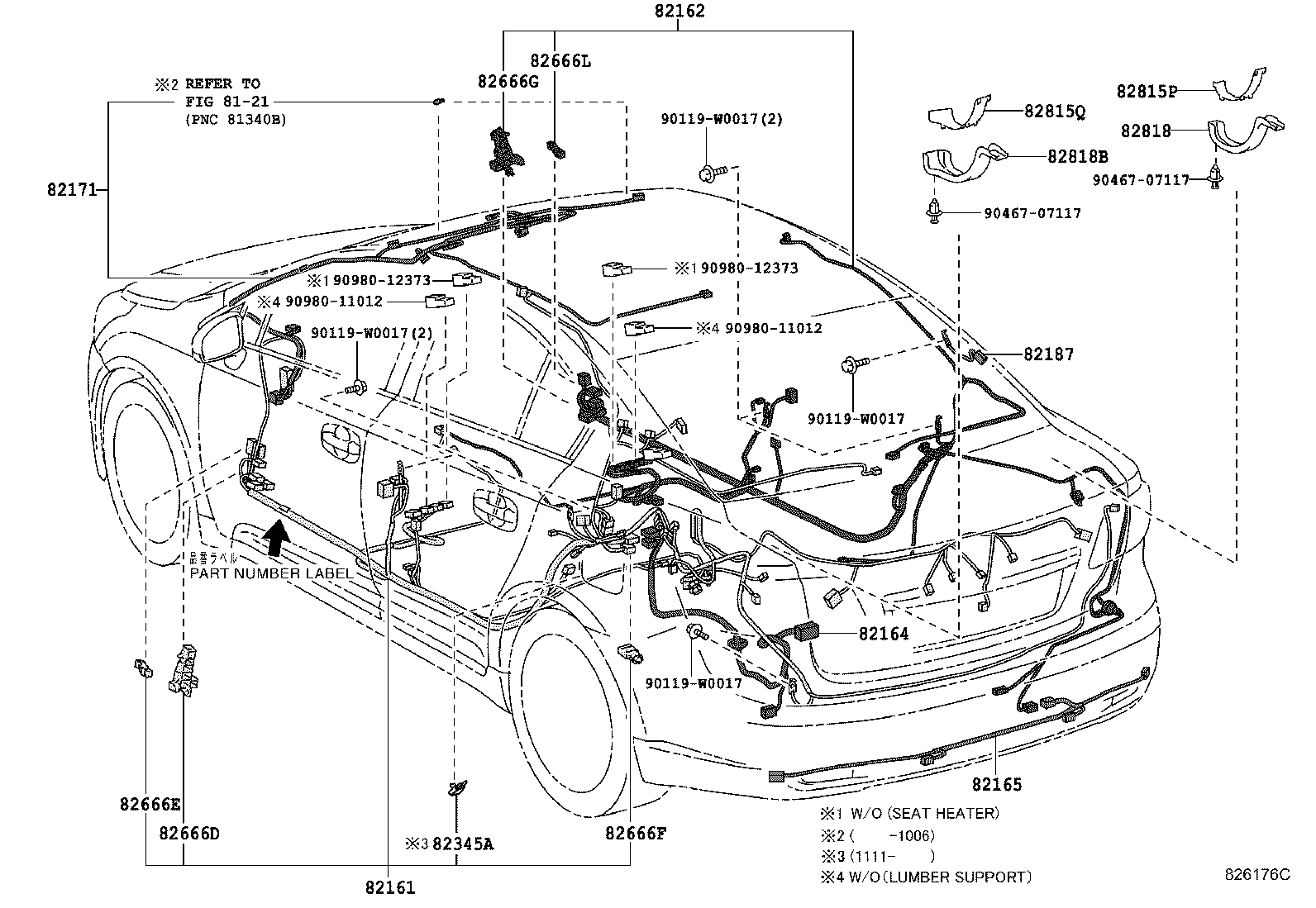

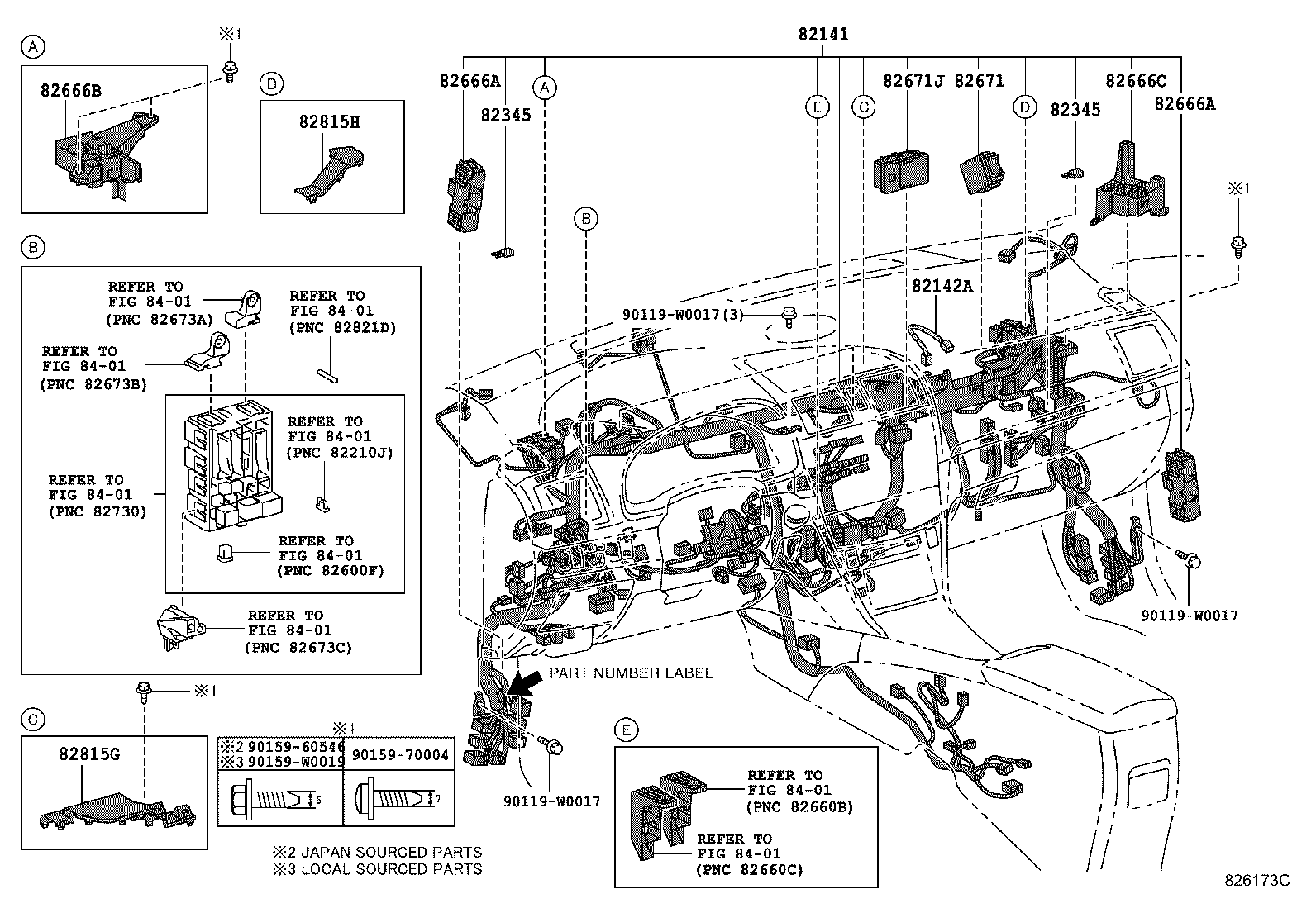

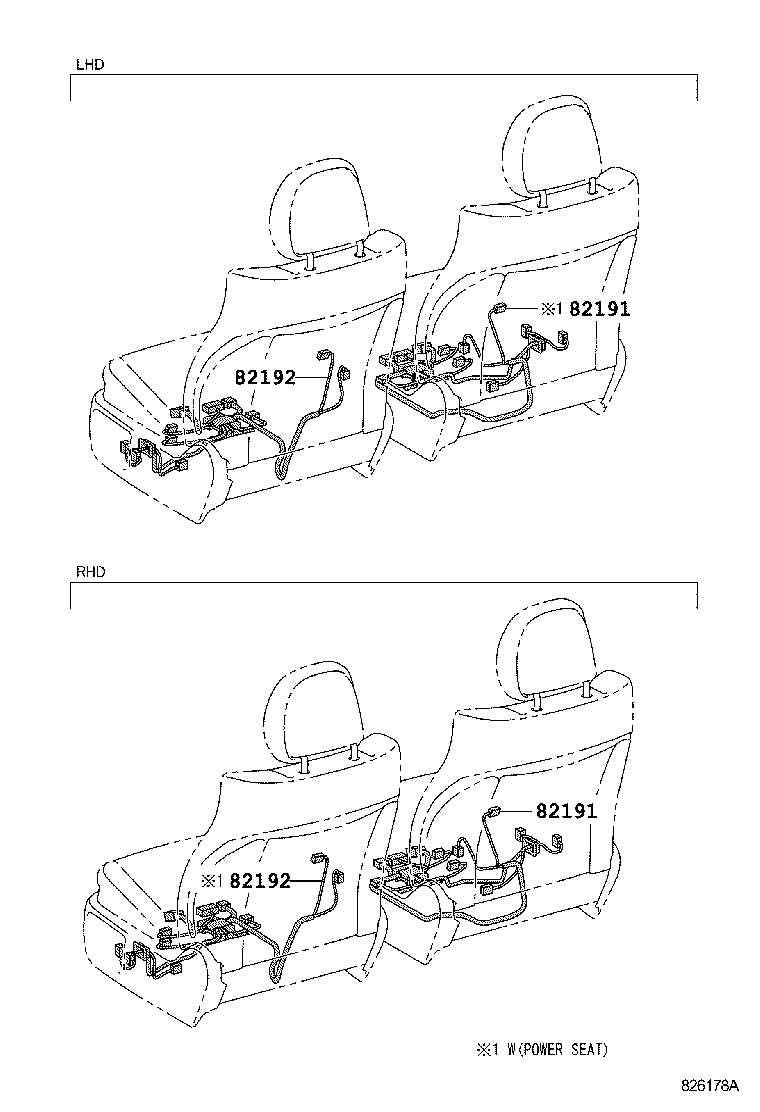

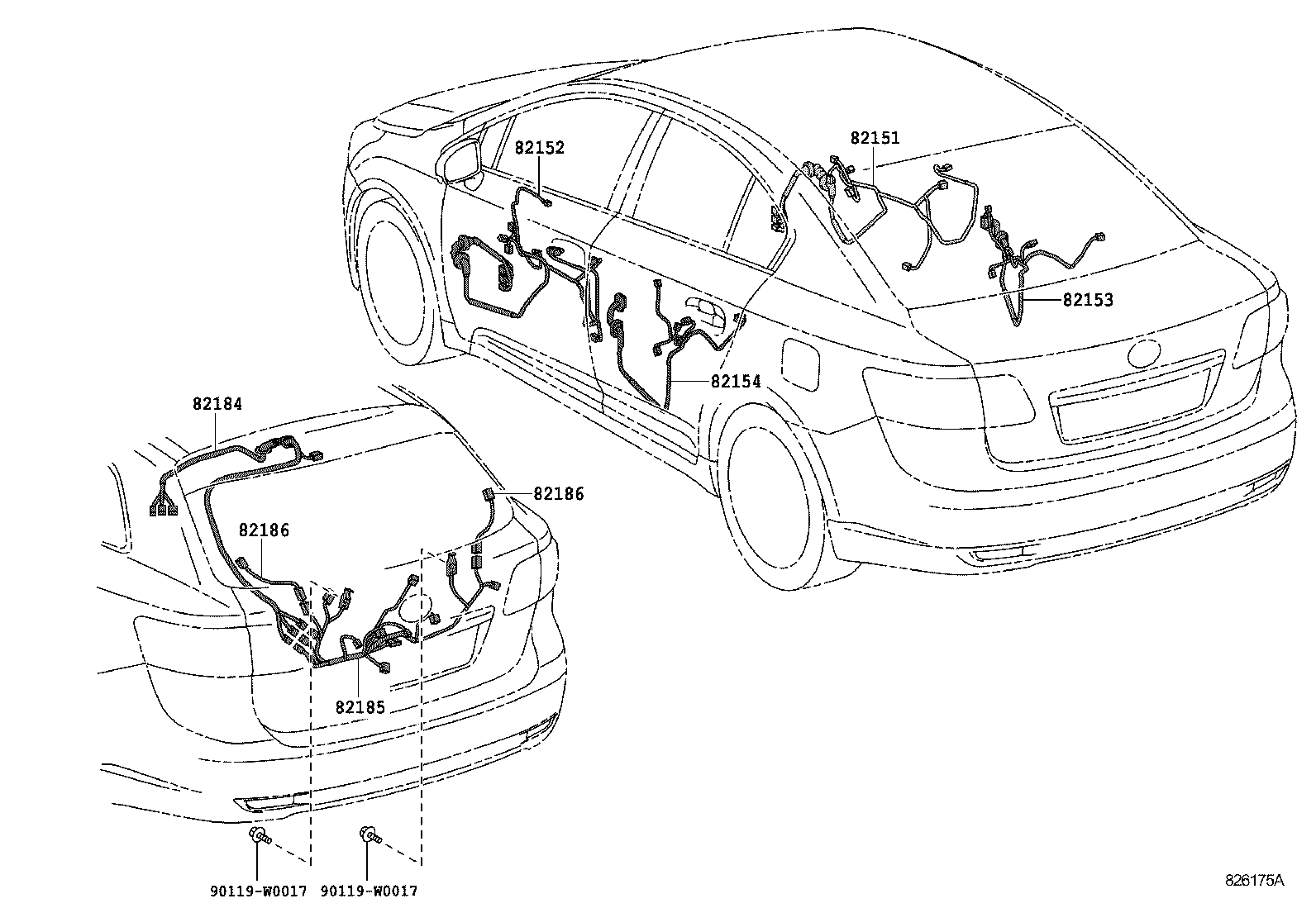

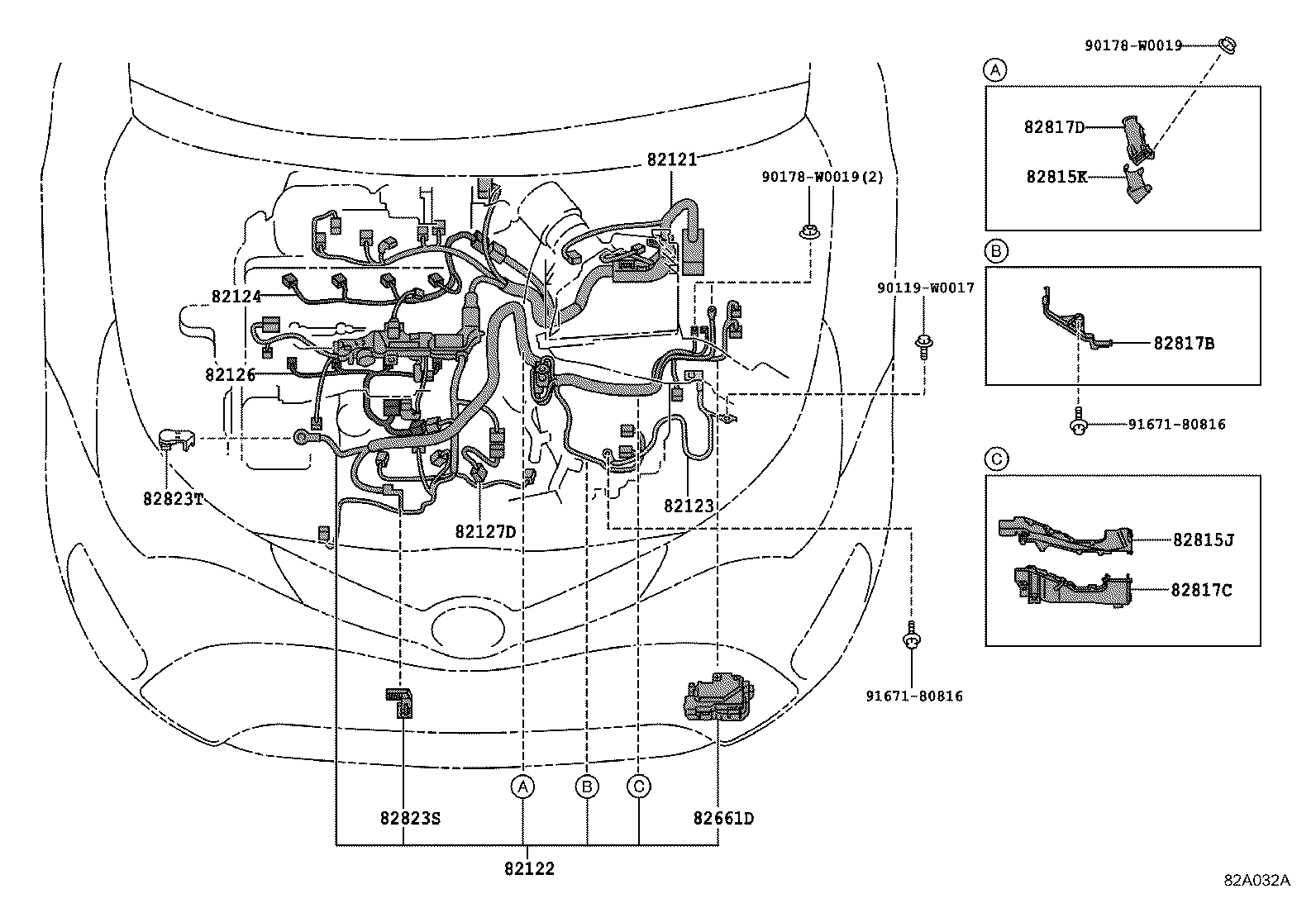

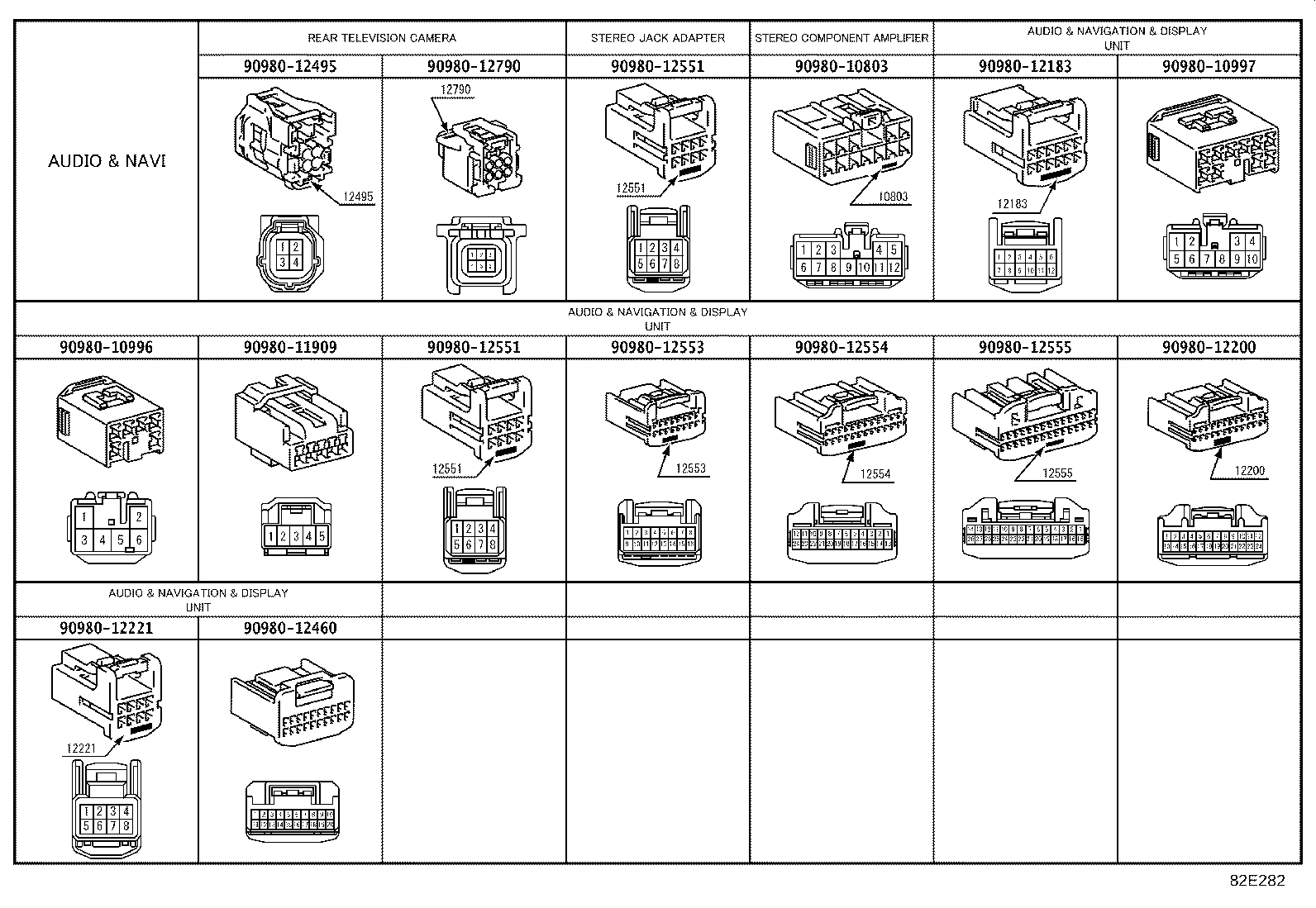

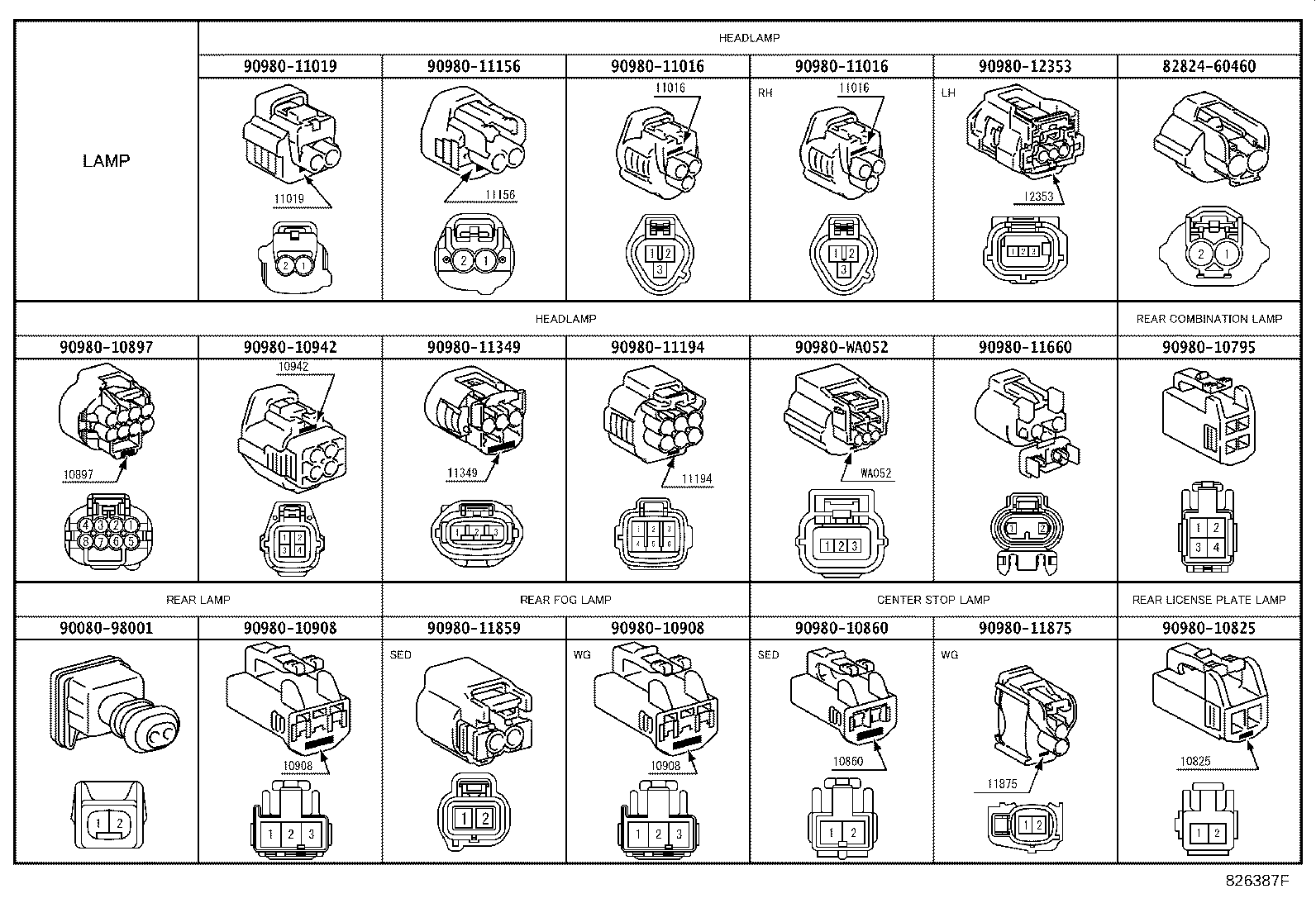

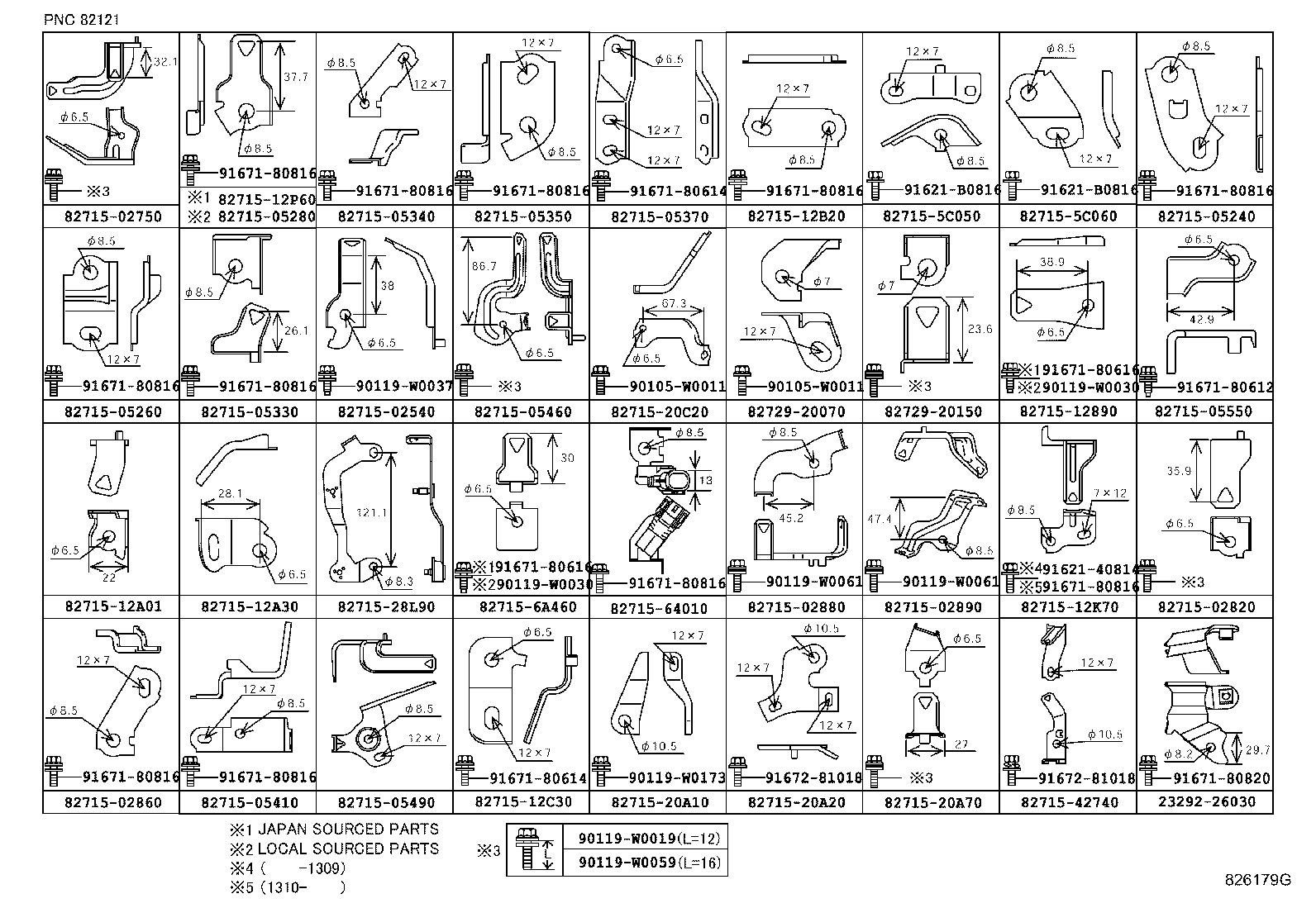

Figure 826168H 826168H 2008-11 → — Figure 826169I 826169I 2008-11 → — Figure 826170F 826170F 2008-11 → — Figure 826171E 826171E 2008-11 → — Figure 826172E 826172E 2008-11 → — Figure 82A032A 82A032A 2015-05 → — Figure 826173C 826173C 2008-11 → — Figure 826174D 826174D 2008-11 → — Figure 826175A 826175A 2008-11 → — Figure 826176C 826176C 2008-11 → — Figure 826177D 826177D 2008-11 → — Figure 826178A 826178A 2008-11 → — Figure 826179G 826179G 2008-11 → — Figure 826180J 826180J 2008-11 → — Figure 826181 826181 2008-11 → — Figure 826387F 826387F 2008-11 → — Figure 826388G 826388G 2008-11 → — Figure 82E282 82E282 2008-11 → —

Part groups

PNCDescription

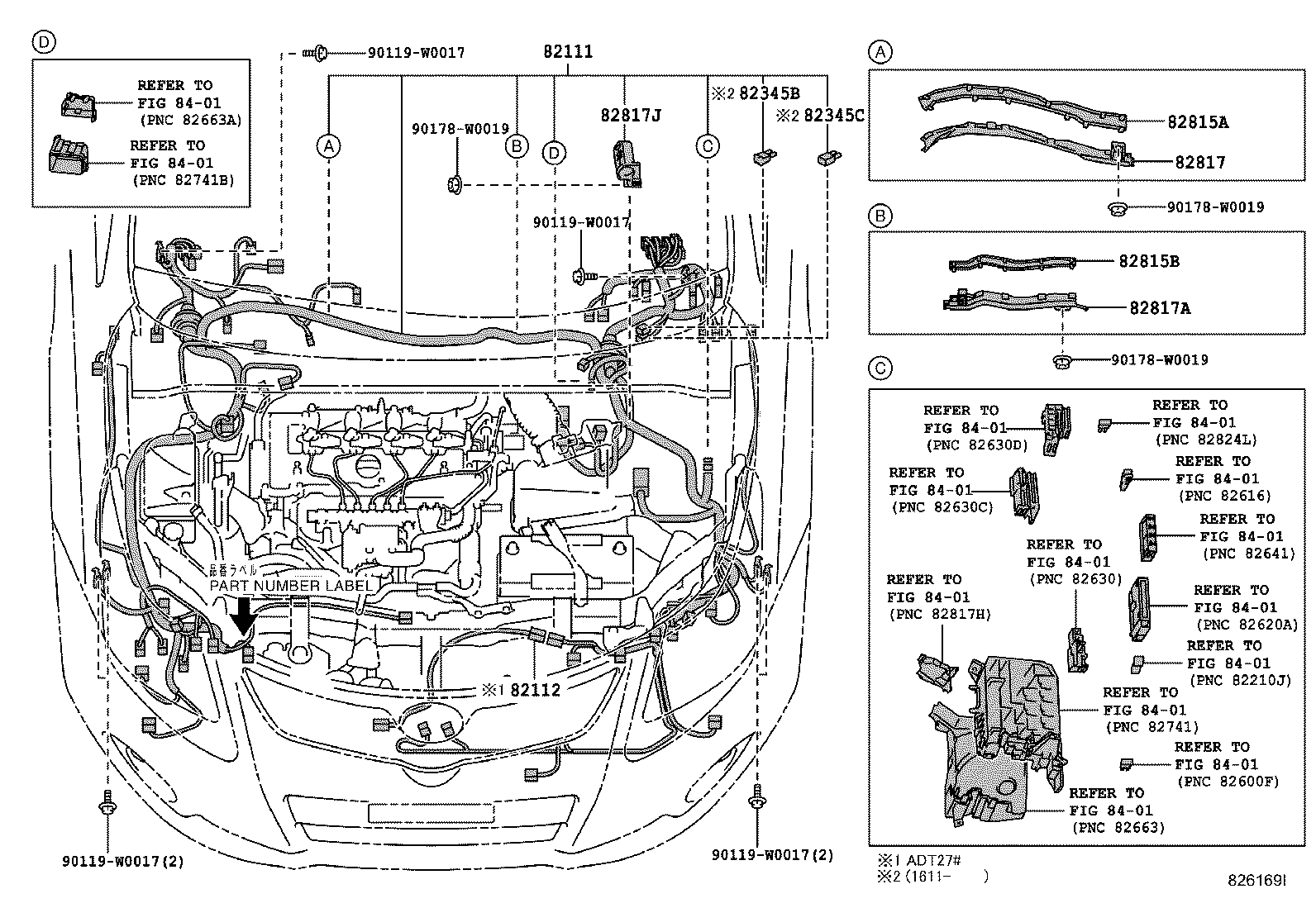

1723A Wire, Turbocharger
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2

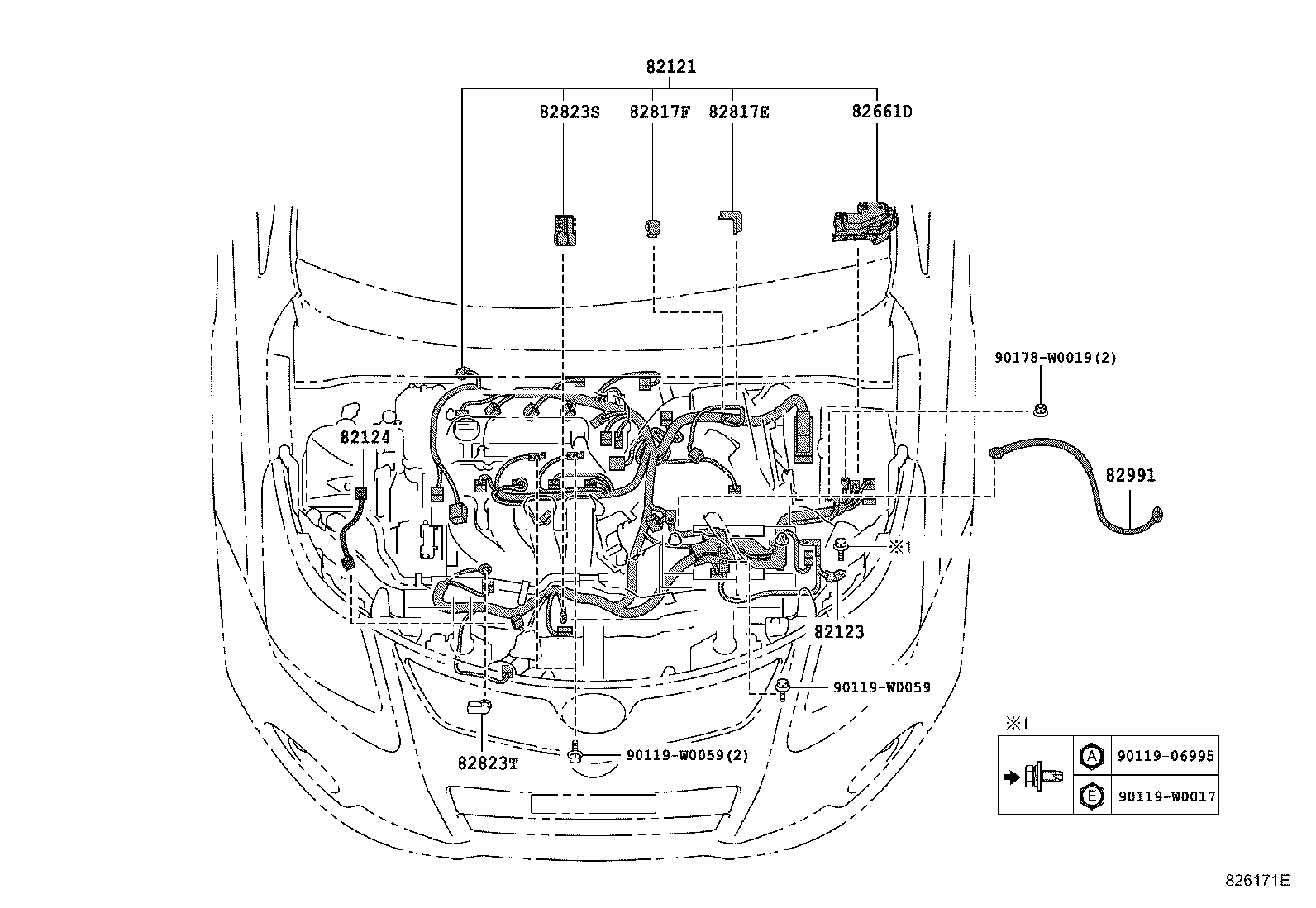

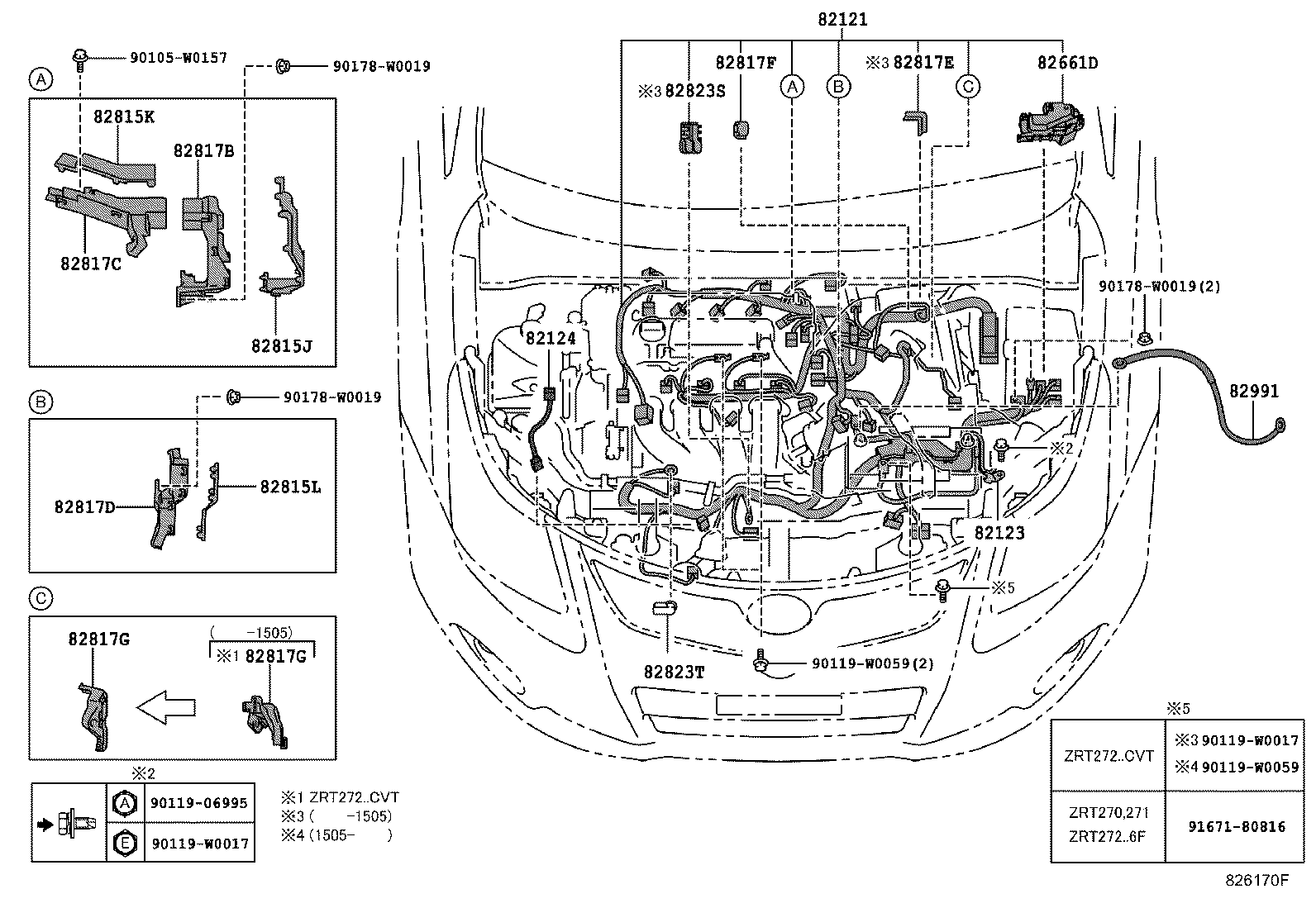

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82126 Wire, Engine
82127D Wire, Engine, NO.7

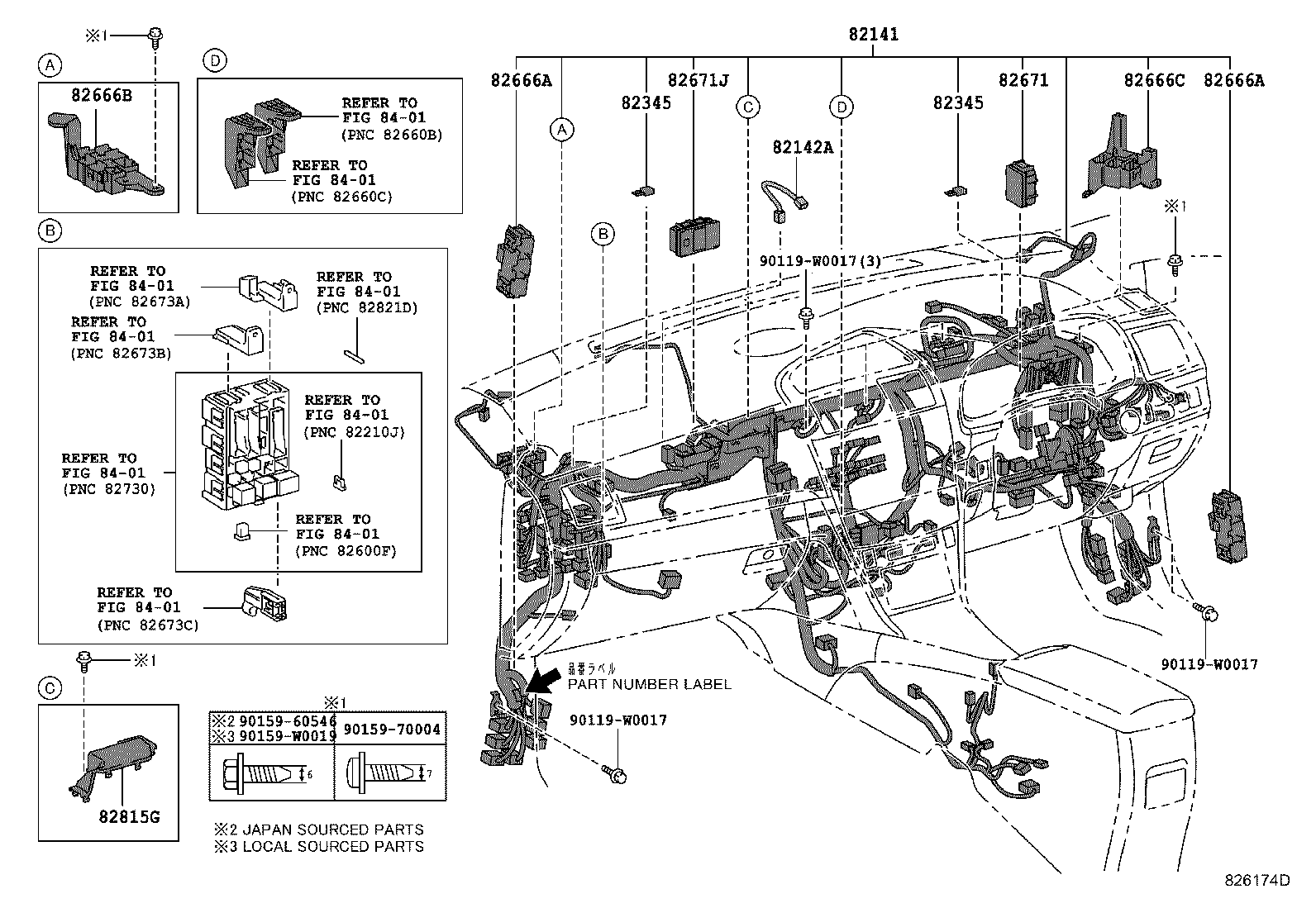

82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

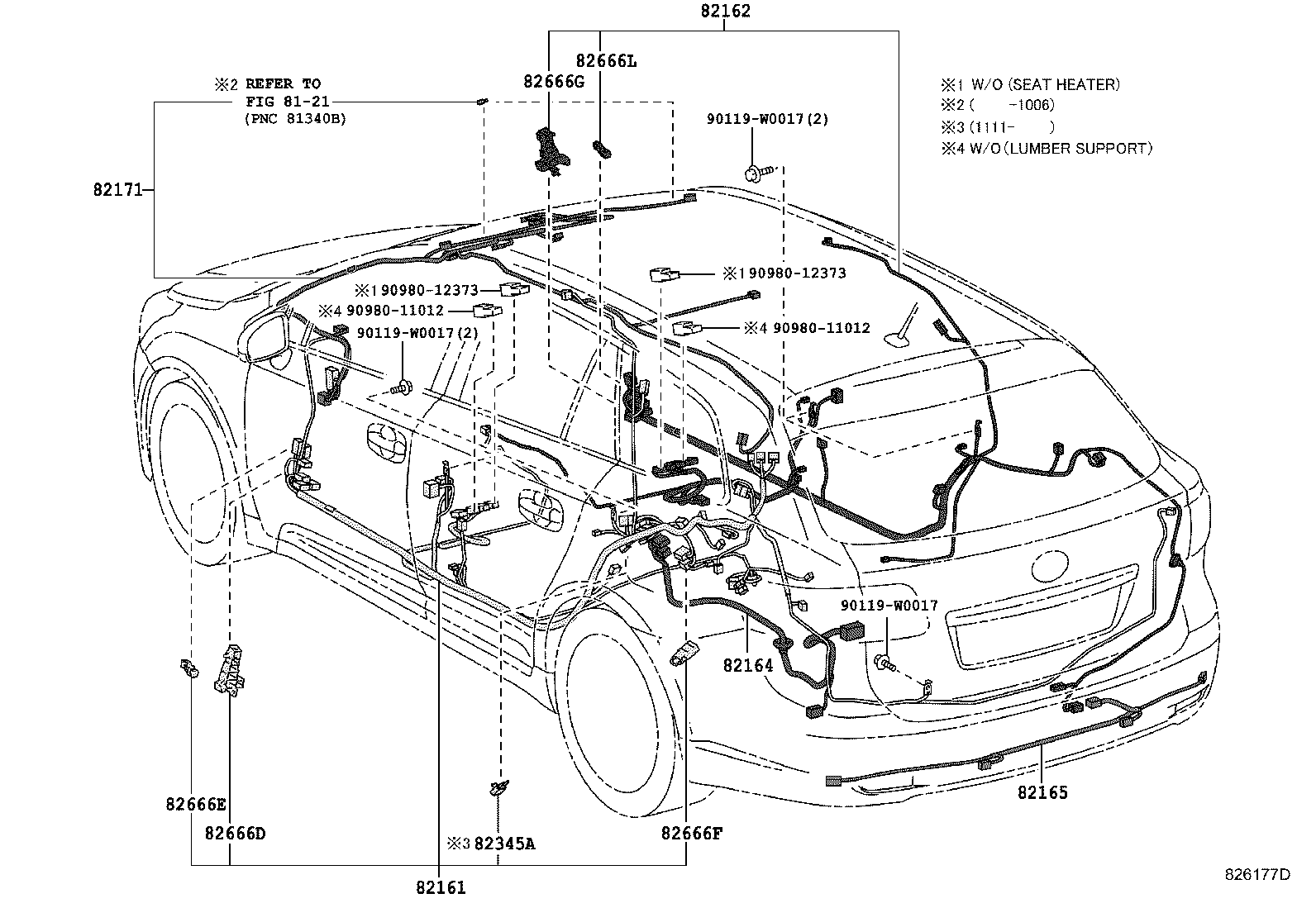

82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82345 Diode
82345A Diode
82345B Diode
82345C Diode
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82671 Block, Junction
82671J Block, Junction, NO.2
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
