Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

6 part groups · 6 illustrations

Illustrations

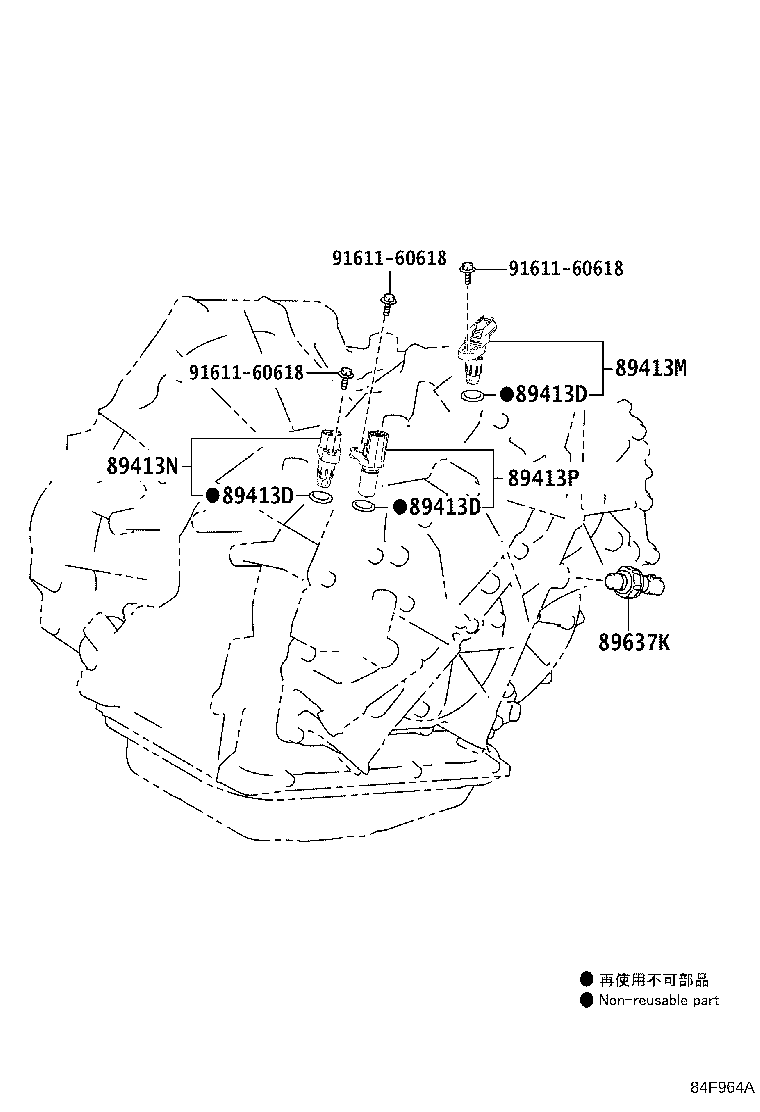

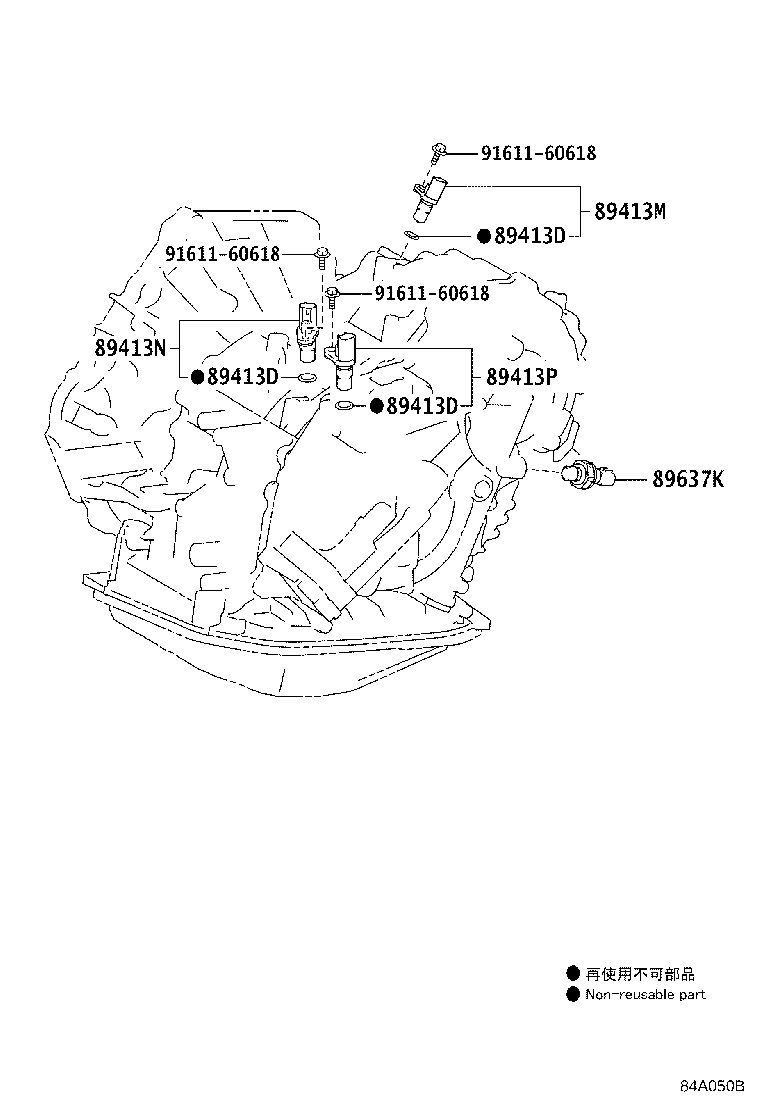

Figure 84A049B 84A049B 2008-11 → 2015-05 Figure 84F963A 84F963A 2015-05 → — Figure 84A050B 84A050B 2008-11 → 2015-05 Figure 84F964A 84F964A 2015-05 → — Figure 84A051A 84A051A 2008-11 → — Figure 84A496A 84A496A 2009-02 → 2015-05

Part groups

PNCDescription
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89413M Sensor, Transmission Revolution, (NOUT)
89413N Sensor, Transmission Revolution, (NT)
89413P Sensor, Transmission Revolution, (NIN)
89637K Sensor, Oil Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
