Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

8 part groups · 6 illustrations

Illustrations

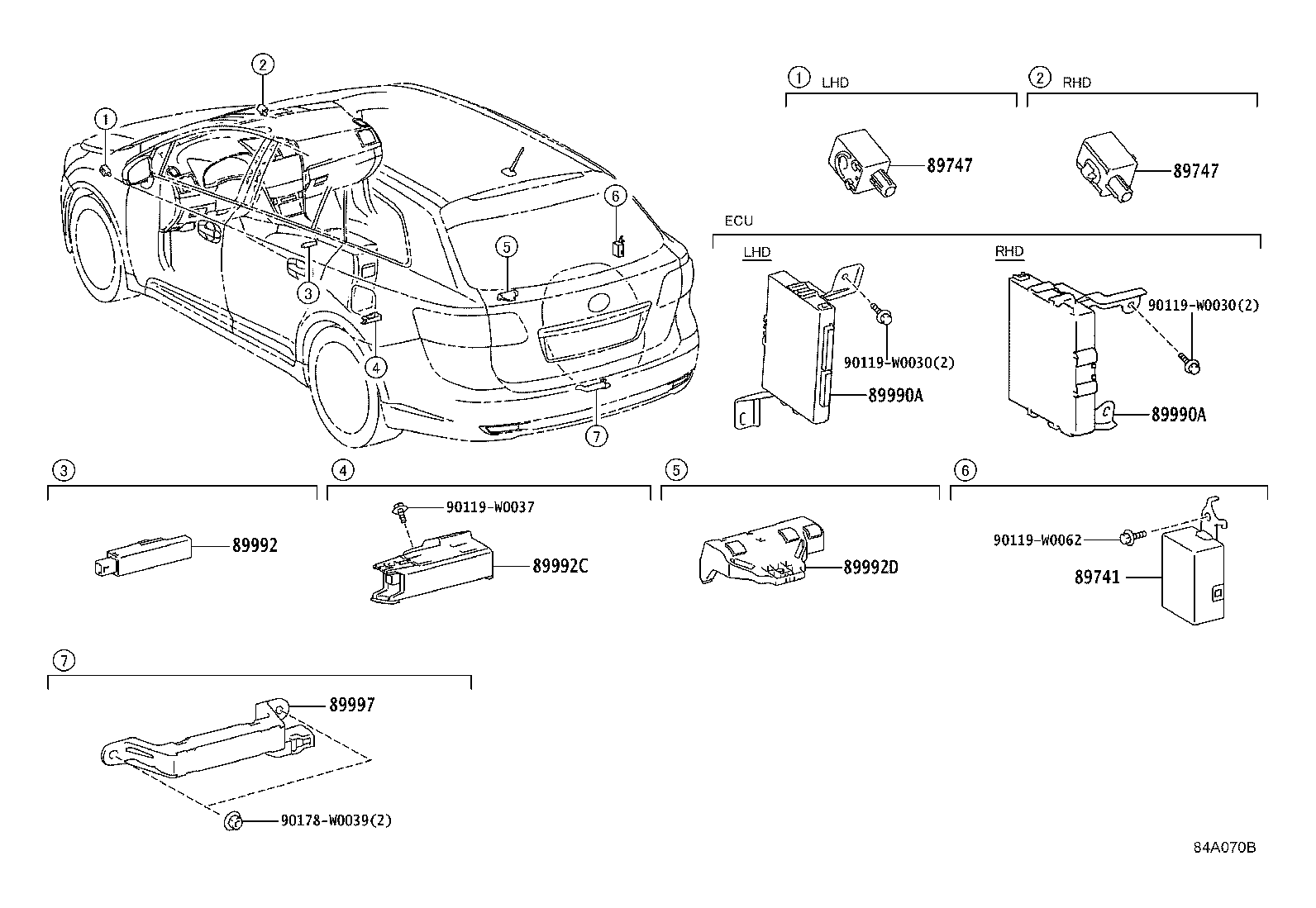

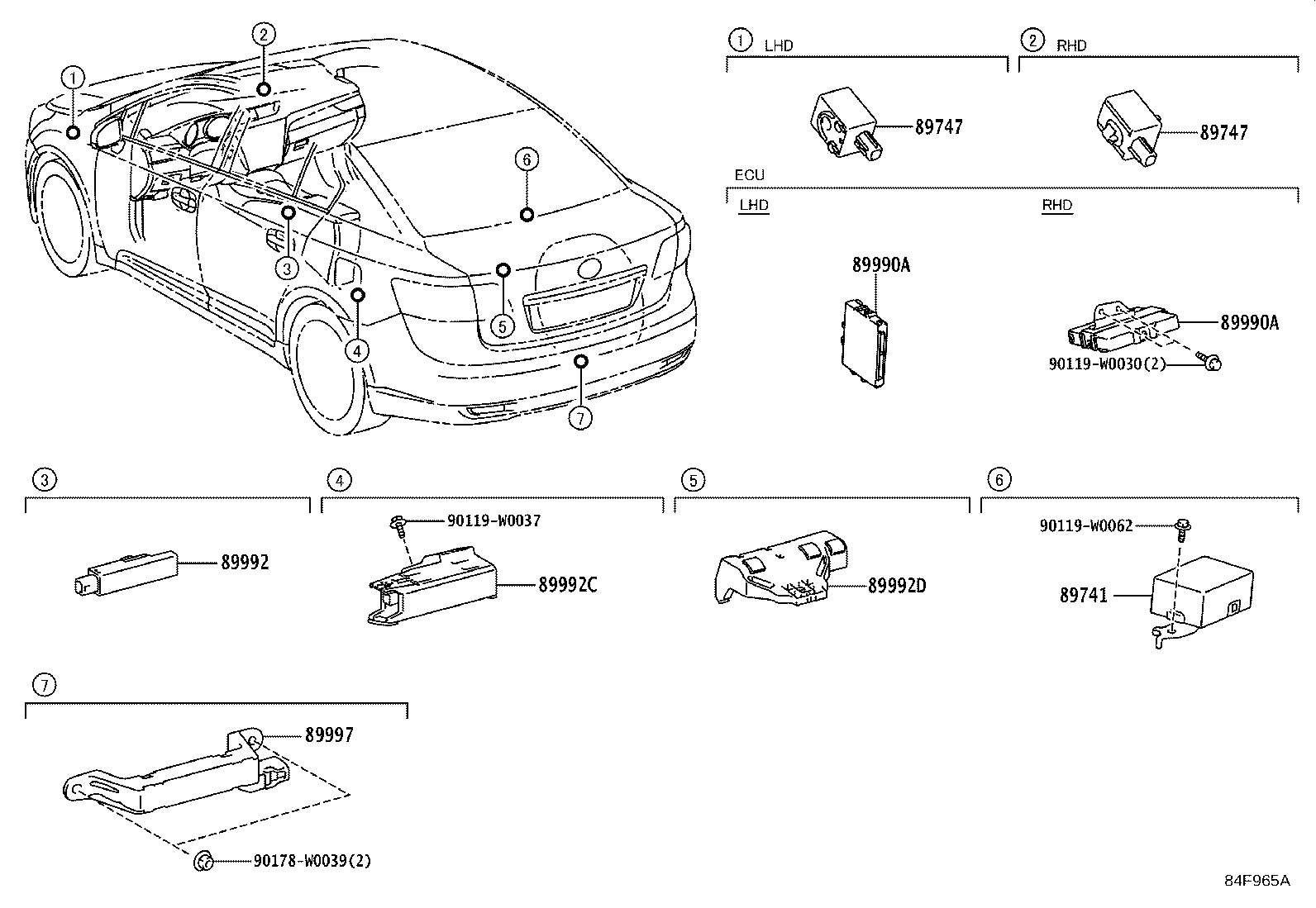

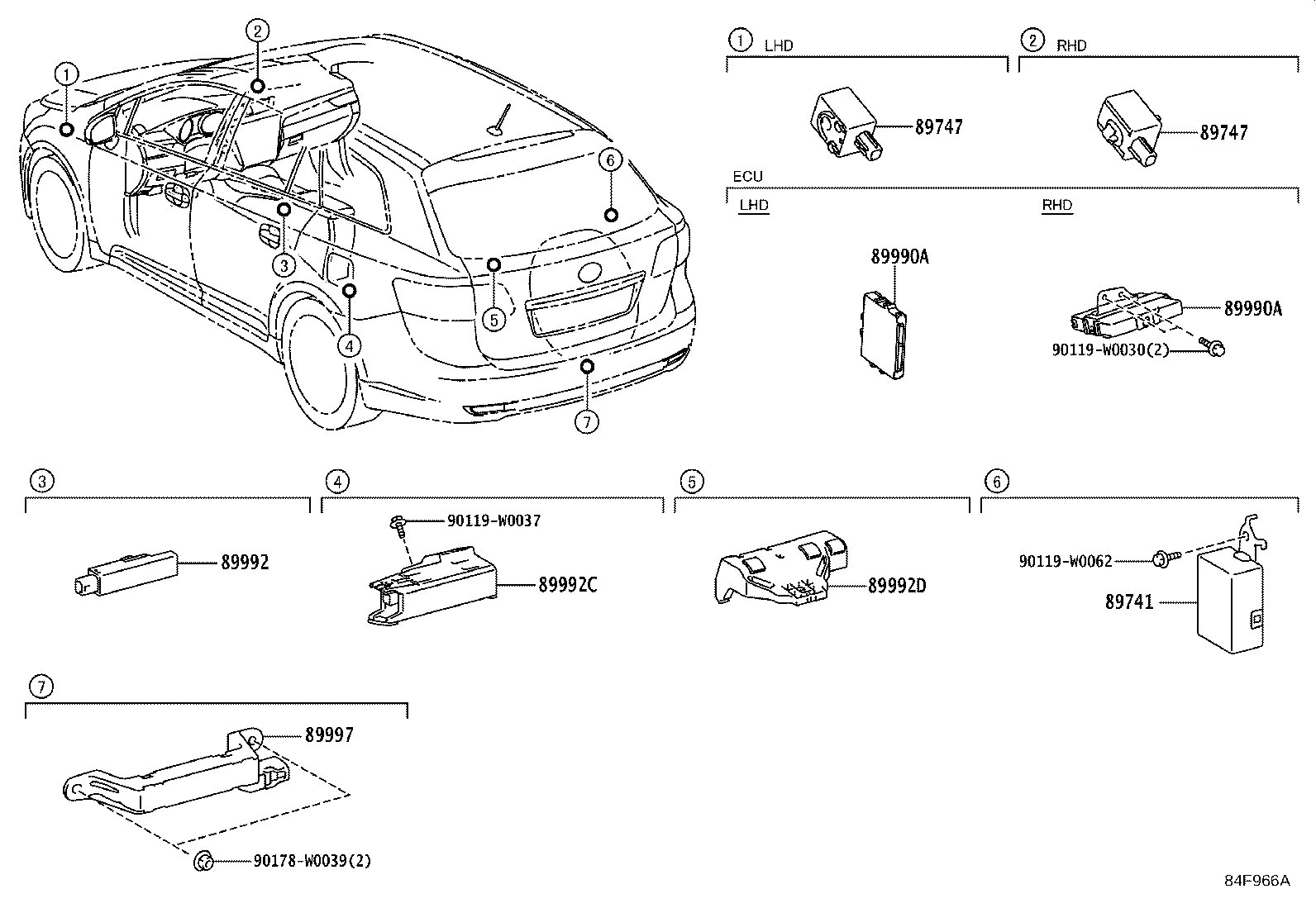

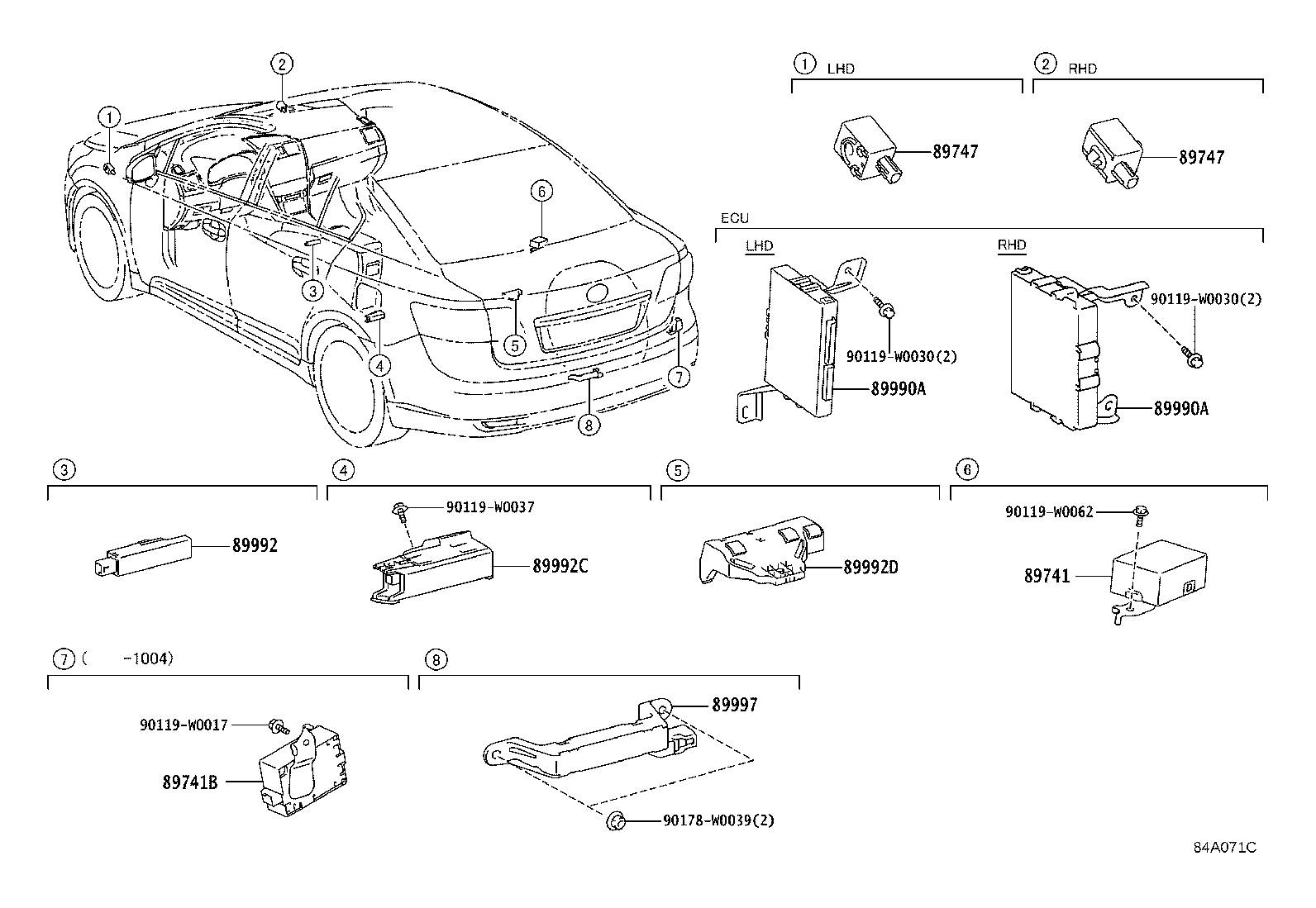

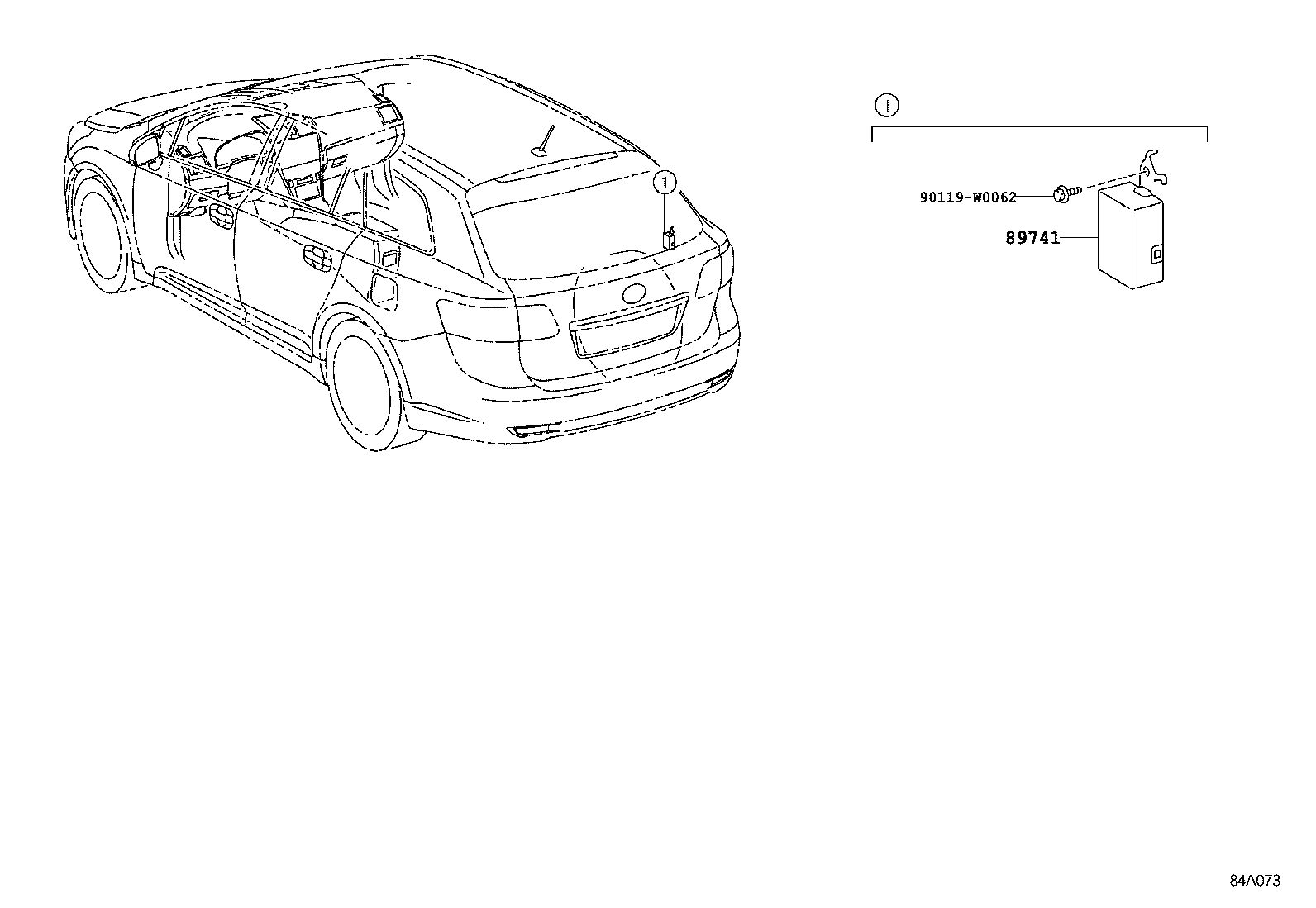

Figure 84A072 84A072 2008-11 → — Figure 84A073 84A073 2008-11 → — Figure 84A071C 84A071C 2008-11 → 2015-05 Figure 84F965A 84F965A 2015-05 → — Figure 84A070B 84A070B 2008-11 → 2015-05 Figure 84F966A 84F966A 2015-05 → —

Part groups

PNCDescription
89741 Receiver, Door Control
89741B Receiver, Door Control, NO.2
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89992 Oscillator, Indoor Electrical Key
89992C Oscillator, Indoor Electrical Key, NO.2
89992D Oscillator, Indoor Electrical Key, NO.3
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
