Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

11 part groups · 2 illustrations

Illustrations

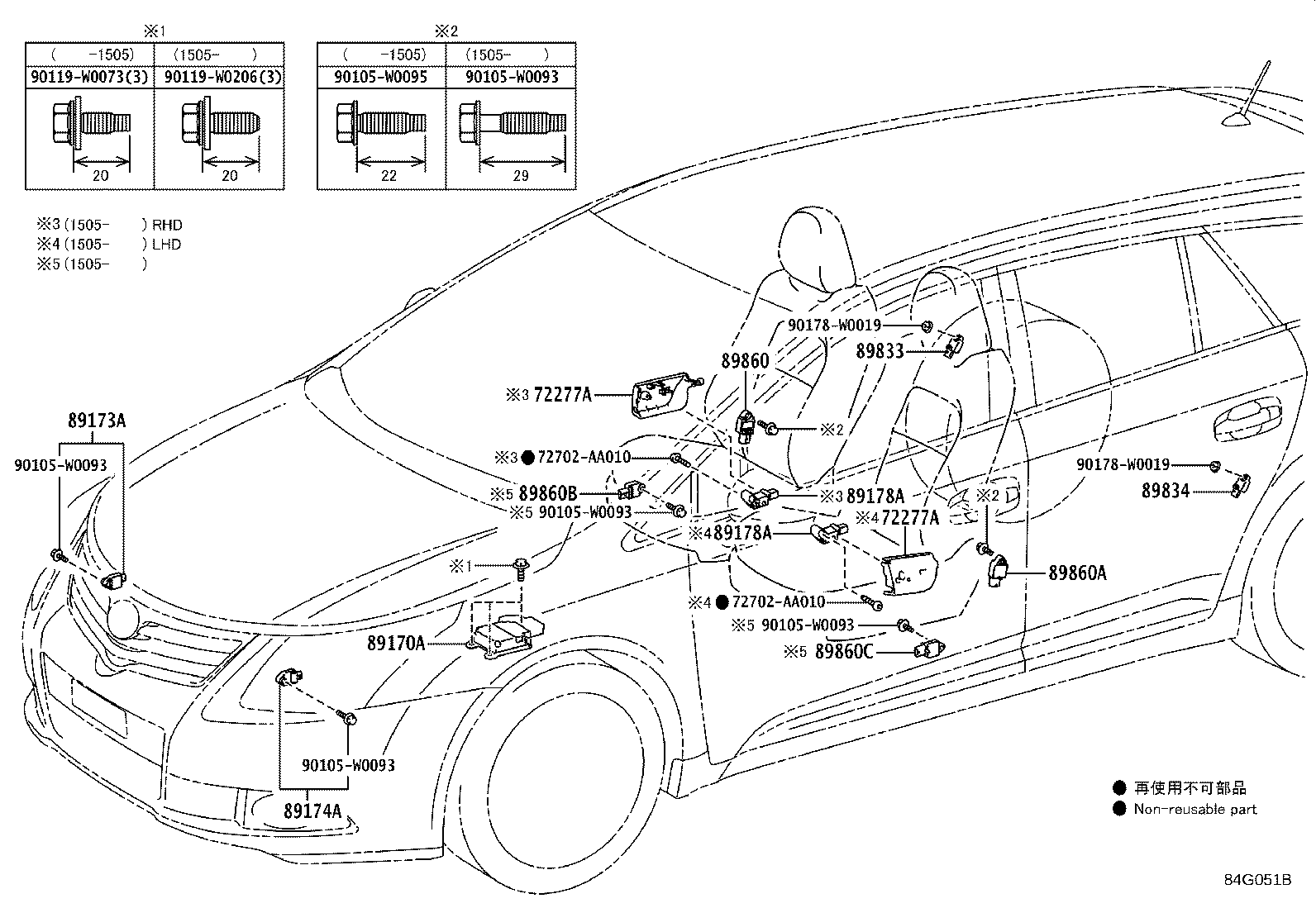

Figure 84A041C 84A041C 2008-11 → — Figure 84G051B 84G051B 2008-11 → —

Part groups

PNCDescription
72277A Protector, Seat Slide Position Sensor
89170A Computer Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89178A Sensor, Seat Position Airbag
89833 Sensor, Airbag, Rear RH
89834 Sensor, Airbag, Rear LH
89860 Sensor Assy, Side Airbag, RH
89860A Sensor Assy, Side Airbag, LH
89860B Sensor Assy, Side Airbag, RH, NO.2
89860C Sensor Assy, Side Airbag, LH, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
