Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01

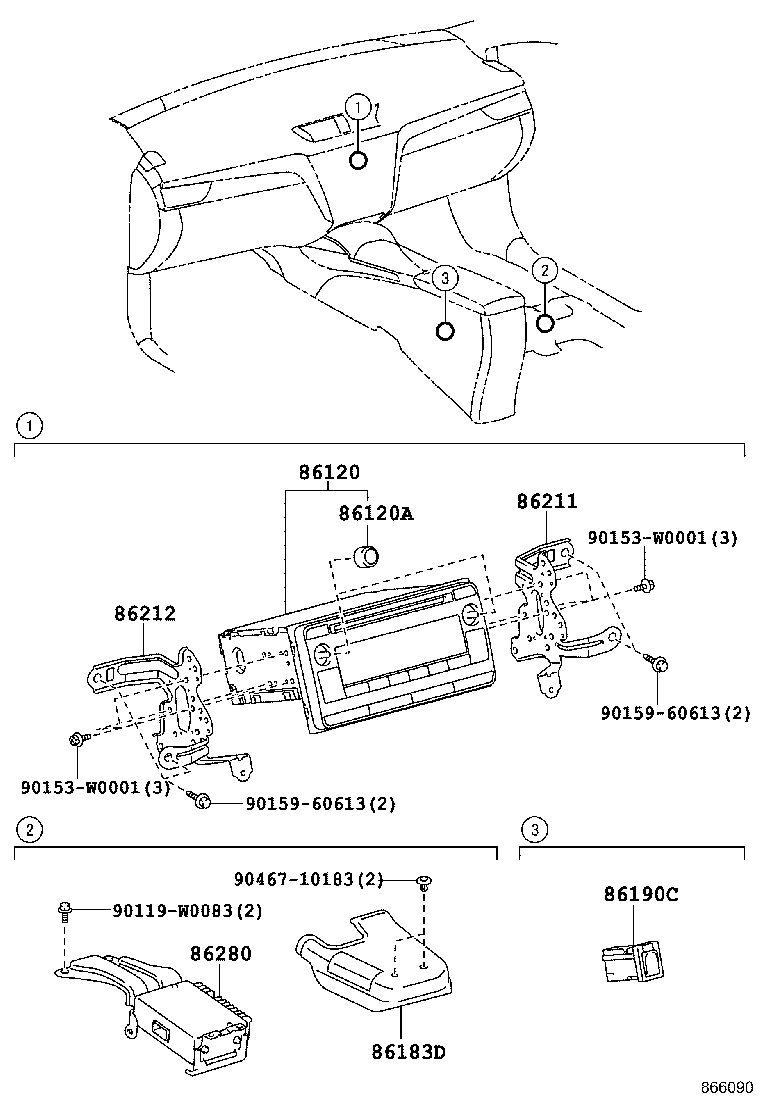

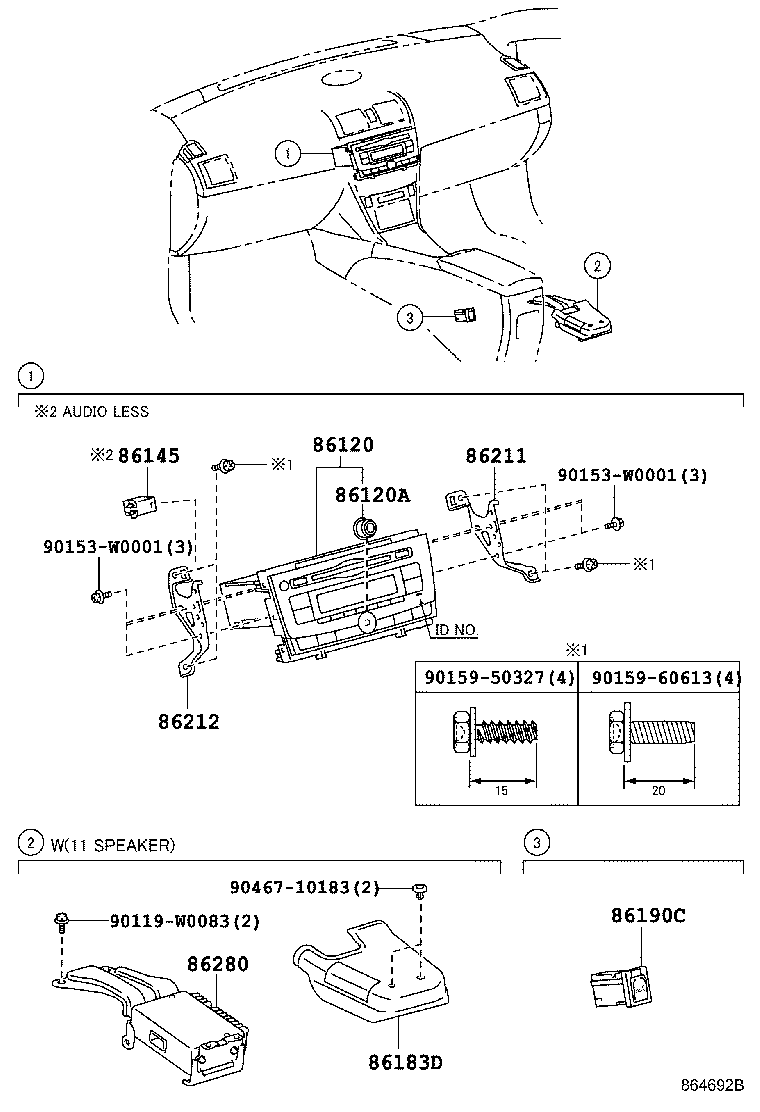

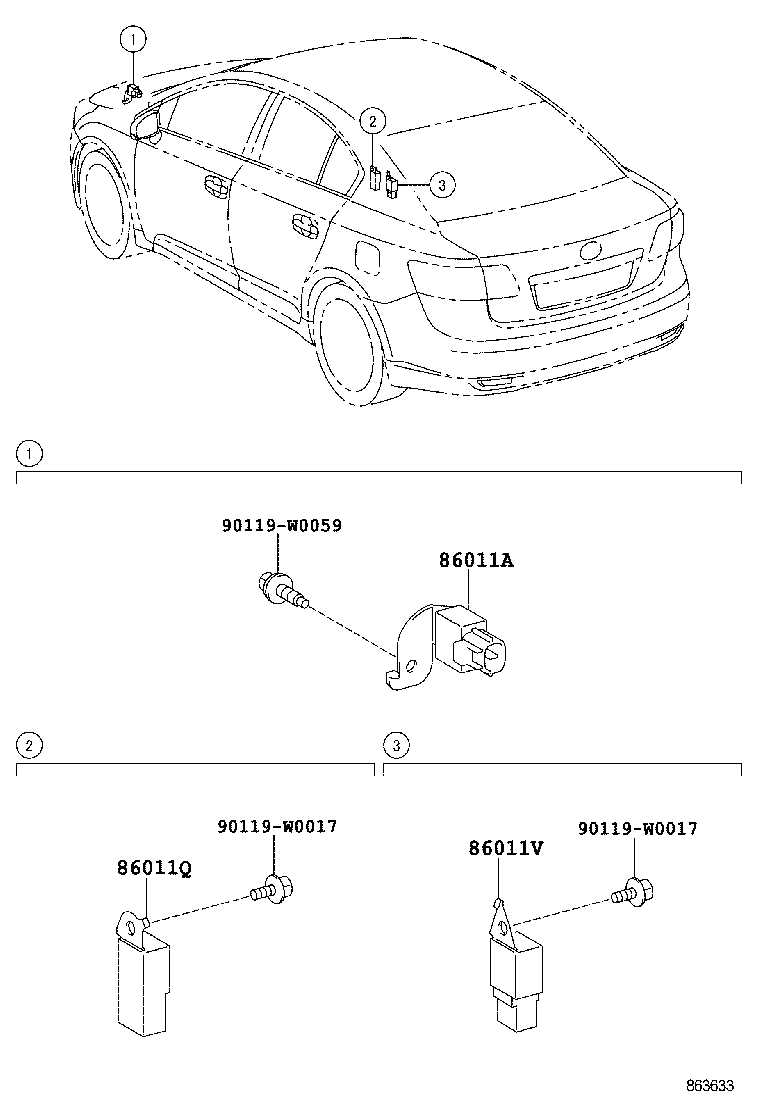

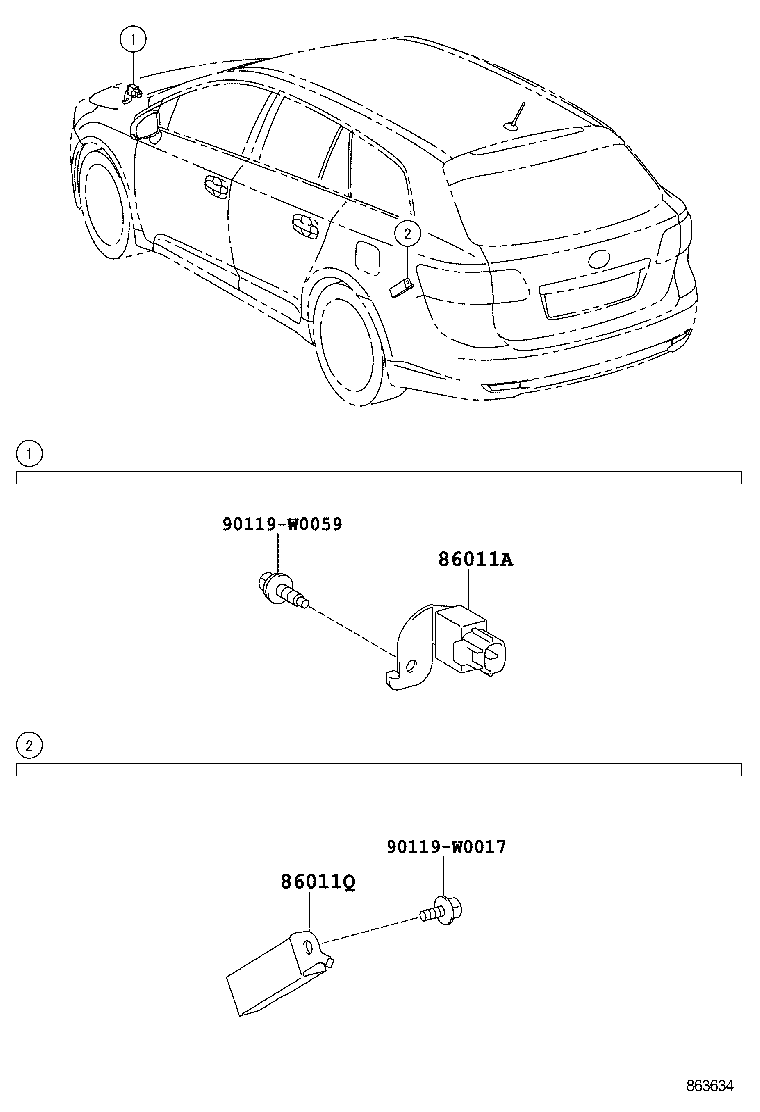

Radio Receiver & Amplifier & Condenser
11 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011Q | Condenser, Radio Setting |
| 86011V | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86120A | Knob, Radio Receiver Switch |
| 86145 | Connector, Antenna Male |
| 86183D | Cover, Audio Amplifier |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
