Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

13 part groups · 3 illustrations

Illustrations

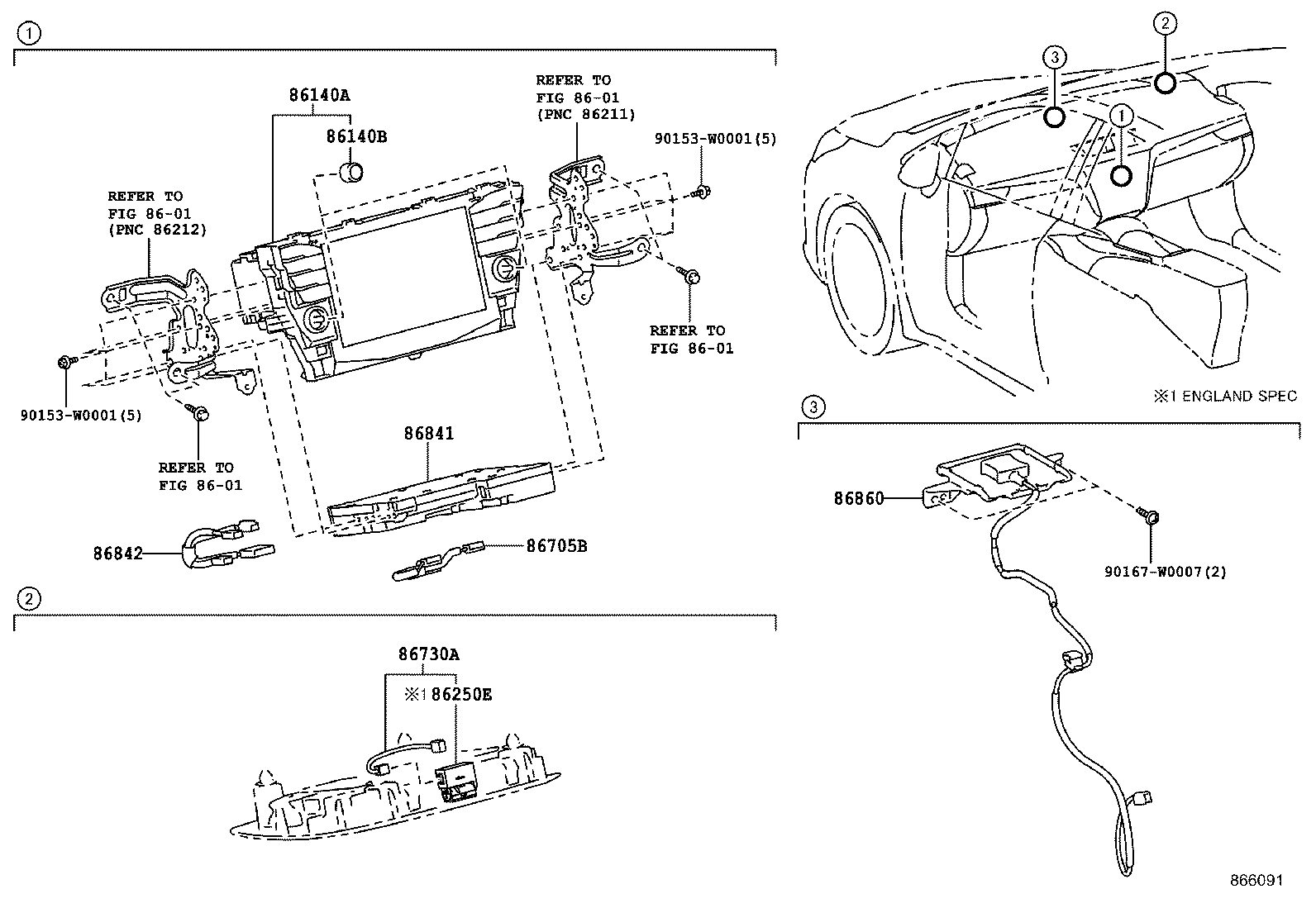

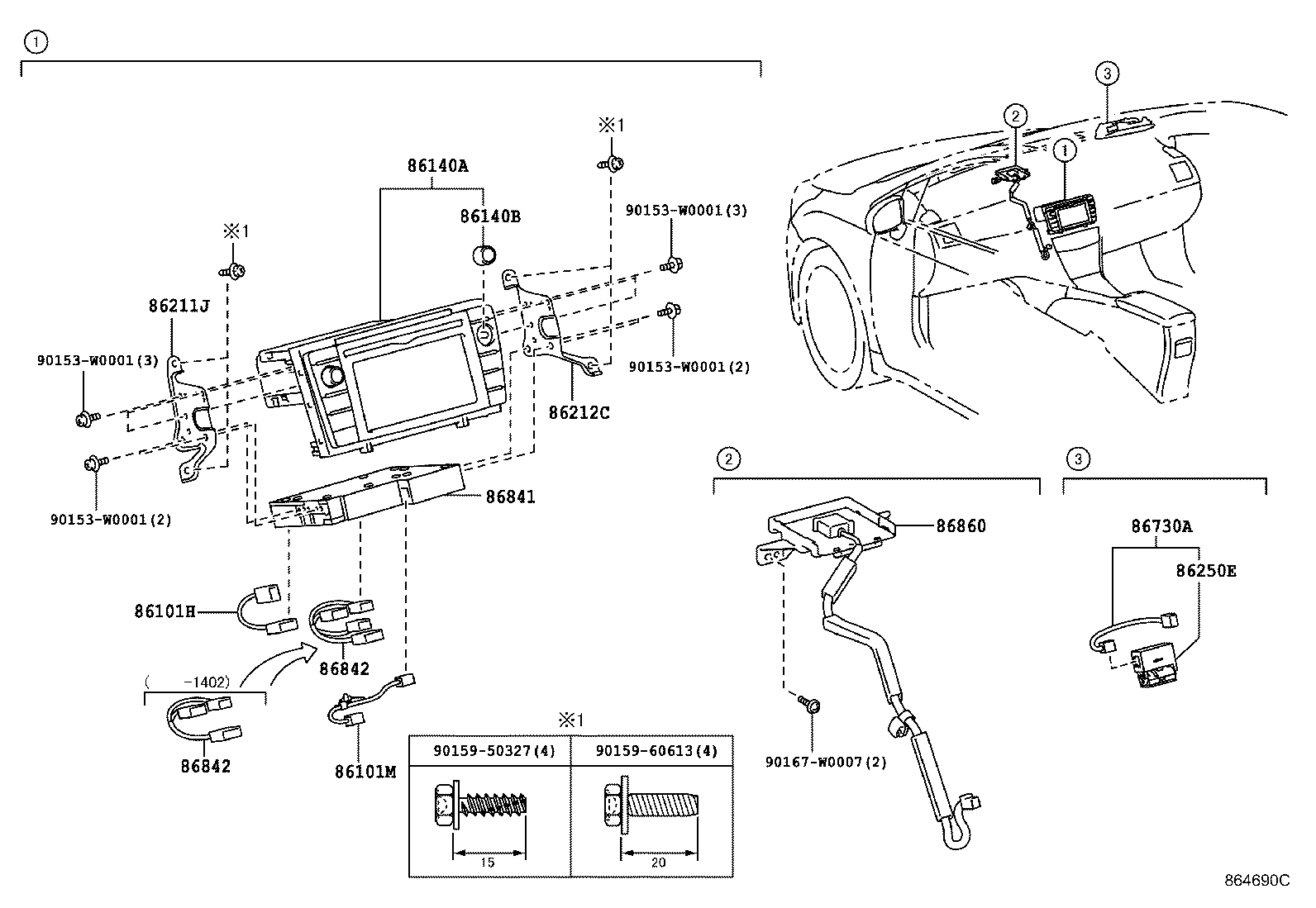

Figure 863627A 863627A 2008-11 → 2011-11 Figure 864690C 864690C 2011-11 → 2015-05 Figure 866091 866091 2015-05 → —

Part groups

PNCDescription
86101H Cord Sub-assy, Antenna
86101M Cord Sub-assy, Antenna
86120L Receiver Assy, Navigation
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86250E Microphone Assy, Amplifier
86705B Cord Sub-assy, Telephone Antenna
86730A Microphone Assy, Telephone
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
