Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01

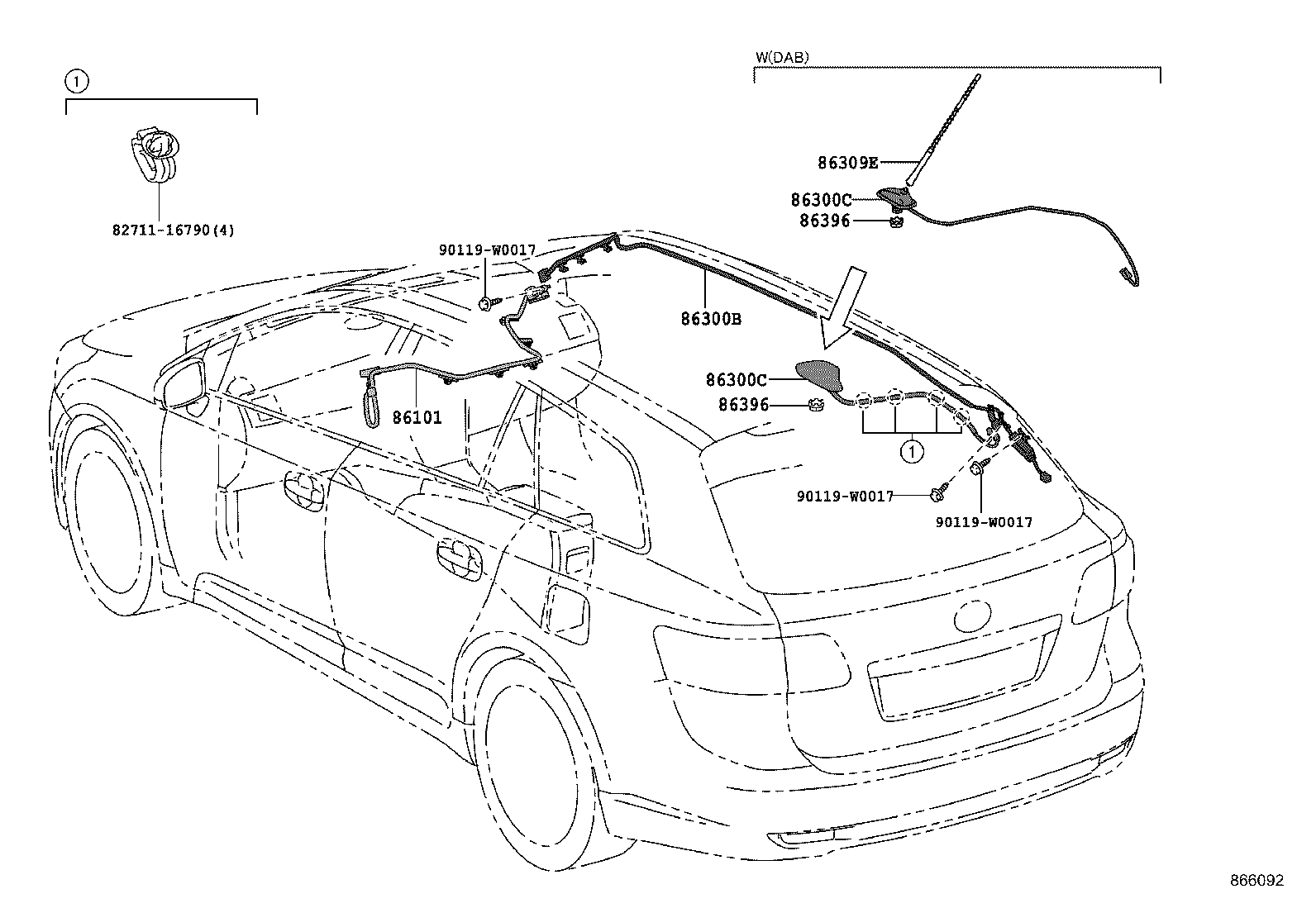

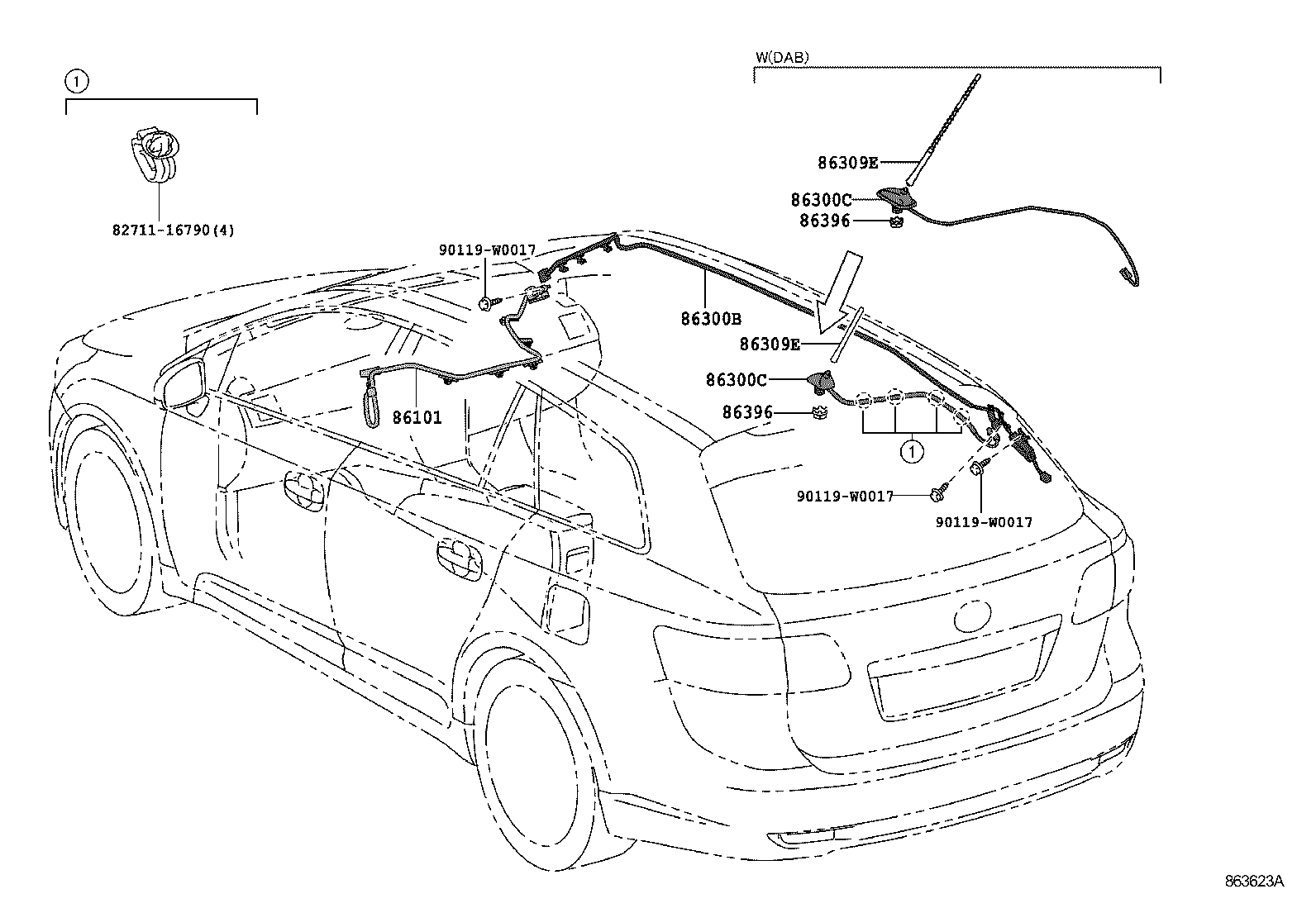

Antenna
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101 | Cord Sub-assy, Antenna |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86300C | Antenna Assy, Amplifier, NO.2 |
| 86309E | Pole Sub-assy, Roof Antenna |
| 86396 | Nut, Antenna |
| 863C0 | Antenna Assy, Digital Audio Broadcasting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
