Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01
Heating & Air Conditioning - Control & Air Duct
17 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

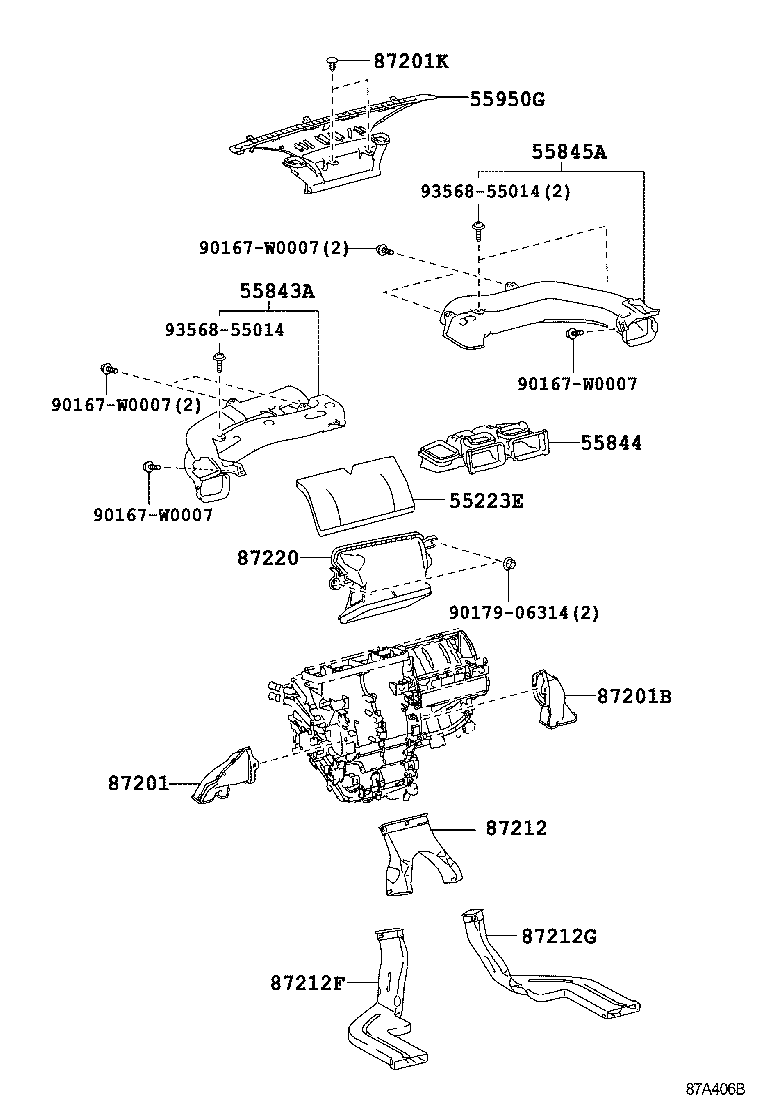

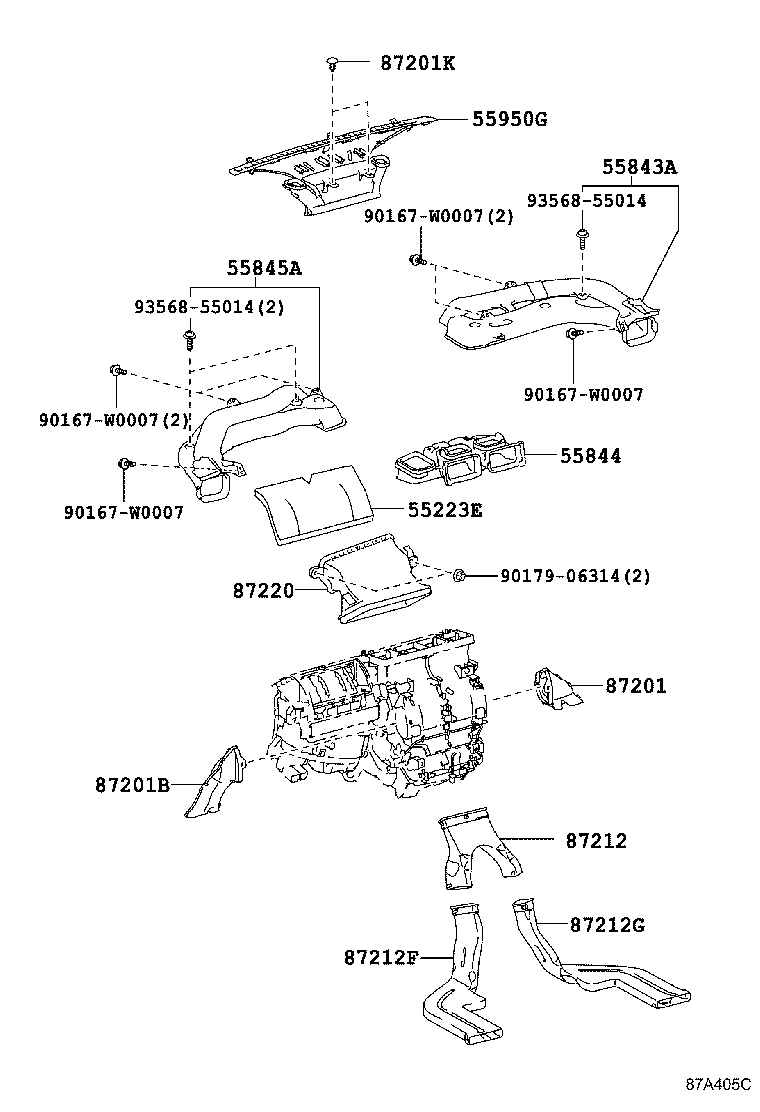

| 55223E | Insulator, Dash Panel Heat, NO.1 |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55900 | Control Assy, Air Conditioner |
| 55950G | Nozzle Assy, Defroster |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87201K | Clip (FOR AIR DUCT) |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87220 | Duct Assy, Air |

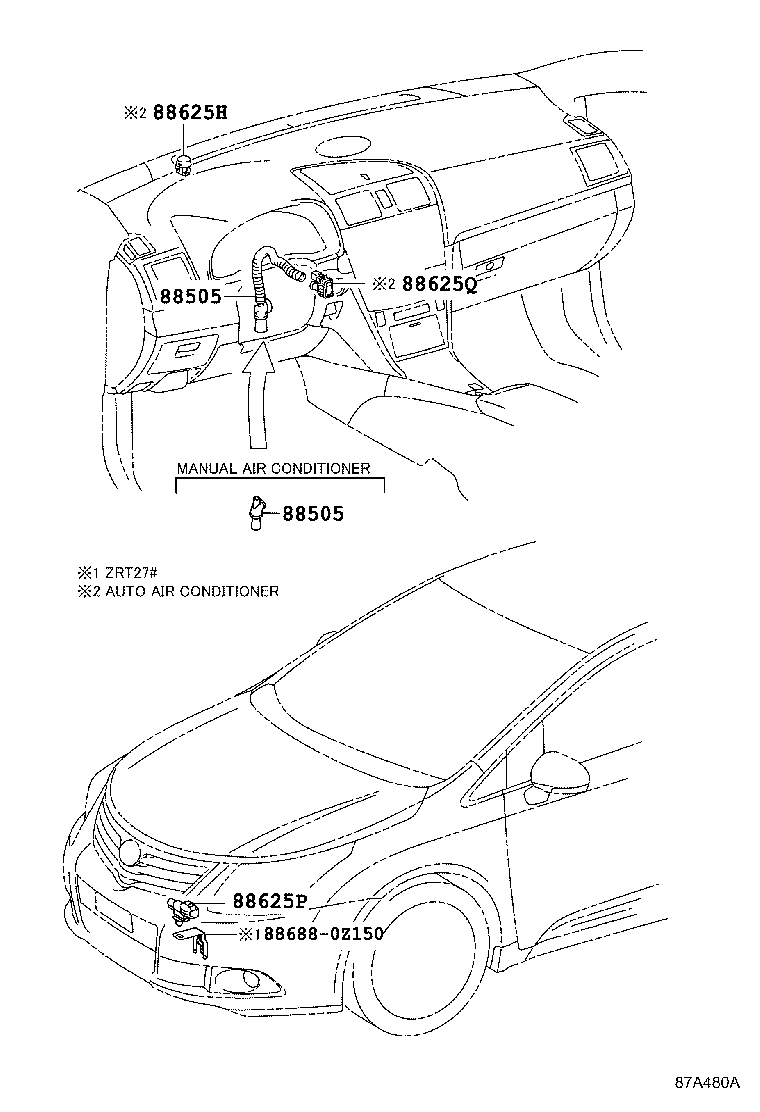

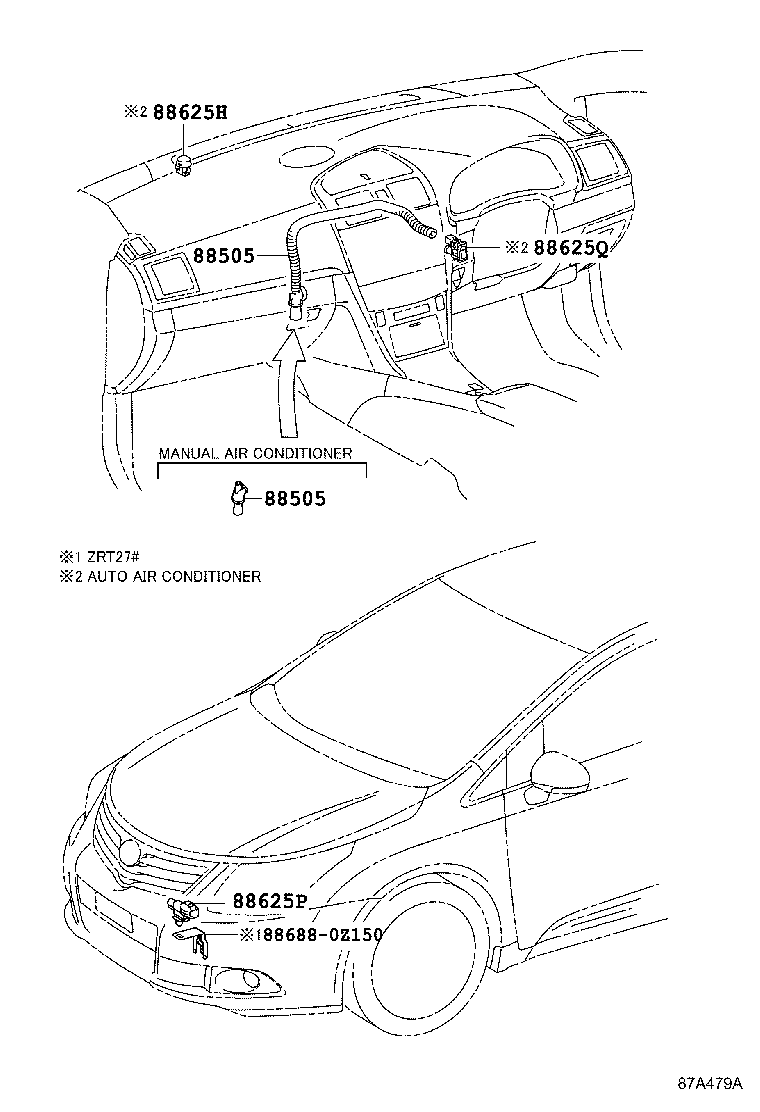

| 88505 | Duct Sub-assy,Air Conditioner |
| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
