Toyota Carina E WG (JPP)

1992-11 → 1996-01 · chassis AT19#,ST191,CT190 · catalogue 274530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

25 part groups · 3 illustrations

Illustrations

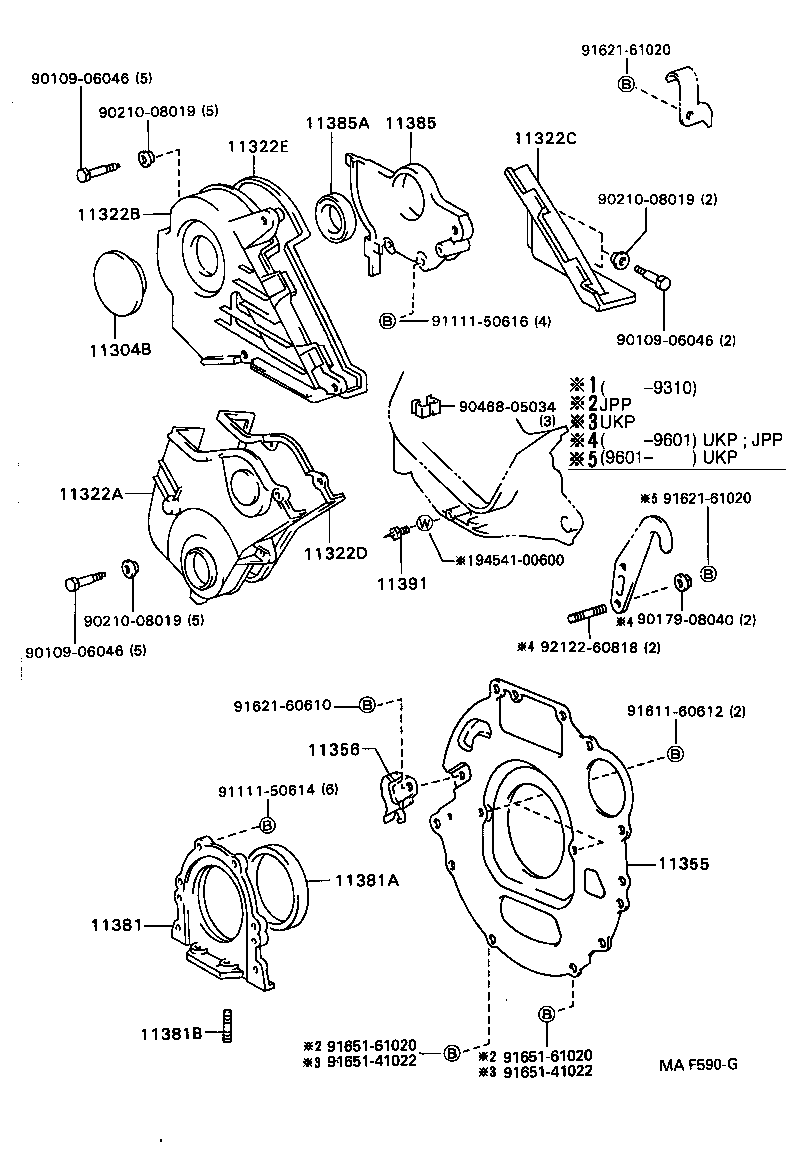

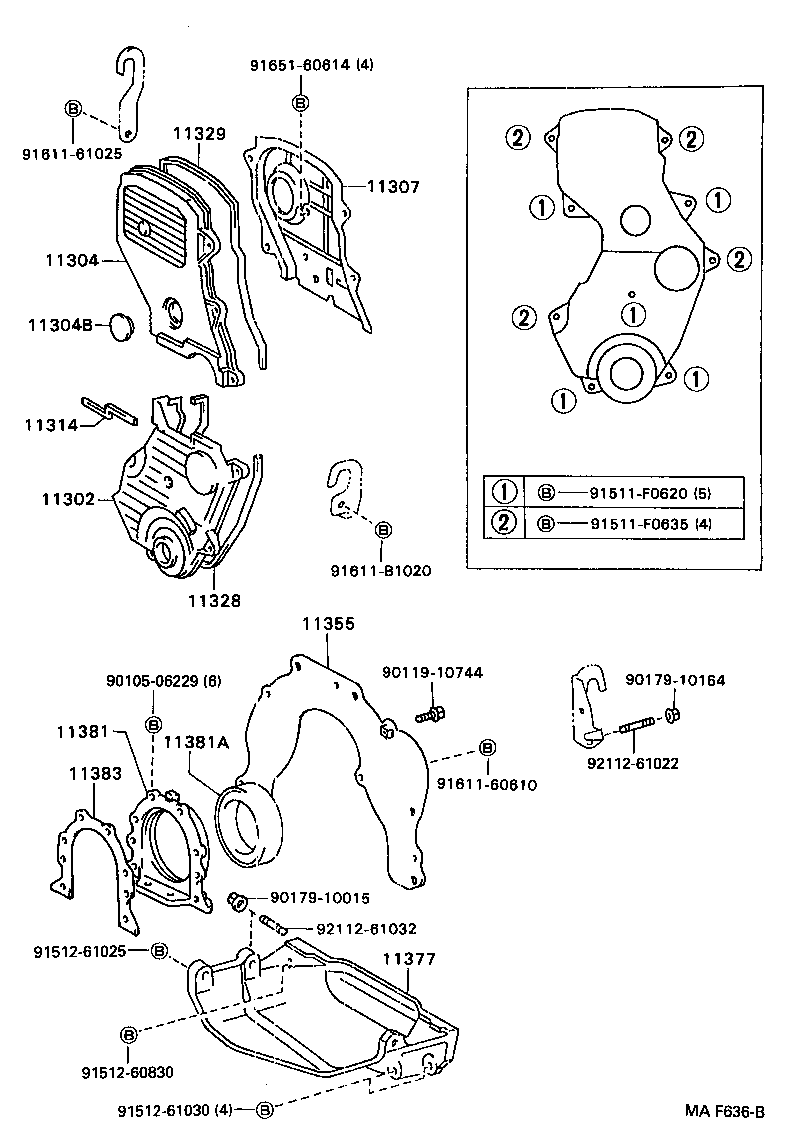

Figure MAH040C MAH040C 1992-02 → — Figure MAF590G MAF590G 1992-02 → — Figure MAF636B MAF636B 1992-02 → 1996-01

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11302T Plug, Hole
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11304 Cover, Timing Chain OR Belt, NO.2
11304B Plug, Semi Circular(FOR CHAIN COVER NO.2)
11307 Cover, Sub-assy, Timing Belt, NO.3
11314 Gasket, Timing Chain NO.2 Cover
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322C Cover, Timing Belt, NO.3
11322D Gasket, Timing Belt Cover, NO.1
11322E Gasket, Timing Belt Cover, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11355 Plate, Rear End
11356 Plate, Rear End, NO.2
11377 Stiffener, Rear End Plate
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11381B Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
11383 Gasket, Engine Rear Oil Seal Retainer
11385 Retainer, Camshaft Oil Seal
11385A Seal, Oil(FOR CAMSHAFT)
11391 Pointer, Timing
12281 Hanger, Engine, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
