Toyota Carina E WG (JPP)

1992-11 → 1996-01 · chassis AT19#,ST191,CT190 · catalogue 274530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

23 part groups · 3 illustrations

Illustrations

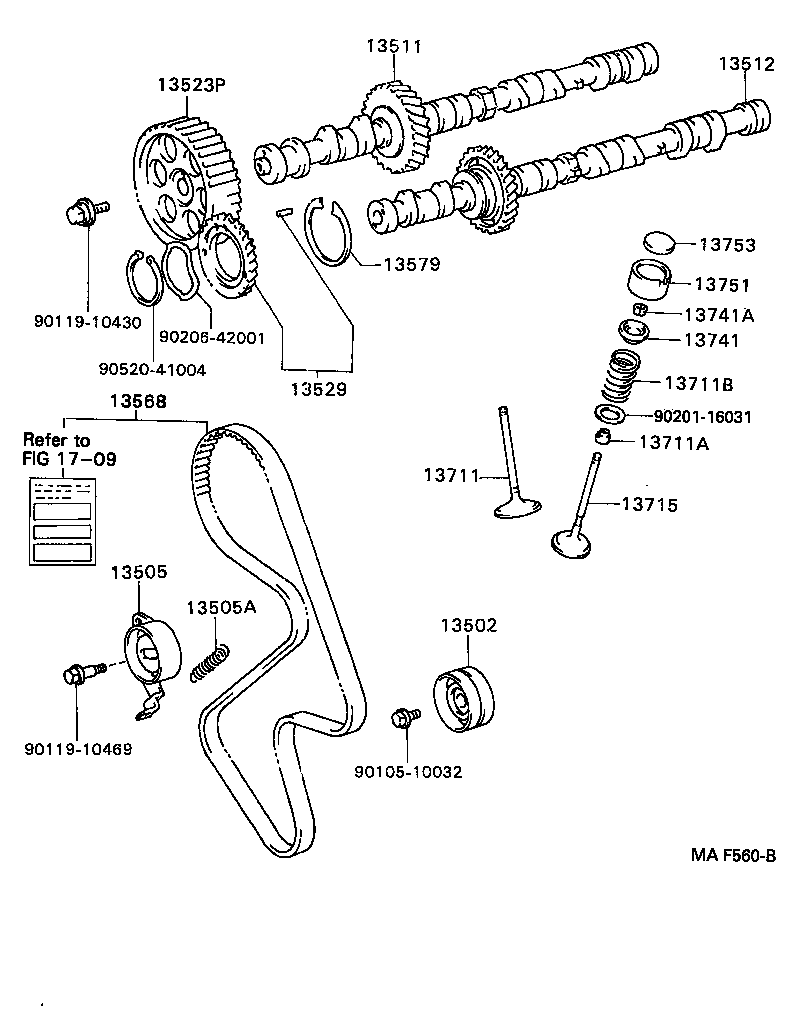

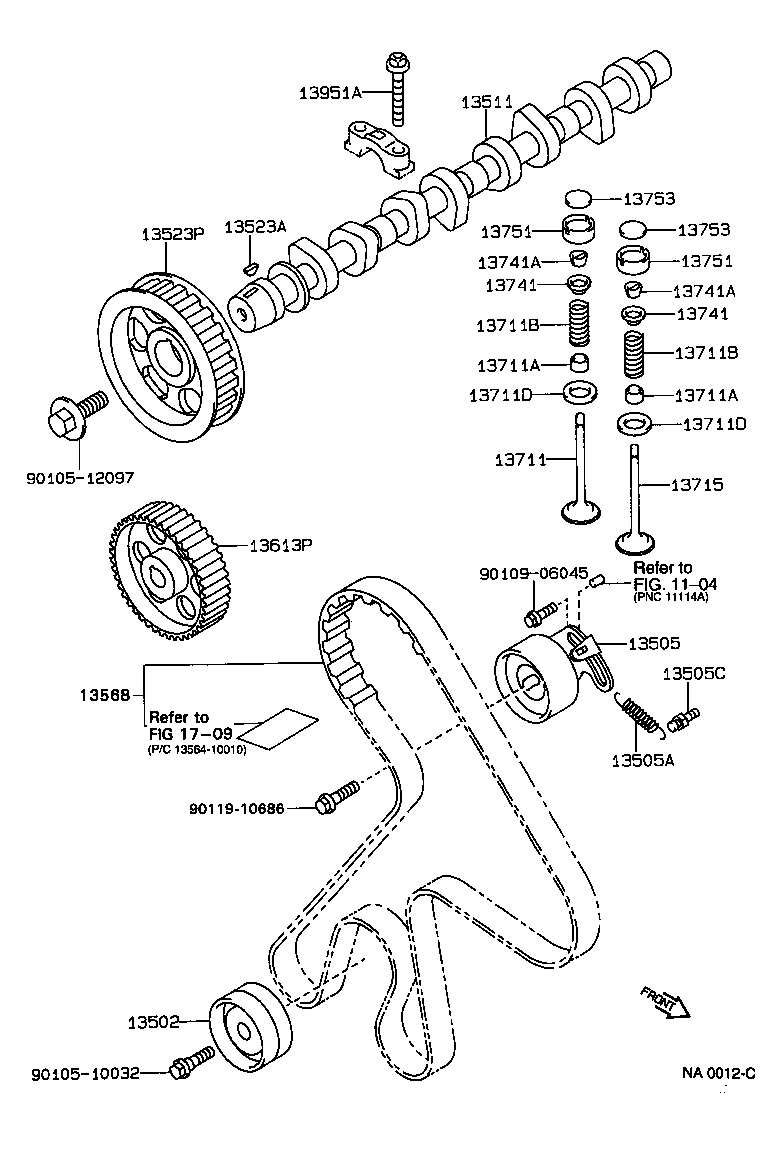

Figure MAJ342 MAJ342 1992-02 → — Figure NA0012C NA0012C 1992-02 → — Figure MAF560B MAF560B 1992-02 → —

Part groups

PNCDescription
13502 Idler Sub-assy, Timing Belt, NO.2
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13505B Bolt, Flange (FOR IDLER)
13505C Pin(FOR IDLER SPRING TENSION)
13511 Camshaft
13512 Camshaft, NO.2
13523A Key, Woodruff(FOR TIMING GEAR)
13523P Pulley, Camshaft Timing
13529 Gear, Camshaft Sub
13568 Belt, Timing
13579 Washer, Camshaft Timing Gear Bolt
13613P Pulley, Injection Pump Drive
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13753 Shim, Valve Adjusting
13951A Bolt(FOR ROCKER SUPPORT SET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
