Toyota Carina E WG (JPP)

1992-11 → 1996-01 · chassis AT19#,ST191,CT190 · catalogue 274530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

19 part groups · 3 illustrations

Illustrations

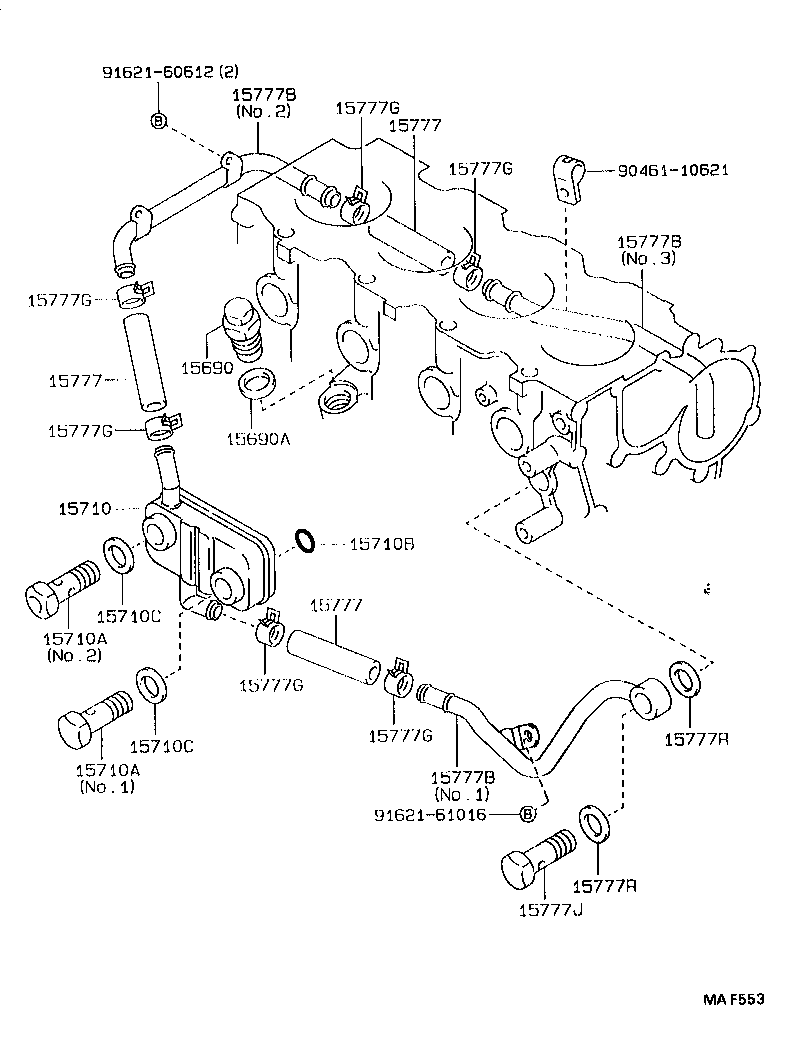

Figure MAF669E MAF669E 1992-02 → — Figure MAF553 MAF553 1992-02 → 1996-01 Figure MAC696A MAC696A 1992-02 → 1996-01

Part groups

PNCDescription
15690 Valve Assy, Oil Cooler Relief
15690A Gasket(FOR OIL COOLER RELIEF VALVE)
15710 Cooler Assy, Oil
15710A Bolt, Union(FOR OIL COOLER)
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15772A Union(FOR OIL PIPE)
15772E Gasket(FOR OIL PIPE)
15772F Bolt, Union(FOR OIL PIPE)
15776 Hose, Oil Cooler, NO.4
15777 Hose, Oil Cooler
15777B Pipe, Oil Cooler
15777C Hose, Oil Cooler
15777G Clamp OR Crip, Hose
15777J Bolt, Union(FOR OIL COOLER PIPE)
15777R Gasket(FOR OIL COOLER PIPE UNION BOLT)
15777S Clamp OR Clip, Hose
15778 Hose, Oil Cooler, NO.2
15785 Gasket, Oil Cooler
