Toyota Carina E WG (JPP)

1992-11 → 1996-01 · chassis AT19#,ST191,CT190 · catalogue 274530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

13 part groups · 4 illustrations

Illustrations

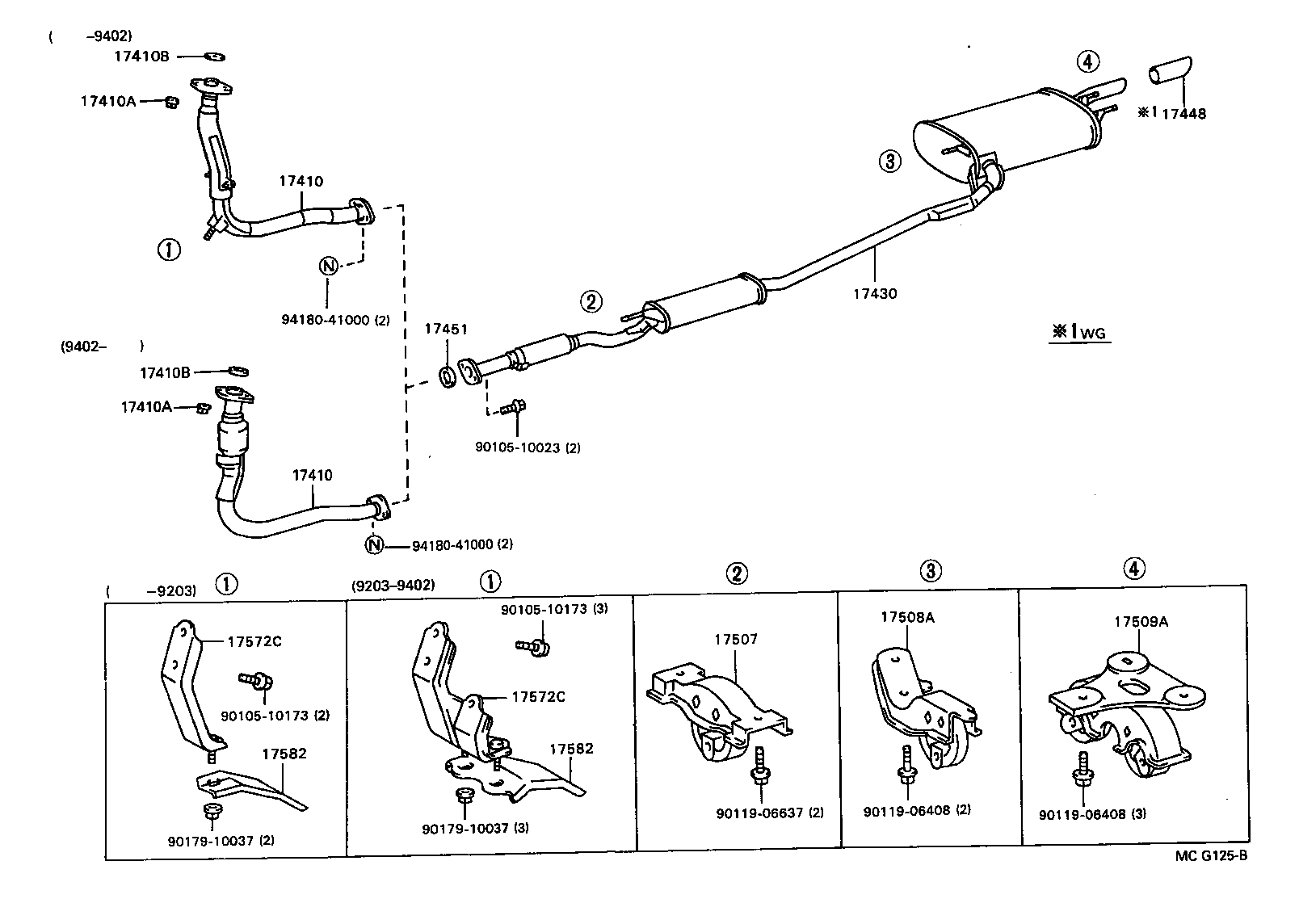

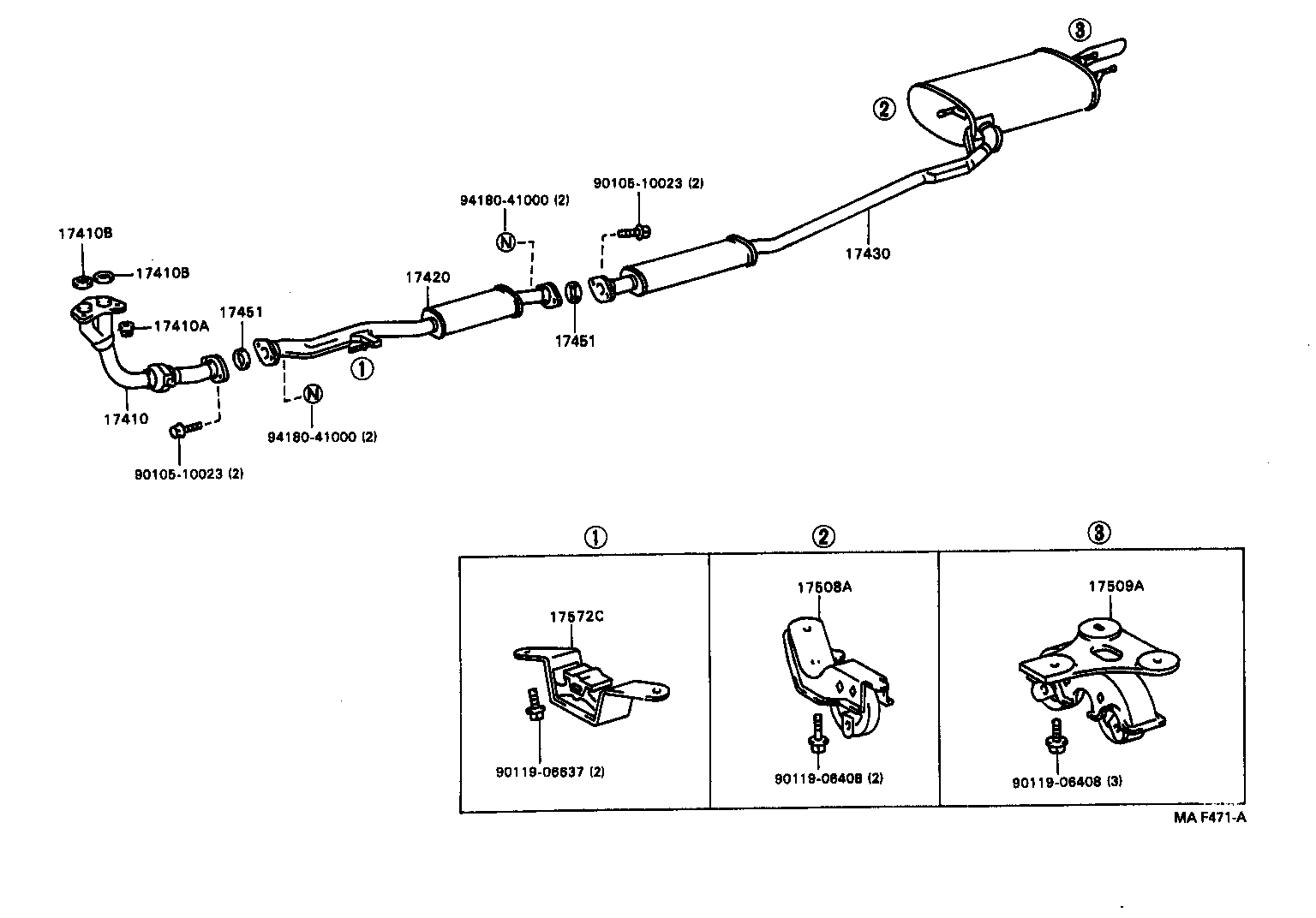

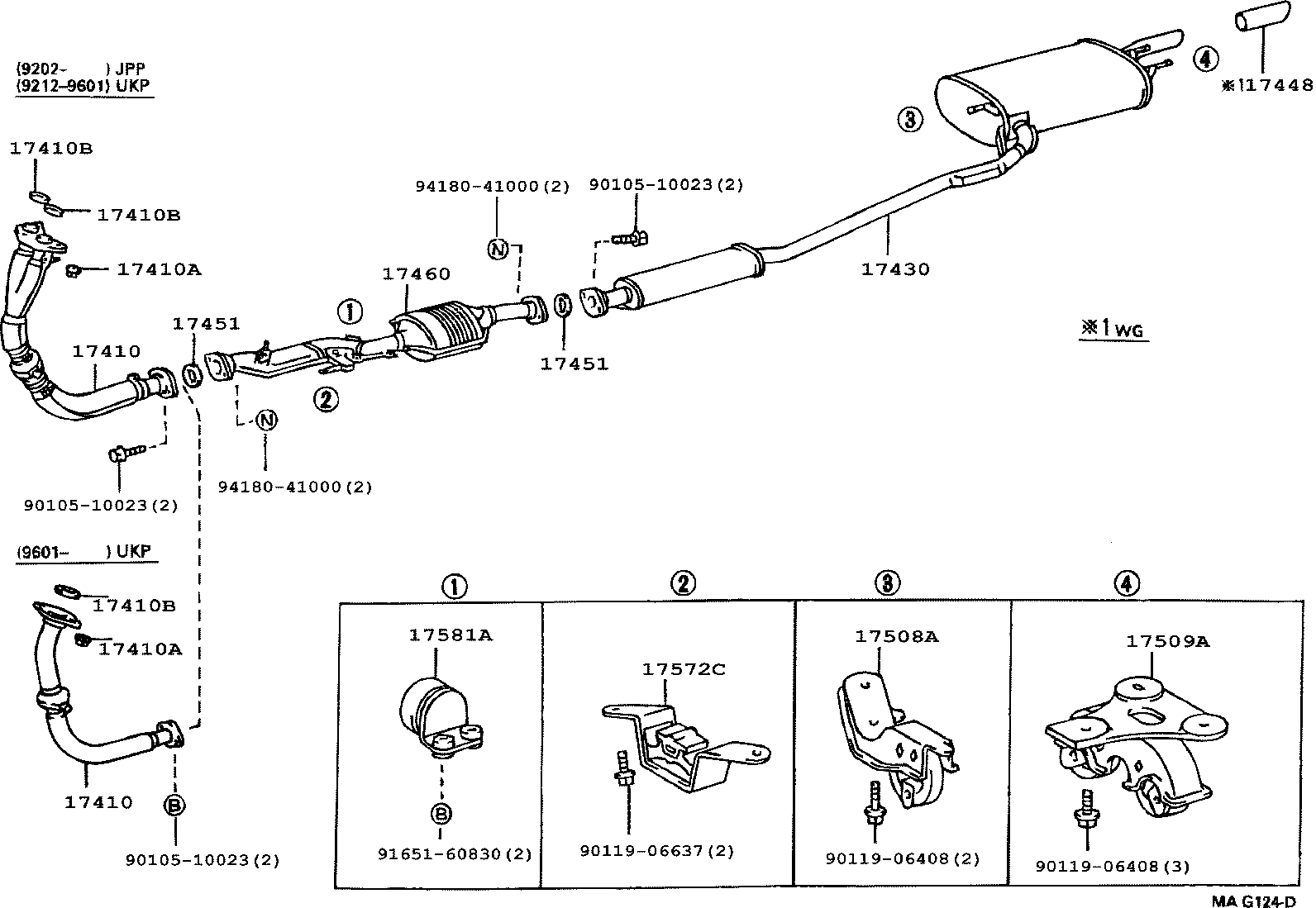

Figure MAF475D MAF475D 1992-02 → — Figure MAF471A MAF471A 1994-11 → — Figure MAG124D MAG124D 1992-02 → — Figure MCG125B MCG125B 1992-02 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
17581A Damper, Exhaust Pipe
17582 Bracket, Catalytic Converter Support, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
