Toyota Carina E WG (JPP)

1992-11 → 1996-01 · chassis AT19#,ST191,CT190 · catalogue 274530 · Europe

Discontinued model Data version 1997-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

7 part groups · 2 illustrations

Illustrations

Figure MCR295A

MCR295A 1992-02 → —

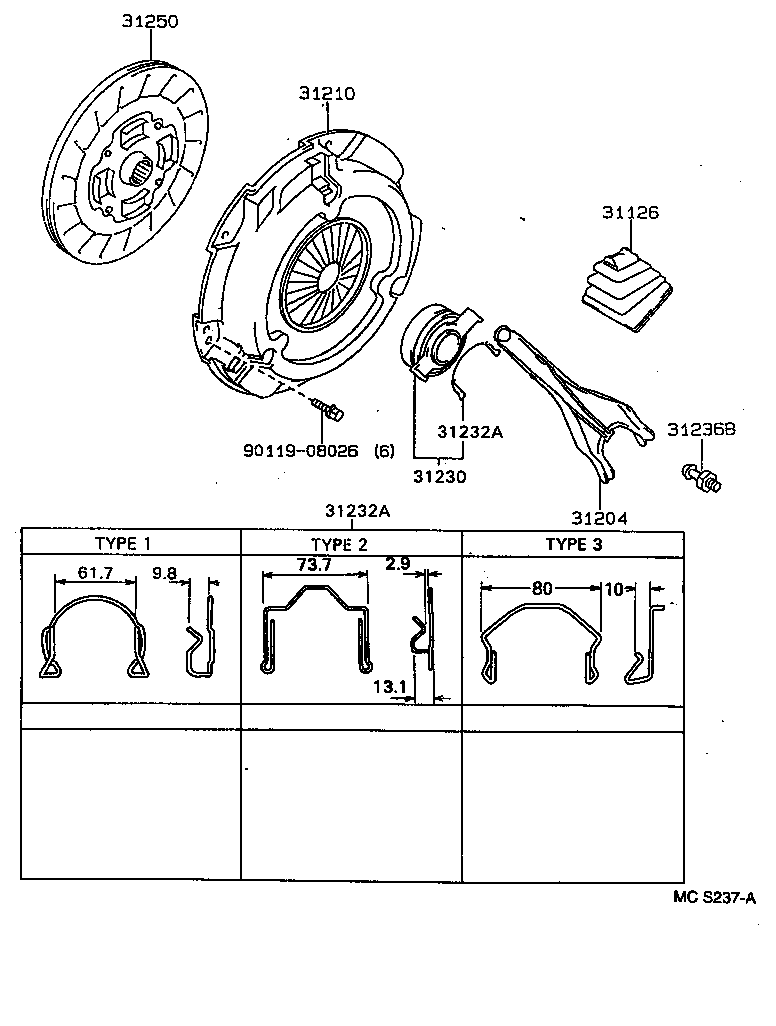

Figure MCS237A

MCS237A 1992-02 → —

Part groups

PNC	Description
31126	Boot, Clutch Release Fork
31204	Fork Sub-assy, Clutch Release
31210	Cover Assy, Clutch
31230	Bearing Assy, Clutch Release
31232A	Clip, Release Bearing Hub
31236B	Support, Release Fork
31250	Disc Assy, Clutch

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
