Toyota Carina E WG (JPP)
1992-11 → 1996-01 · chassis AT19#,ST191,CT190 · catalogue 274530 · Europe
Discontinued model
Data version 1997-12
Valve Body & Oil Strainer (ATM)
126 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 35156A | Plate, Transmission Case, NO.2 |
| 35156B | Bolt(FOR TRANSMISSION CASE NO.2 PLATE) |
| 35156C | Screw(FOR TRANSMISSION CASE NO.2 PLATE) |
| 35158 | Gasket, Transmission Case, NO.2 Plate |

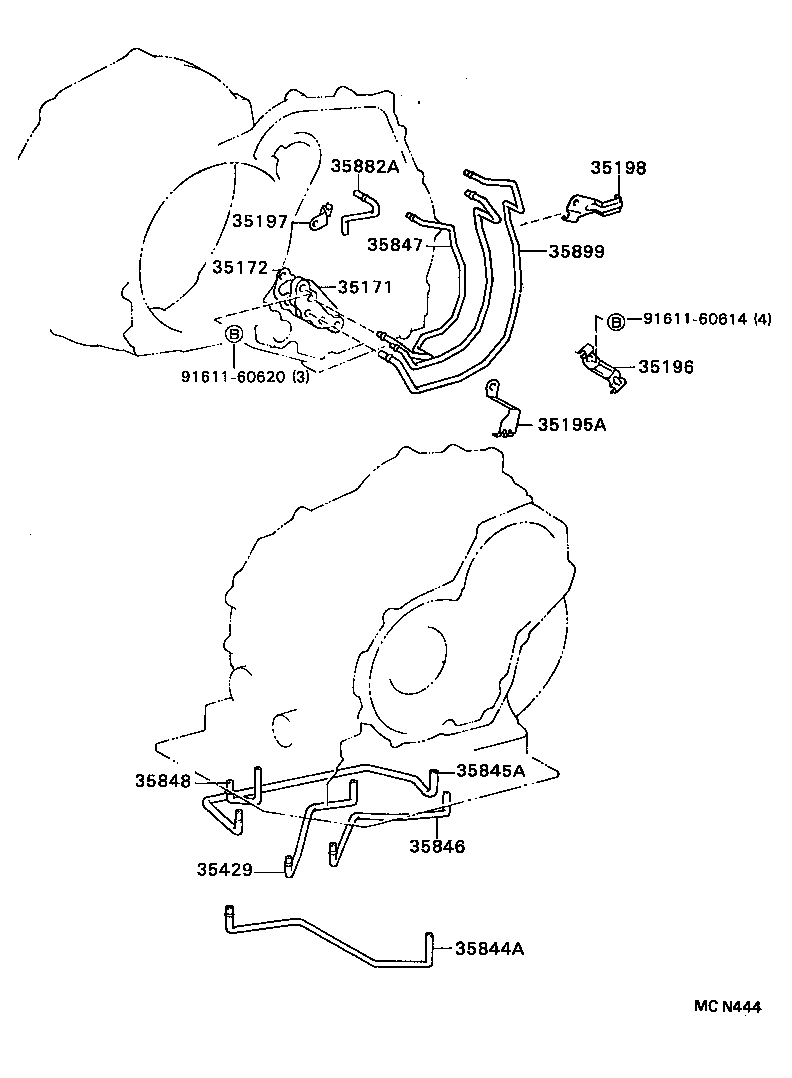

| 35171 | Cover, Transaxle Housing |
| 35172 | Gasket, Transaxle Housing Cover |
| 35195A | Clamp, Transaxle Apply Tube, NO.1 |
| 35196 | Clamp, Transaxle Apply Tube, NO.2 |
| 35197 | Clamp, Transaxle Apply Tube, NO.3 |
| 35198 | Clamp, Transaxle Apply Tube, NO.4 |
| 35205 | Spring Sub-assy, C-3 Accumulator |
| 35208 | Spring Sub-assy, B-2 Accumulator |
| 35209 | Spring Sub-assy, C-2 Accumulator |
| 35211 | Valve, Lock UP Signal |
| 35211B | Spring, Compression (FOR LOCK UP SIGNAL VALVE) |
| 35211C | Key, Straight (FOR LOCK UP SIGNAL VALVE) |
| 35212 | Valve, Lock UP Relay |
| 35212B | Spring, Compression (FOR LOCK UP RELAY VALVE) |
| 35213 | Valve, Lock UP Relay Control |
| 35215B | Pin, Straight (FOR LOCK UP RELAY VALVE SLEEVE) |
| 35215C | Sleeve, Lock UP Relay Valve, NO.1 |
| 35219 | Plug, Lock UP Signal Valve |
| 35330 | Strainer Assy, Valve Body Oil |
| 35339 | Gasket, Oil Strainer |
| 35409 | Spring Sub-assy, Manual Detent |
| 35410 | Body Assy, Transmission Valve |

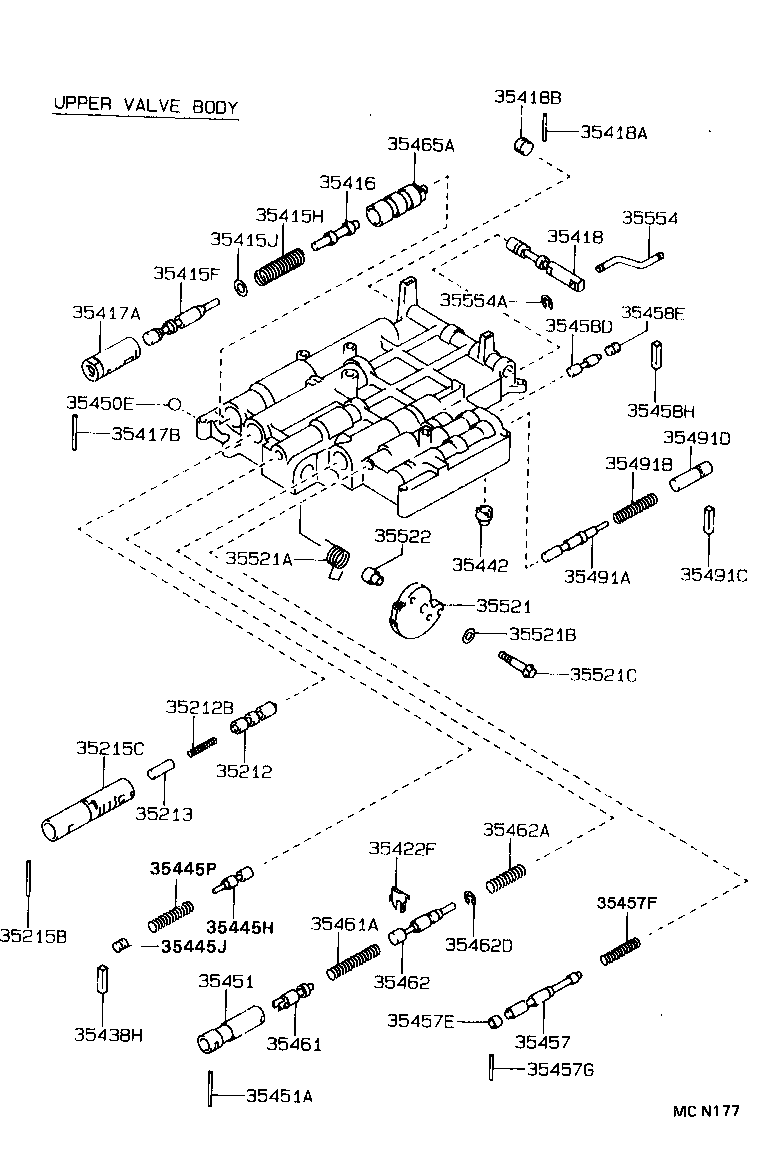

| 35415F | Valve, Primary Regulator |
| 35415H | Spring, Compression (FOR PRIMARY REGULATOR VALVE) |
| 35415J | Washer (FOR PRIMARY REGULATOR VALVE) |
| 35416 | Plunger, Primary Regulator Valve, NO.1 |
| 35417A | Sleeve, Primary Regulator Valve |
| 35417B | Pin, Straight (FOR PRIMARY REGULATOR VALVE SLEEVE) |
| 35418 | Valve, Manual |
| 35418A | Pin, Straight (FOR MANUAL VALVE) |
| 35418B | Plug (FOR MANUAL VALVE) |
| 35419 | Valve, Check, NO.1 |
| 35419A | Spring, Compression (FOR CHECK VALVE) |
| 35422F | Stopper, Valve Vibrating |
| 35423 | Piston, B-2 Accumulator |
| 35423A | Spring, Compression (FOR B-2 ACCUMULATOR PISTON) |
| 35423B | Ring, O (FOR B-2 ACCUMULATOR PISTON) |
| 35424C | Piston, C-1 Accumulator |
| 35424D | Spring, Compression (FOR C-1 ACCUMULATOR PISTON) |
| 35424E | Ring, O (FOR C-1 ACCUMULATOR PISTON) |
| 35425A | Piston, C-2 Accumulator |
| 35425B | Spring, Compression (FOR C-2 ACCUMULATOR PISTON) |
| 35425C | Ring, O (FOR C-2 ACCUMULATOR PISTON) |
| 35426D | Piston, C-3 Accumulator |
| 35426E | Spring, Compression (FOR C-3 ACCUMULATOR PISTON) |
| 35426F | Ring, O (FOR C-3 ACCUMULATOR PISTON) |
| 35427A | Spring, Compression (FOR B-4 ACCUMULATOR PISTON) |
| 35427B | Ring, O (FOR B-4 ACCUMULATOR PISTON) |
| 35427C | Piston, B-4 Accumulator |
| 35429 | Tube, Line Pressure |
| 35432 | Plate, Valve Body, NO.1 |
| 35433 | Gasket, Valve Body, NO.1 |
| 35434 | Gasket, Valve Body, NO.2 |
| 35437B | Plate, Valve Body Cover |
| 35438H | Seat, Low Coast Modulator Valve Spring |
| 35441C | Strainer, Solenoid Oil |
| 35442 | Strainer, Throttle Modulator Oil |
| 35445H | Valve, 2ND Coast Modulator |
| 35445J | Plug (FOR 2ND COAST MODULATOR VALVE) |
| 35445P | Spring, Compression (FOR 2ND COAST MODULATOR VALVE) |
| 35445Q | Valve, Low Coast Modulator |
| 35445R | Spring, Compression (FOR LOW COAST MODULATOR VALVE) |
| 35445S | Key, Straight (FOR 2ND COAST MODULATOR VALVE) |
| 35445V | Plug (FOR LOW COAST MODULATOR VALVE) |
| 35449B | Valve, Pressure Relief |
| 35449C | Spring, Compression (FOR VALVE PRESSURE RELIEF) |
| 35450E | Ball (FOR UPPER VALVE BODY) |
| 35451 | Sleeve, Throttle Valve |
| 35451A | Pin, Straight (FOR THROTTLE VALVE SLEEVE) |

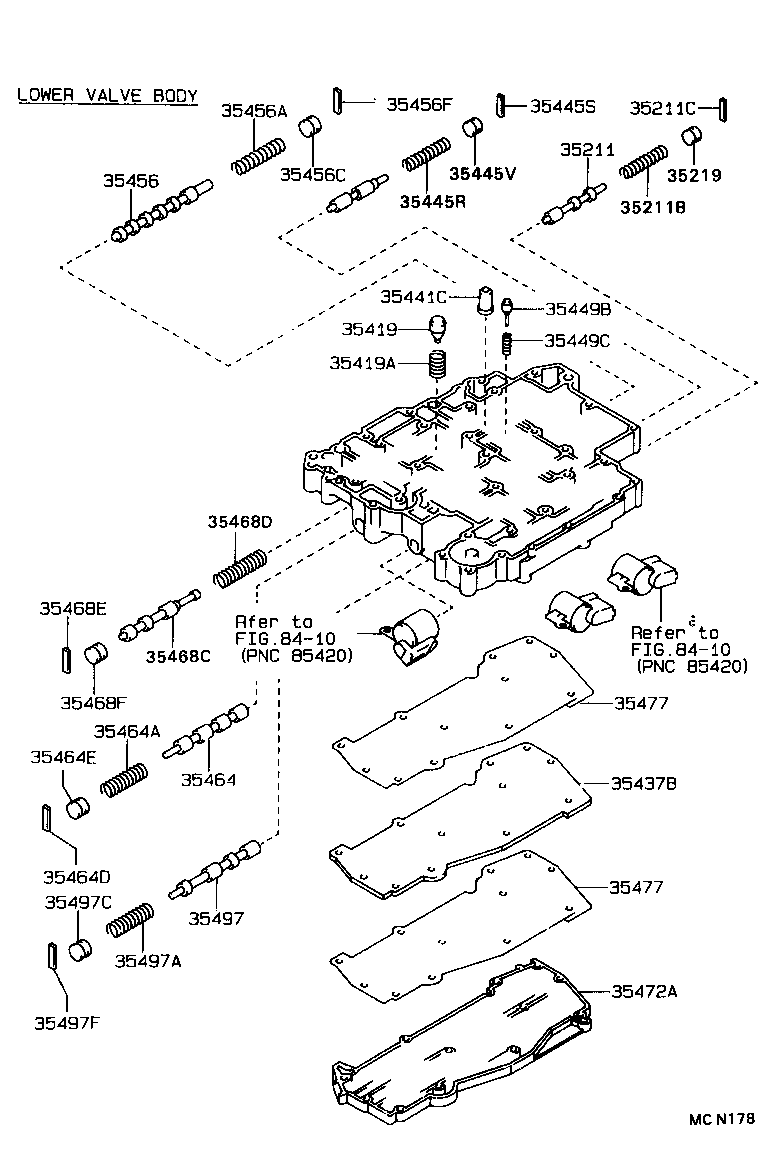

| 35456 | Valve, 2-3 Shift |
| 35456A | Spring, Compression (FOR 2-3 SHIFT VALVE) |
| 35456C | Plug (FOR 2-3 SHIFT VALVE) |
| 35456F | Key, Straight (FOR 2-3 SHIFT VALVE) |
| 35457 | Valve, Throttle Modulator |
| 35457E | Plug (FOR THROTTLE MODULATOR VALVE) |
| 35457F | Spring, Compression (FOR THROTTLE MODULATOR VALVE) |
| 35457G | Pin, Straight (FOR THROTTLE MODULATOR VALVE) |
| 35458D | Valve, Cut Back |
| 35458E | Plug (FOR CUT BACK VALVE) |
| 35458H | Key, Straight (FOR CUT BACK VALVE) |
| 35461 | Plug, Down Shift |
| 35461A | Spring, Compression (FOR DOWN SHIFT PLUG) |
| 35462 | Valve, Throttle |
| 35462A | Spring, Compression (FOR THROTTLE VALVE) |
| 35462D | Ring, E (FOR THROTTLE VALVE) |
| 35464 | Valve, 1-2 Shift |
| 35464A | Spring, Compression (FOR 1-2 SHIFT VALVE) |
| 35464D | Key, Straight (FOR 1-2 SHIFT VALVE) |
| 35464E | Plug (FOR 1-2 SHIFT VALVE) |
| 35465A | Sleeve, Primary Regulator Valve Plunger |
| 35468C | Valve, Secondary Regulator |
| 35468D | Spring, Compression (FOR SECONDARY REGULATOR VALVE) |
| 35468E | Key, Straight (FOR SECONDARY REGULATOR VALVE) |
| 35468F | Plug (FOR SECONDARY REGULATOR VALVE) |
| 35472A | Cover, Lower Valve Body |
| 35474A | Cover, Accumulator |
| 35477 | Gasket, Valve Body Cover |
| 35478 | Gasket, Accumulator Cover |
| 35491A | Valve, Accumulator Control, NO.1 |
| 35491B | Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1) |
| 35491C | Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1) |
| 35491D | Plug (FOR ACCUMULATOR CONTROL VALVE NO.1) |
| 35497 | Valve, 3-4 Shift |
| 35497A | Spring, Compression (FOR 3-4 SHIFT VALVE) |
| 35497C | Plug (FOR 3-4 SHIFT VALVE) |
| 35497F | Key, Straight (FOR 3-4 SHIFT VALVE) |
| 35521 | Cam, Throttle Valve |
| 35521A | Spring (FOR THROTTLE VALVE CAM RETURN) |
| 35521B | Washer (FOR THROTTLE VALVE CAM SET) |
| 35521C | Bolt (FOR THROTTLE VALVE CAM SET) |
| 35522 | Pin, Throttle Valve Cam |
| 35554 | Rod, Manual Valve Connecting |
| 35554A | Ring, E (FOR MANUAL VALVE CONNECTING ROD) |
| 35599 | Cover, Manual Detent Spring |
| 35844A | Tube, Accumulator Back Pressure, NO.1 |
| 35845A | Tube, Direct Clutch Accumulator |
| 35846 | Tube, Brake Accumulator |
| 35847 | Tube, Transmission Lube Apply |
| 35848 | Tube, Forward Clutch Accumulator |
| 35862 | Bracket, Accumulator Apply Tube |
| 35882A | Tube, Differential Gear Lube Apply |
| 35899 | Tube, Governor Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
