Toyota Carina E WG (JPP)
1992-11 → 1996-01 · chassis AT19#,ST191,CT190 · catalogue 274530 · Europe
Discontinued model
Data version 1997-12

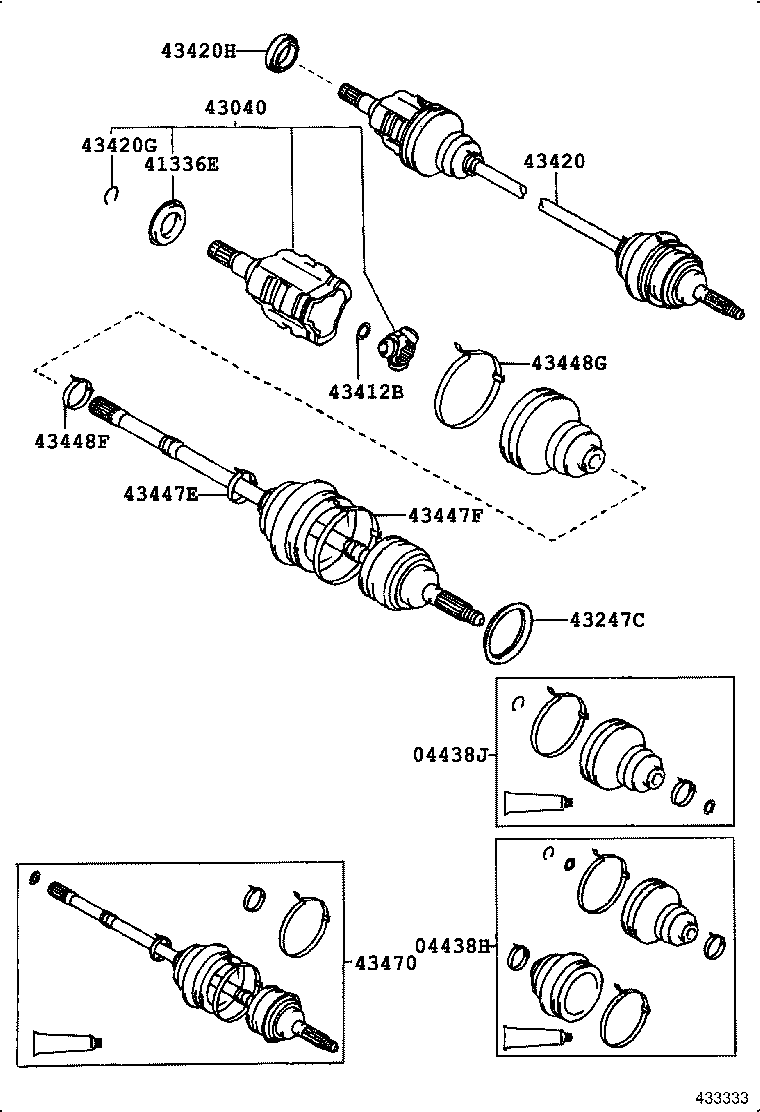

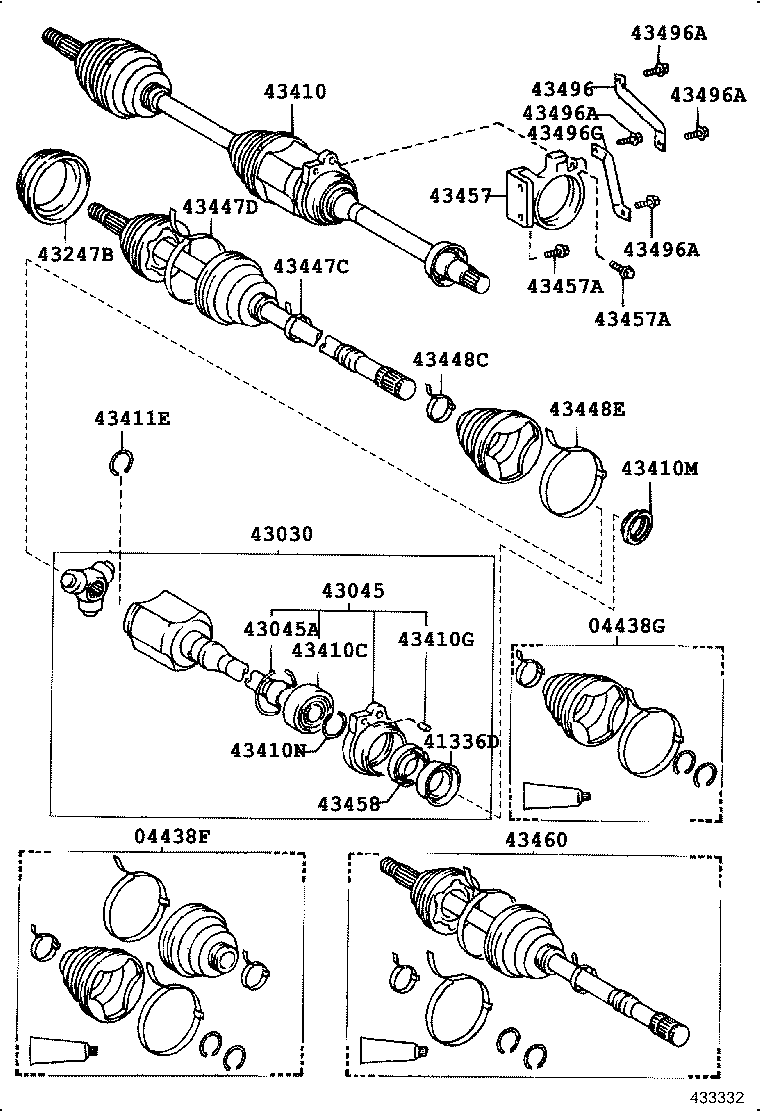

Front Drive Shaft
40 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04438F | Boot Kit, Front Drive Shaft, IN & Outboard, RH |
| 04438G | Boot Kit, Front Drive Shaft Inboard Joint, RH |
| 04438H | Boot Kit, Front Drive Shaft, IN & Outboard, LH |
| 04438J | Boot Kit, Front Drive Shaft Inboard Joint, LH |
| 41336D | Cover, Front Drive Shaft Dust, RH |
| 41336E | Cover, Front Drive Shaft Dust, LH |
| 43030 | Joint Assy, Front Drive Inboard, RH |
| 43040 | Joint Assy, Front Drive Inboard, LH |
| 43045 | Case Sub Assy, Drive Shaft Bearing |
| 43045A | Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING) |
| 43247B | Deflector, Front Wheel Bearing Dust, RH NO.2 |
| 43247C | Deflector, Front Wheel Bearing Dust, LH NO.2 |
| 43410 | Shaft Assy, Front Drive, RH |
| 43410C | Bearing (FOR FRONT DRIVE SHAFT) |
| 43410G | Pin, Straight (FOR FRONT DRIVE SHAFT) |
| 43410M | Oil Seal, Front Drive Shaft, RH |
| 43410N | Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH) |
| 43411E | Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH) |
| 43412B | Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH) |
| 43420 | Shaft Assy, Front Drive, LH |
| 43420G | Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH) |
| 43420H | Oil Seal, Front Drive Shaft, LH |
| 43447C | Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) |
| 43447D | Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) |
| 43447E | Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) |
| 43447F | Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) |
| 43448C | Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH) |
| 43448E | Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) |
| 43448F | Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH) |
| 43448G | Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) |
| 43457 | Bracket, Drive Shaft Bearing |
| 43457A | Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) |
| 43458 | Cover, Front Drive Shaft Dust |
| 43460 | Shaft Assy, Front Drive Outboard Joint, RH |
| 43470 | Shaft Assy, Front Drive Outboard Joint, LH |
| 43474 | Damper, Drive Shaft |
| 43474A | Clamp (FOR DRIVE SHAFT DAMPER SETTING) |
| 43496 | Stay, Front Drive Shaft Bearing Bracket, NO.1 |
| 43496A | Bolt (FOR DRIVE SHAFT BEARING BRACKET STAY) |
| 43496C | Stay, Front Drive Shaft Bearing Bracket, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
