Toyota Carina E WG (JPP)

1992-11 → 1996-01 · chassis AT19#,ST191,CT190 · catalogue 274530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

20 part groups · 5 illustrations

Illustrations

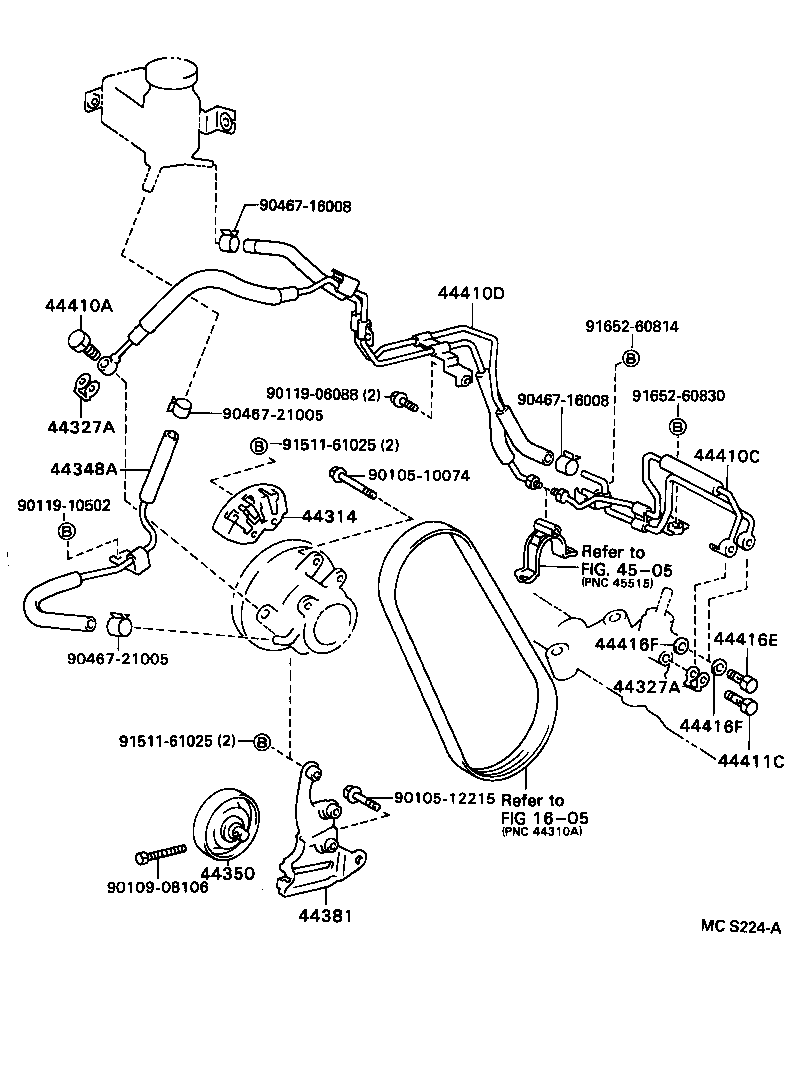

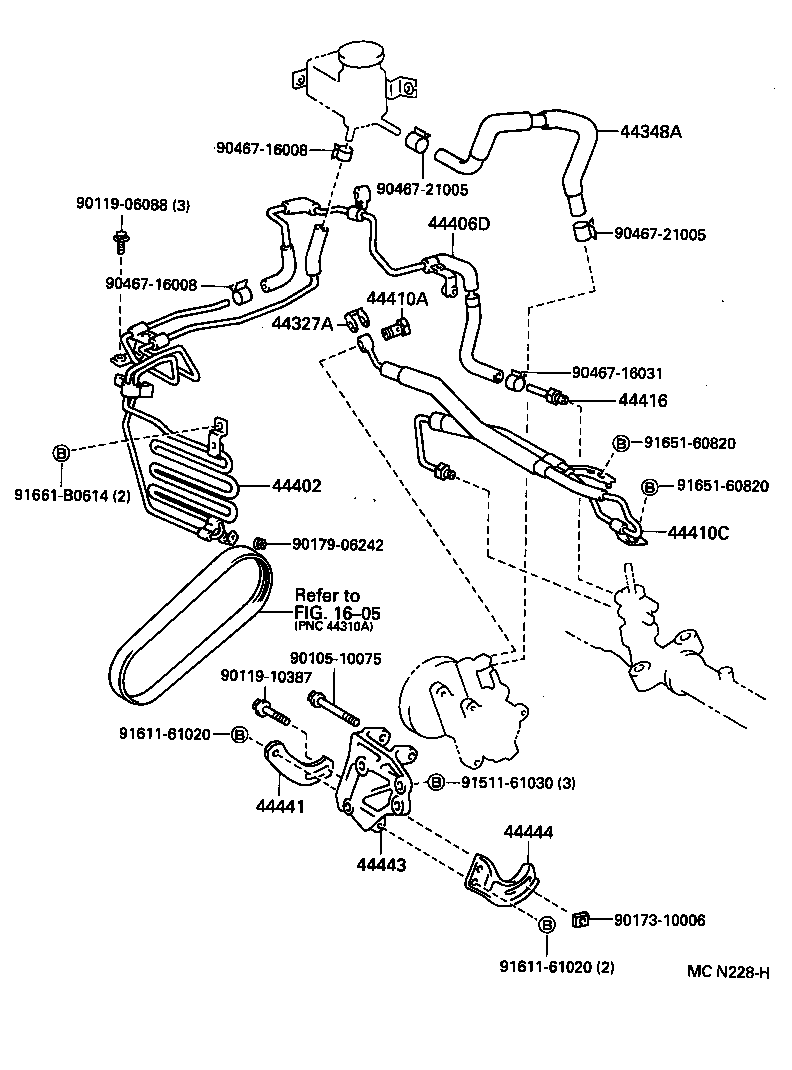

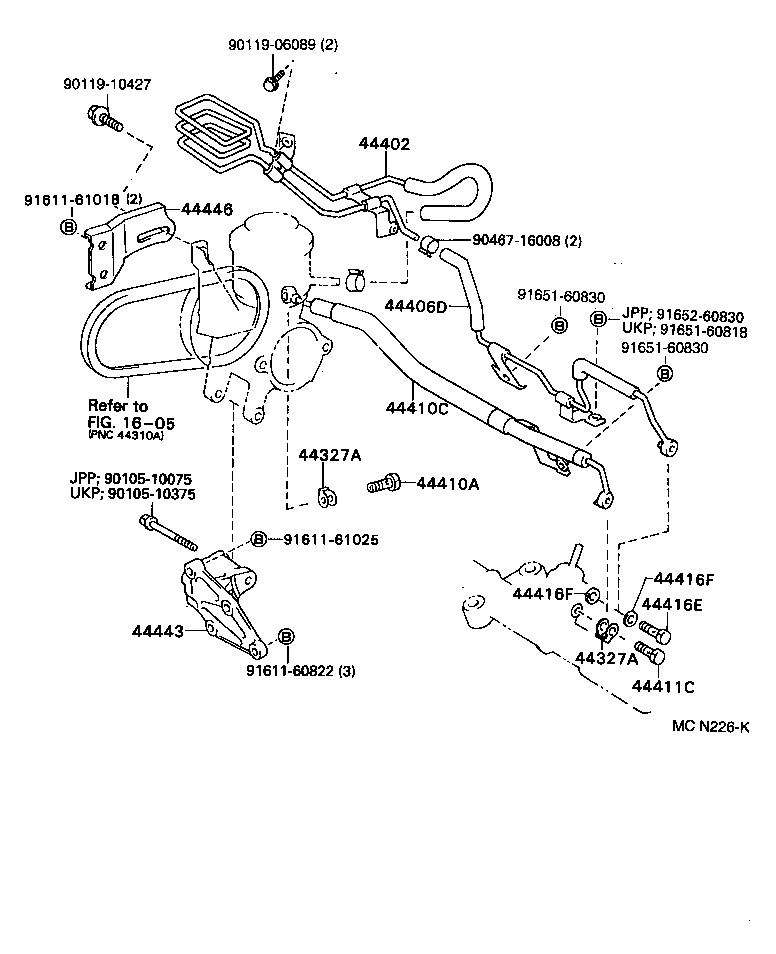

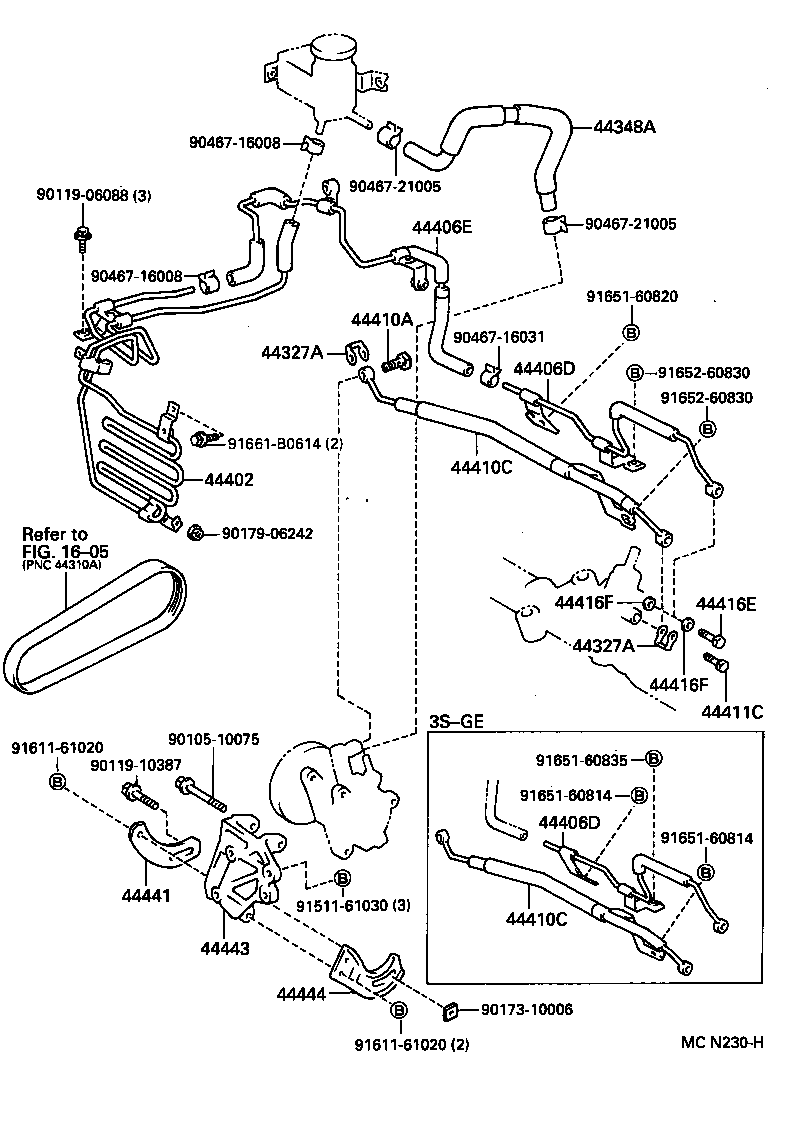

Figure MCN227L MCN227L 1992-02 → — Figure MCN226K MCN226K 1992-02 → — Figure MCS224A MCS224A 1992-02 → — Figure MCN228H MCN228H 1992-02 → — Figure MCN230H MCN230H 1992-02 → —

Part groups

PNCDescription
44314 Cover, Pulley
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406D Tube Sub-assy, Return, NO.1
44406E Tube Sub-assy, Return, NO.2
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410C Tube Assy, Pressure Feed, NO.1
44410D Tube Assy, Pressure Feed, NO.2
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412D Hose, Return, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416E Bolt, Union(FOR RETURN TUBE)
44416F Gasket(FOR RETURN TUBE)
44441 Bracket, Pump, Front
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
