Toyota Carina E WG (JPP)

1992-11 → 1996-01 · chassis AT19#,ST191,CT190 · catalogue 274530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

14 part groups · 5 illustrations

Illustrations

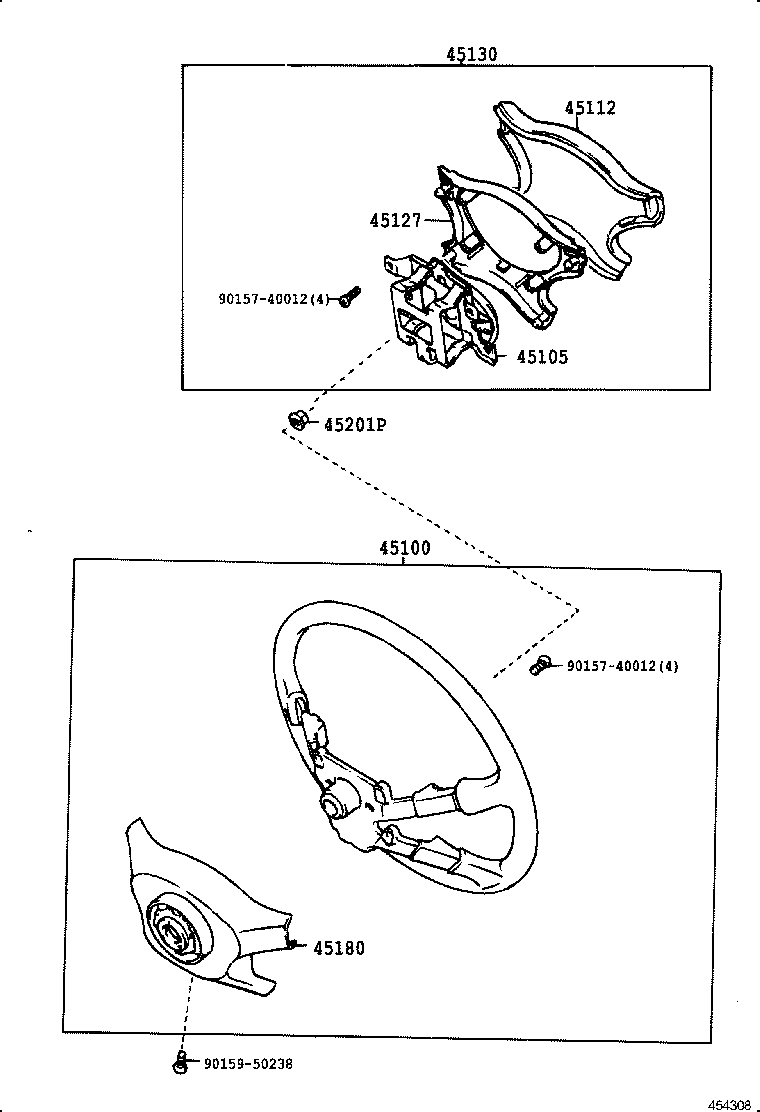

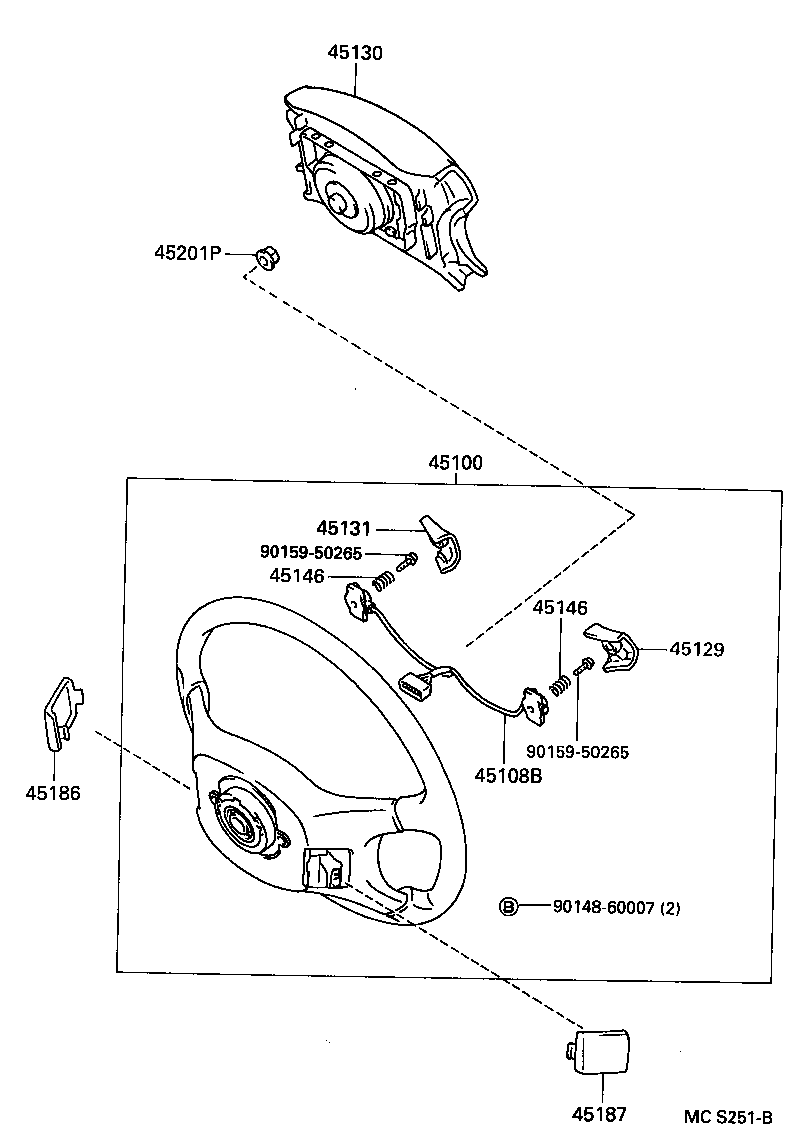

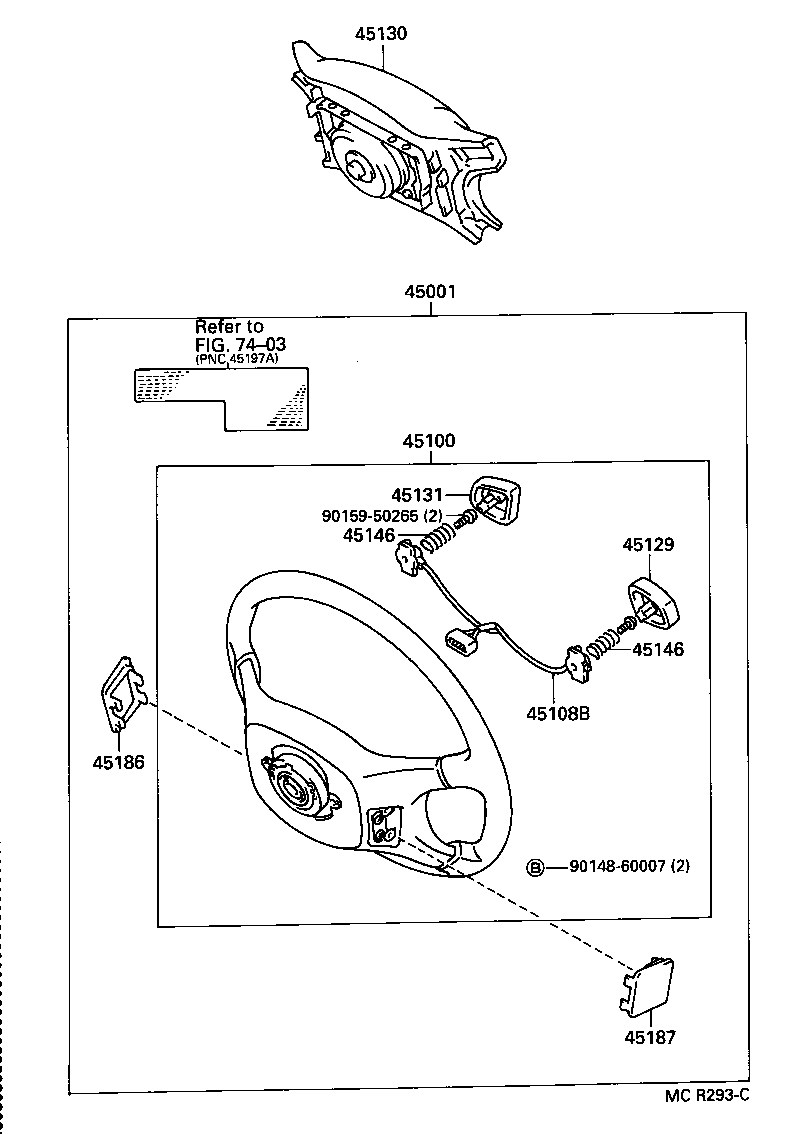

Figure 454301A 454301A 1992-02 → — Figure 454308 454308 1992-02 → 1994-12 Figure MCM931A MCM931A 1992-02 → 1994-12 Figure MCS251B MCS251B 1994-12 → — Figure MCR293C MCR293C 1993-08 → —

Part groups

PNCDescription
45001 Airbag Kit, Sttering Wheel
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45108B Button Sub-assy, Horn(FOR STEERING WHEEL ASSY)
45112 Pad, Steering Wheel
45127 Insert, Horn Button, Upper NO.1
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45146 Spring, Horn Button Contact
45180 Cover Sub-assy, Steering Wheel
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
