Toyota Carina E WG (JPP)

1992-11 → 1996-01 · chassis AT19#,ST191,CT190 · catalogue 274530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

13 part groups · 2 illustrations

Illustrations

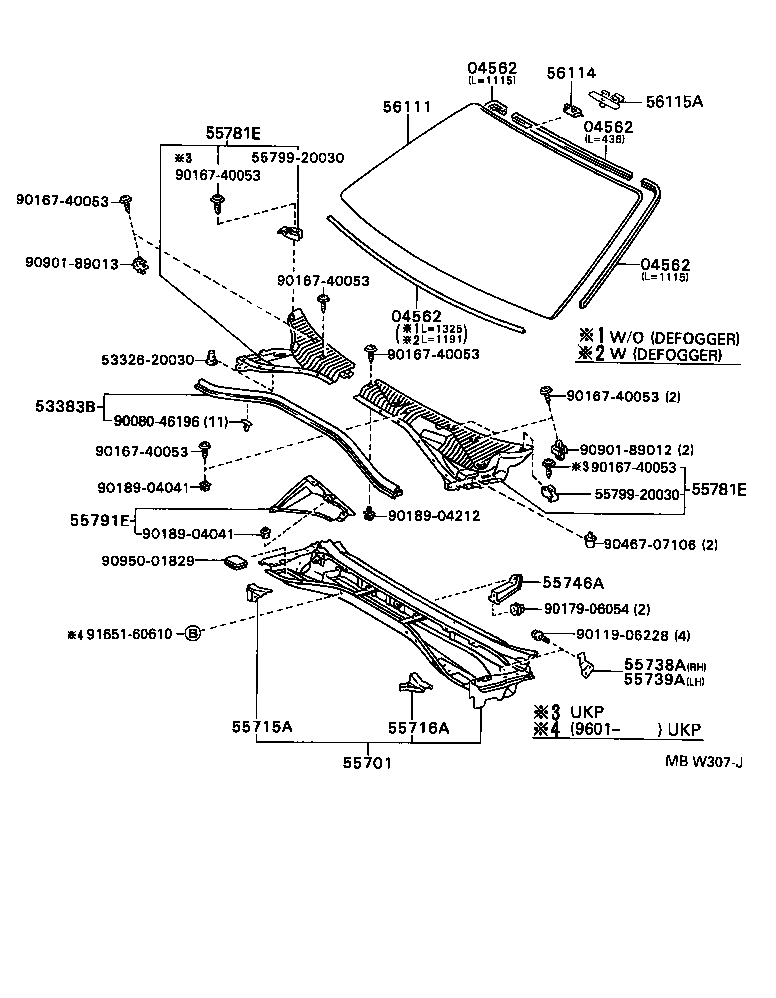

Figure MBW306J MBW306J 1992-02 → — Figure MBW307J MBW307J 1992-02 → —

Part groups

PNCDescription
04562 Dam Kit, Windshield Glass
53383B Seal, Hood TO Cowl Top
55701 Panel Sub-assy, Cowl
55715A Brace, Cowl Top TO Apron, RH
55716A Brace, Cowl Top TO Apron, LH
55738A Stopper, Hood, RH
55739A Stopper, Hood, LH
55746A Reinforcement, Cowl Top, Inner Lower
55781E Louver Sub-assy, Cowl Top Ventilator
55791E Cover, Heater Duct Hole
56111 Glass, Windshield
56114 Retainer, Windshield Glass
56115A Stopper, Windshield Glass, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
