Toyota Carina E WG (JPP)

1992-11 → 1996-01 · chassis AT19#,ST191,CT190 · catalogue 274530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

41 part groups · 15 illustrations

Illustrations

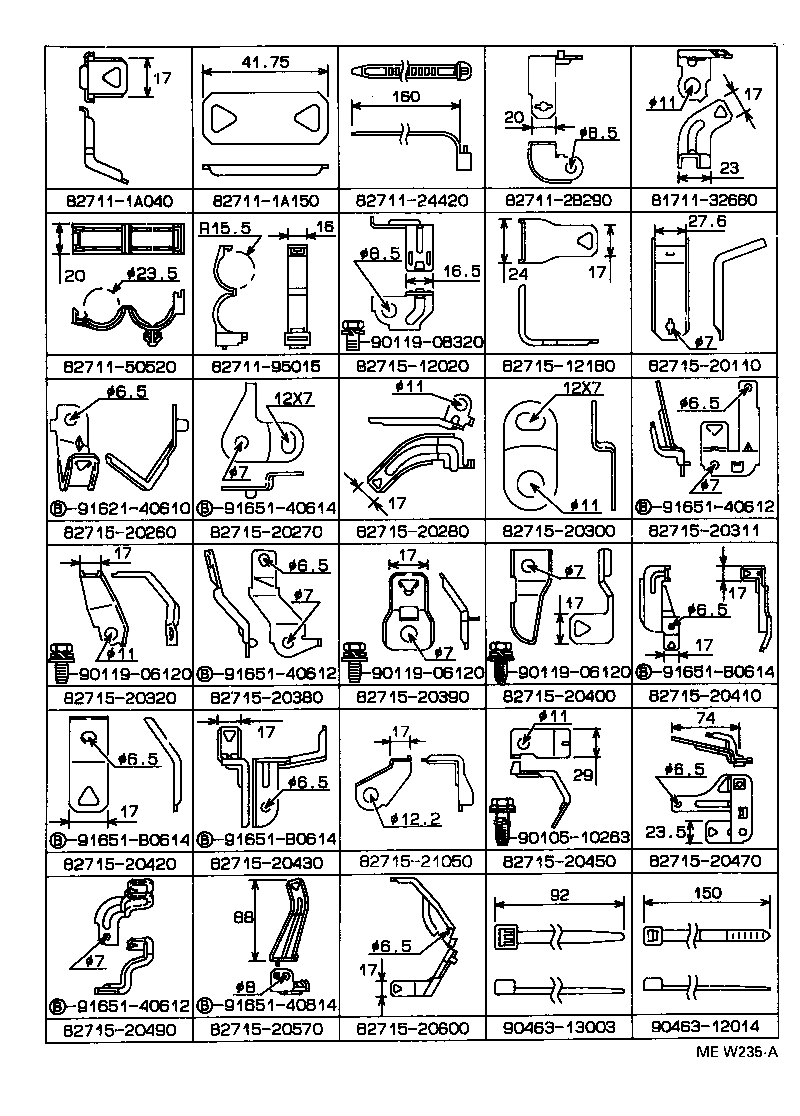

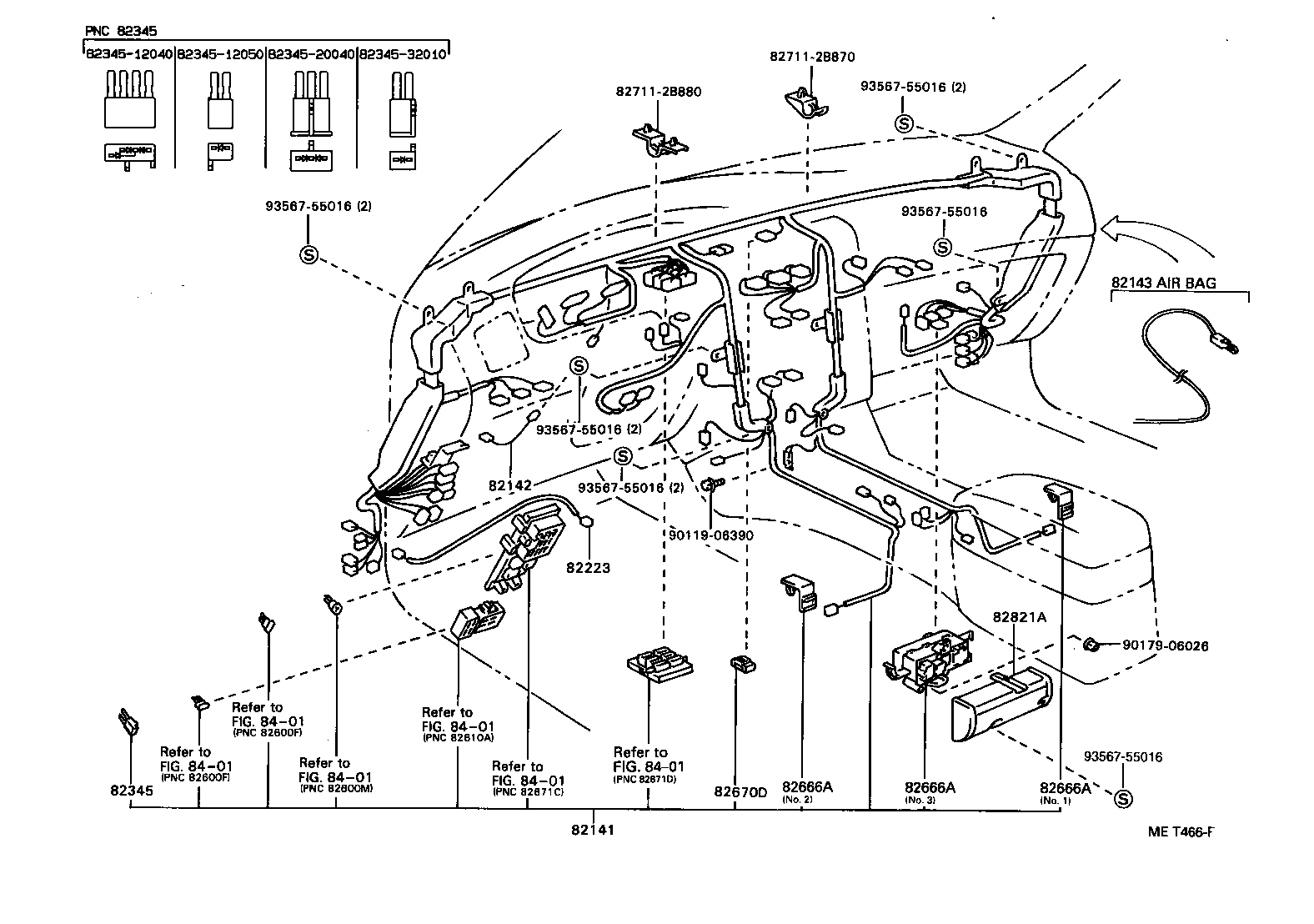

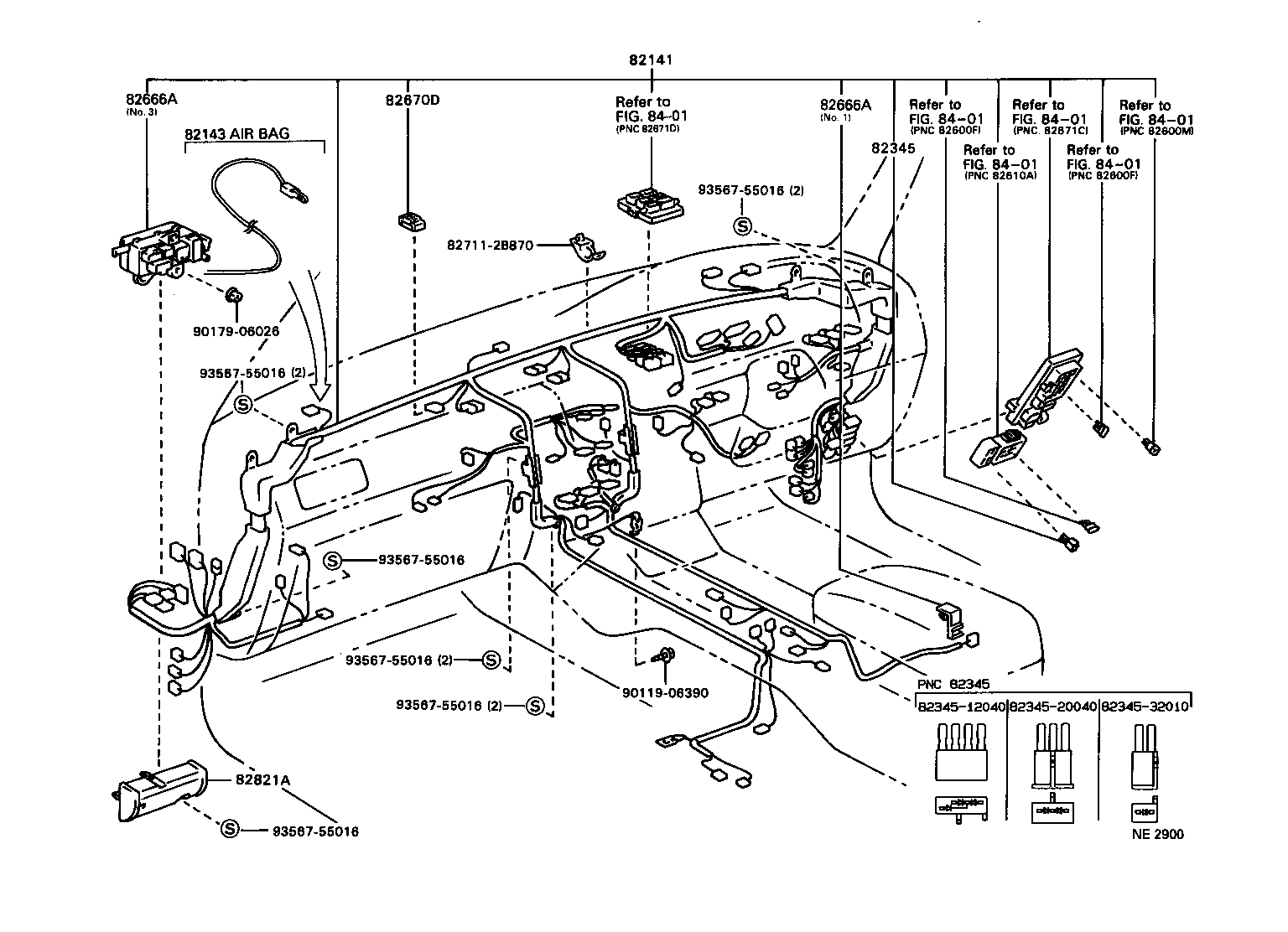

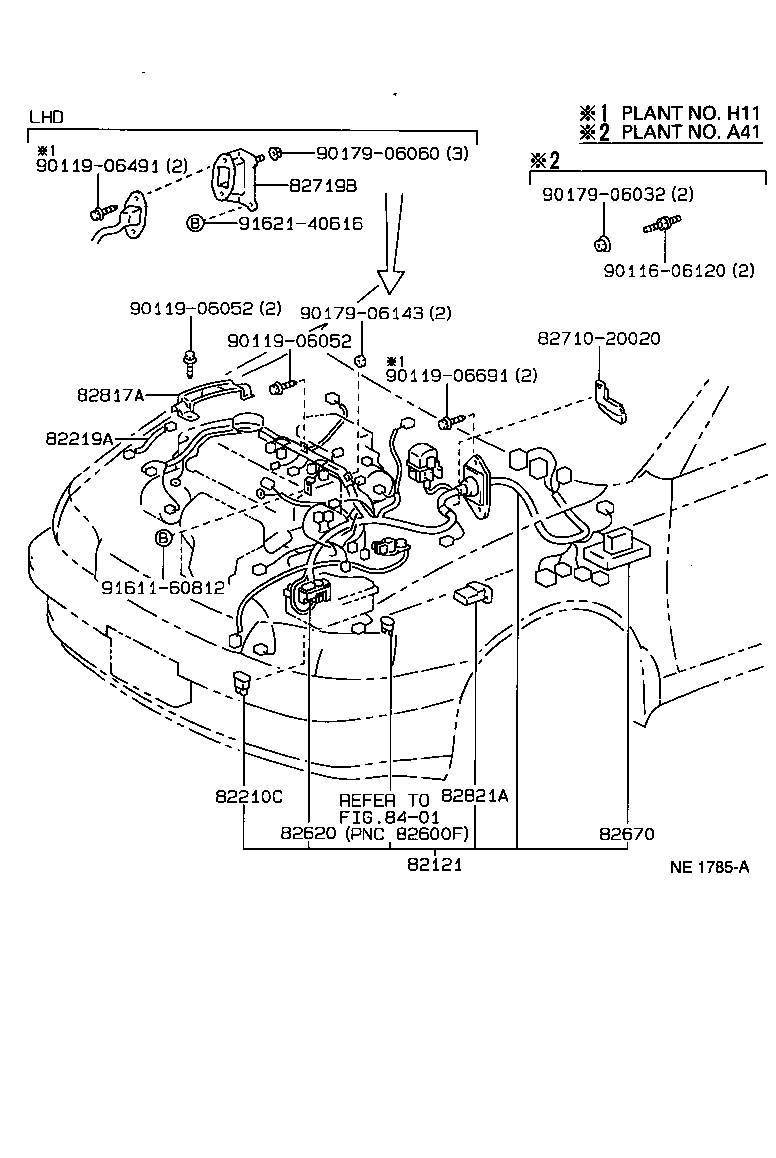

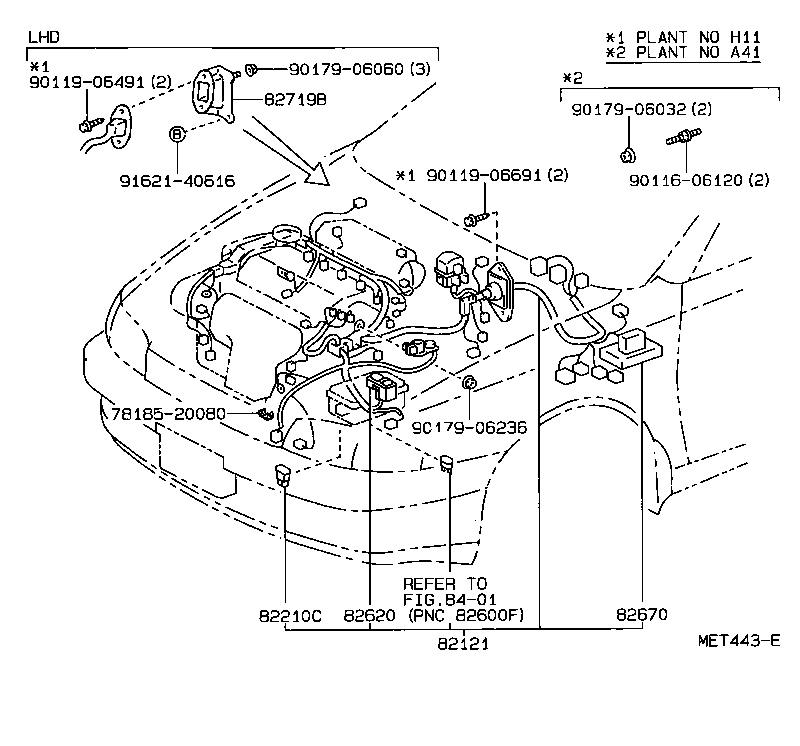

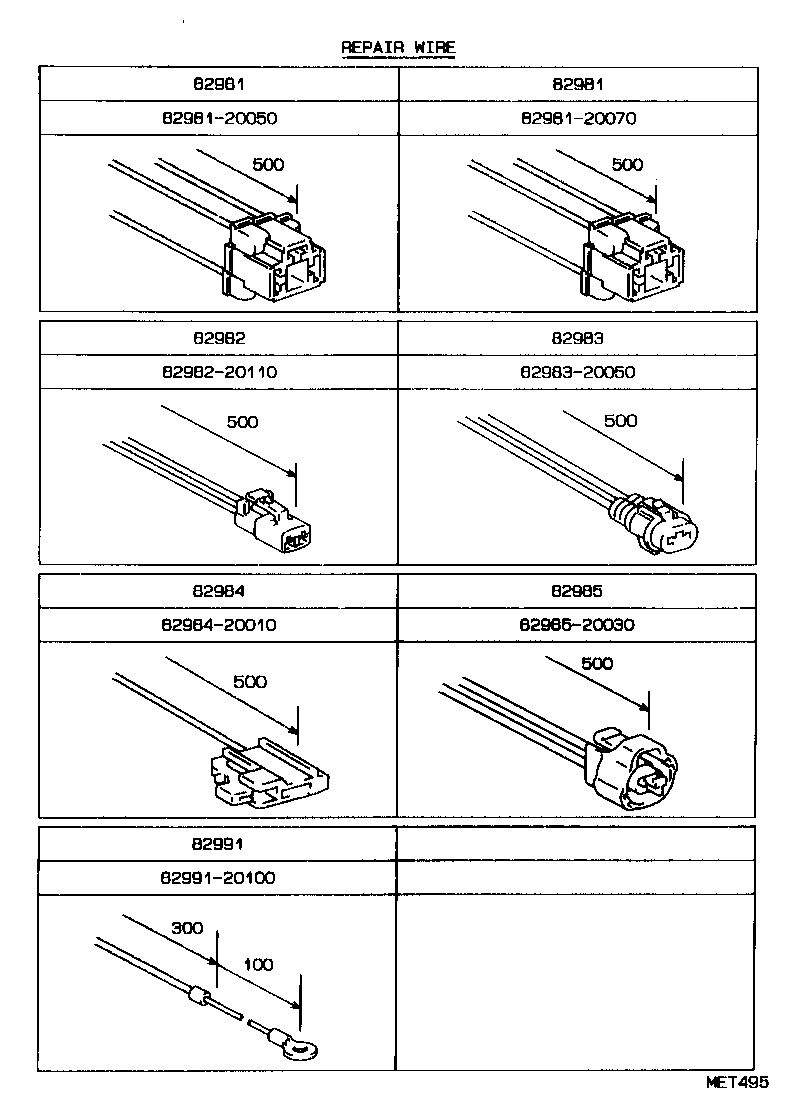

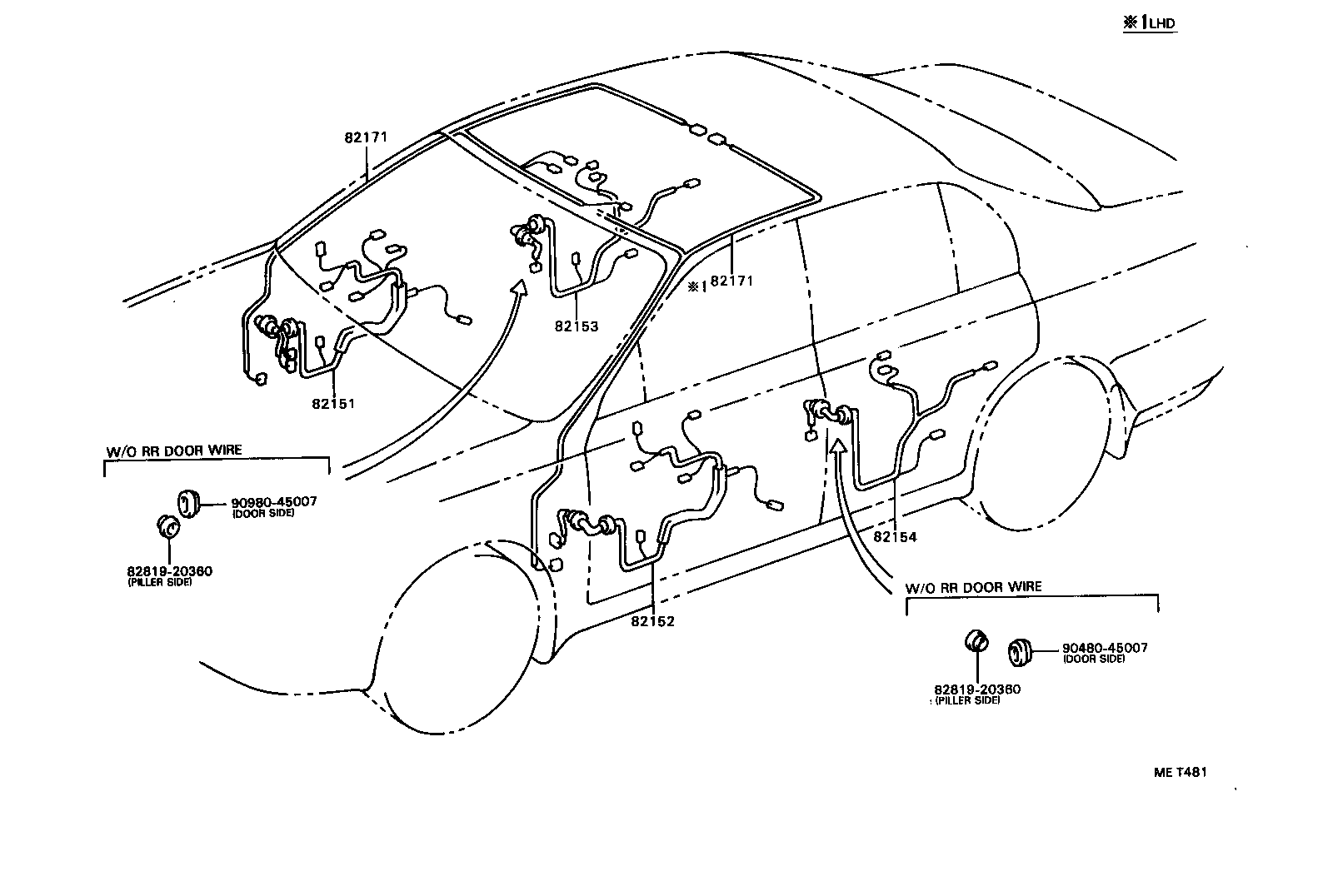

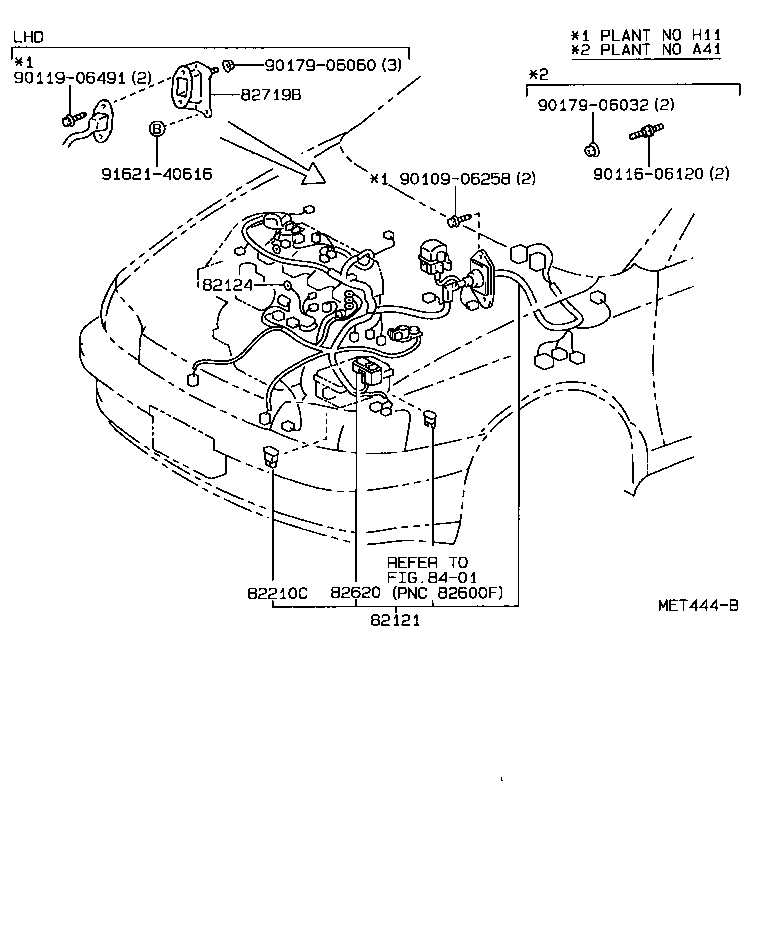

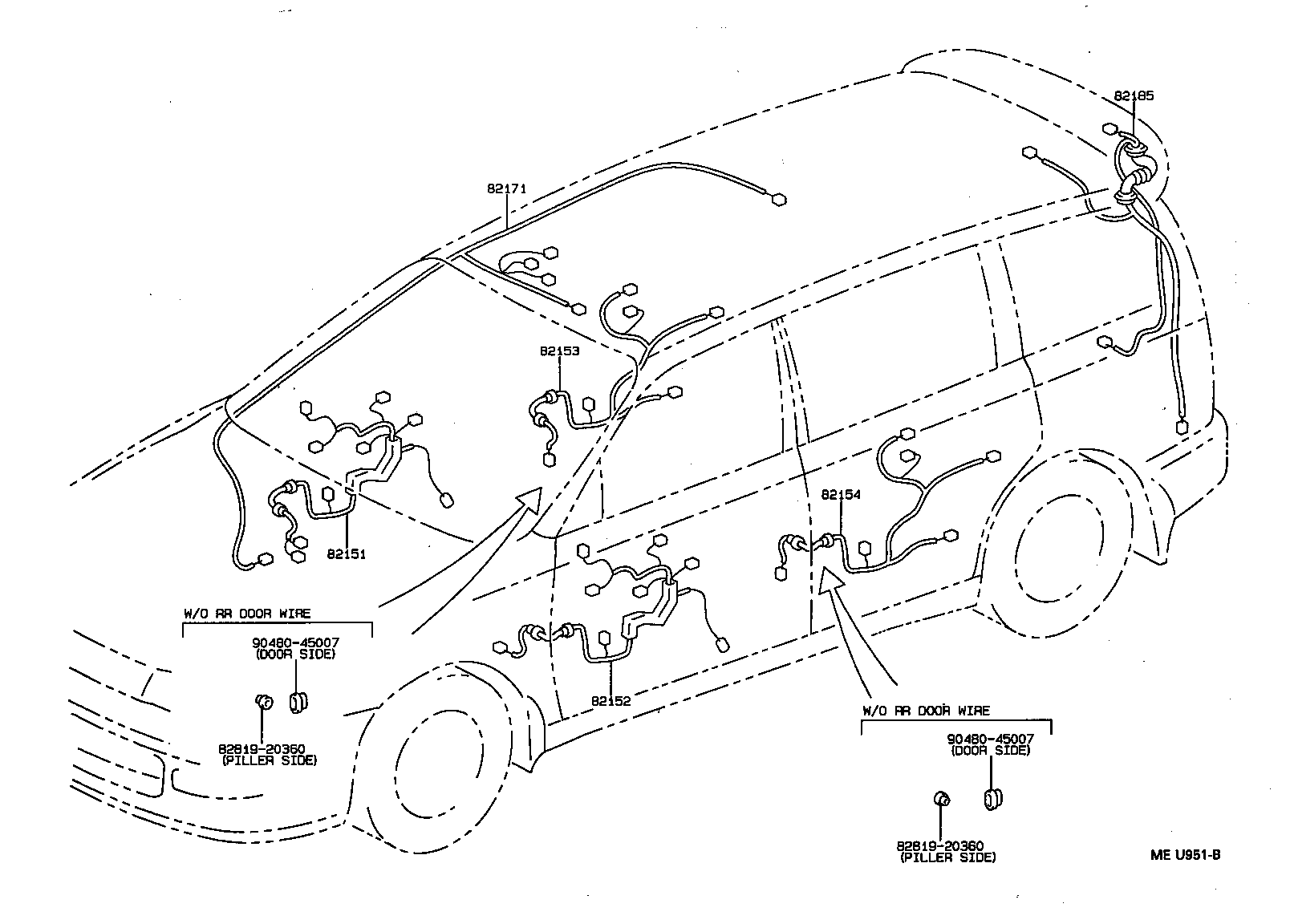

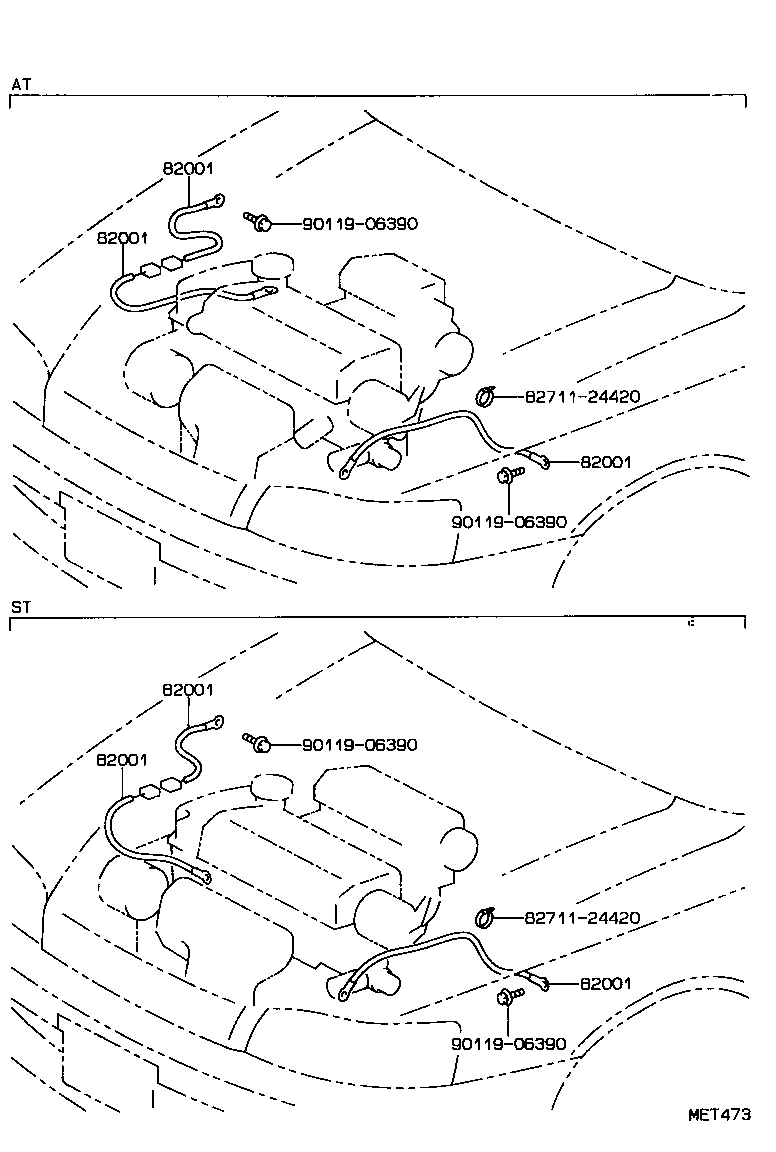

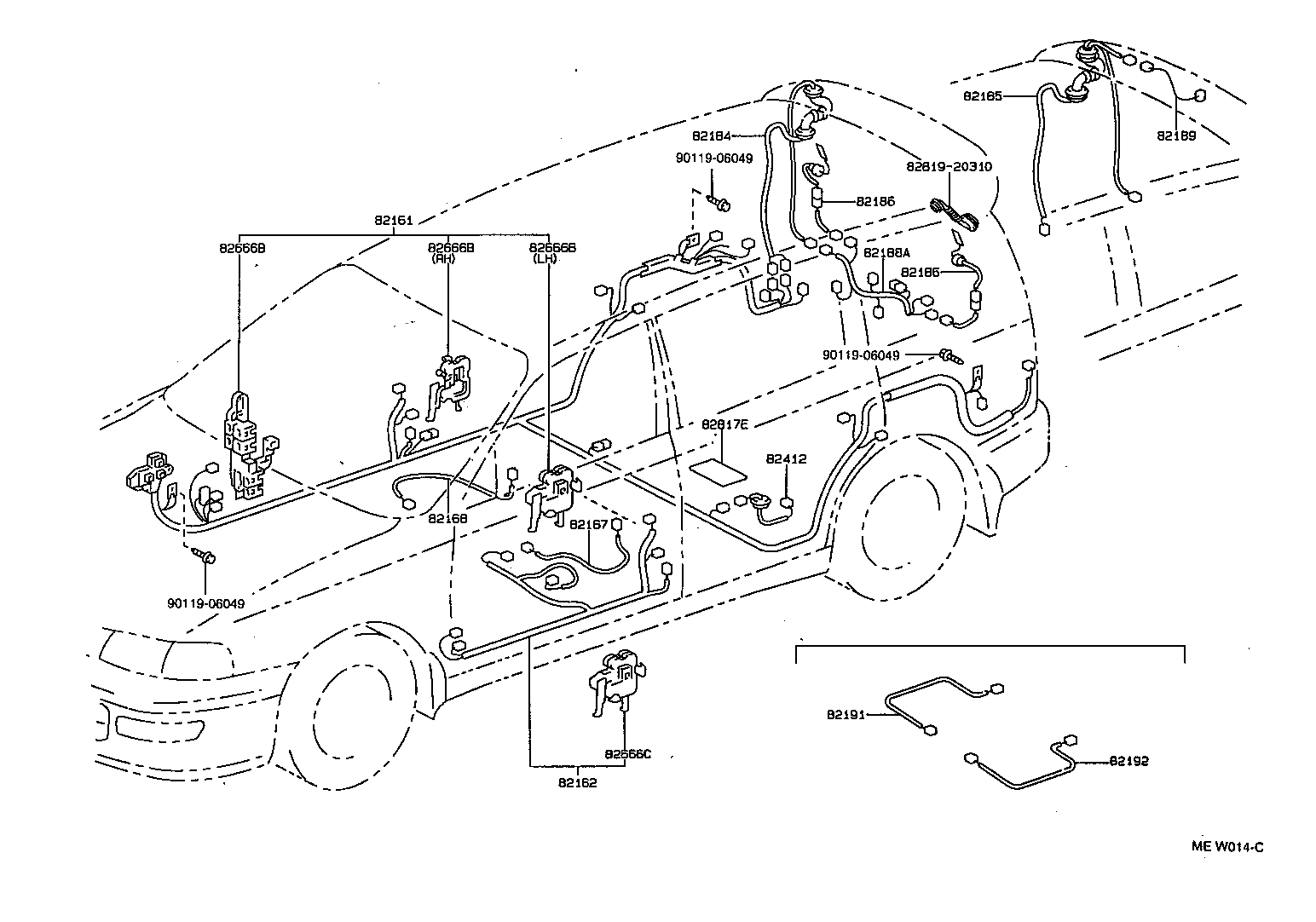

Figure MET447B MET447B 1992-02 → — Figure NE1785A NE1785A 1992-02 → — Figure MET444B MET444B 1992-02 → — Figure MET443E MET443E 1992-02 → — Figure MEW235A MEW235A 1992-02 → — Figure MEY430B MEY430B 1992-02 → — Figure MET453B MET453B 1992-02 → — Figure NE2900 NE2900 1992-02 → — Figure MET466F MET466F 1992-02 → — Figure MET481 MET481 1992-02 → — Figure MEU951B MEU951B 1992-11 → — Figure MEW014C MEW014C 1992-11 → — Figure MET473 MET473 1992-02 → — Figure MET495 MET495 1992-02 → — Figure MEW467 MEW467 1993-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82188A Wire, Back Door, NO.3
82210C Fusible Link
82219A Wire, Sensor
82223 Wire, Switch
82345 Diode
82412 Wire, Fuel Gage
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82670 Block Assy, Junction, NO.1
82670D Block Assy, Junction,NO.2
82719B Cover, Wire Harness Service Hole(FOR ENGINE ROOM)
82817 Protector, Wiring Harness, NO.1
82817E Protector, Wiring Harness, NO.6
82821A Cover, Connector
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
