Toyota Carina E WG (JPP)

1992-11 → 1996-01 · chassis AT19#,ST191,CT190 · catalogue 274530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

20 part groups · 5 illustrations

Illustrations

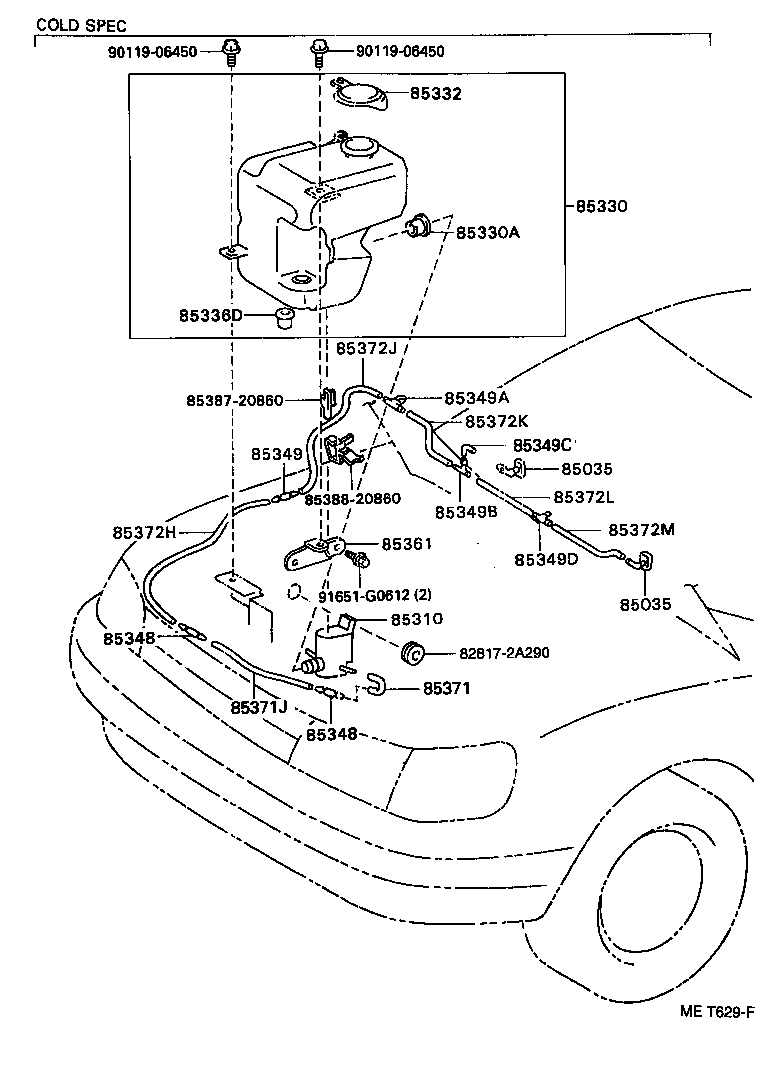

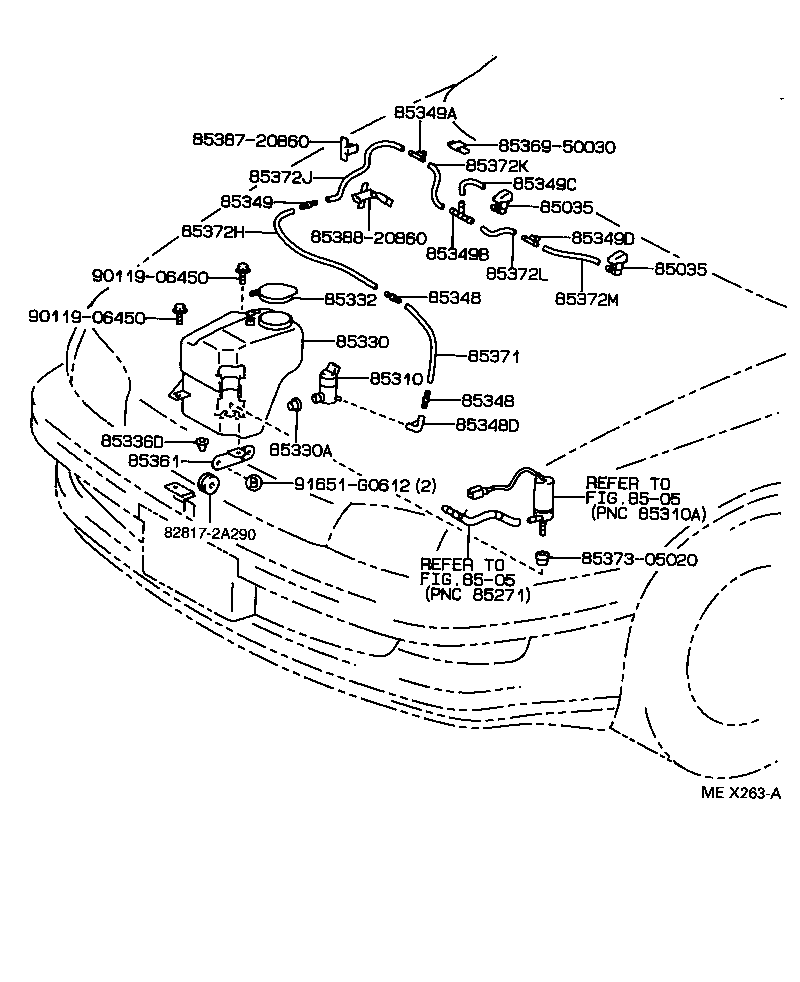

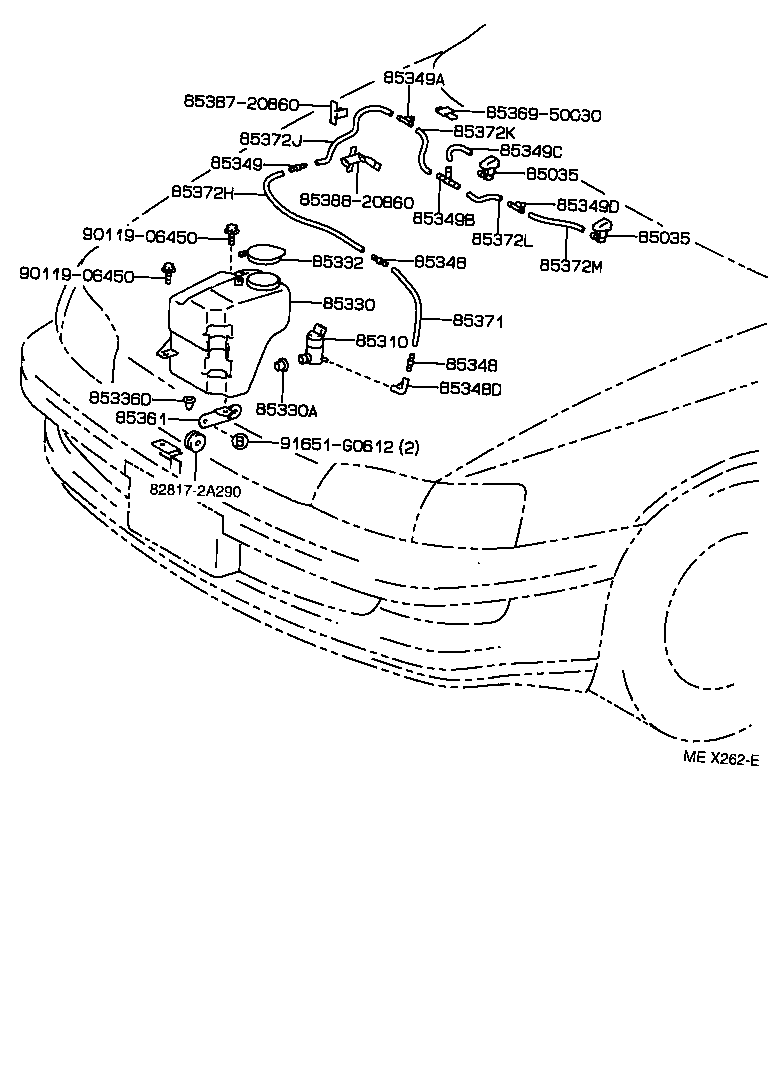

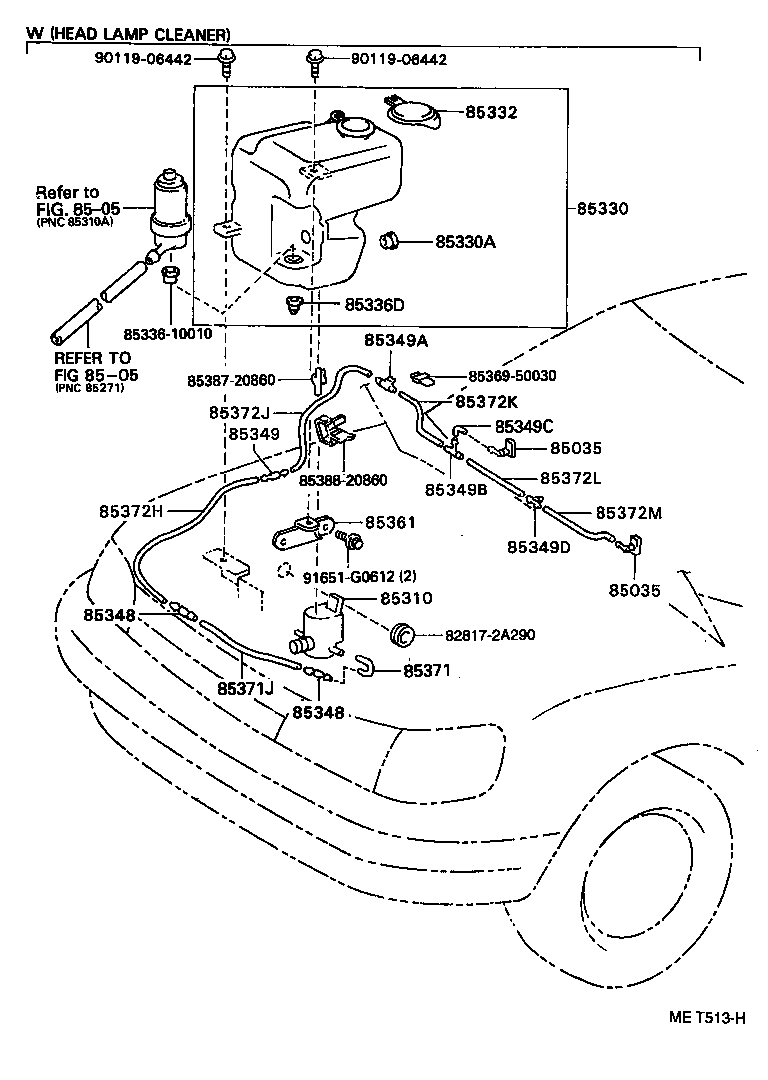

Figure MET628E MET628E 1992-02 → 1993-08 Figure MET629F MET629F 1992-02 → 1993-08 Figure MEX262E MEX262E 1993-08 → — Figure MET513H MET513H 1992-02 → — Figure MEX263A MEX263A 1993-08 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85336D Packing, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85349 Joint, Windshield Washer Hose, NO.1
85349A Joint, Windshield Washer Hose, NO.2
85349B Joint, Windshield Washer Hose, NO.3
85349C Joint, Windshield Washer Elbow, NO.4
85349D Joint, Windshield Washer Hose, NO.4
85361 Holder, Windshield Washer
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85371J Tube, Rubber
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85372J Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85372K Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5
85372L Hose, Windshield Washer (FROM JOINT TO JOINT), NO.6
85372M Hose, Windshield Washer (FROM JOINT TO JOINT), NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
