Toyota Carina E WG (JPP)

1992-11 → 1996-01 · chassis AT19#,ST191,CT190 · catalogue 274530 · Europe

Discontinued model Data version 1997-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

3 part groups · 2 illustrations

Illustrations

Figure MET423

MET423 1992-02 → —

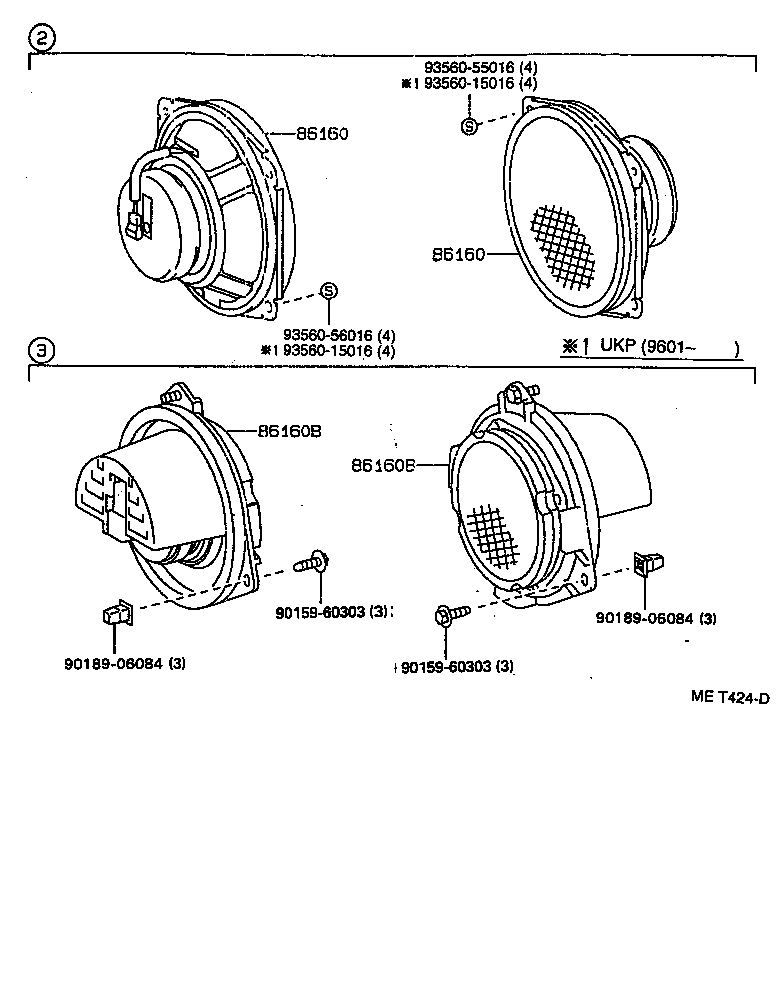

Figure MET424D

MET424D 1992-02 → —

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160P	Speaker Assy, Front NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
