Toyota Carina E WG (JPP)

1992-11 → 1996-01 · chassis AT19#,ST191,CT190 · catalogue 274530 · Europe

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

5 part groups · 5 illustrations

Illustrations

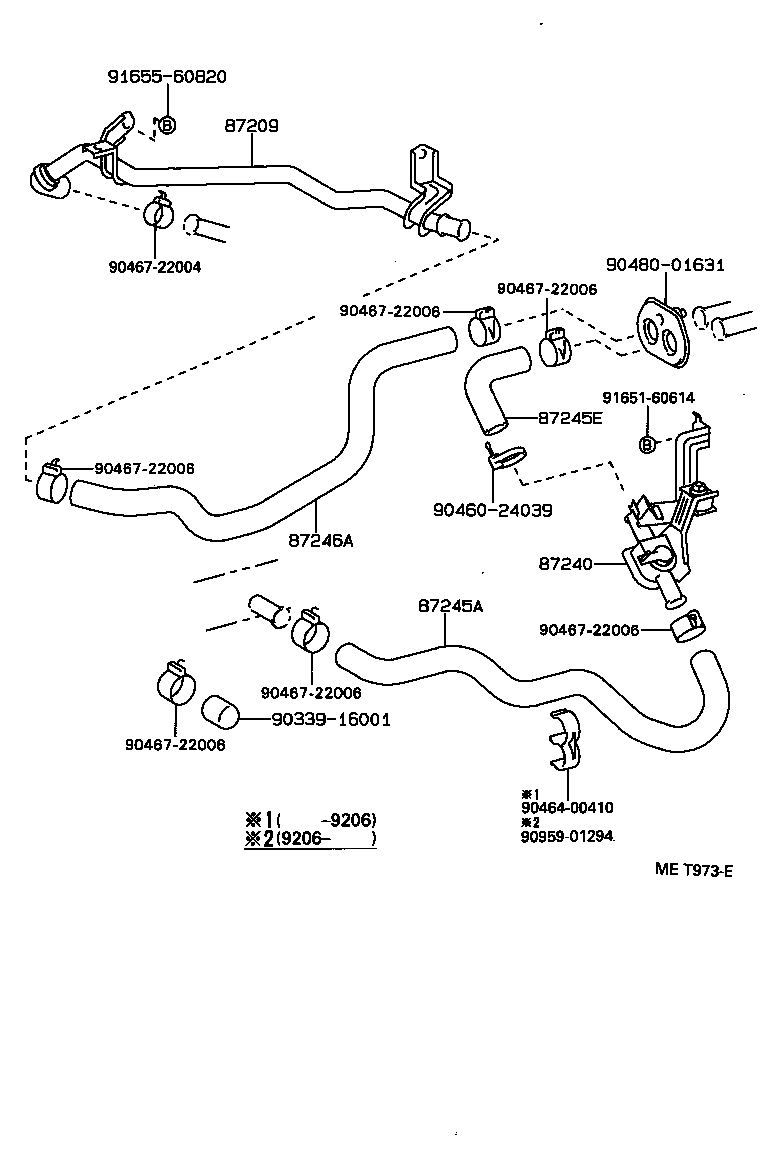

Figure MET499E MET499E 1992-02 → — Figure MEX428 MEX428 1992-02 → — Figure MET971C MET971C 1992-02 → — Figure MET972C MET972C 1992-02 → — Figure MET973E MET973E 1992-02 → —

Part groups

PNCDescription
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
