Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

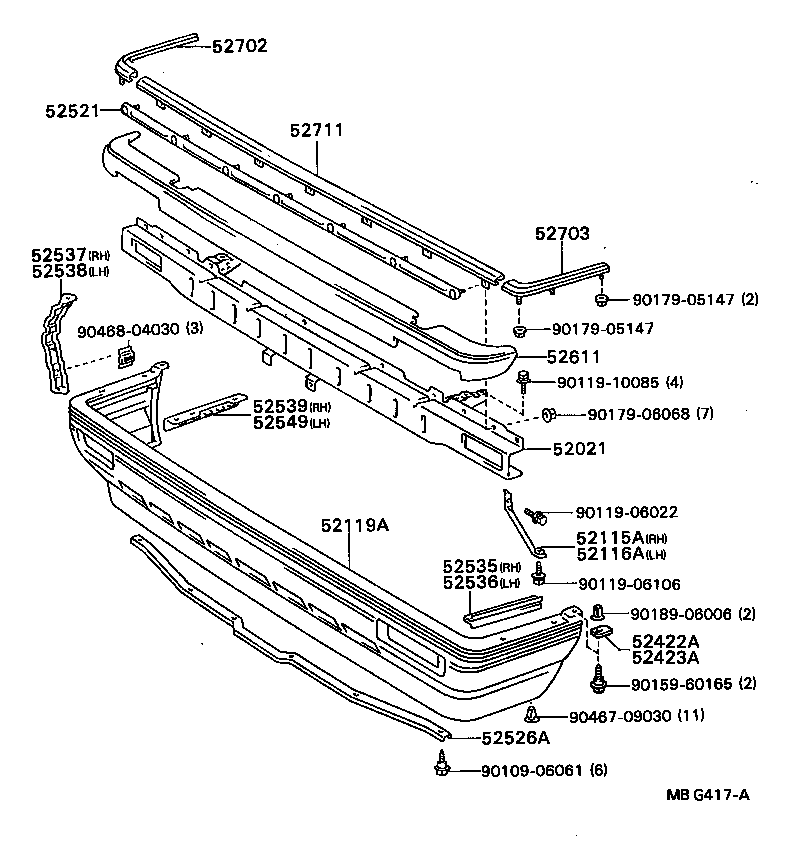

Exploded illustration MBG417A 52702 — MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH (2 parts) 52521 — RETAINER, FRONT BUMPER, UPPER CENTER (4 parts) 52711 — MOULDING, FRONT BUMPER (2 parts) 52703 — MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH (2 parts) 52537 — RETAINER, FRONT BUMPER END, RH (2 parts) 52538 — RETAINER, FRONT BUMPER END, LH (2 parts) 9017905147 — not listed in this catalogue 9046804030 — not listed in this catalogue 9017905147 — not listed in this catalogue 52611 — ABSORBER, FRONT BUMPER ENERGY (3 parts) 9011910085 — not listed in this catalogue 52539 — RETAINER, FRONT BUMPER SIDE, NO.3 RH (1 parts) 9017906068 — not listed in this catalogue 52549 — RETAINER, FRONT BUMPER SIDE, NO.3 LH (1 parts) 52021 — REINFORCEMENT SUB-ASSY, FRONT BUMPER (2 parts) 9011906022 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (10 parts) 52115A — SUPPORT, FRONT BUMPER SIDE, RH (1 parts) 52116A — SUPPORT, FRONT BUMPER SIDE, LH (1 parts) 52535 — RETAINER, FRONT BUMPER SIDE, RH (3 parts) 52536 — RETAINER, FRONT BUMPER SIDE, LH (3 parts) 9011906106 — not listed in this catalogue 9018906006 — not listed in this catalogue 52422A — PAD, FRONT BUMPER, RH (1 parts) 52423A — PAD, FRONT BUMPER, LH (1 parts) 9015960165 — not listed in this catalogue 9046709030 — not listed in this catalogue 52526A — RETAINER, FRONT BUMPER, LOWER NO.1 (2 parts) 9010906061 — not listed in this catalogue
MBG417A · 18 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
52021 — Reinforcement Sub-assy, Front Bumper
52021-32010 Reinforcement Sub-assy, Front Bumper
1982-10 → 1984-06 ended
CV10,SV1# —
52021-32030 note Reinforcement Sub-assy, Front Bumper
1984-06 → 1986-10 ended
CV1#,SV1# —
52115A — Support, Front Bumper Side, RH
52115-32010 Support, Front Bumper Side, RH
1982-10 → 1986-10 ended
CV1#,SV1# —
52116A — Support, Front Bumper Side, LH
52115-32010 Support, Front Bumper Side, LH
1982-10 → 1986-10 ended
CV1#,SV1# —
52119A — Cover, Front Bumper
52119-32040 note Cover, Front Bumper
1982-10 → 1984-06 ended
CV10,SV1# —
52119-32070 note Cover, Front Bumper
1982-10 → 1984-06 ended
CV10,SV1# EUR —
52119-32130 note Cover, Front Bumper
1984-06 → 1986-10 ended
CV1#,SV1# EUR —
52119-32140 note Cover, Front Bumper
1984-06 → 1986-10 ended
CV1#,SV1# EUR —
52119-32150 note Cover, Front Bumper
1984-06 → 1986-10 ended
CV1#,SV1# EUR —
52119-32160 note Cover, Front Bumper
1984-06 → 1986-10 ended
CV1#,SV1# —
52119-32901 note Cover, Front Bumper
1982-10 → 1984-06 ended
CV10,SV1# GL,GLI —
52119-32902 note Cover, Front Bumper
1982-10 → 1984-06 ended
CV10,SV1# (GL,GLI) EUR —
52119-32903 note Cover, Front Bumper
1984-06 → 1986-10 ended
CV1#,SV1# GL,GLI —
52119-32904 note Cover, Front Bumper
1984-06 → 1986-10 ended
CV1#,SV1# (GL,GLI) EUR —
52422A — Pad, Front Bumper, RH
52422-32010 Pad, Front Bumper, RH
1984-06 → 1986-10 ended
CV1#,SV1# —
52423A — Pad, Front Bumper, LH
52423-32010 Pad, Front Bumper, LH
1984-06 → 1986-10 ended
CV1#,SV1# —
52521 — Retainer, Front Bumper, Upper Center
52521-32010 note Retainer, Front Bumper, Upper Center
1982-10 → 1984-06 ended
CV10,SV1# —
52521-32020 note Retainer, Front Bumper, Upper Center
1982-10 → 1984-06 ended
CV10,SV1# EUR —
52521-32040 note Retainer, Front Bumper, Upper Center
1984-06 → 1986-10 ended
CV1#,SV1# —
52521-32050 note Retainer, Front Bumper, Upper Center
1984-06 → 1986-10 ended
CV1#,SV1# EUR —
52526A — Retainer, Front Bumper, Lower NO.1
52526-32030 note Retainer, Front Bumper, Lower NO.1
1984-06 → 1986-10 ended
CV1#,SV1# —
52565-16020 note Retainer, Front Bumper, Lower NO.1
1984-06 → 1986-10 ended
CV1#,SV1# EUR —
52535 — Retainer, Front Bumper Side, RH
52535-32010 Retainer, Front Bumper Side, RH
1982-10 → 1984-06 ended
CV10,SV1# —
52535-32010 Retainer, Front Bumper Side, RH
1982-10 → 1982-10 ended
SV10 —
52535-32020 note Retainer, Front Bumper Side, RH
1984-06 → 1986-10 ended
CV1#,SV1# —
52536 — Retainer, Front Bumper Side, LH
52535-32010 Retainer, Front Bumper Side, LH
1982-10 → 1982-10 ended
SV10 —
52535-32010 Retainer, Front Bumper Side, LH
1982-10 → 1984-06 ended
CV10,SV1# —
52535-32020 note Retainer, Front Bumper Side, LH
1984-06 → 1986-10 ended
CV1#,SV1# —
52537 — Retainer, Front Bumper End, RH
52537-32020 Retainer, Front Bumper End, RH
1982-10 → 1984-06 ended
CV10,SV1# —
52537-32030 note Retainer, Front Bumper End, RH
1984-06 → 1986-10 ended
CV1#,SV1# —
52538 — Retainer, Front Bumper End, LH
52538-32020 Retainer, Front Bumper End, LH
1982-10 → 1984-06 ended
CV10,SV1# —
52538-32030 note Retainer, Front Bumper End, LH
1984-06 → 1986-10 ended
CV1#,SV1# —
52539 — Retainer, Front Bumper Side, NO.3 RH
52539-32010 note Retainer, Front Bumper Side, NO.3 RH
1984-06 → 1986-10 ended
CV1#,SV1# —
52549 — Retainer, Front Bumper Side, NO.3 LH
52549-32010 note Retainer, Front Bumper Side, NO.3 LH
1984-06 → 1986-10 ended
CV1#,SV1# —
52611 — Absorber, Front Bumper Energy
52611-32020 note Absorber, Front Bumper Energy
1982-10 → 1984-06 ended
CV10,SV1# —
52611-32030 note Absorber, Front Bumper Energy
1982-10 → 1984-06 ended
CV10,SV1# EUR —
52611-32050 note Absorber, Front Bumper Energy
1984-06 → 1986-10 ended
CV1#,SV1# —
52702 — Moulding Sub-assy, Front Bumper Side, RH
52702-32010 note Moulding Sub-assy, Front Bumper Side, RH
1984-06 → 1986-10 ended
CV1#,SV1# —
52702-32020 note Moulding Sub-assy, Front Bumper Side, RH
1984-06 → 1986-10 ended
CV1#,SV1# EUR —
52703 — Moulding Sub-assy, Front Bumper Side, LH
52703-32010 note Moulding Sub-assy, Front Bumper Side, LH
1984-06 → 1986-10 ended
CV1#,SV1# —
52703-32020 note Moulding Sub-assy, Front Bumper Side, LH
1984-06 → 1986-10 ended
CV1#,SV1# EUR —
52711 — Moulding, Front Bumper
52711-32010 note Moulding, Front Bumper
1984-06 → 1986-10 ended
CV1#,SV1# —
52711-32020 note Moulding, Front Bumper
1984-06 → 1986-10 ended
CV1#,SV1# EUR —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
