Toyota Camry
1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe
Discontinued model
Data version 1987-03

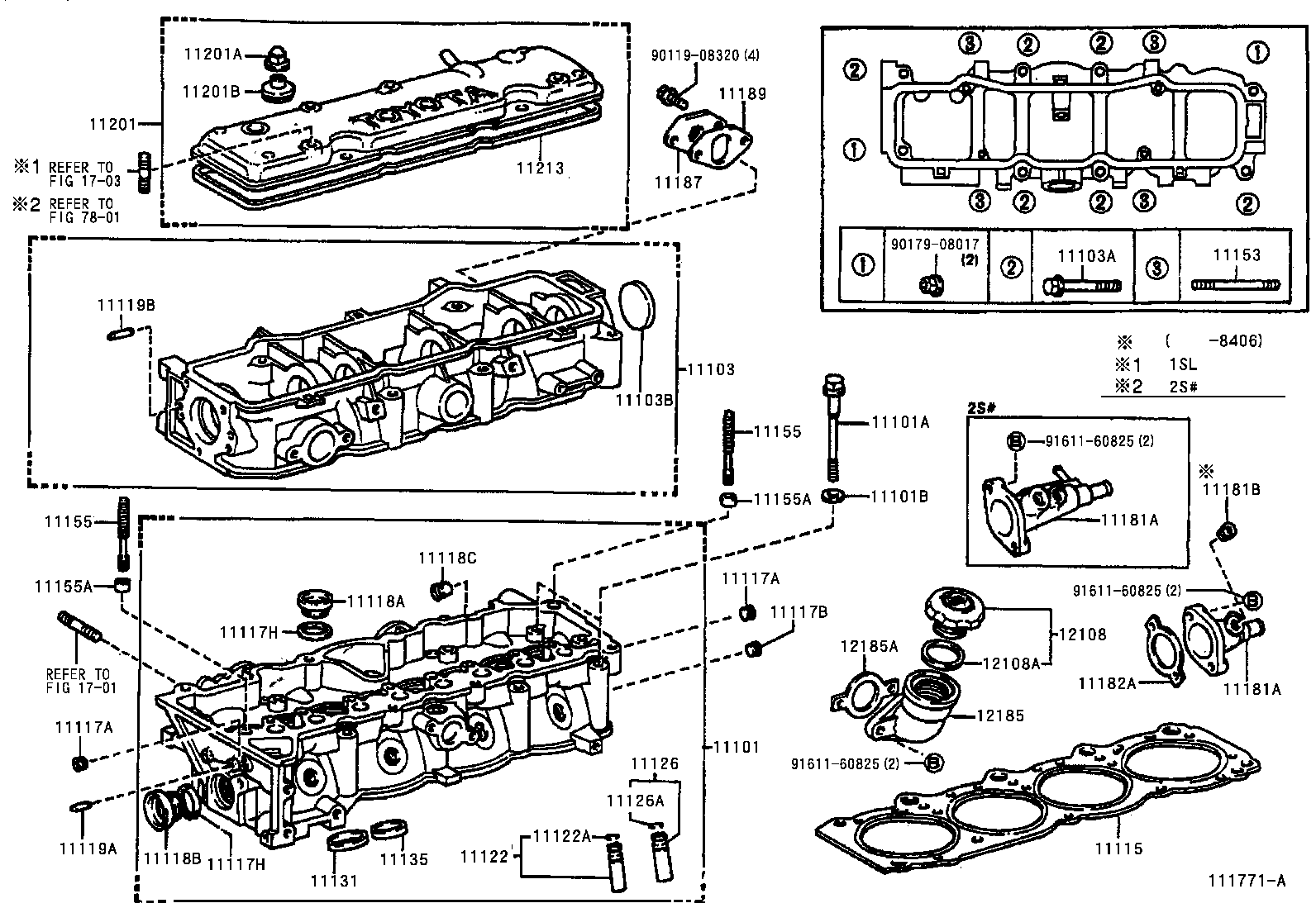

Cylinder Head
43 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101D | Bolt, Stud(FOR WATER OUTLET) |
| 11103 | Housing Sub-assy, Camshaft |
| 11103A | Bolt(FOR CAMSHAFT HOUSING SET) |
| 11103B | Plug, Tight, NO.1(FOR CAM HOUSING) |
| 11114A | Pin, Straight |
| 11115 | Gasket, Cylinder Head |
| 11117A | Plug, W/Head Taper Screw, NO.1 |
| 11117B | Plug, W/Head Taper Screw, NO.2 |
| 11117H | Gasket(FOR WATER HOLE) |
| 11118A | Plug, Straight, NO.1 |
| 11118B | Plug, Straight, NO.2 |
| 11118C | Plug, Straight, NO.3 |
| 11119A | Pin, Straight, NO.1 |
| 11119B | Pin, Straight, NO.2 |
| 11122 | Bush, Intake Valve Guide |
| 11122A | Ring, Shaft Snap (FOR VALVE GUIDE BUSH) |
| 11126 | Bush, Exhaust Valve Guide |
| 11126A | Ring, Shaft Snap(FOR VALVE GUIDE BUSH) |
| 11131 | Seat, Intake Valve |
| 11135 | Seat, Exhaust Valve |
| 11153 | Bolt, Stud(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER) |
| 11155 | Bolt, Stud(FOR HEAD TO CAMSHAFT HOUSING) |
| 11155A | Pin, Ring W/Head |
| 11159 | Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11181 | Plate, Cylinder Head, Rear |
| 11181A | Cover, Cylinder Head, Rear |
| 11181B | Plug, Taper Screw(FOR CYLINDER HEAD REAR COVER) |
| 11182 | Gasket, Cylinder Head Rear Plate |
| 11182A | Gasket, Cylinder Head Rear Cover |
| 11183 | Plug, Semicircular |
| 11187 | Cover, Camshaft Housing, Rear |
| 11189 | Gasket, Camshaft Housing Rear Cover |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201A | Nut, Cap(FOR CYLINDER HEAD COVER) |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11213 | Gasket, Cylinder Head Cover |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 12185 | Housing, Oil Filler Cap |
| 12185A | Gasket, Oil Filler Cap Housing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
