Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

28 part groups · 3 illustrations

Illustrations

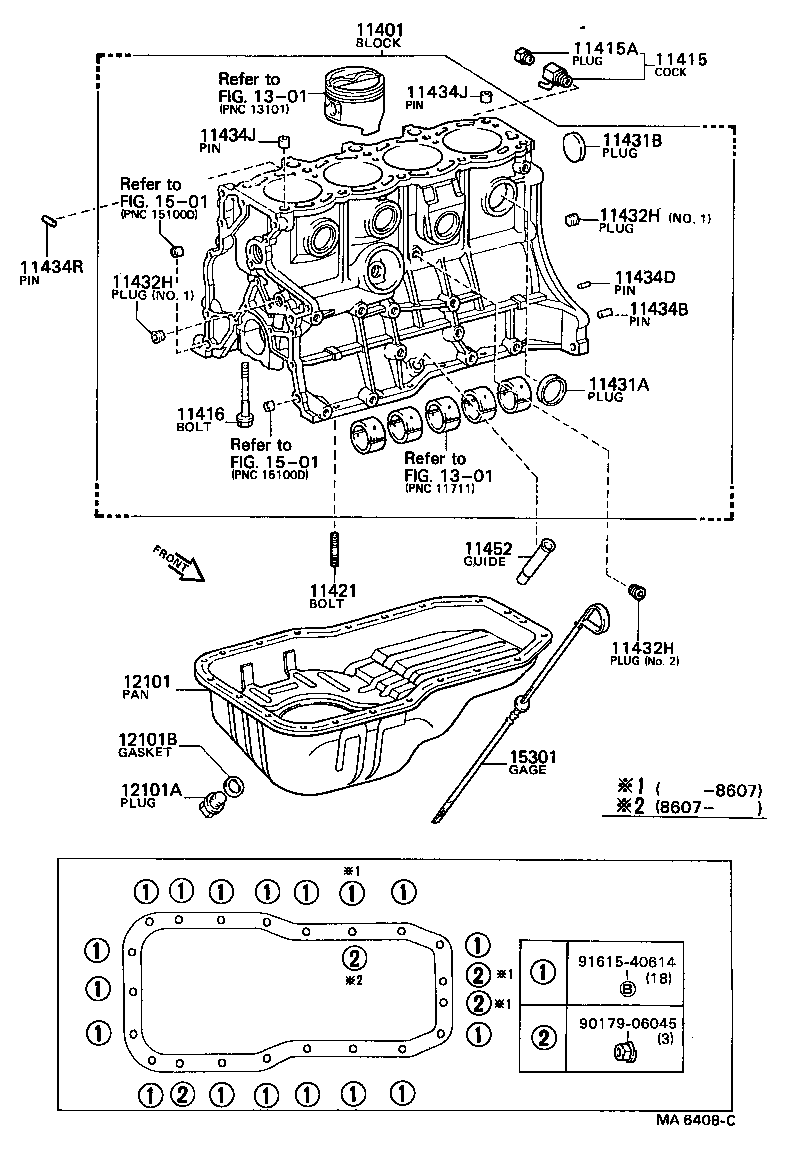

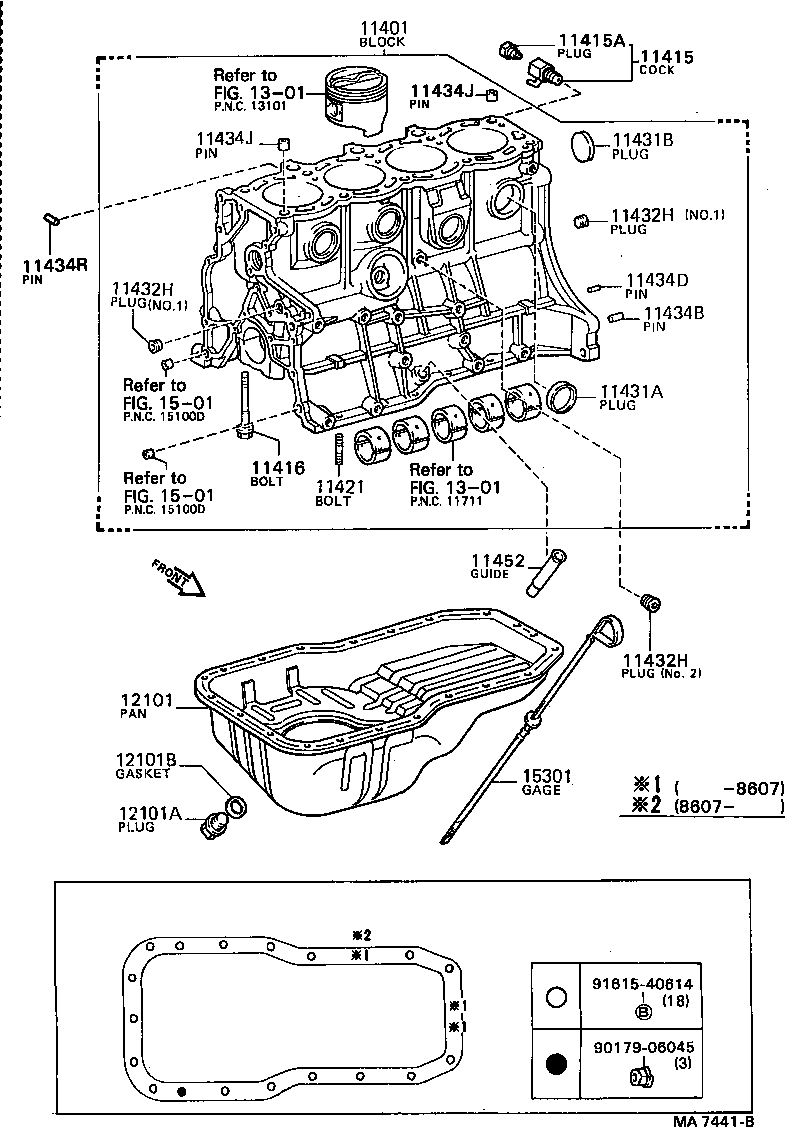

Figure MA6891C MA6891C 1983-08 → — Figure MA7441B MA7441B 1982-10 → — Figure MA6408C MA6408C 1983-03 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11401C Flange(FOR WATER BY-PASS)
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11421 Bolt, Stud(FOR OIL PAN)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431D Plug, Tight, NO.4(FOR CYLINDER BLOCK)
11431E Plug, Tight, NO.5(FOR CYLINDER BLOCK)
11432H Plug, W/Head Taper Screw, NO.5
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434G Pin, Straight(FOR END PLATE)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434R Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
11448 Orifice, Cylinder Block Oil
11452 Guide, Oil Level Gage
11459 Support, Oil Level Gage Guide
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12112 Pan, Oil NO.2
15301 Gage Sub-assy, Oil Level
15605 Valve Sub-assy, Oil Check
15708 Nozzle Sub-assy, Oil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
