Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

7 part groups · 2 illustrations

Illustrations

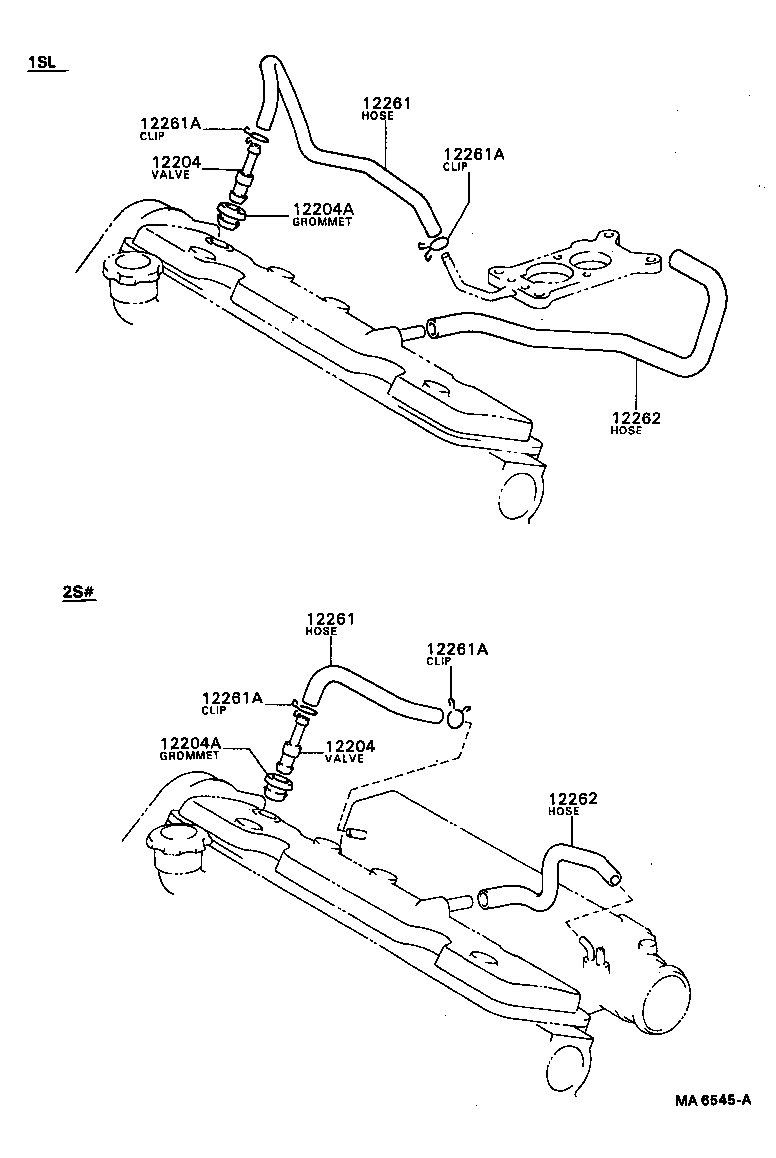

Figure MA6892 MA6892 1983-08 → — Figure MA6545A MA6545A 1982-10 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12221 Tube, Ventilation NO.1
12222B Clip(FOR VENTILATION TUBE)
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
