Toyota Camry
1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe
Discontinued model
Data version 1987-03

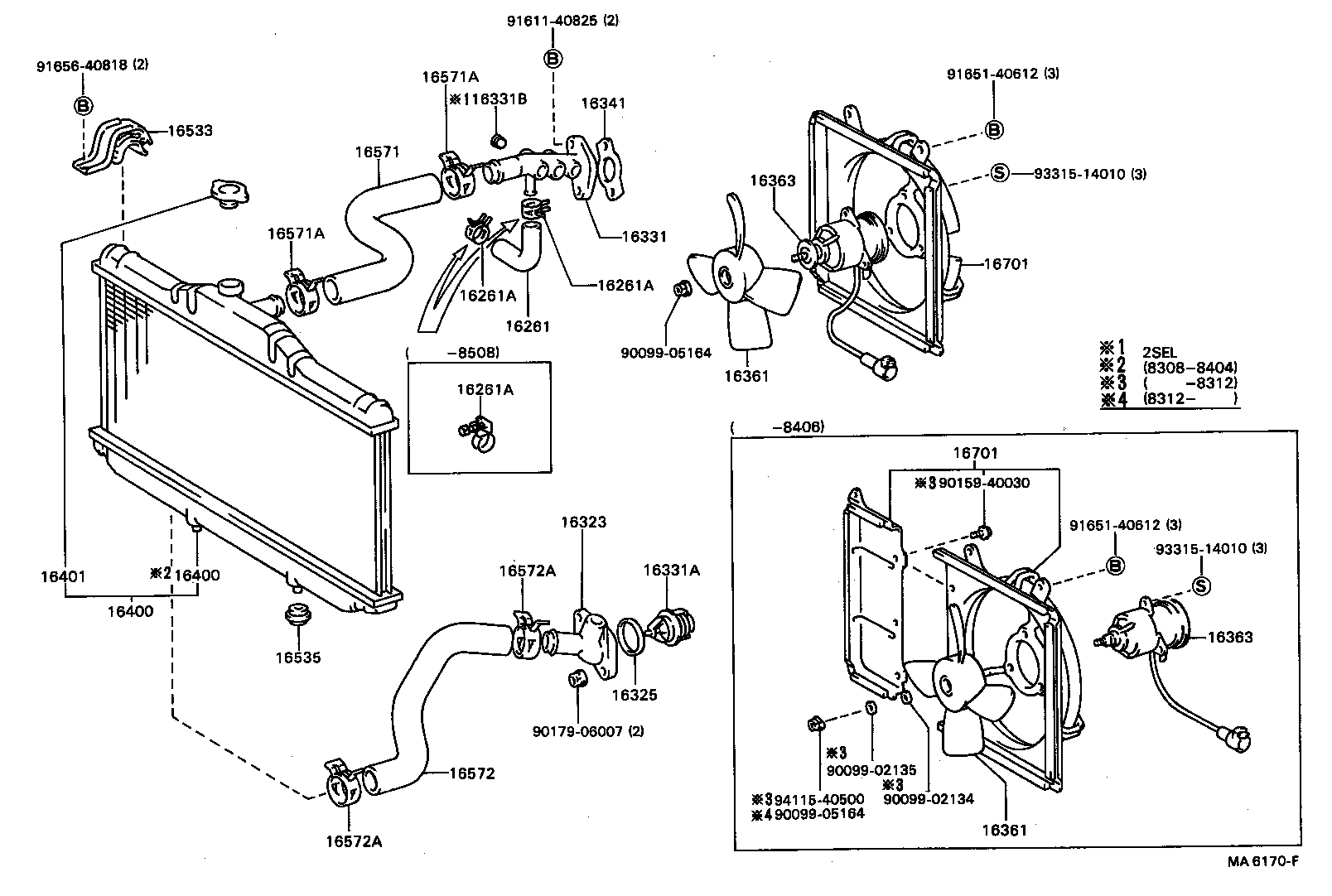

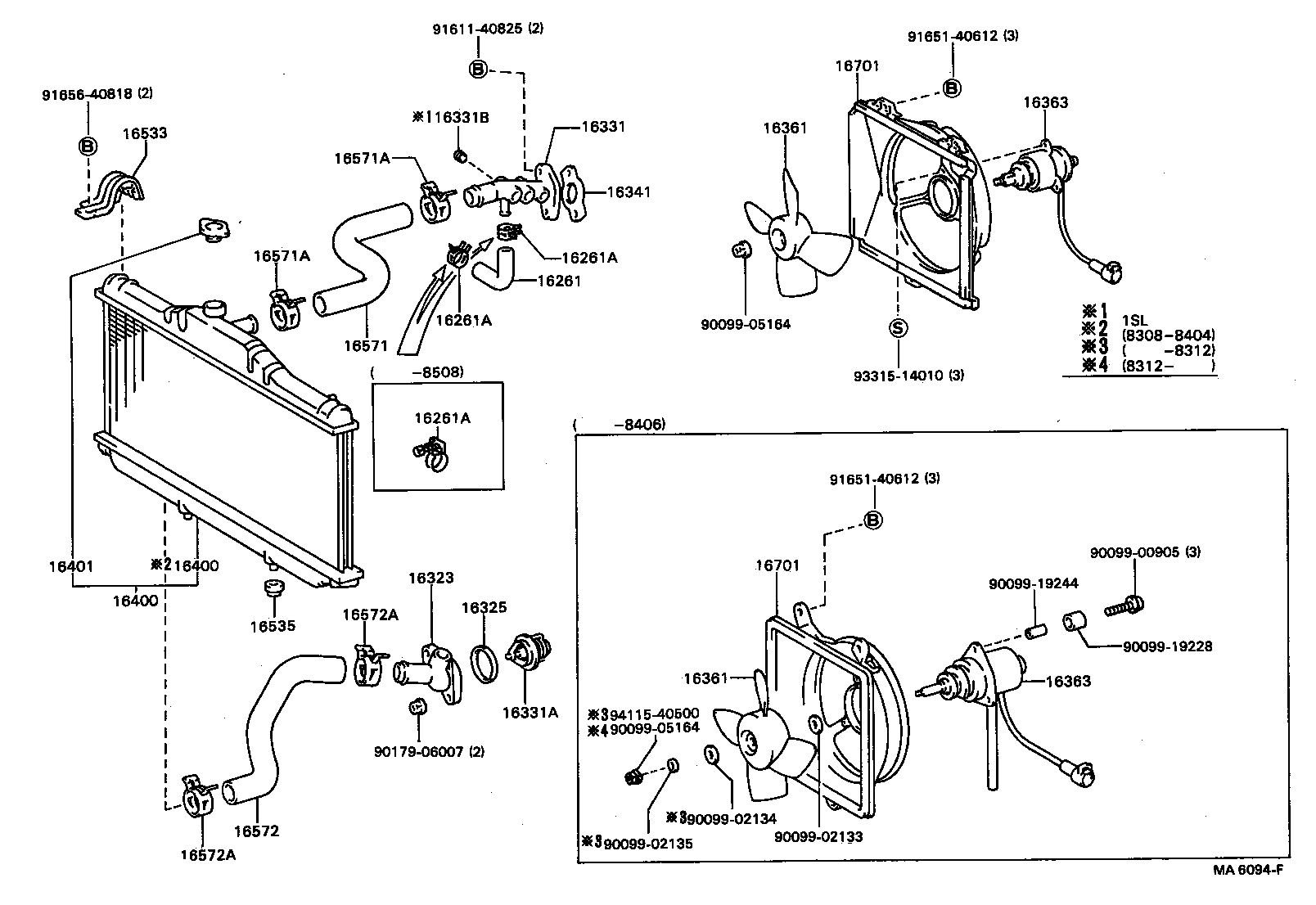

Radiator & Water Outlet
47 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261B | Union(FOR WATER BY-PASS HOSE) |

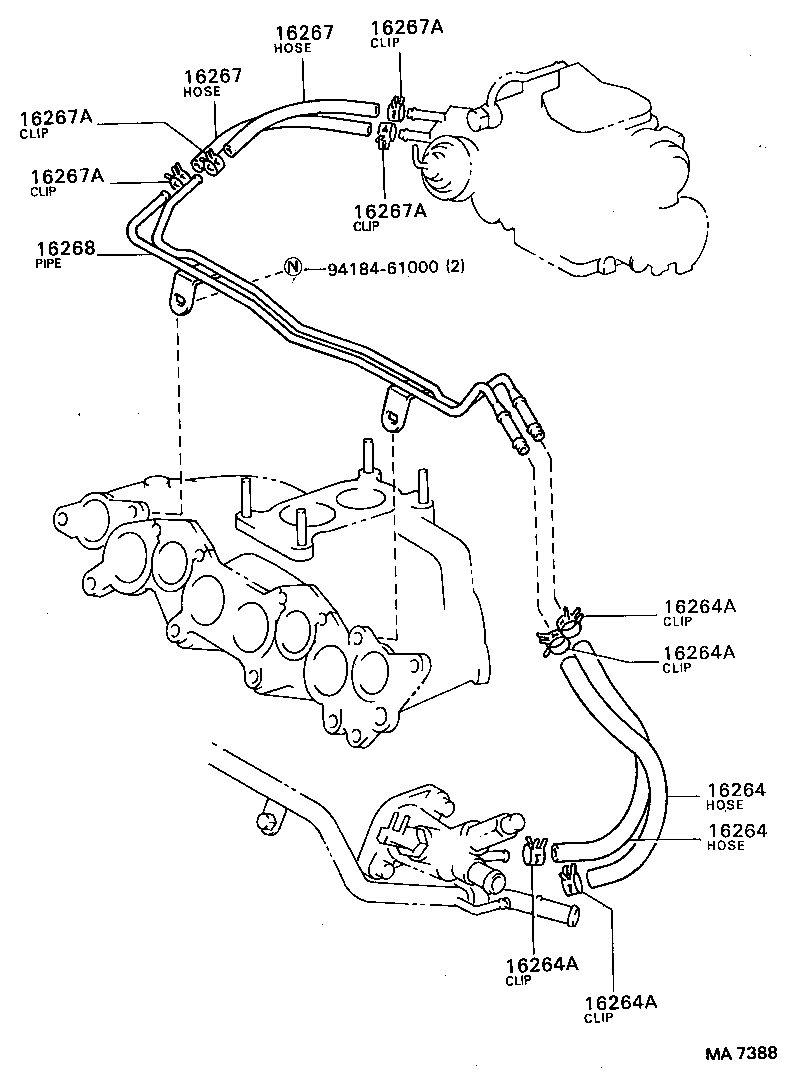

| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16321 | Inlet, Water |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16331B | Plug(FOR WATER OUTLET) |
| 16331G | Bolt, Stud(FOR WATER INLET) |
| 16332 | Pipe, Water Outlet, NO.1 |
| 16341 | Gasket, Water Outlet |
| 16345 | Gasket, Water Outlet Pipe |
| 16361 | Fan |
| 16362 | Fan, NO.2 |
| 16363 | Motor, Cooling Fan |

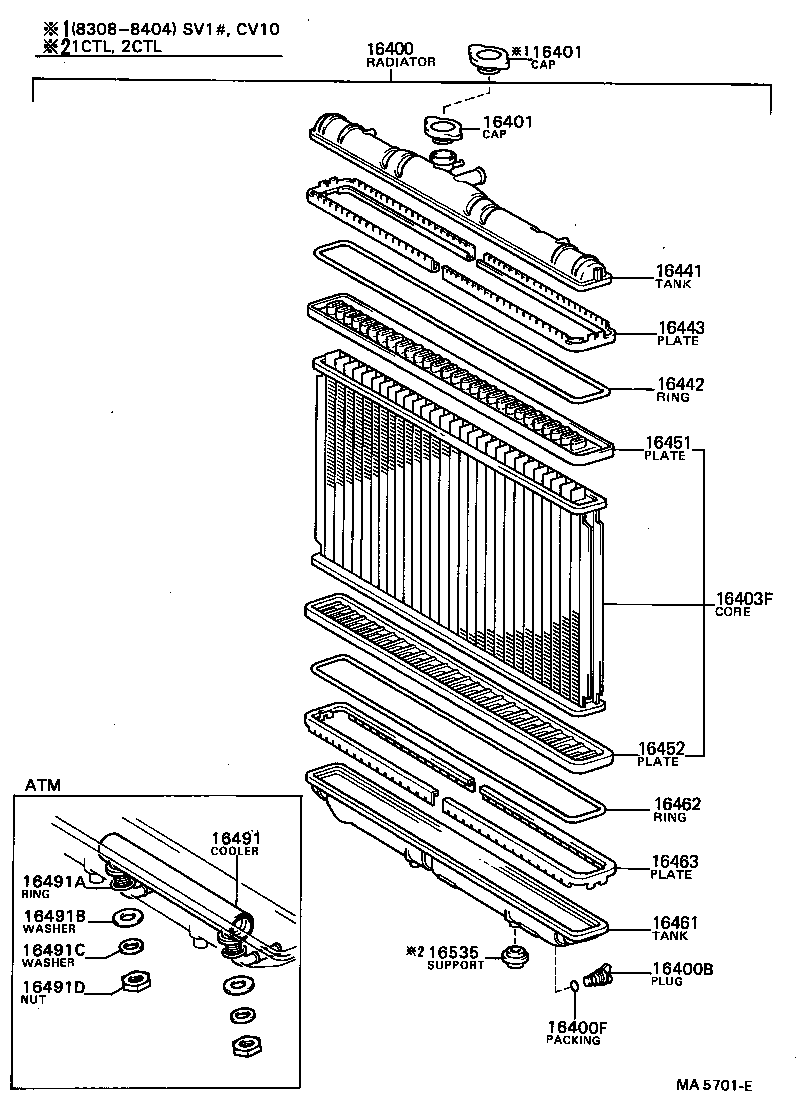

| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16403F | Core Sub-assy, Radiator |
| 16441 | Tank, Radiator, Upper |
| 16442 | Ring, O(FOR RADIATOR UPPER TANK) |
| 16443 | Plate, Radiator Tank, Lock, Upper |
| 16451 | Plate, Radiator Core, Upper |
| 16452 | Plate, Radiator Core, Lower |
| 16461 | Tank, Radiator, Lower |
| 16462 | Ring, O(FOR RADIATOR LOWER TANK) |
| 16463 | Plate, Radiator Tank, Lock, Lower |
| 16491 | Cooler, Oil(FOR ATM) |
| 16491A | Ring, O(FOR ATM OIL COOLER) |
| 16491B | Washer, Plate(FOR ATM OIL COOLER) |
| 16491C | Washer, Spring(FOR ATM OIL COOLER) |
| 16491D | Nut(FOR ATM OIL COOLER) |
| 16533 | Support, Radiator, Upper |
| 16535 | Support, Radiator, Lower |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16701 | Shroud Sub-assy, Fan |
| 16712 | Shroud, Fan, NO.2 |
PNC is the six-character part-group number the factory catalogue files
