Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

24 part groups · 11 illustrations

Illustrations

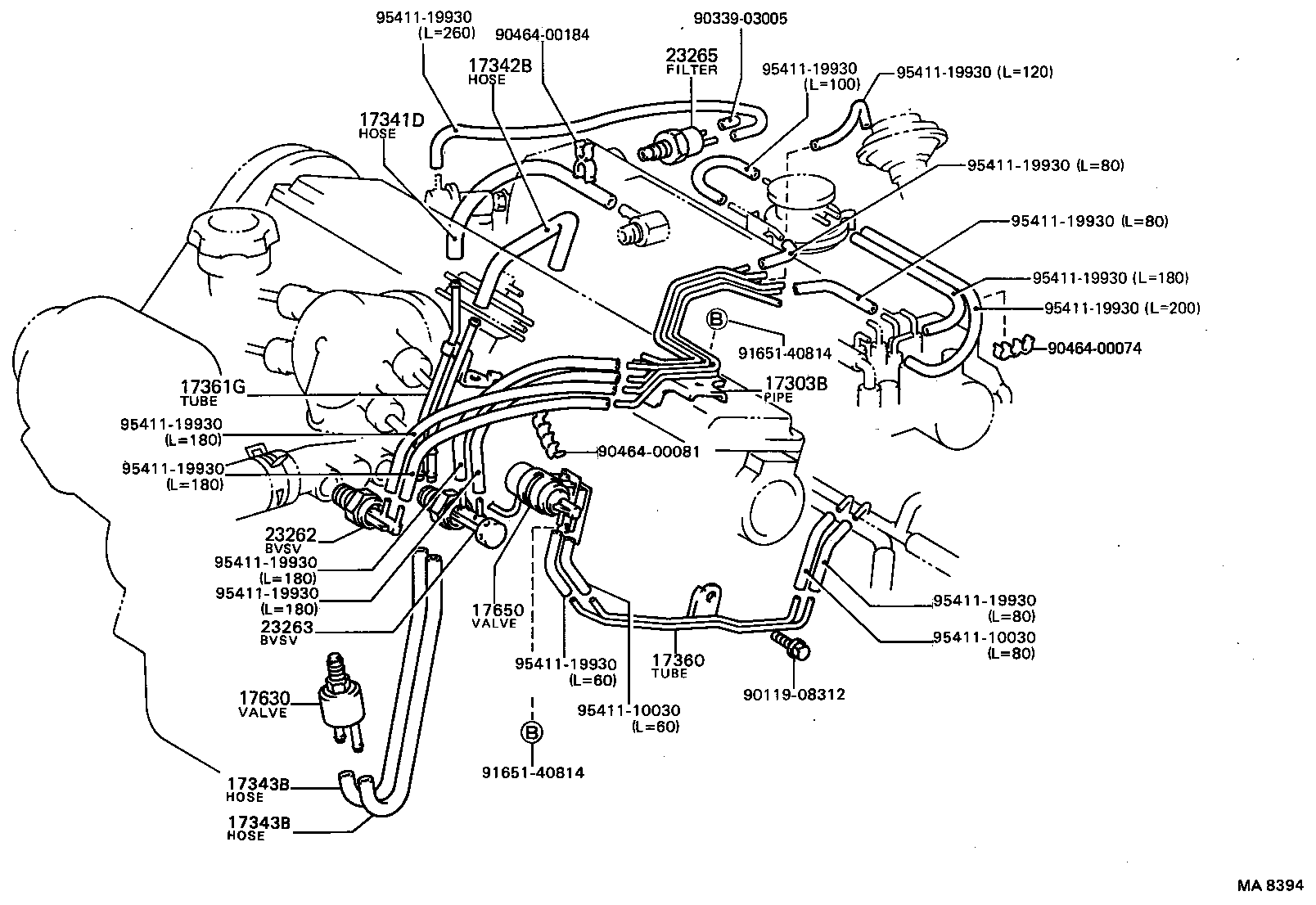

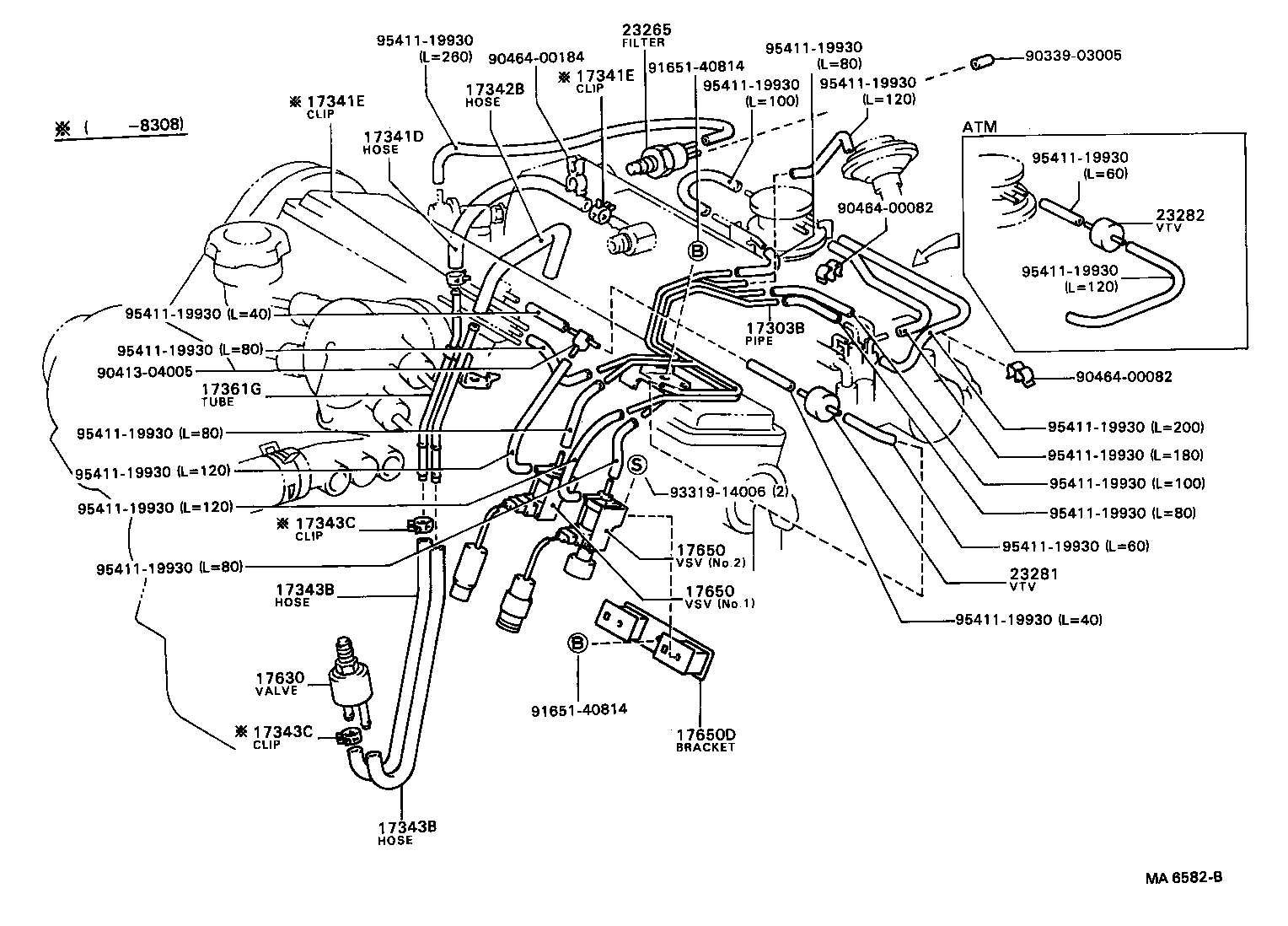

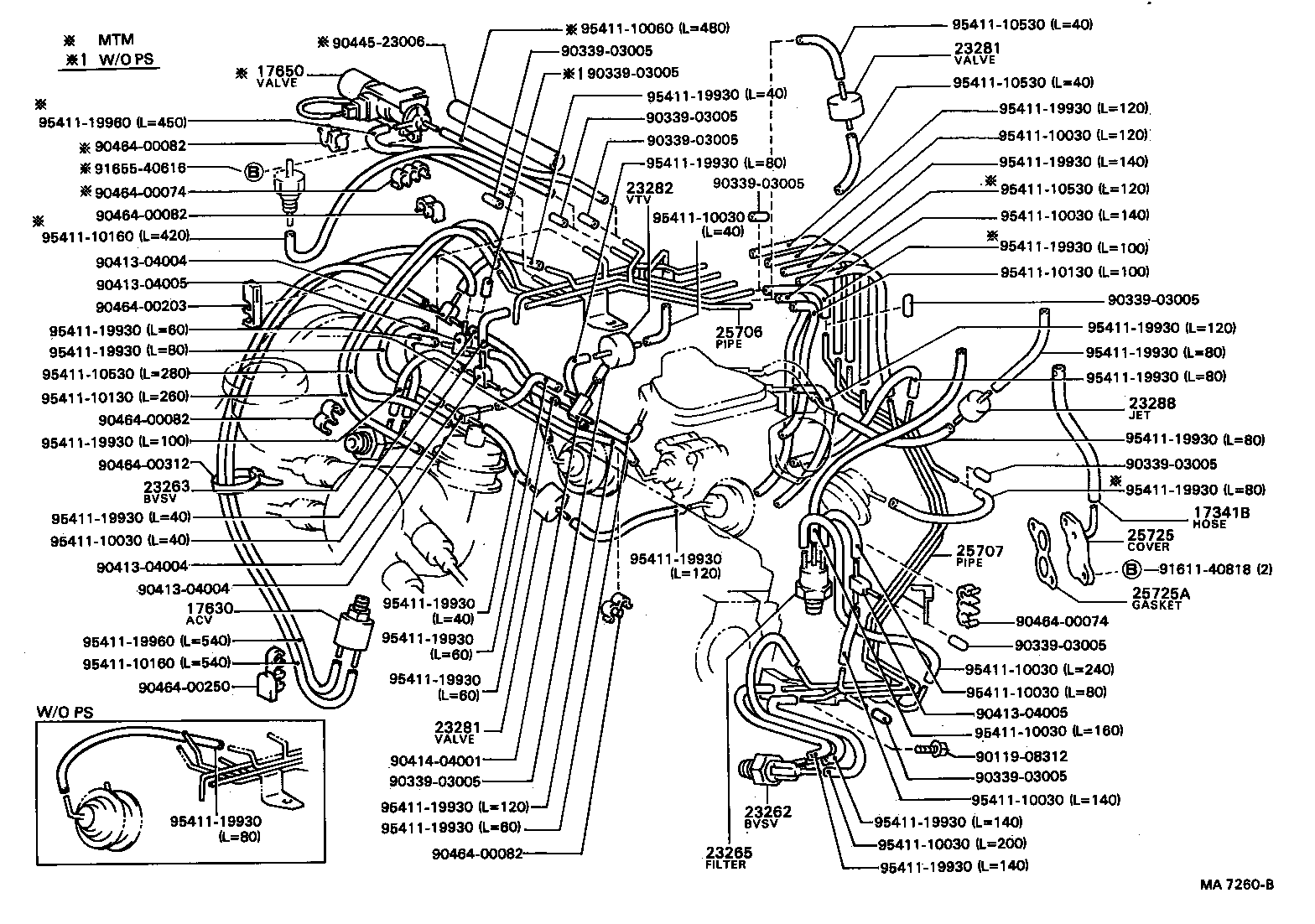

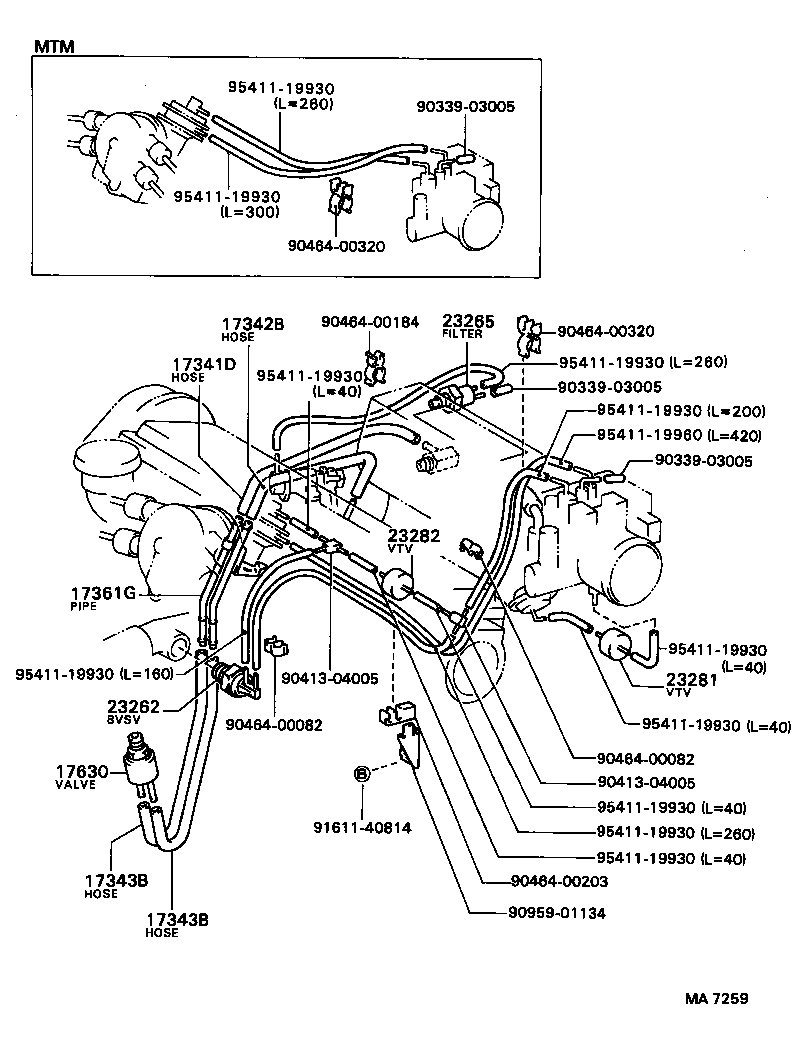

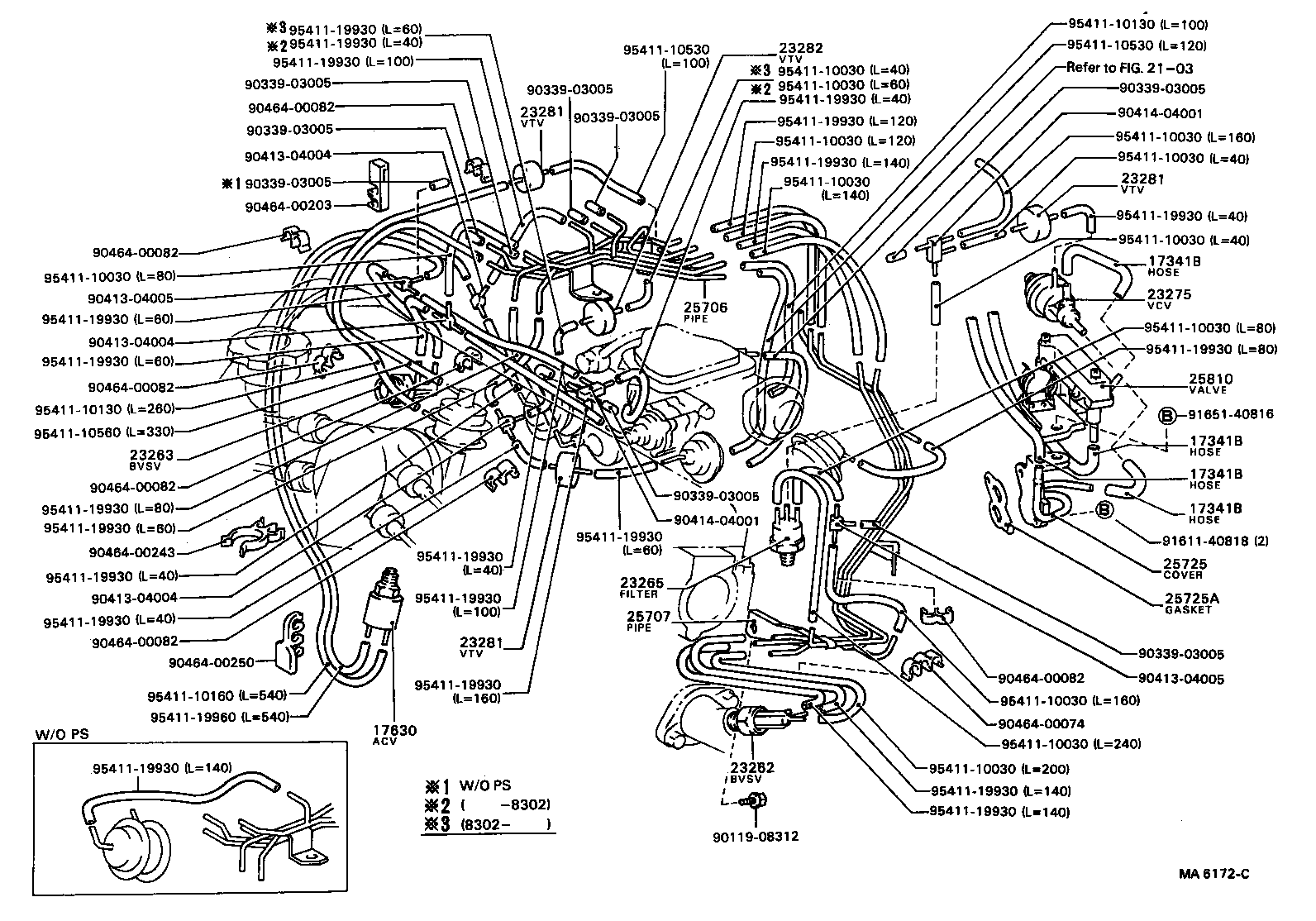

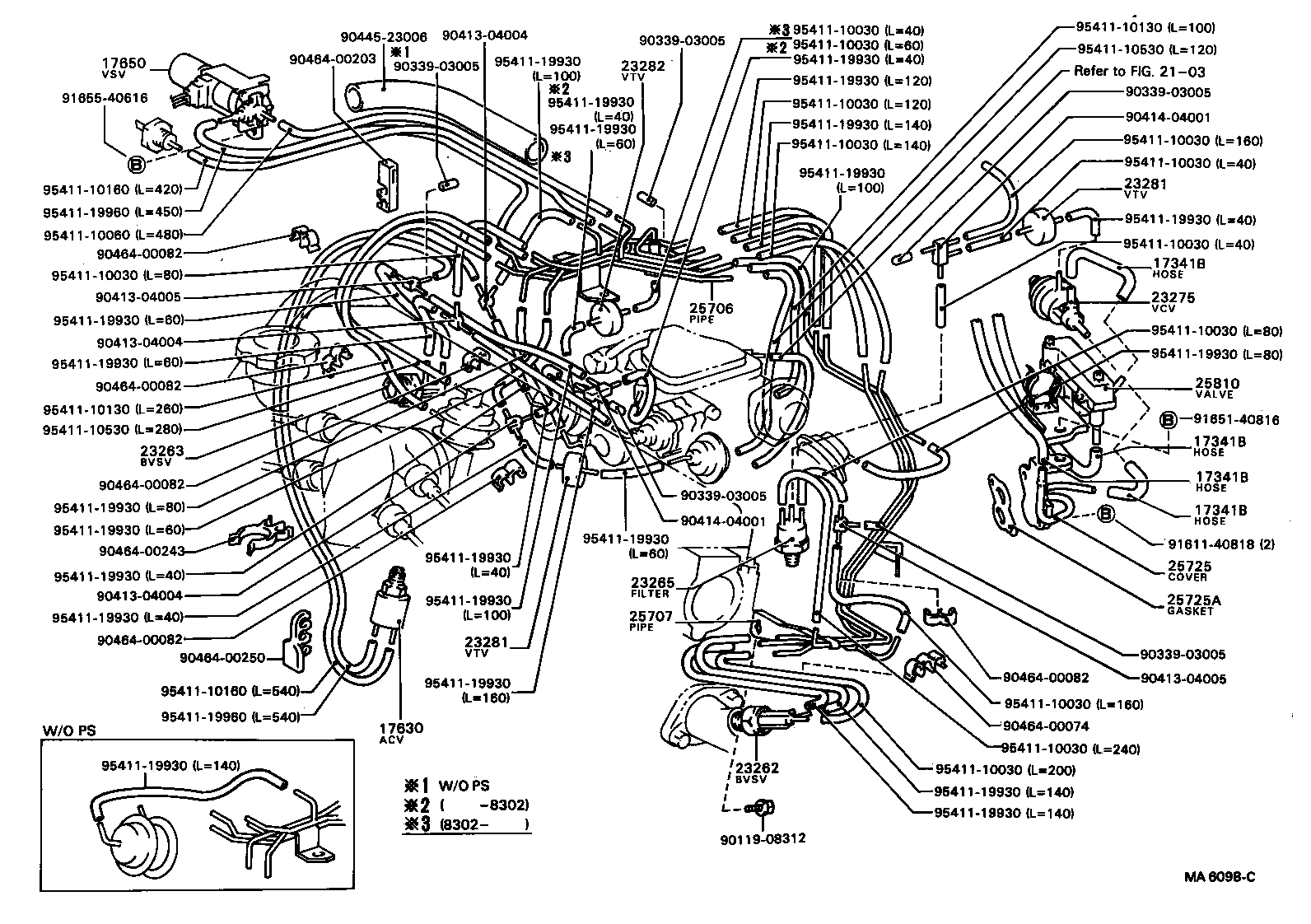

Figure MA9504A MA9504A 1982-10 → — Figure MA7002B MA7002B 1983-08 → 1985-08 Figure MA8407A MA8407A 1985-08 → — Figure MA9504A MA9504A 1982-10 → — Figure MA6098C MA6098C 1982-10 → 1983-12 Figure MA6172C MA6172C 1982-10 → 1983-12 Figure MA7260B MA7260B 1983-12 → — Figure MA6582B MA6582B 1983-03 → 1985-08 Figure MA6582B MA6582B 1985-08 → — Figure MA8394 MA8394 1985-08 → — Figure MA7259 MA7259 1983-10 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17360 Tube Assy, Air
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25725 Cover, Emission Control Valve
25725A Gasket, Emission Control Valve Cover
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
