Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

31 part groups · 3 illustrations

Illustrations

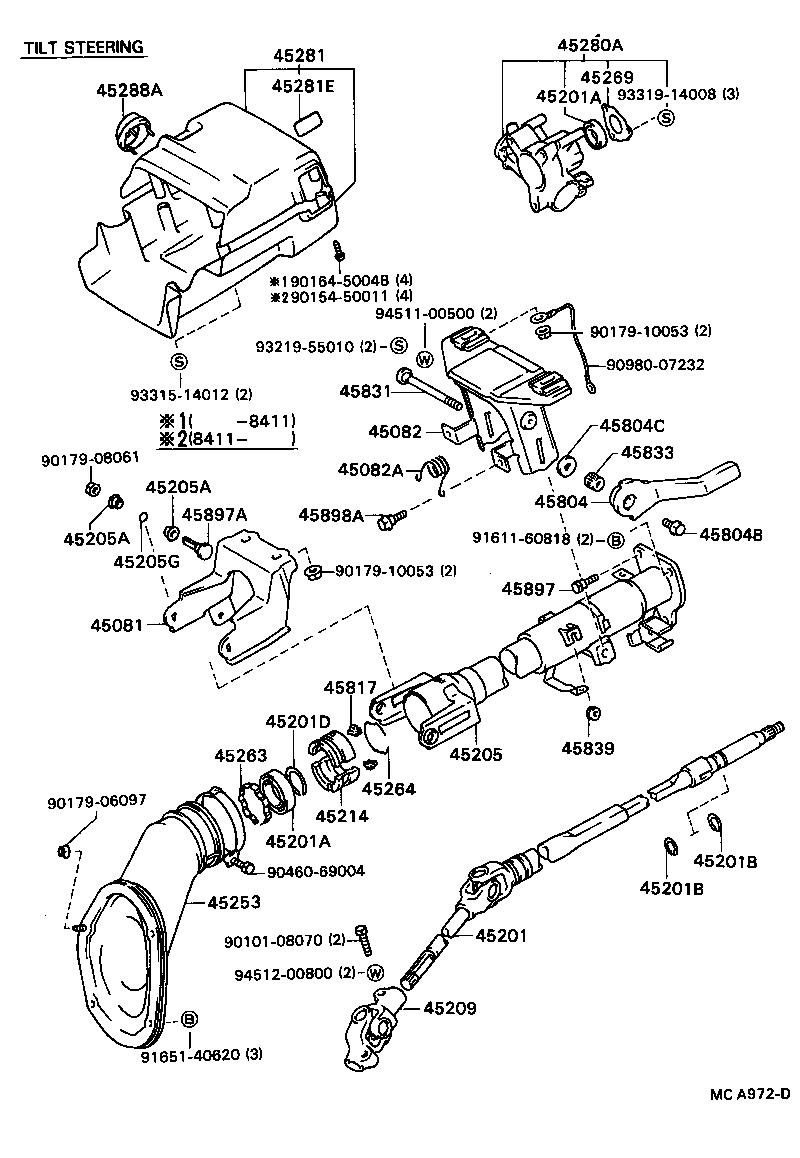

Figure MC9020E MC9020E 1982-10 → 1984-06 Figure MC9020E MC9020E 1984-06 → — Figure MCA972D MCA972D 1984-06 → —

Part groups

PNCDescription
45081 Support Sub-assy, Tilt Steering
45082 Bracket Sub-assy, Break Away W/Capsule
45082A Spring, Torsion(FOR TILT STEERING RETURN)
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45205 Tube Sub-assy, Steering Column
45205A Bush(FOR STEERING COLUMN TUBE)
45205G Ring, O(FOR STEERING COLUMN TUBE)
45209 Yoke Sub-assy, Steering Sliding
45214 Retainer, Main Shaft Spring
45253 Cover, Steering Column Hole
45263 Ring, Steering Column, NO.1
45264 Ring, Steering Column, NO.2
45269 Retainer, Main Shaft Bearing
45280A Bracket Assy, Steering Column, Upper
45281 Housing, Steering Column
45281E Plate, Safety Caution
45288A Spacer, Column Cover
45288B Cover, Steering Column, Upper
45804 Lever Sub-assy, Steering Tilt
45804B Bolt(FOR STEERING TILT LEVER)
45804C Washer, Plate(FOR STEERING TILT LEVER)
45817 Stopper, Steering Shaft Thrust
45831 Bolt, Tilt Lever Lock, NO.1
45833 Nut, Tilt Steering Adjusting, NO.1
45839 Grommet, Return Spring
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
45898A Bolt, Return Spring Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
