Toyota Camry
1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe
Discontinued model
Data version 1987-03

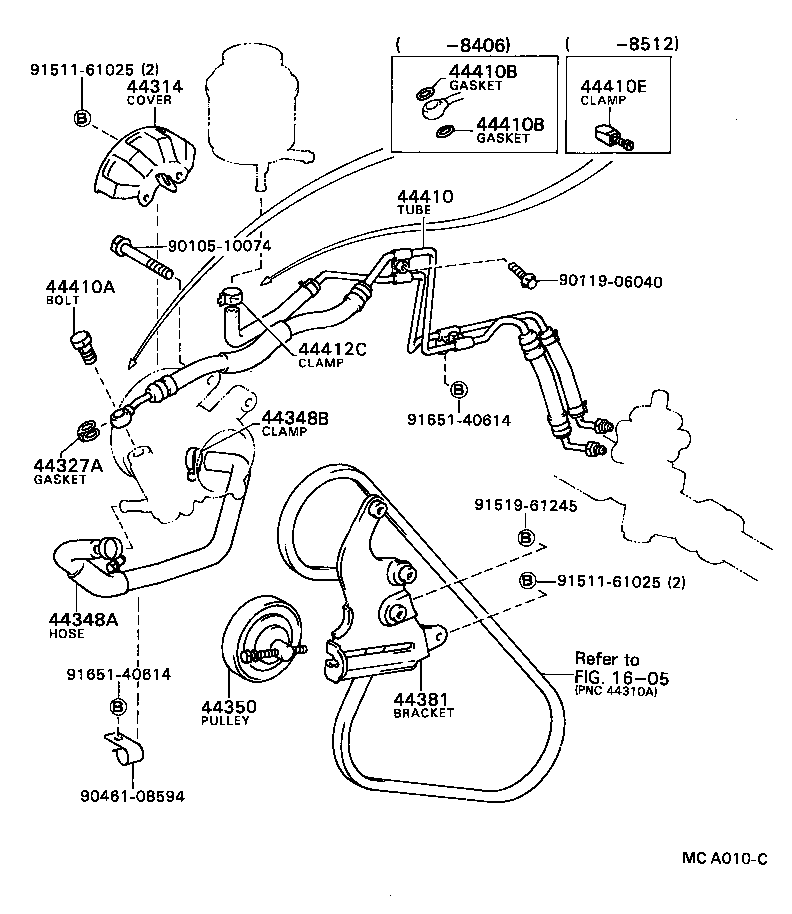

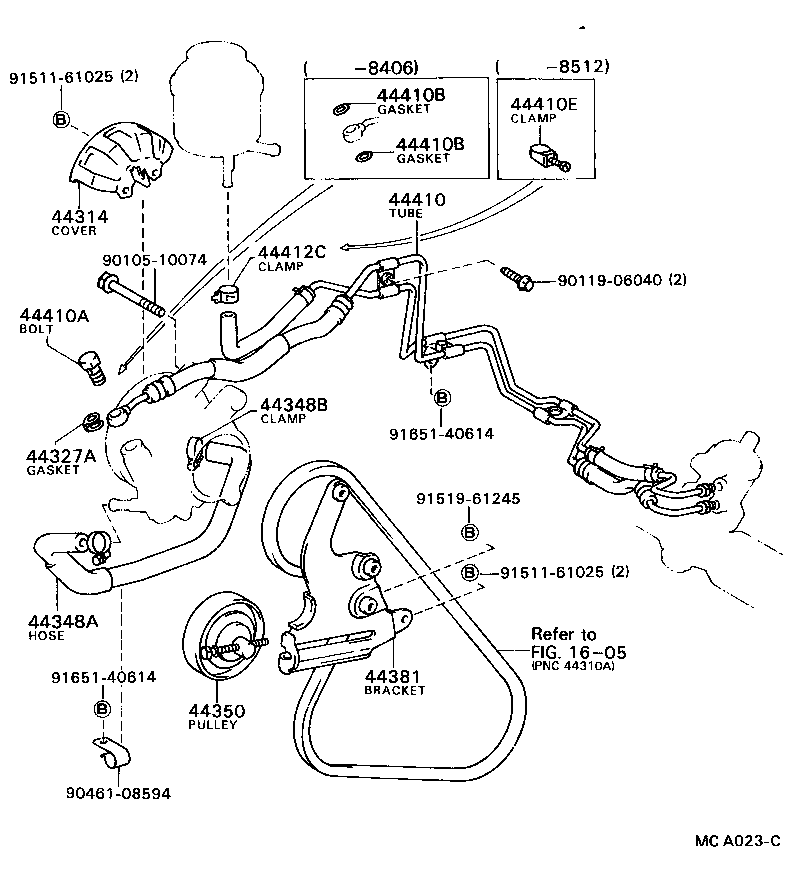

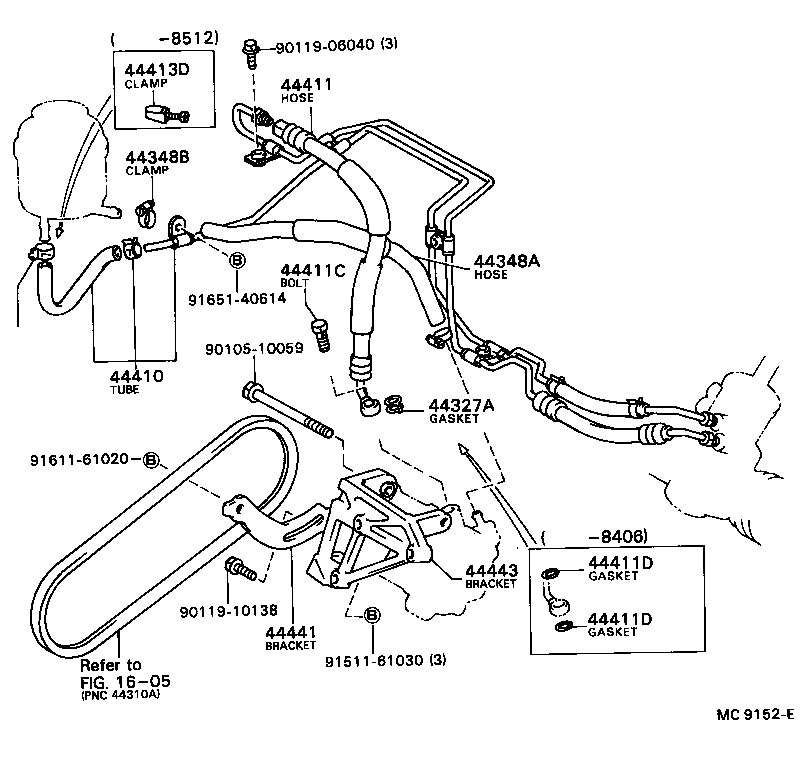

Power Steering Tube
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44314 | Cover, Pulley |
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44348B | Clamp(FOR OIL RESERVOIR TO PUMP HOSE) |
| 44350 | Pulley Assy, Power Steering Idle |
| 44381 | Bracket, Power Steering Idle Pulley |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44410B | Gasket(FOR PRESSURE FEED TUBE) |
| 44410E | Clamp(FOR PRESSURE FEED TUBE) |
| 44411 | Hose, Pressure Feed |
| 44411C | Bolt, Union(FOR PRESSURE FEED HOSE) |
| 44411D | Gasket(FOR PRESSURE FEED HOSE) |
| 44412 | Hose, Return |
| 44412C | Clamp(FOR RETURN HOSE) |
| 44413D | Clamp(FOR RESERVOIR TANK INLET HOSE) |
| 44441 | Bracket, Pump, Front |
| 44443 | Bracket, Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
