Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

16 part groups · 3 illustrations

Illustrations

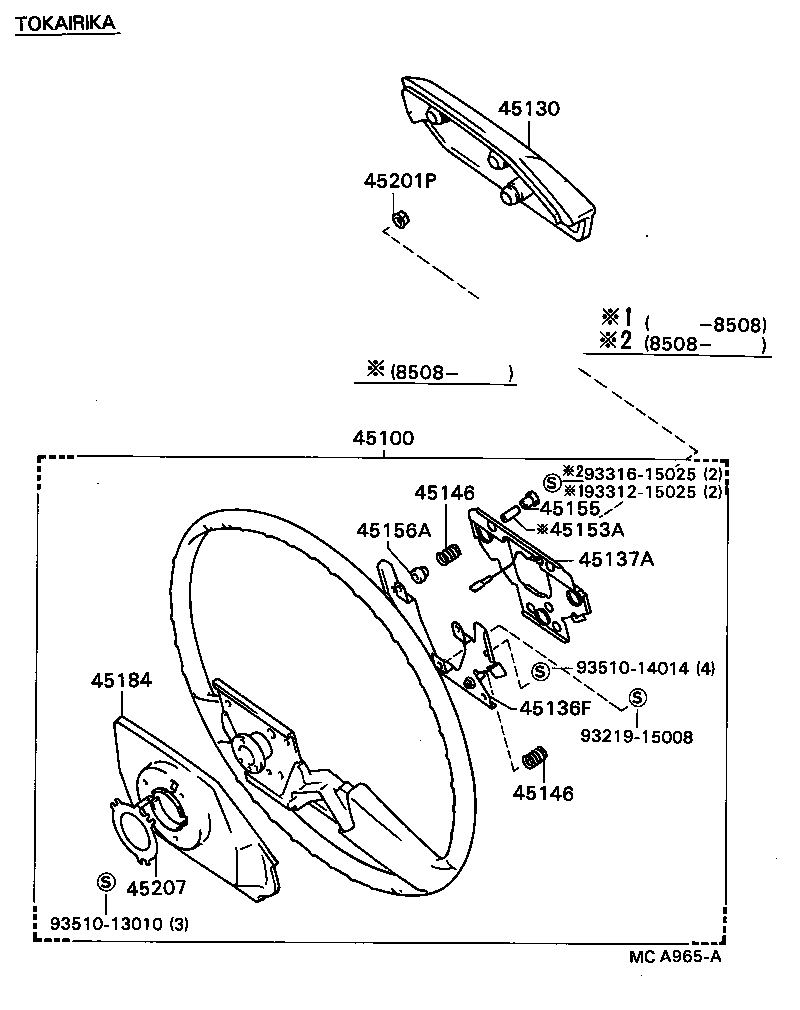

Figure MC8357E MC8357E 1982-10 → 1984-06 Figure MCA964 MCA964 1984-06 → — Figure MCA965A MCA965A 1984-06 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136F Plate, Horn Button Contact, NO.1
45137A Plate, Horn Button Contact, NO.2
45146 Spring, Horn Button Contact
45153A Collar(FOR HORN BUTTON)
45155 Spacer, Horn Button Contact Plate
45156A Seat, Horn Contact Spring Set
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
