Toyota Camry
1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe
Discontinued model
Data version 1987-03

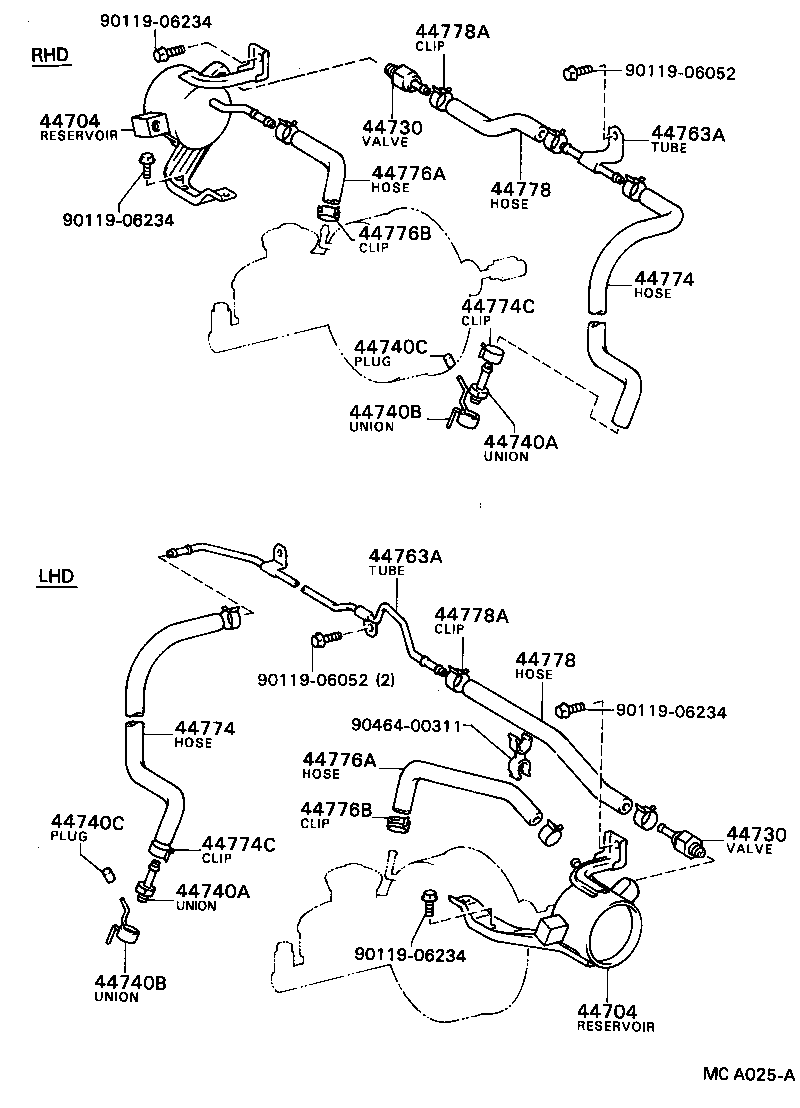

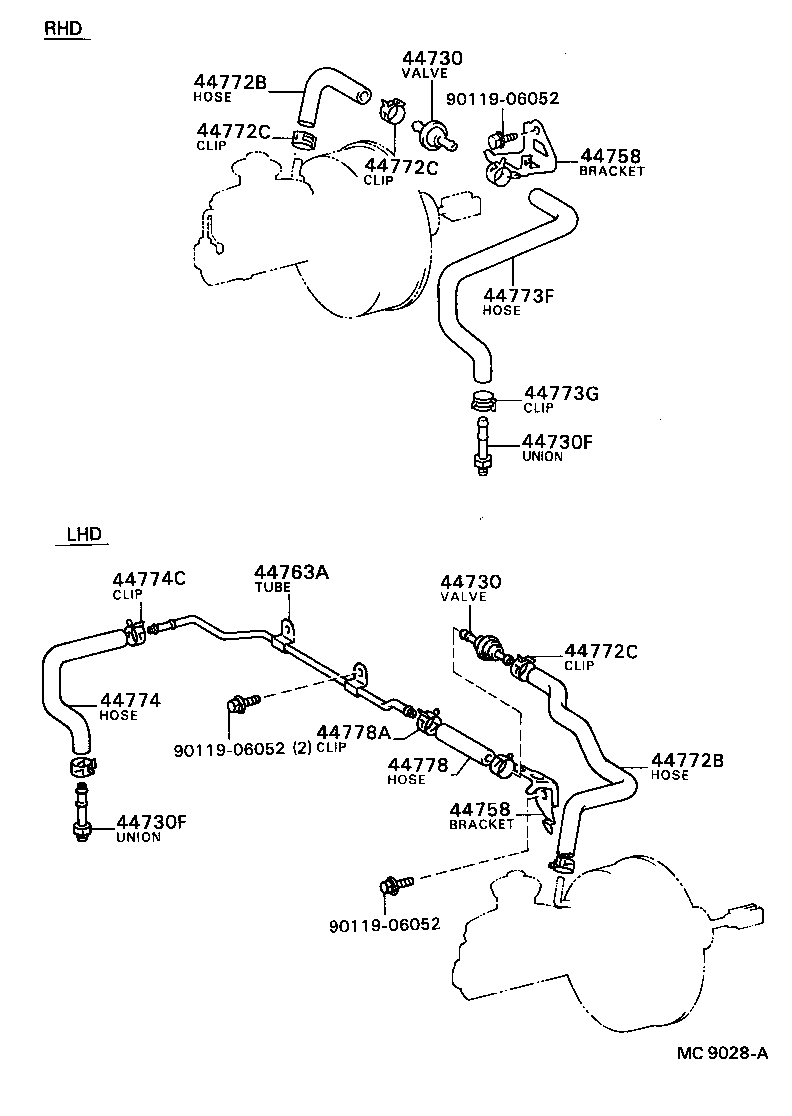

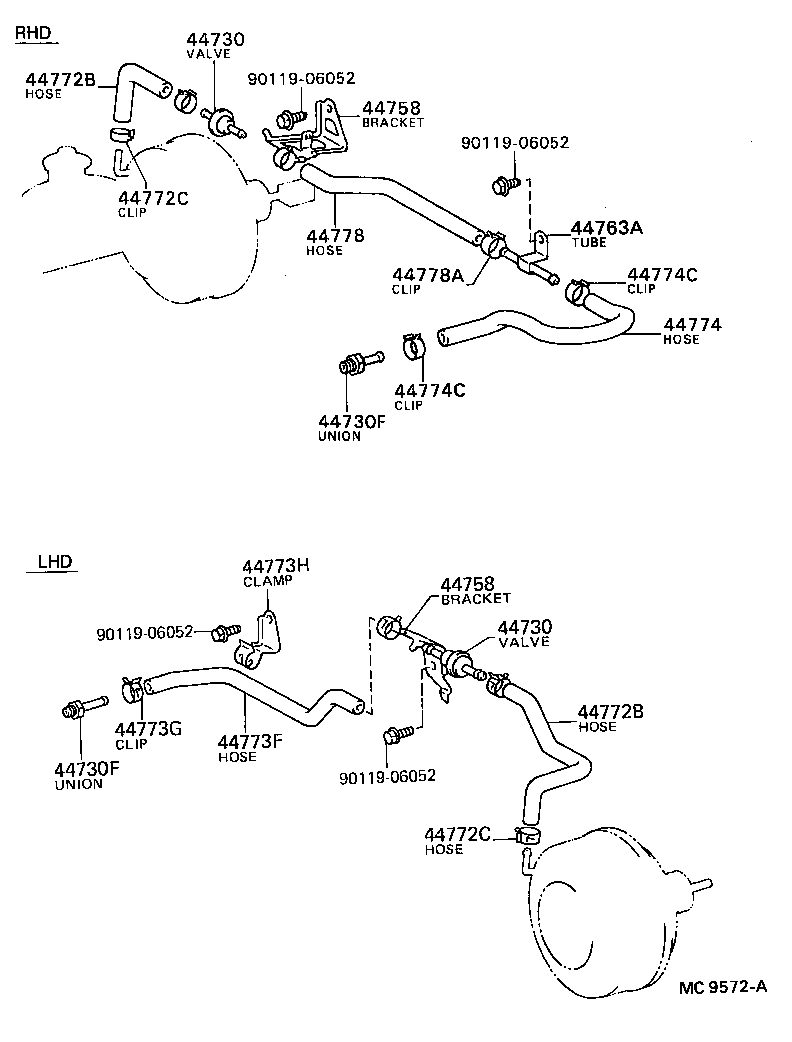

Brake Booster & Vacuum Tube
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44608 | Push Rod Sub-assy, Booster |
| 44610 | Booster Assy, Brake |
| 44610K | Booster Kit, Brake |
| 44618 | Seal, Booster Body |
| 44629 | Ring, Circular Internal |
| 44642 | Piston, Brake Booster |
| 44663 | Key, Valve Stopper |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44740A | Union, NO.1(FOR VACUUM PUMP) |
| 44740B | Union, NO.2(FOR VACUUM PUMP) |
| 44740C | Plug(FOR UNION) |
| 44758 | Bracket, Vacuum Check Valve |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 44772B | Hose, Check Valve TO Brake Booster |
| 44772C | Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) |
| 44773F | Hose, Union TO Check Valve |
| 44773G | Clip(FOR UNION TO CHECK VALVE HOSE) |
| 44773H | Clamp(FOR UNION TO CHECK VALVE HOSE) |
| 44774 | Hose, Union TO Connector Tube |
| 44774C | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44776A | Hose, Vacuum Reservoir TO Brake Booster |
| 44776B | Clip(FOR VACUUM RESERVOIR TO BRAKE BOOSTER) |
| 44778 | Hose, Connector TO Check Valve |
| 44778A | Clip(FOR CONNECTOR TO CHECK VALVE HOSE) |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
