Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

30 part groups · 3 illustrations

Illustrations

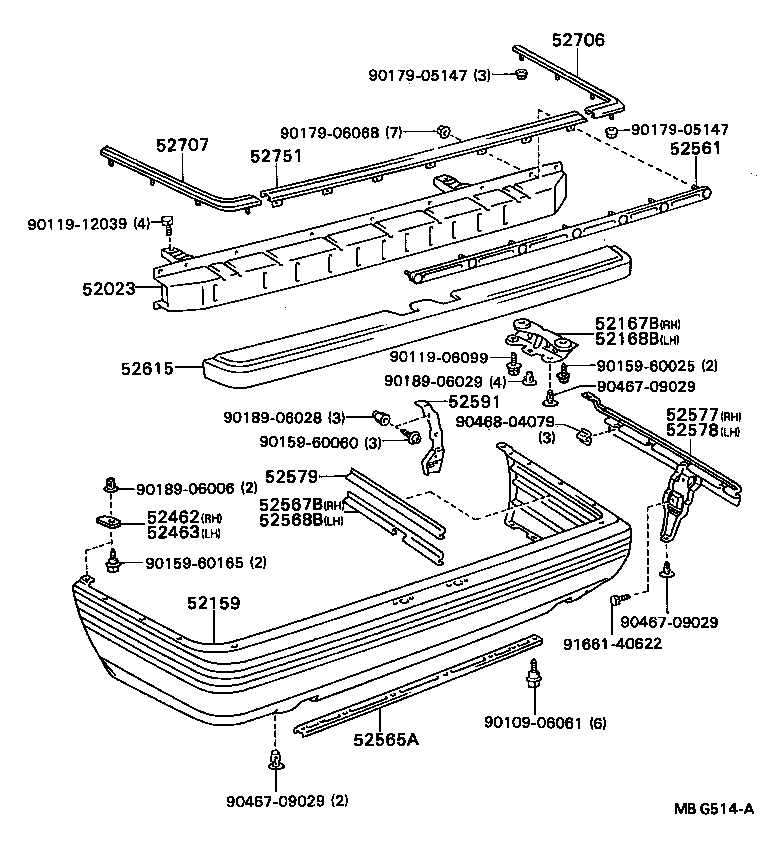

Figure MBE284C MBE284C 1982-10 → 1984-06 Figure MBG418A MBG418A 1984-06 → — Figure MBG514A MBG514A 1984-06 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52023 Reinforcement Sub-assy, Rear Bumper
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52167B Bracket, Rear Bumper Extension Mounting, RH
52168B Bracket, Rear Bumper Extension Mounting, LH
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52567B Retainer, Rear Bumper Side, NO.4 RH
52568B Retainer, Rear Bumper Side, NO.4 LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52577 Retainer, Rear Bumper Side, NO.2 RH
52578 Retainer, Rear Bumper Side, NO.2 LH
52579 Retainer, Rear Bumper Side, NO.3
52587 Retainer, Rear Bumper End, RH
52588 Retainer, Rear Bumper End, LH
52591 Seal, Rear Bumper Side, RH
52615 Absorber, Rear Bumper Energy
52706 Moulding Sub-assy, Rear Bumper Side, RH
52707 Moulding Sub-assy, Rear Bumper Side, LH
52751 Moulding, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
