Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

38 part groups · 4 illustrations

Illustrations

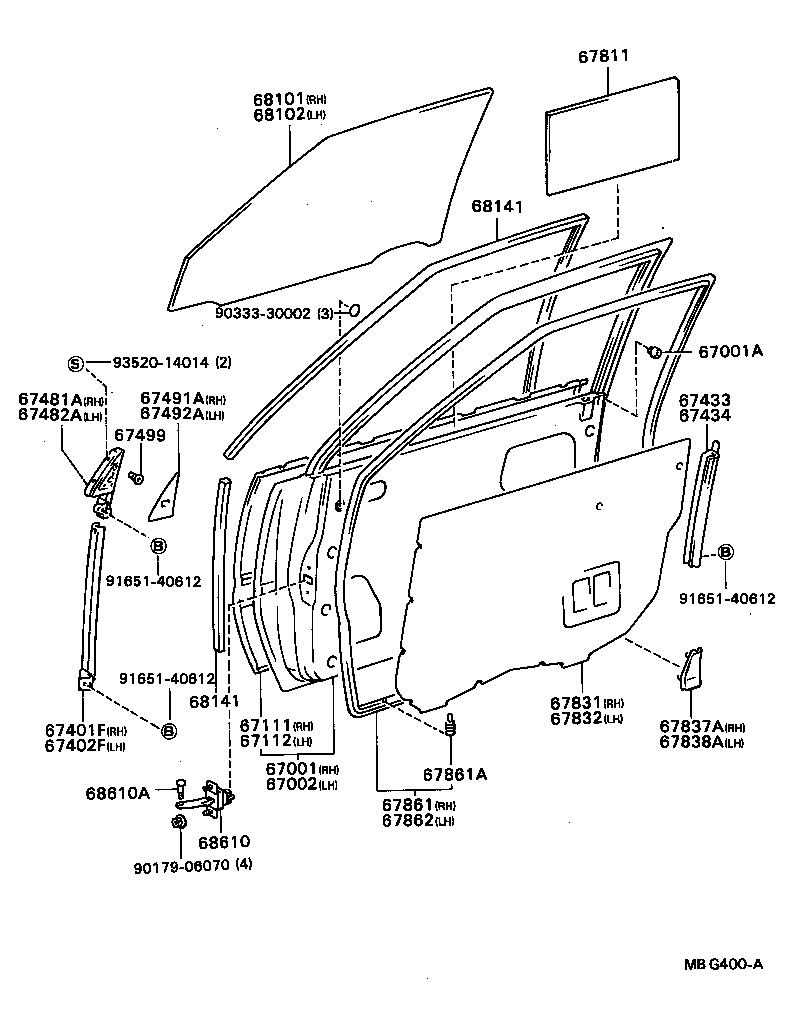

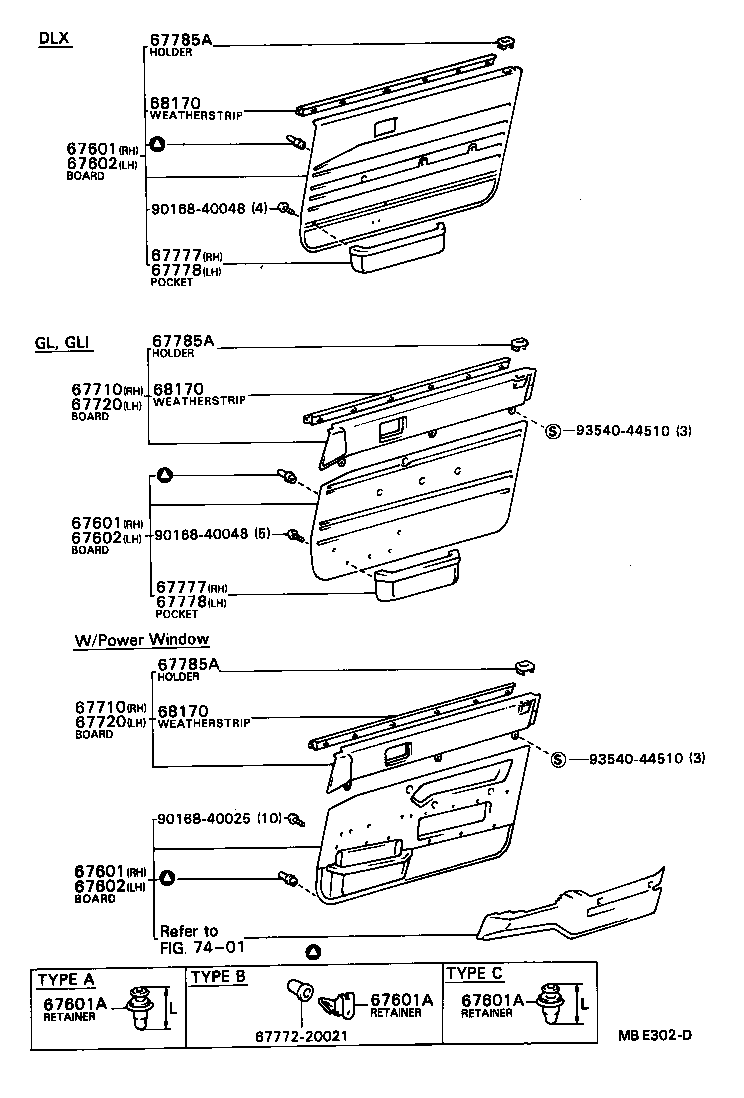

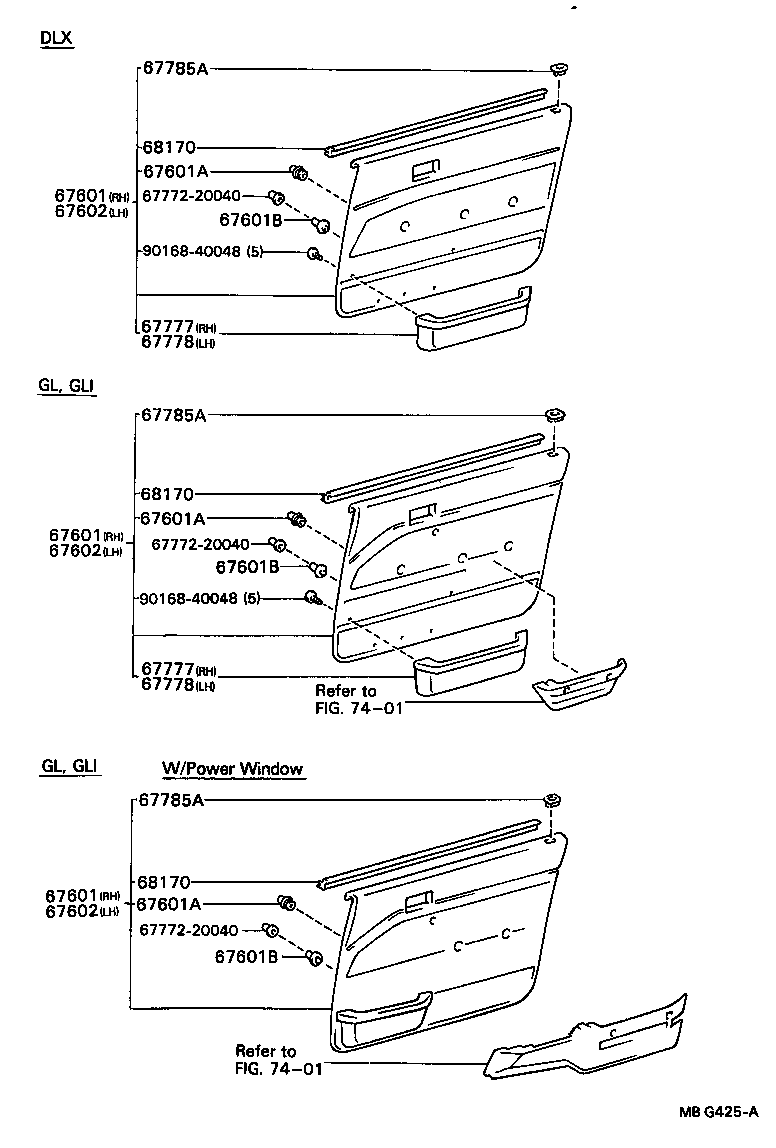

Figure MBG424 MBG424 1982-10 → — Figure MBG400A MBG400A 1984-06 → — Figure MBE302D MBE302D 1982-10 → 1984-06 Figure MBG425A MBG425A 1984-06 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67433 Frame, Front Door Window, Rear Lower RH
67434 Frame, Front Door Window, Rear Lower LH
67481A Seal, Front Door Front Lower Frame, RH
67482A Seal, Front Door Front Lower Frame, LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67495 Cover, Front Door Front Lower Frame, Upper
67499 Retainer, Front Door Lower Frame Bracket Garnish
67601 Board Sub-assy, Front Door Trim, RH
67601A Retainer(FOR FRONT DOOR TRIM BOARD)
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67710 Panel Assy, Front Door Trim, Upper RH
67720 Panel Assy, Front Door Trim, Upper LH
67777 Pocket, Front Door Trim, RH
67778 Pocket, Front Door Trim, LH
67785A Holder, Door Locking Button Collar(FOR FRONT DOOR)
67811 Pad, Front Door Silencer
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67837A Seal, Front Door Vent, RH
67838A Seal, Front Door Vent, LH
67861 Weatherstrip, Front Door, RH
67861A Retainer(FOR FRONT DOOR WEATHERSTRIP)
67862 Weatherstrip, Front Door, LH
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141 Run, Front Door Glass
68170 Weatherstrip Assy, Front Door Glass, Inner
68610 Check Assy, Front Door
68610A Pin(FOR FRONT DOOR CHECK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
