Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

30 part groups · 5 illustrations

Illustrations

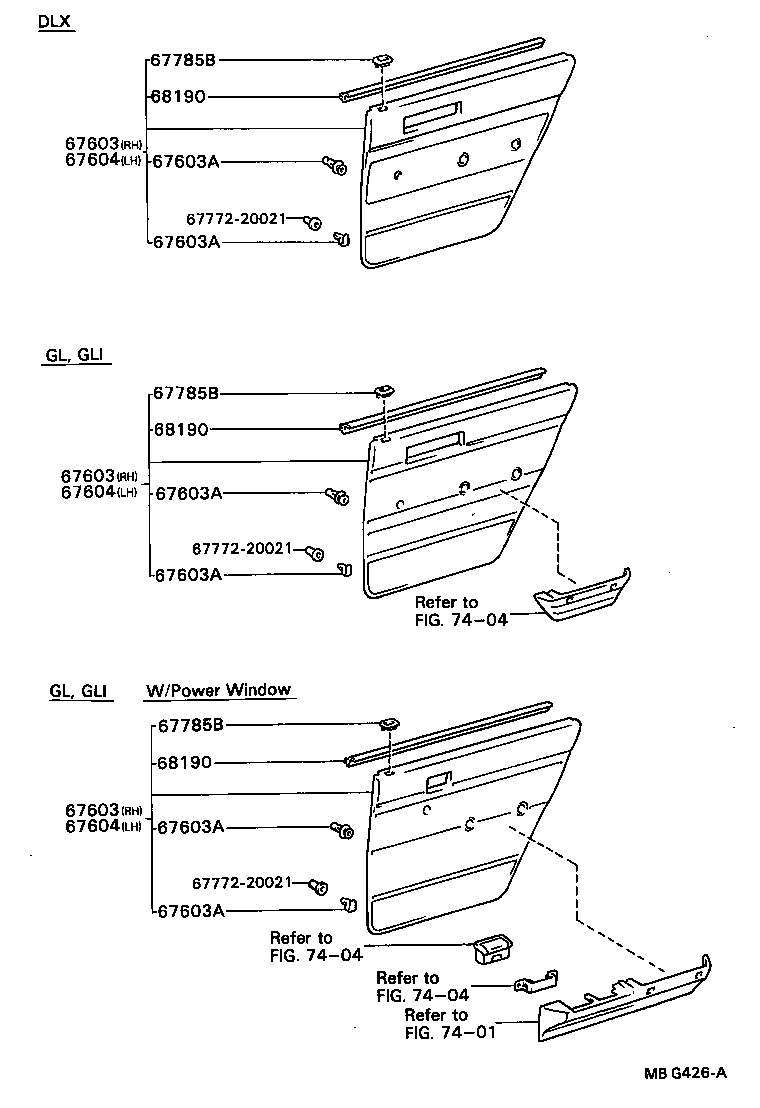

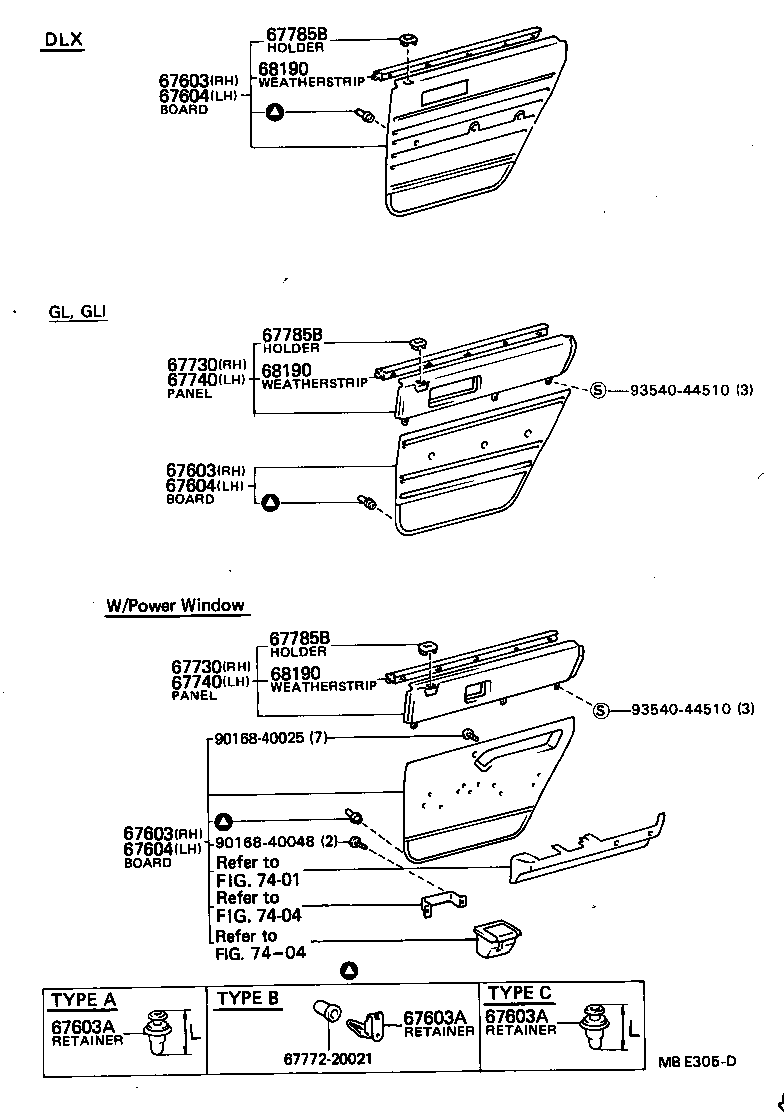

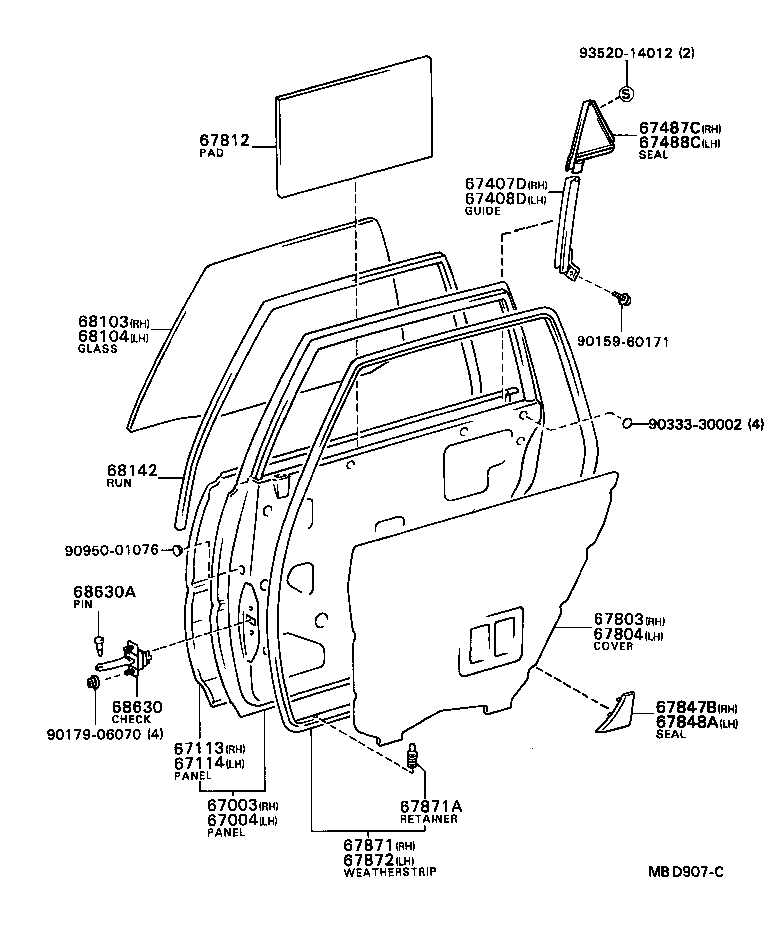

Figure MBD278C MBD278C 1982-10 → 1984-06 Figure MBD907C MBD907C 1982-10 → 1984-06 Figure MBD907C MBD907C 1984-06 → — Figure MBE305D MBE305D 1982-10 → 1984-06 Figure MBG426A MBG426A 1984-06 → —

Part groups

PNCDescription
67003 Panel Sub-assy, Rear Door, RH
67004 Panel Sub-assy, Rear Door, LH
67113 Panel, Rear Door, Outer RH
67114 Panel, Rear Door, Outer LH
67407D Guide Sub-assy, Rear Door Window, Rear RH
67408D Guide Sub-assy, Rear Door Window, Rear LH
67487A Garnish, Rear Door Rear Guide Bracket, RH
67487C Seal, Rear Door Rear Guide, RH
67488A Garnish, Rear Door Rear Guide Bracket, LH
67488C Seal, Rear Door Rear Guide, LH
67603 Board Sub-assy, Rear Door Trim, RH
67603A Retainer(FOR REAR DOOR TRIM BOARD)
67604 Board Sub-assy, Rear Door Trim, LH
67730 Panel Assy, Rear Door Trim, Upper RH
67740 Panel Assy, Rear Door Trim, Upper LH
67785B Holder, Door Locking Button Collar(FOR REAR DOOR)
67803 Cover Sub-assy, Rear Door Service Hole, RH
67804 Cover Sub-assy, Rear Door Service Hole, LH
67812 Pad, Rear Door Silencer
67847B Seal, Rear Door Vent, RH NO.1
67848A Seal, Rear Door Vent, LH NO.1
67871 Weatherstrip, Rear Door, RH
67871A Retainer(FOR REAR DOOR WEATHERSTRIP)
67872 Weatherstrip, Rear Door, LH
68103 Glass Sub-assy, Rear Door, RH
68104 Glass Sub-assy, Rear Door, LH
68142 Run, Rear Door Glass
68190 Weatherstrip Assy, Rear Door Glass, Inner
68630 Check Assy, Rear Door
68630A Pin(FOR REAR DOOR CHECK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
