Toyota Camry
1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe
Discontinued model
Data version 1987-03

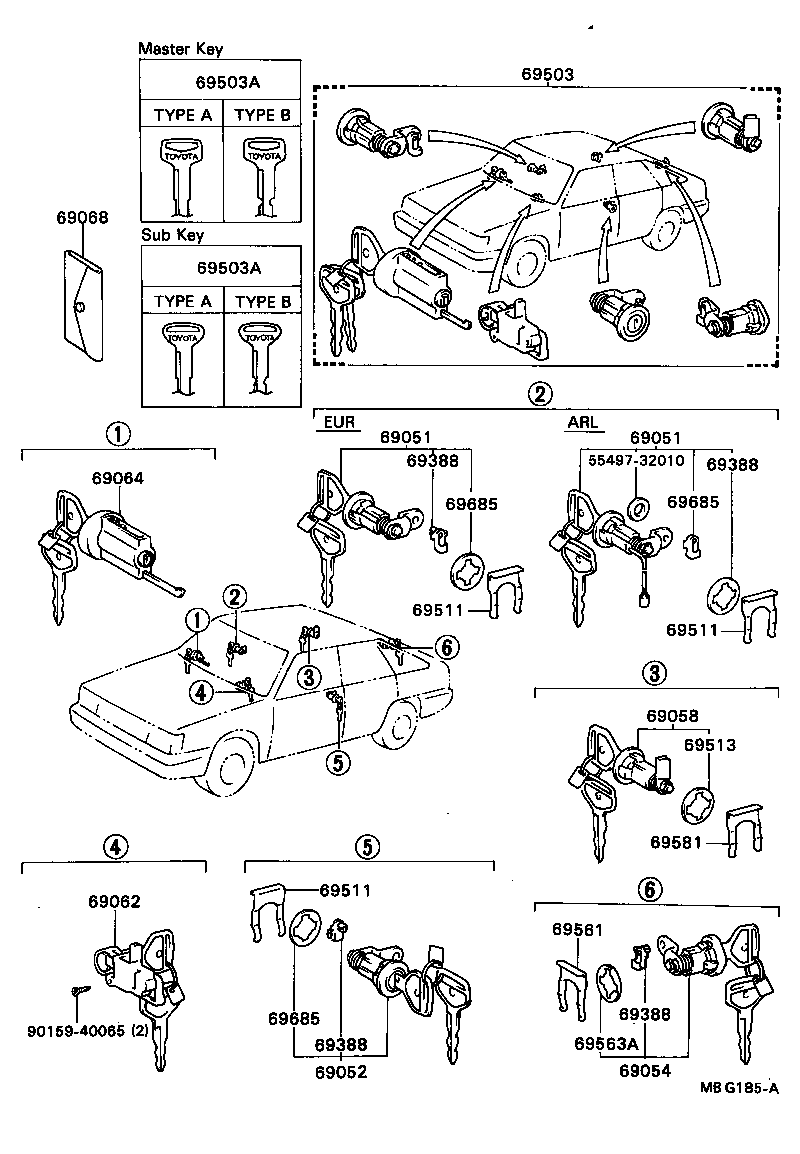

Lock Cylinder Set
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69054 | Cylinder & Key Set, Back Door Lock |
| 69058 | Cylinder & Key Set, Fuel Filler Lid |
| 69061 | Cylinder & Key Set, Luggage Lock |
| 69062 | Cylinder & Key Set, Glove Compartment Lock |
| 69064 | Cylinder & Key Set, Ignition Switch Lock |
| 69068 | Cover Sub-assy, Key |
| 69388 | Snap, Rod(FOR DOOR LOCK) |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69511 | Retainer, Front Door Lock Cylinder |
| 69513 | Pad, Fuel Filler Lid Lock Cylinder |
| 69561 | Retainer, Luggage Compartment OR Back Door Lock Cylinder |
| 69563A | Pad, Luggage Compartment Door Lock Cylinder |
| 69581 | Retainer, Fuel Filler Lid Cylinder |
| 69685 | Pad, Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
