Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

18 part groups · 2 illustrations

Illustrations

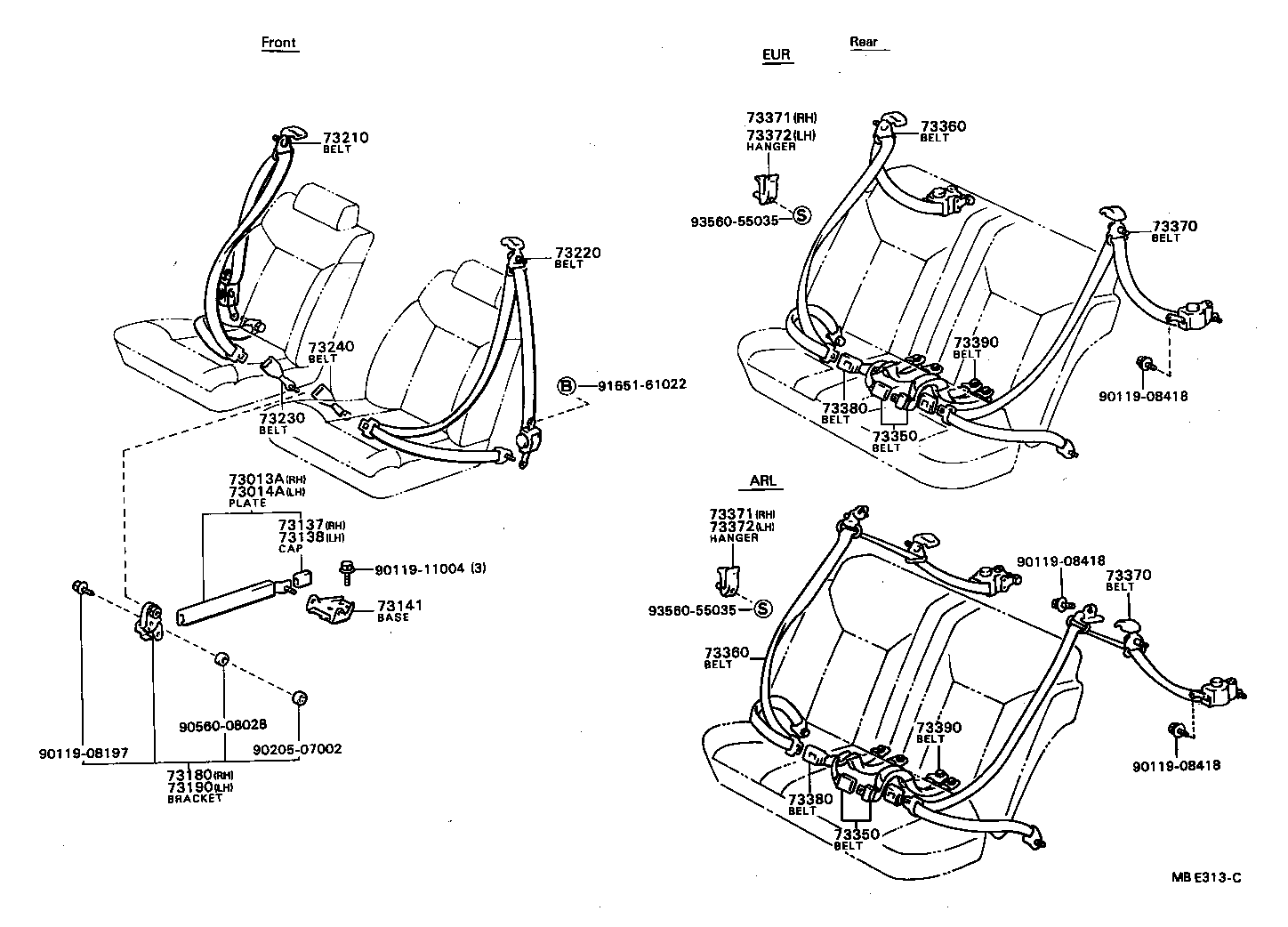

Figure MBE312A MBE312A 1982-10 → — Figure MBE313C MBE313C 1982-10 → —

Part groups

PNCDescription
73013A Plate Sub-assy, Front Seat Belt Inner Anchor, RH
73014A Plate Sub-assy, Front Seat Belt Inner Anchor, LH
73137 Cap, Front Seat Belt Inner Anchor, RH
73138 Cap, Front Seat Belt Inner Anchor, LH
73141 Base, Front Seat Belt Anchor
73180 Bracket Assy, Seat Belt Inner Anchor, RH
73190 Bracket Assy, Seat Belt Inner Anchor, LH
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
