Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

28 part groups · 3 illustrations

Illustrations

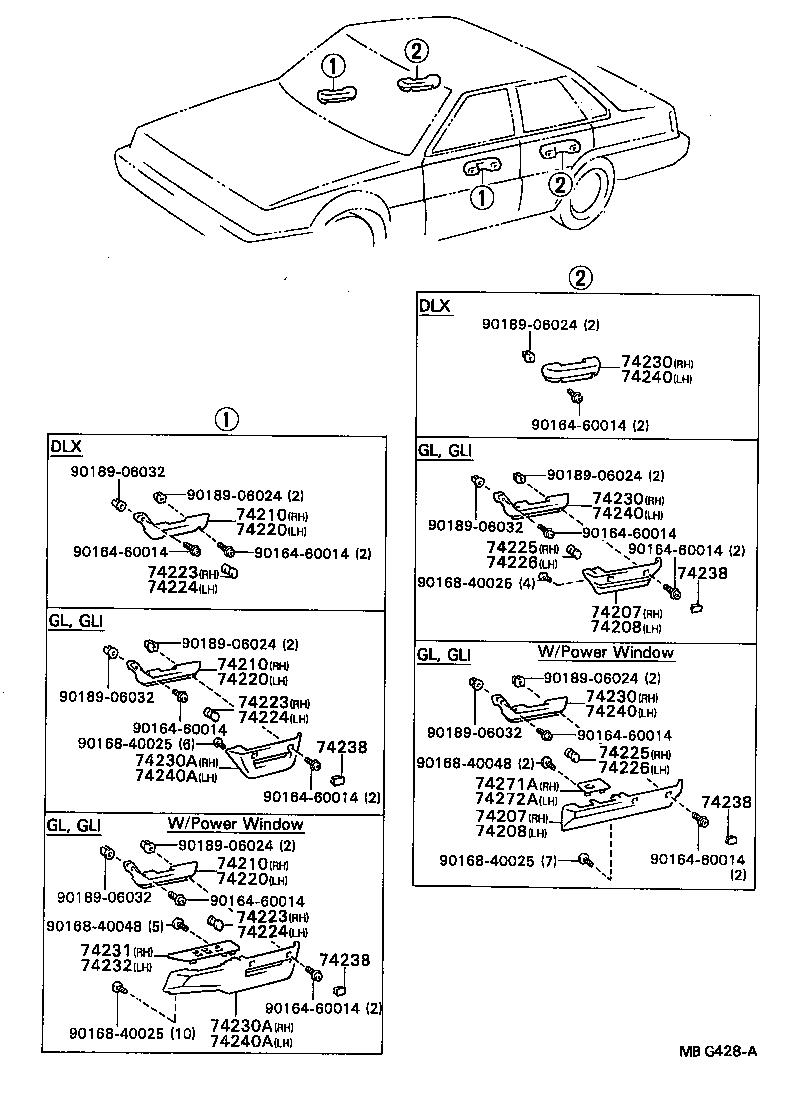

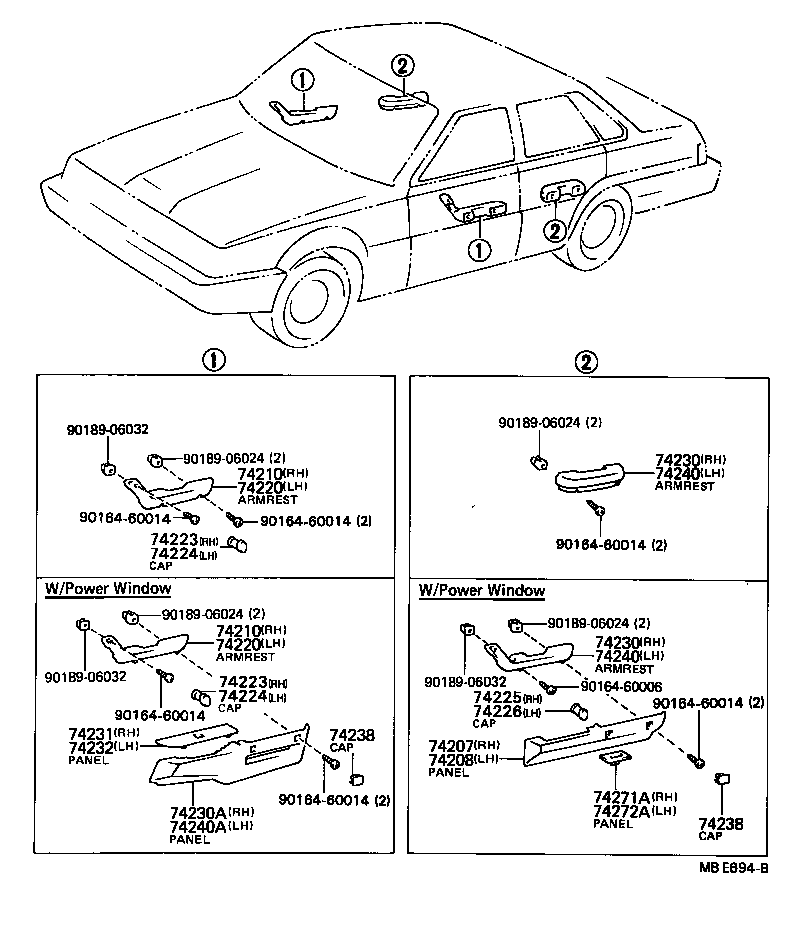

Figure MBF343A MBF343A 1982-10 → — Figure MBE694B MBE694B 1982-10 → 1984-06 Figure MBG428A MBG428A 1984-06 → —

Part groups

PNCDescription
74207 Panel Sub-assy, Rear Armrest Base, Lower RH
74208 Panel Sub-assy, Rear Armrest Base, Lower LH
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74223 Cap, Door Armrest, RH
74224 Cap, Door Armrest, LH
74225 Cap, Door Armrest, Rear RH
74226 Cap, Door Armrest, Rear LH
74230 Armrest Assy, Rear, RH
74230A Panel Assy, Front Door Armrest Base, RH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74238 Cap, Door Armrest Base
74240 Armrest Assy, Rear, LH
74240A Panel Assy, Front Door Armrest Base, LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74387 Bracket, Rear Visor, NO.1
74388 Bracket, Rear Visor, NO.2
74390 Visor Assy, Rear, Inner
74603 Grip Sub-assy, Assist, Front
74603B Clip (FOR ASSIST GRIP)
74604 Grip Sub-assy, Assist, Rear
74613 Plug, Assist Grip
74631 Hook, Coat, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
