Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

8 part groups · 3 illustrations

Illustrations

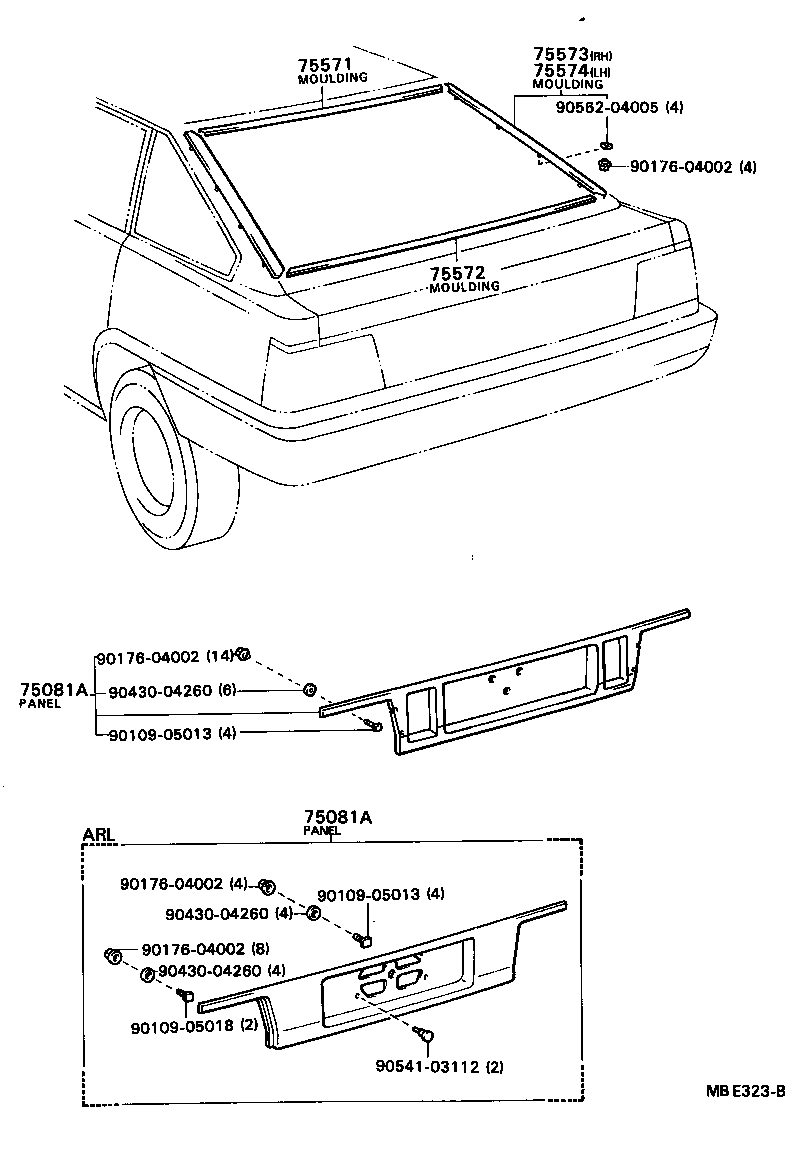

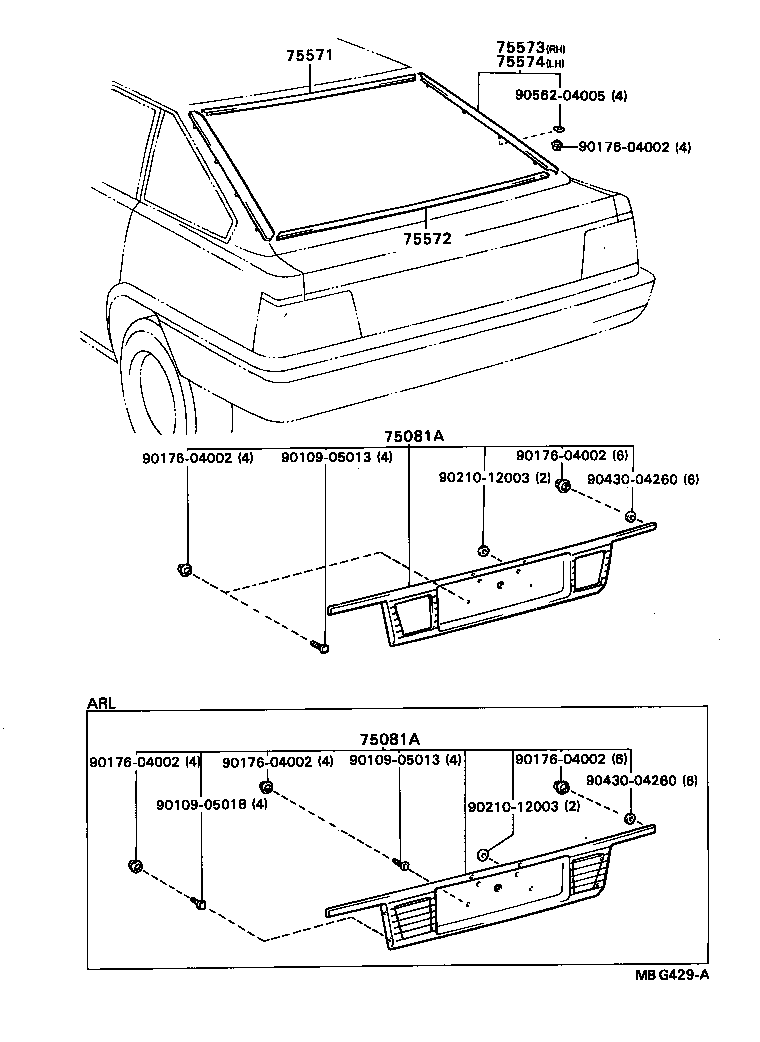

Figure MBE322A MBE322A 1982-10 → — Figure MBE323B MBE323B 1982-10 → 1984-06 Figure MBG429A MBG429A 1984-06 → —

Part groups

PNCDescription
75081A Panel Sub-assy, Back Door Finish
75571 Moulding, Back Window, Outside Upper
75572 Moulding, Back Window, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
75821 Moulding, Luggage Compartment Door Back
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
