Toyota Camry
1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe
Discontinued model
Data version 1987-03

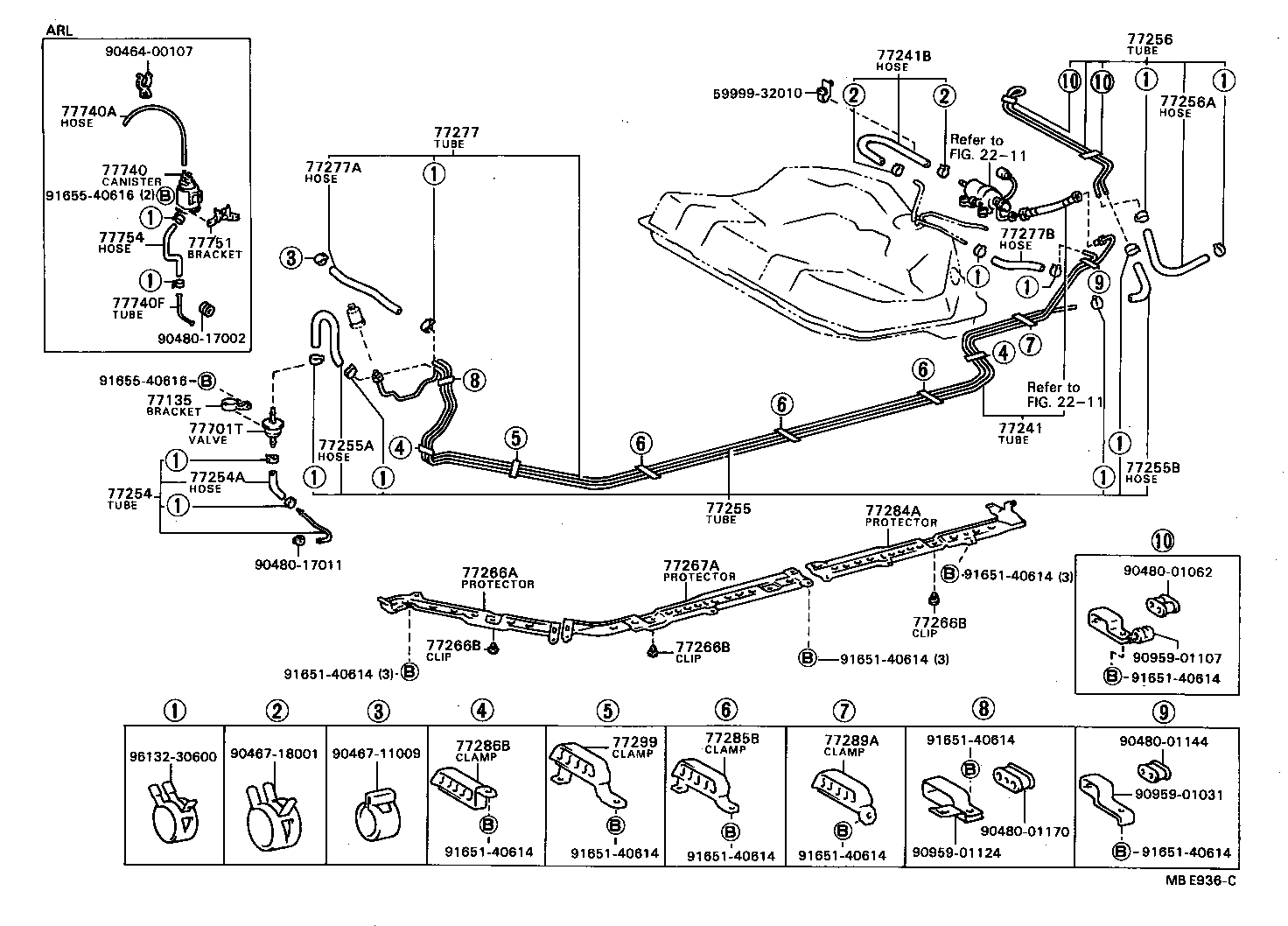

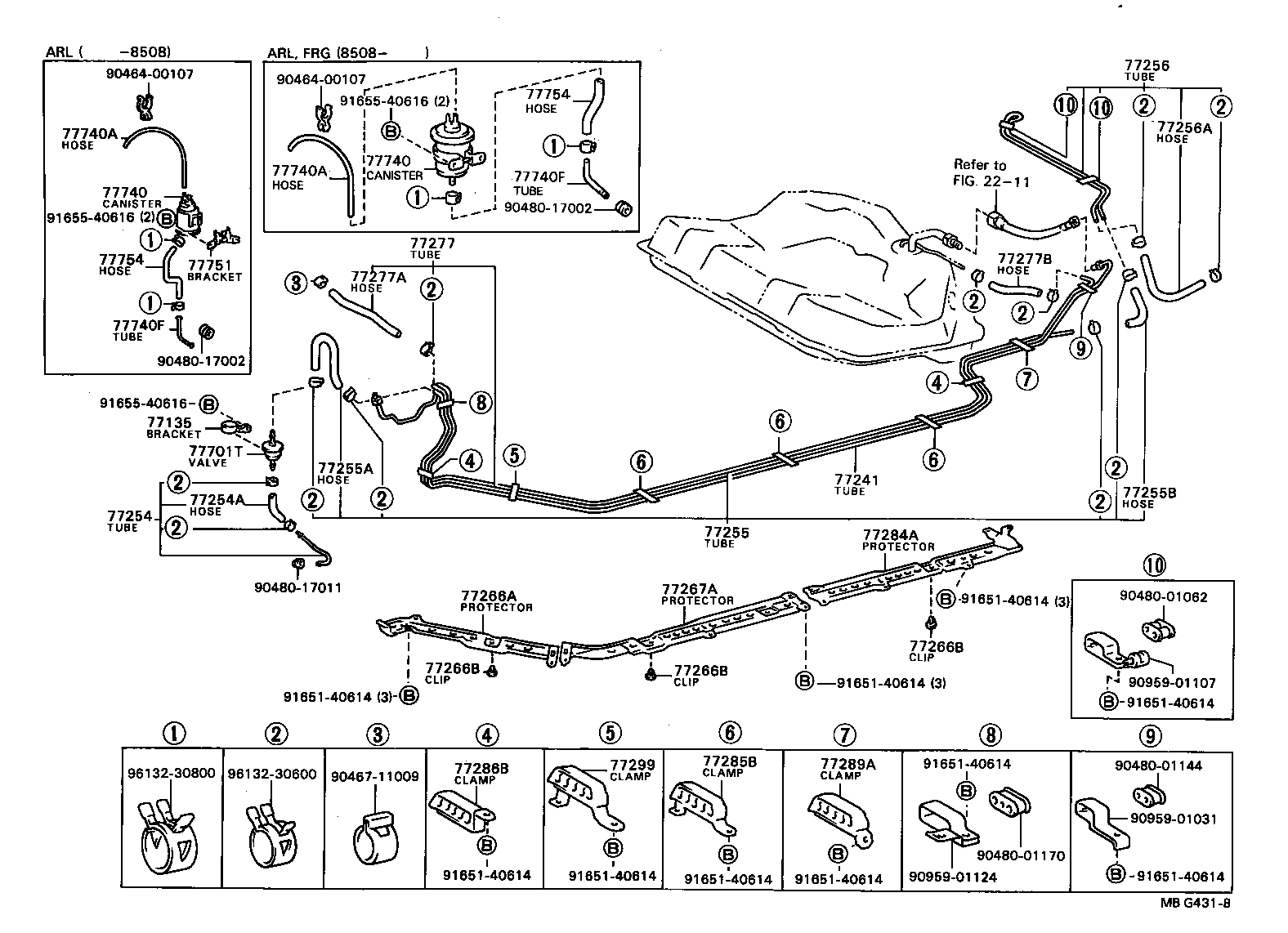

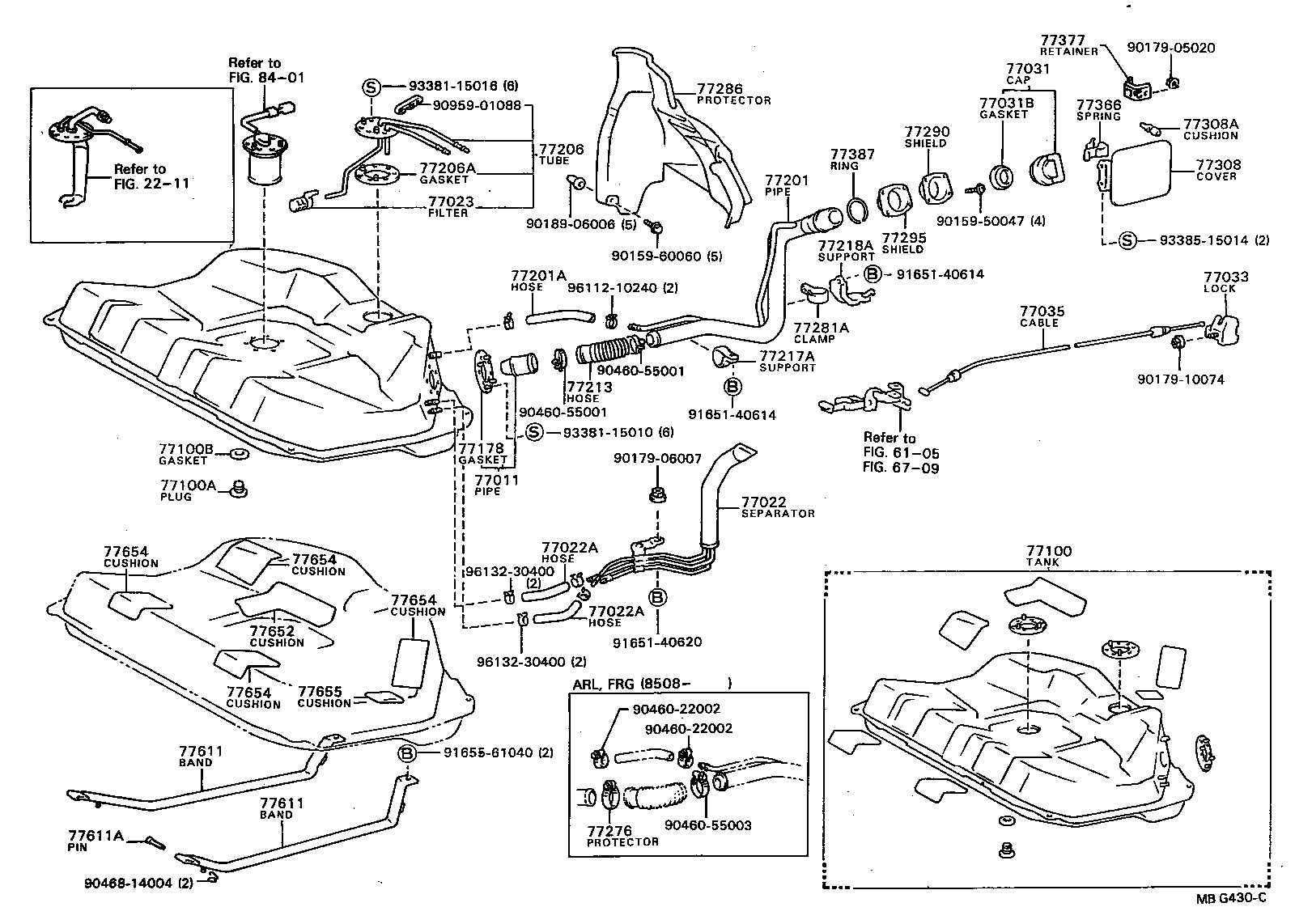

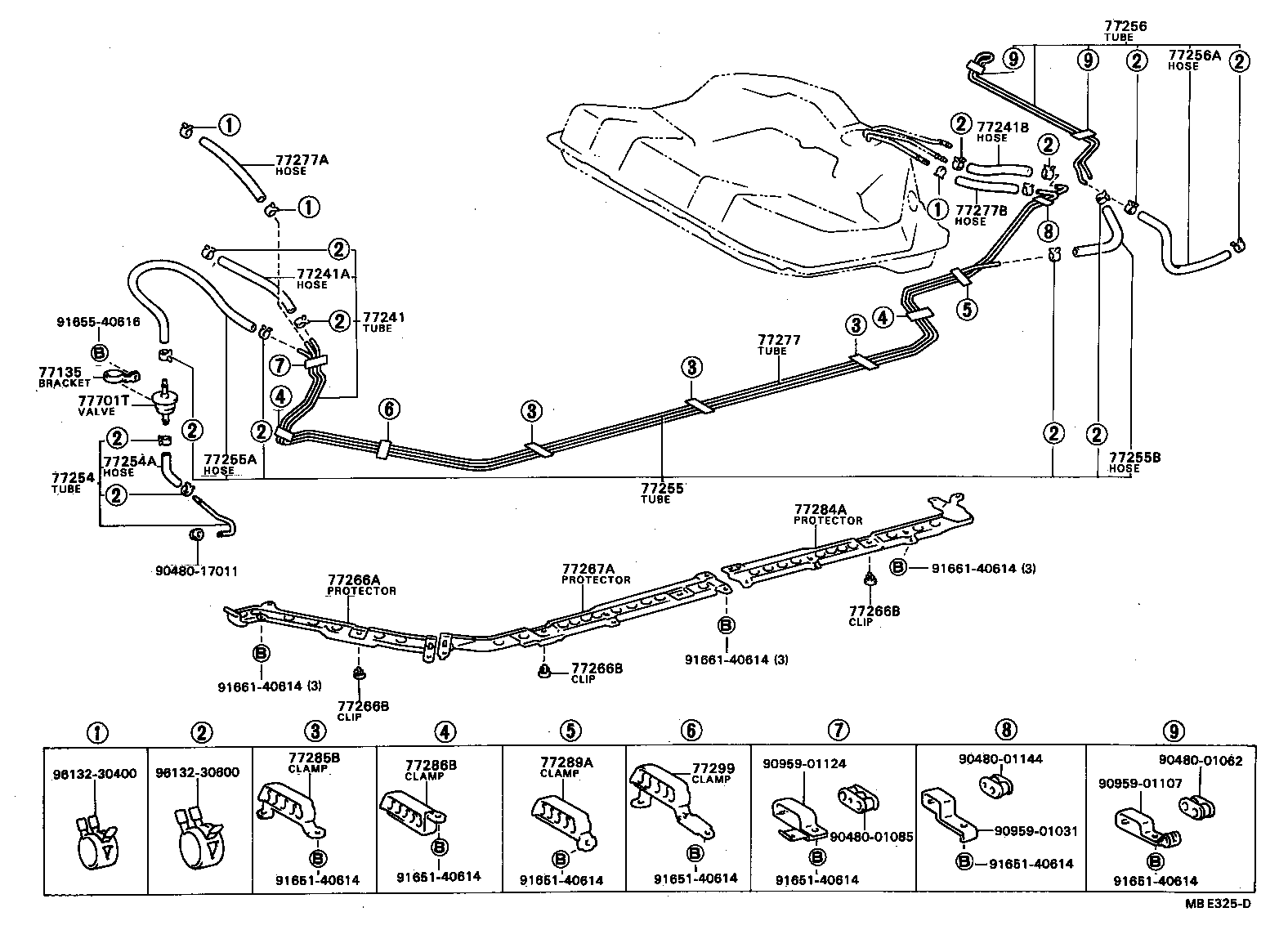

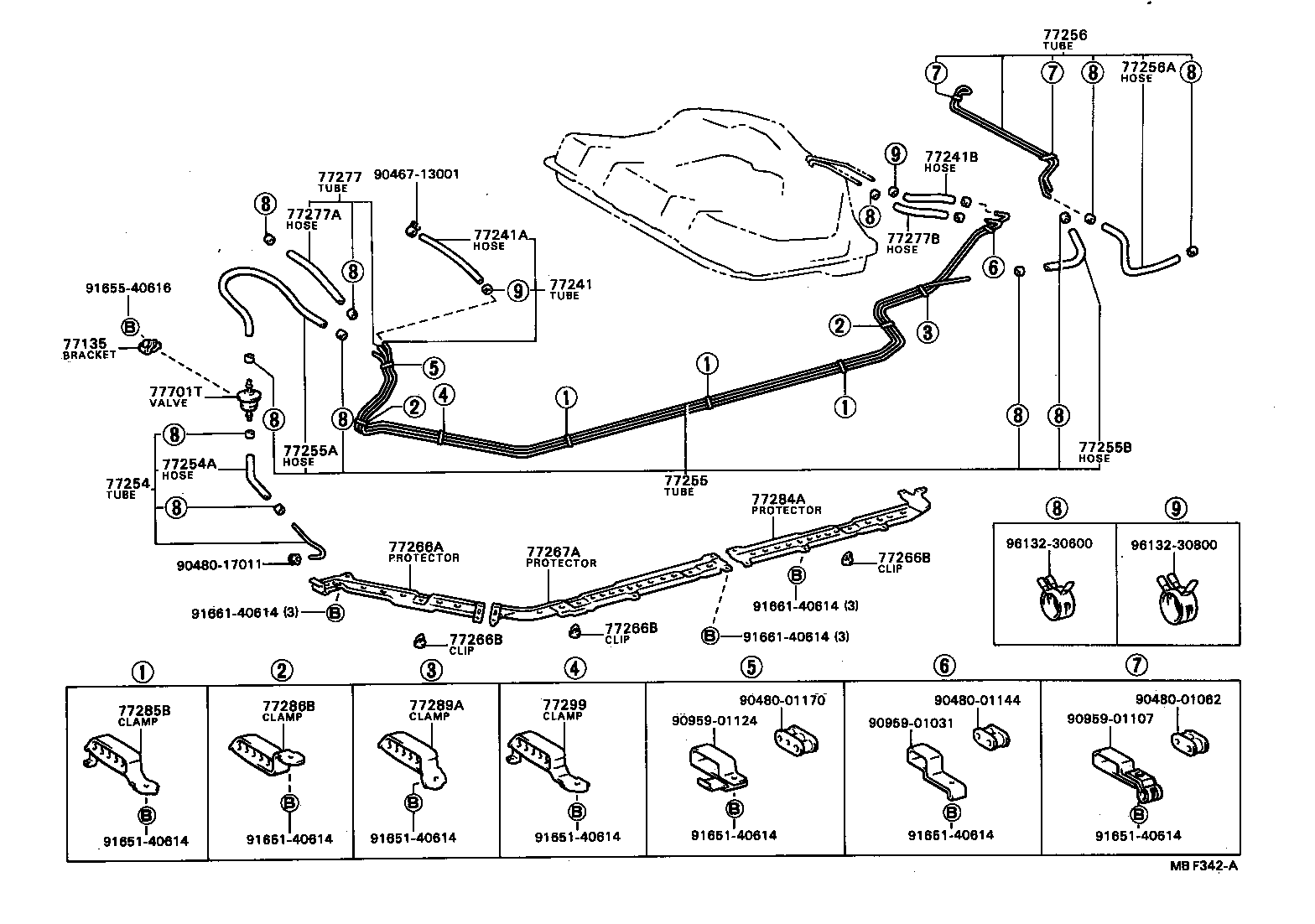

Fuel Tank & Tube
67 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77022 | Separator Sub-assy, Fuel Evaporative |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77033 | Lock Sub-assy, Fuel Tank Cap |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77035A | Clamp (FOR FUEL LID LOCK CONTROL CABLE) |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77135 | Bracket, Check Valve |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77206 | Tube Sub-assy, Fuel Tank Suction |
| 77206A | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77218A | Support, Fuel Tank Filler Pipe, NO.3 |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77255 | Tube, Fuel Emission, NO.2 |
| 77255A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2) |
| 77255B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.2) |
| 77256 | Tube, Fuel Emission, NO.3 |
| 77256A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.3) |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77266B | Clip (FOR FUEL TUBE PROTECTOR) |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77276 | Protector, Fuel Hose |
| 77277 | Tube, Fuel Return, NO.1 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77281A | Clamp, Fuel Filler Pipe |
| 77284A | Protector, Fuel Tube, NO.3 |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77286 | Protector, Fuel Tank Inlet Pipe |
| 77286B | Clamp, Fuel Tube W/Grommet, NO.2 |
| 77289A | Clamp, Fuel Tube W/Grommet, NO.3 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77295 | Shield, Fuel Filler Pipe |
| 77299 | Clamp, Fuel Tube W/Grommet, NO.5 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77306A | Spring, Fuel Lid Open Lever |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77387 | Ring, Fuel Inlet Box |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77652 | Cushion, Fuel Tank, NO.1 |
| 77654 | Cushion, Fuel Tank, NO.2 |
| 77655 | Cushion, Fuel Tank, NO.3 |
| 77658A | Protector, Fuel Tank Edge, NO.1 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740F | Tube, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
