Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

15 part groups · 2 illustrations

Illustrations

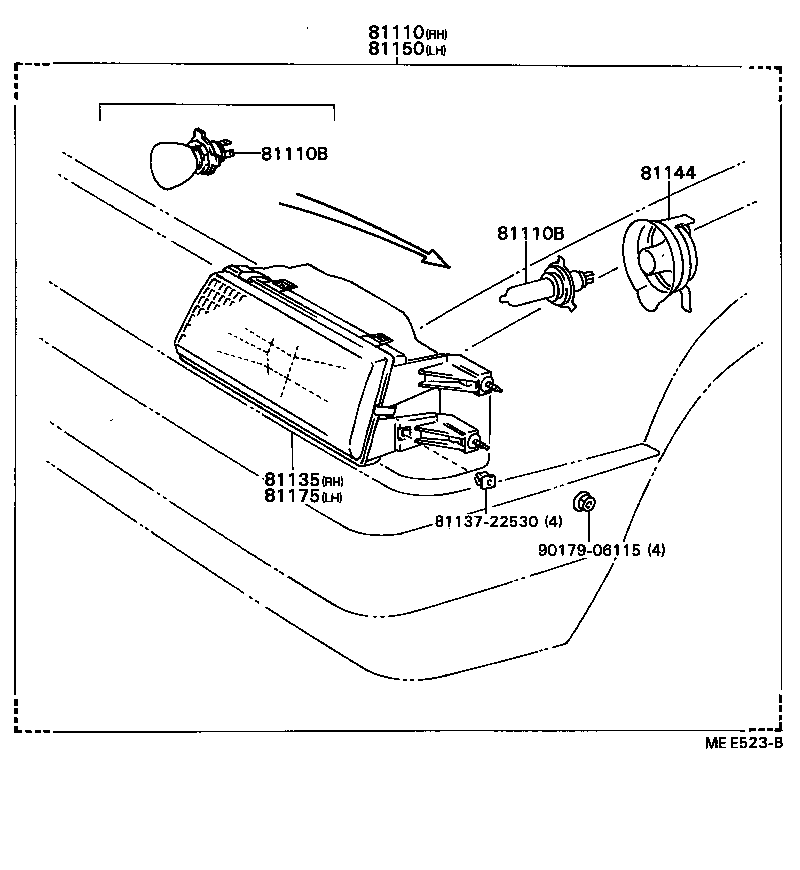

Figure MEC240A MEC240A 1982-10 → 1984-06 Figure MEE523B MEE523B 1984-06 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110K Headlamp Kit, W/O Sealed Beam, RH
81115A Body And Reflector Sub-assy, Headlamp, RH
81116 Cover, Sealed Beam Unit
81116A Body And Reflector Sub-assy, Headlamp, LH
81117 Packing, Headlamp Housing
81135 Unit Assy, Headlamp, RH
81138 Spring, Headlamp
81144 Cover, Headlamp, NO.1
81146 Lens, Headlamp, RH
81150 Headlamp Assy, LH
81150K Headlamp Kit, W/O Sealed Beam, LH
81175 Unit Assy, Headlamp, LH
81186 Lens, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
