Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

99 part groups · 8 illustrations

Illustrations

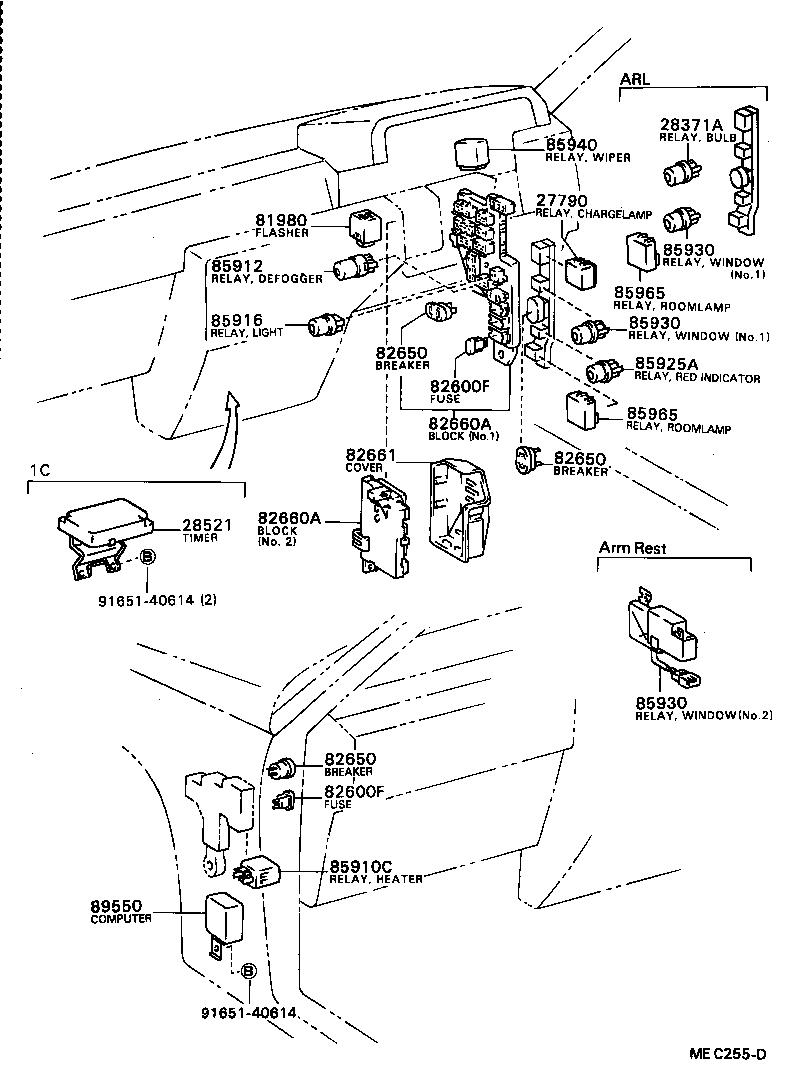

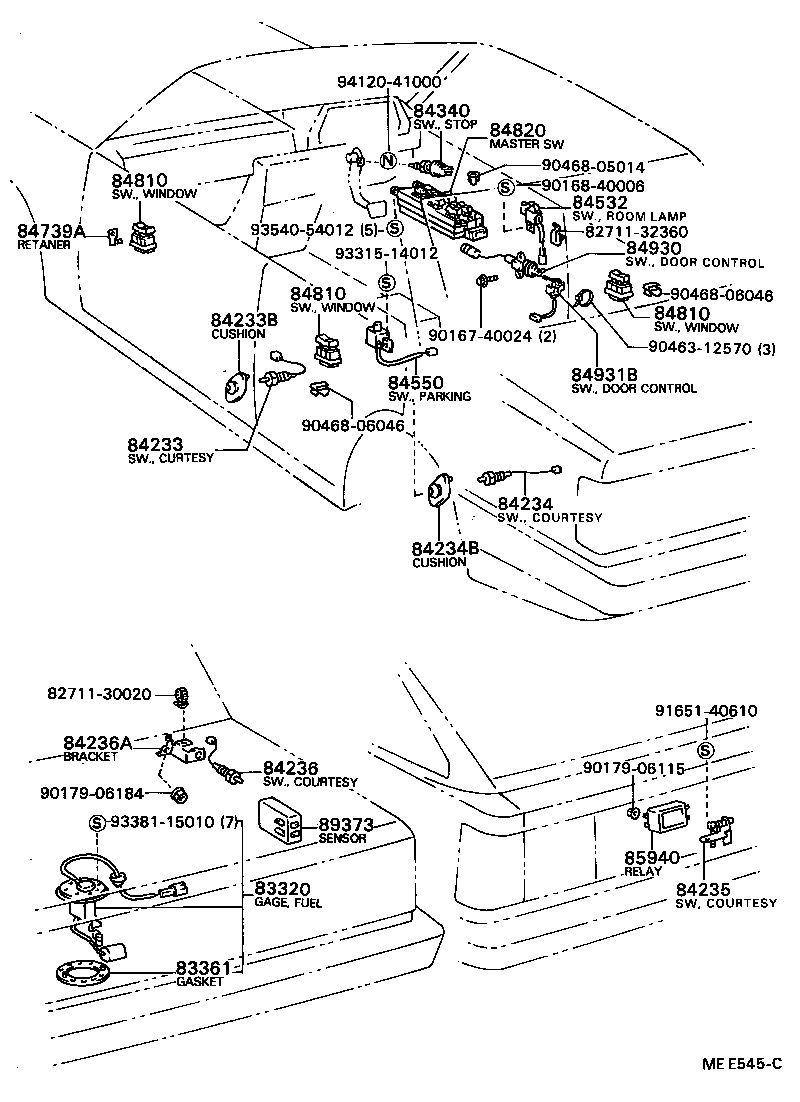

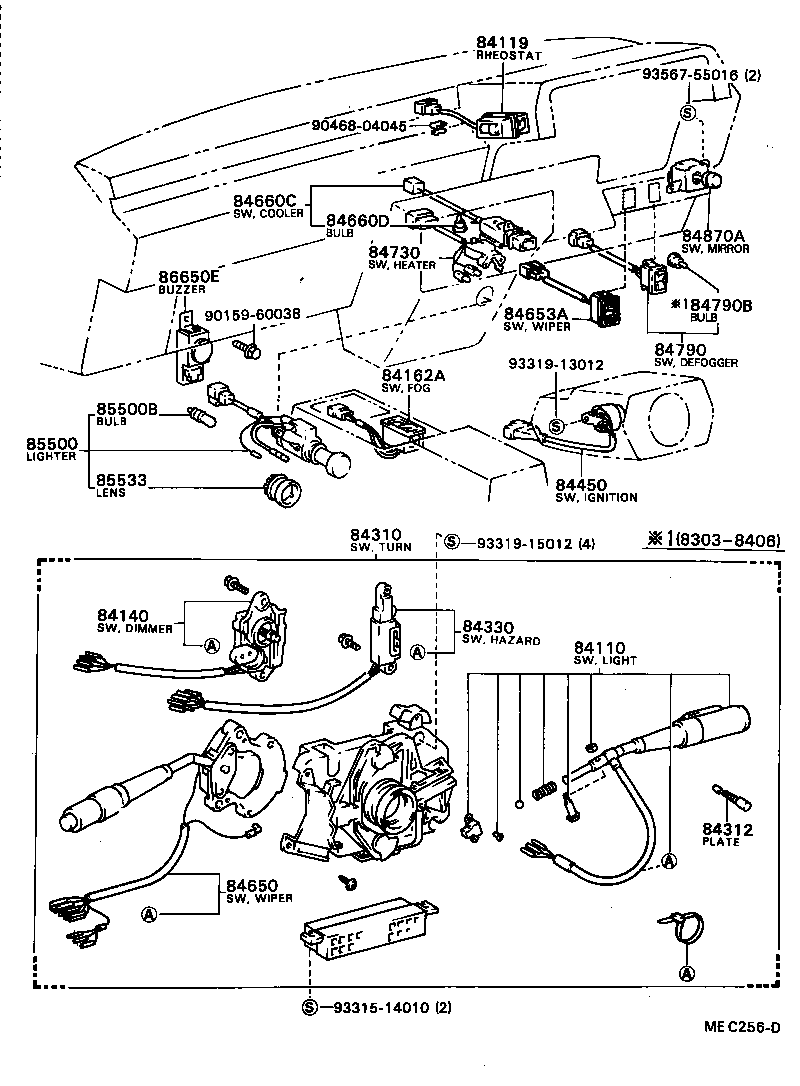

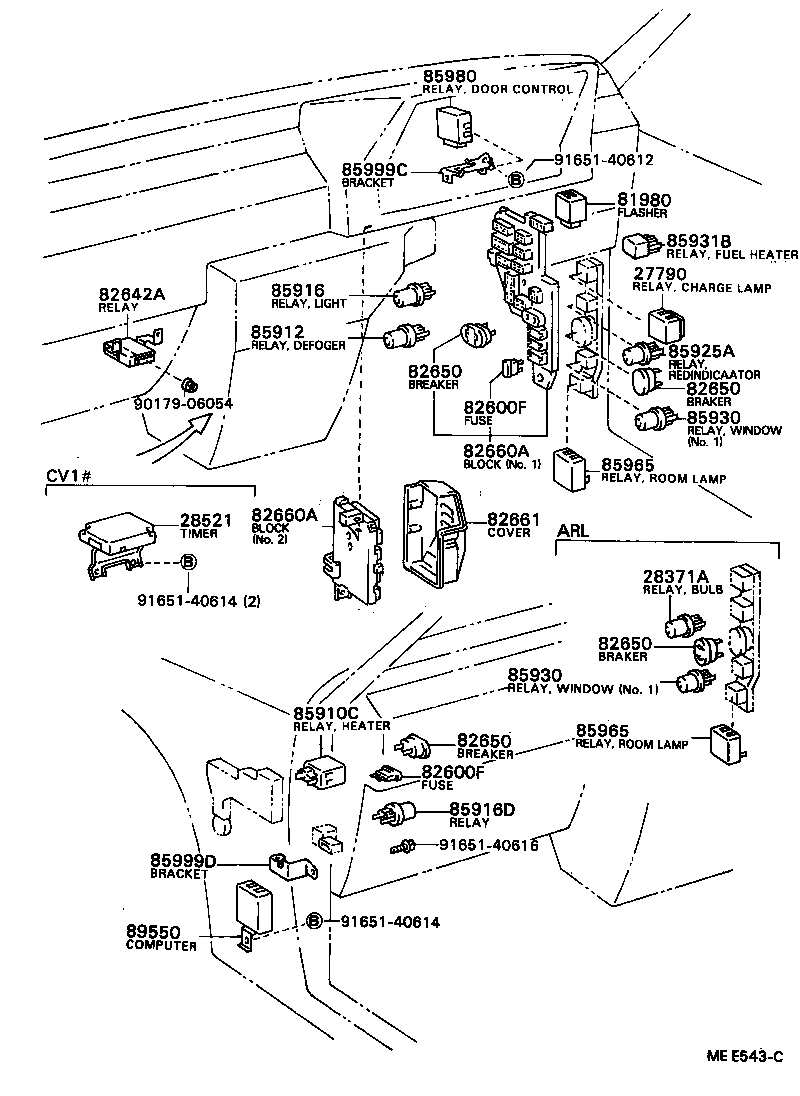

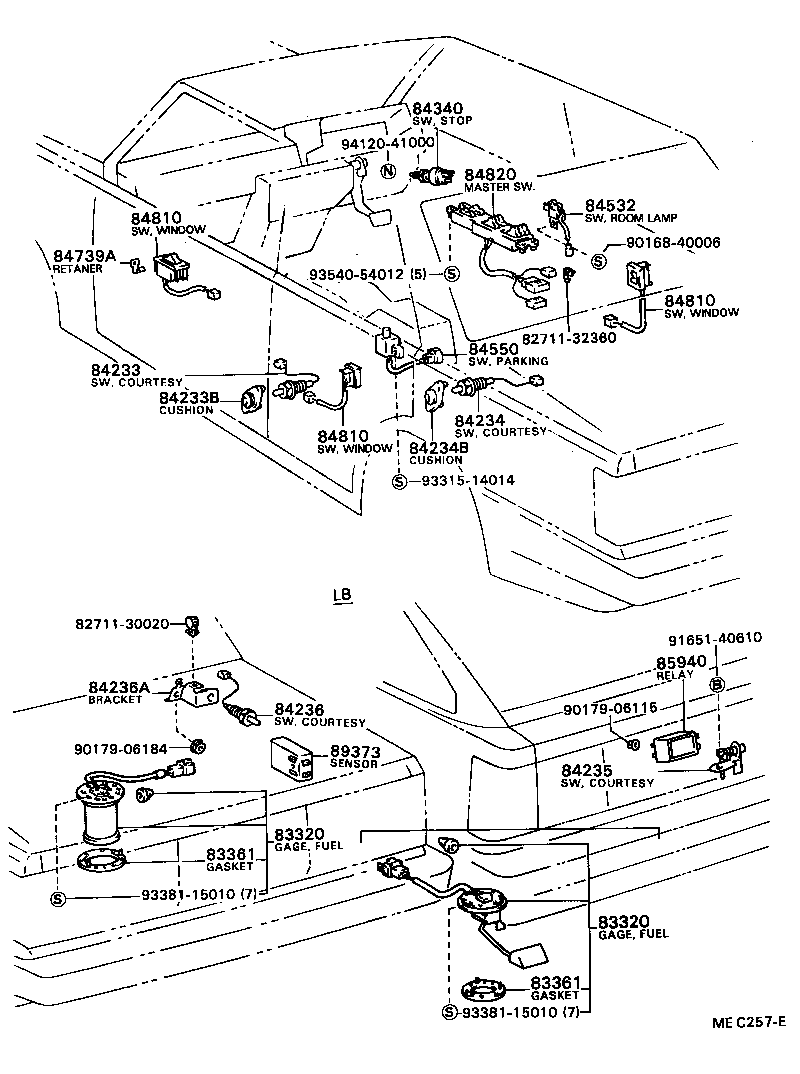

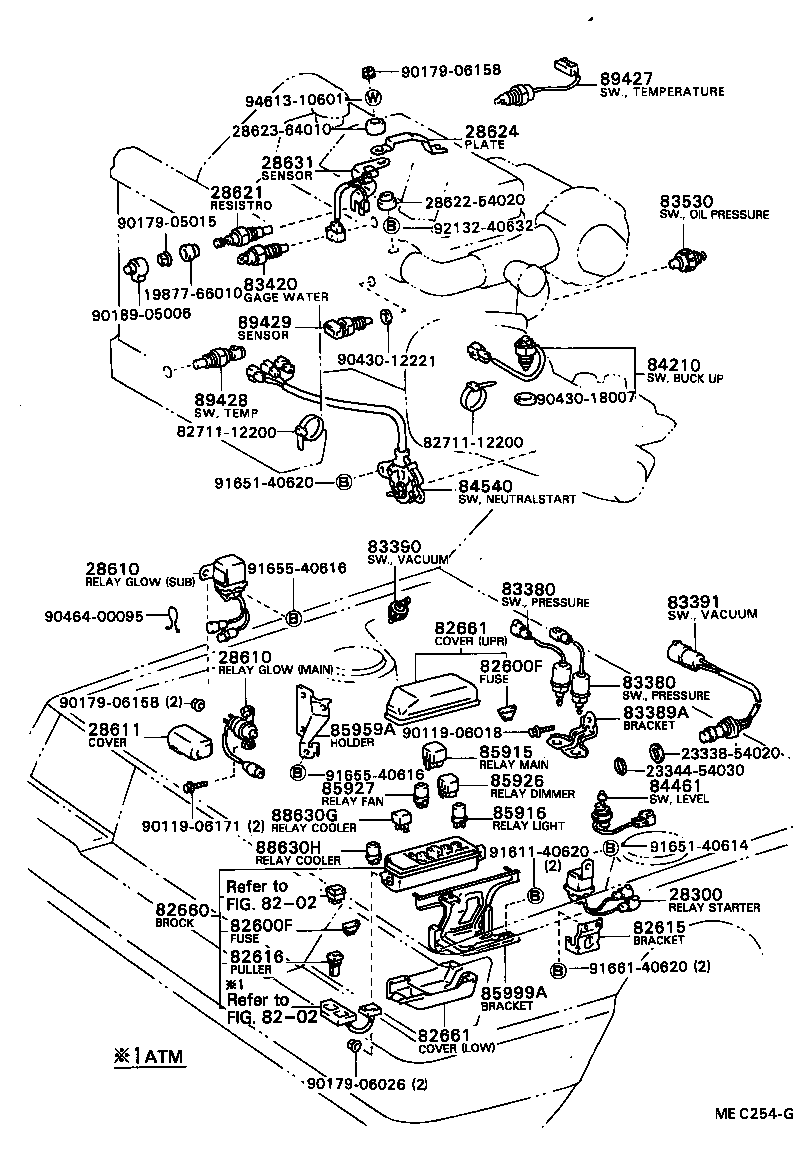

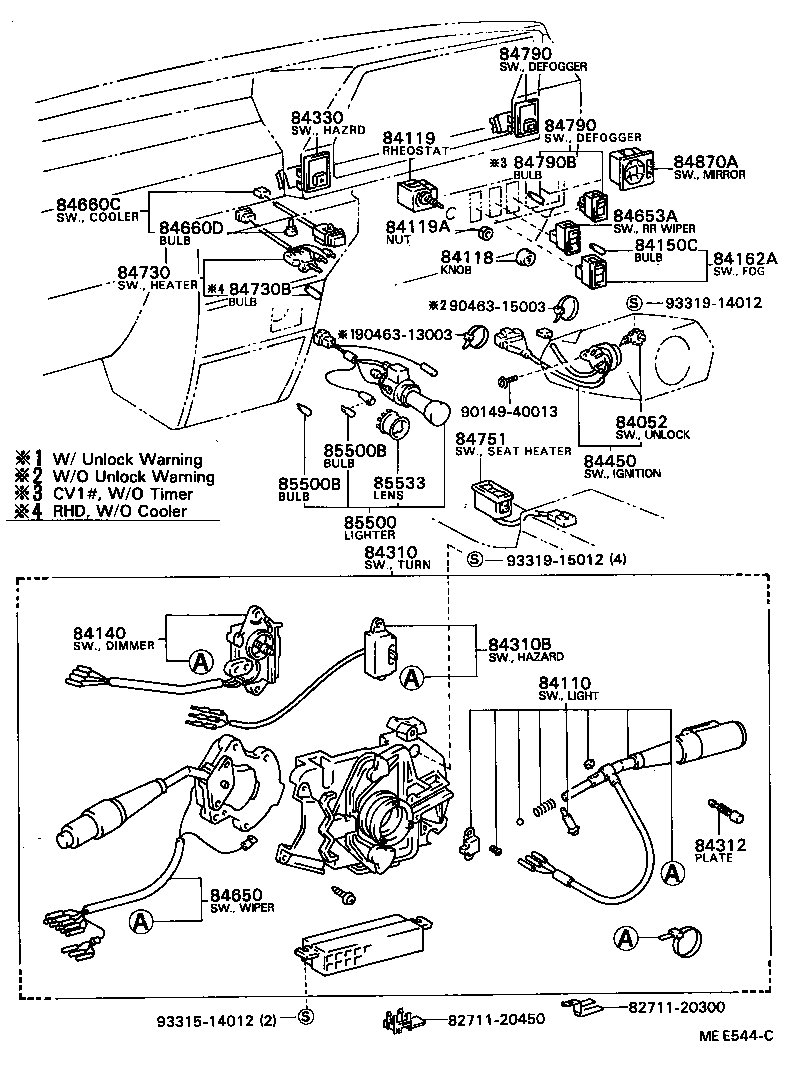

Figure MEC253E MEC253E 1982-10 → — Figure MEC254G MEC254G 1983-08 → — Figure MEC255D MEC255D 1982-10 → 1984-06 Figure MEE543C MEE543C 1984-06 → — Figure MEC256D MEC256D 1982-10 → 1984-06 Figure MEE544C MEE544C 1984-06 → — Figure MEC257E MEC257E 1982-10 → 1984-06 Figure MEE545C MEE545C 1984-06 → —

Part groups

PNCDescription
27790 Relay Assy, Charge Lamp
28300 Relay Assy, Starter
28371A Relay, Bulb Check
28521 Timer, Preheating
28610 Relay Assy, Intake Heater OR Glow Plug
28611 Cover, Glow Plug Relay
28621 Resistor, Glow Plug
28624 Plate, Current Sensor
28631 Sensor, Glow Plug Current
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82615 Bracket, Fuse
82616 Puller, Fuse
82642A Relay, Running Light
82650 Breaker Assy, Wiring Circuit, NO.1
82660 Block Assy, Relay, Engine Room
82660A Block Assy, Relay, Cowl Side
82661 Cover, Relay Block, NO.1
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83380 Switch Assy, Presure
83389A Bracket, Pressure Switch
83390 Switch Assy, Vacuum Warning
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84110 Switch Assy, Light Control, NO.1
84118 Knob, Light Control Rheostat
84119 Rheostat, Light Control
84119A Bolt OR Nut, Rheostat Control Set
84140 Switch Assy, Headlamp Dimmer
84150C Bulb, Fog Lamp Switch
84162A Switch, Rear Fog Lamp
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233B Cushion, Courtesy Switch (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84234B Cushion, Courtesy Switch (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84236 Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
84236A Bracket, Courtesy Switch(FOR LUGGAGE COMPARTMENT ROOM)
84310 Switch Assy, Turn Signal
84310B Switch, Turn Signal
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84461 Switch, Level Warning
84532 Switch, Room Lamp Retainer
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84653A Switch, Rear Wiper
84660C Switch, Cooler
84660D Bulb(FOR COOLER SWITCH)
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84739A Retainer, Switch
84751 Switch, Seat Heater
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84931B Switch, Door Control
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85915 Relay, Main
85916 Relay, Light Control
85916D Relay, Fog Lamp
85925A Relay, Red Indicator
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85930 Relay Assy, Power Window
85931B Relay, Fuel Heater
85940 Relay Assy, Windshield Wiper
85959A Holder, Relay
85965 Relay, Room Lamp Control
85980 Relay Assy, Door Control
85999A Bracket, Relay, NO.2
85999C Bracket, Relay, NO.3
85999D Bracket, Relay, NO.4
86650E Buzzer Assy
88630G Relay Assy, Cooler
88630H Relay Assy, Cooler
89373 Sensor, Lamp Failure Indicator
89427 Switch, Temperature Detect
89428 Switch, Temperature Detect, NO.2
89429 Sensor, Oil Temperature
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89550 Computer Assy, Emission Control
89620 Igniter Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
