Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

20 part groups · 3 illustrations

Illustrations

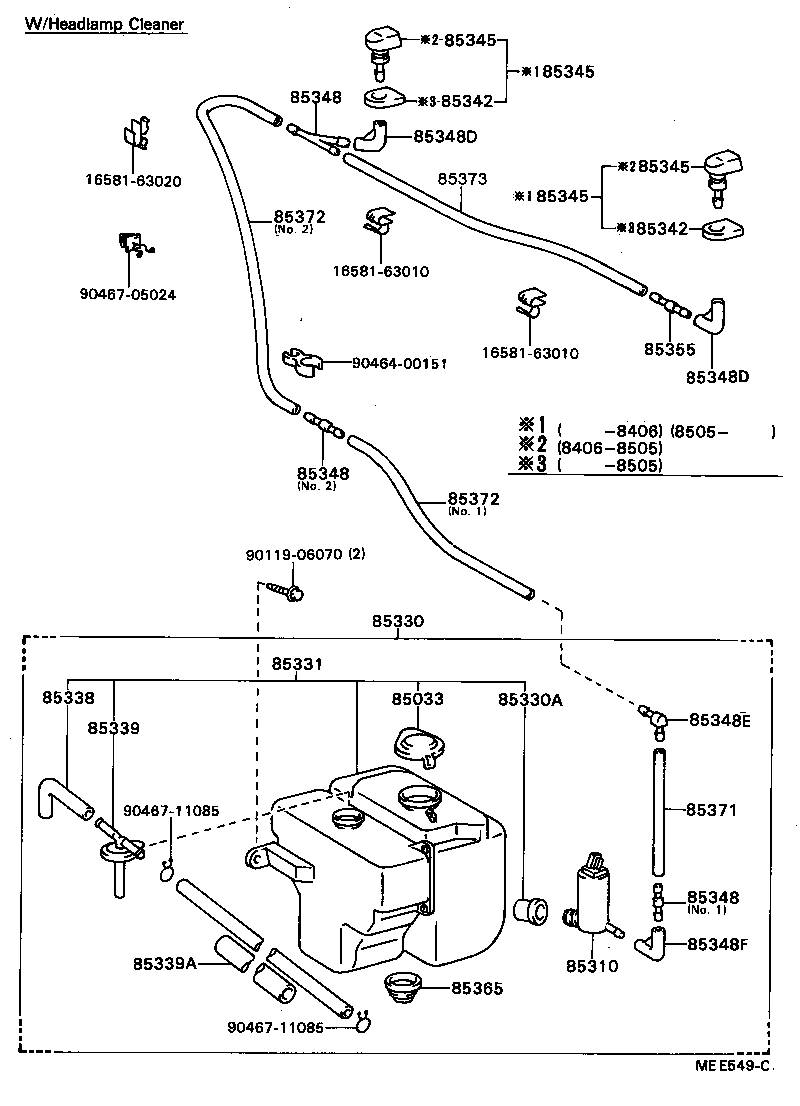

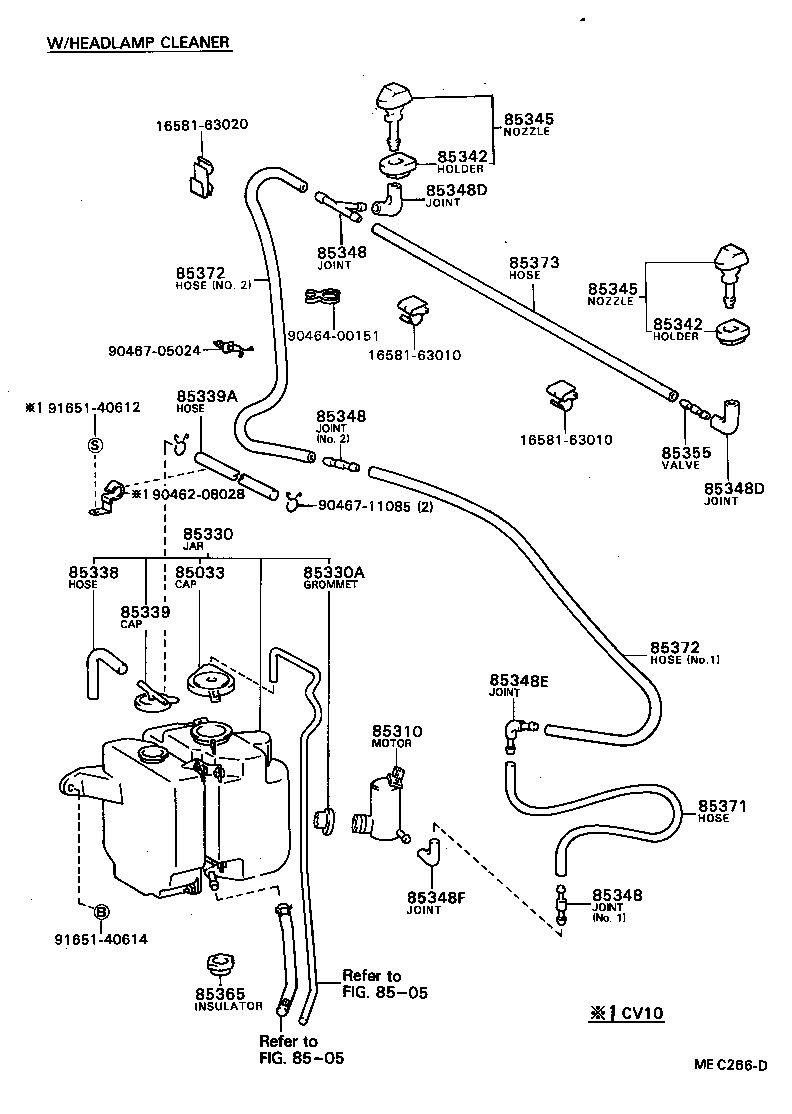

Figure MEC261E MEC261E 1982-10 → — Figure MEC266D MEC266D 1982-10 → 1984-06 Figure MEE549C MEE549C 1984-06 → —

Part groups

PNCDescription
85033 Cap Assy, Windshield Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85331 Jar Sub-assy, Windshield Washer
85338 Hose, Breather
85339 Cap Sub-assy, Reserve Tank
85339A Hose (FOR RADIATOR RESERVE TANK)
85342 Holder, Washer Nozzle
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85348F Joint, Windshield Washer Elbow, NO.3
85355 Valve, Windshield Washer Hose
85365 Insulator, Windshield Washer Jar
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
