Toyota Camry

1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe

Discontinued model Data version 1987-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

18 part groups · 2 illustrations

Illustrations

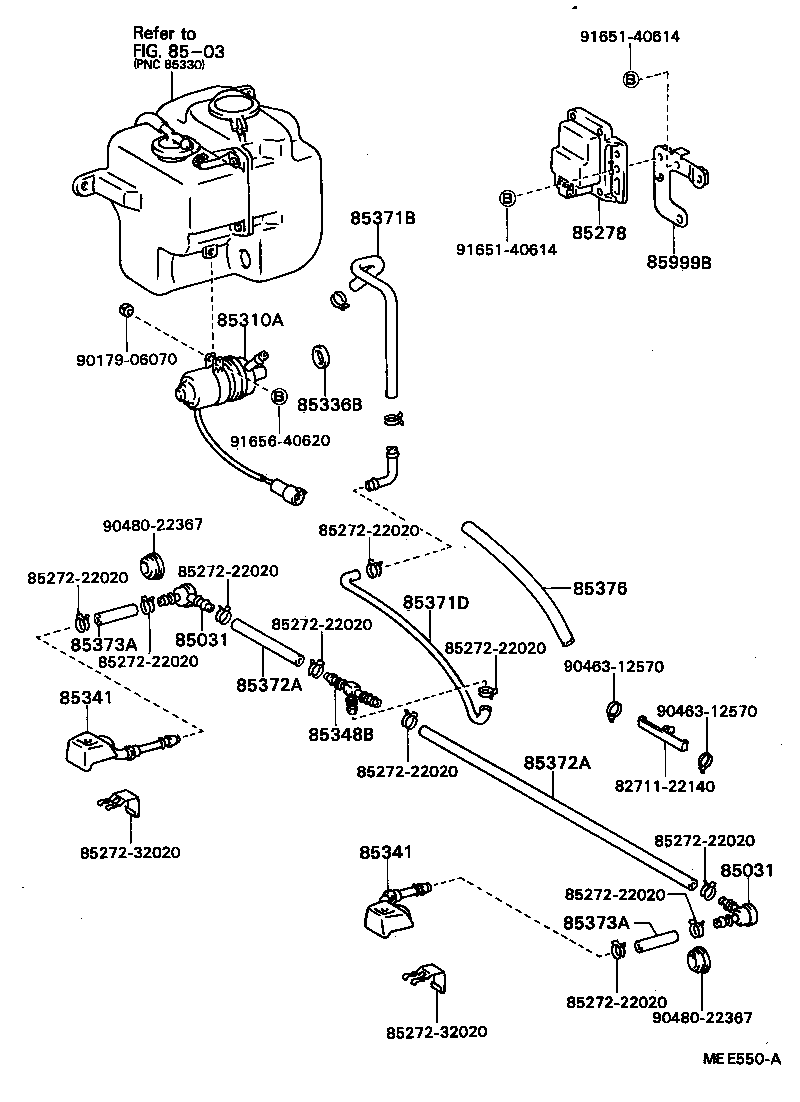

Figure MEC263 MEC263 1982-10 → 1984-06 Figure MEE550A MEE550A 1984-06 → —

Part groups

PNCDescription
85031 Valve, Headlamp Cleaner Washer Hose
85271 Hose, Headlamp Cleaner, NO.1
85278 Relay Assy, Headlamp Cleaner Control
85310A Motor And Pump Assy, Headlamp Cleaner Washer
85320A Motor And Bracket Assy, Headlamp Cleaner Washer
85336B Packing, Headlamp Cleaner Washer
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85371B Hose, Headlamp Cleaner (FROM MOTOR TO JOINT)
85371C Hose, Headlamp Cleaner, NO.1
85371D Hose, Headlamp Cleaner, NO.2
85371E Hose, Headlamp Cleaner, NO.3
85371F Hose, Headlamp Cleaner, NO.4
85372A Hose, Headlamp Cleaner (FROM JOINT TO JOINT OR NOZZLE)
85373A Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE)
85376 Protector, Headlamp Cleaner Hose, NO.1
85999B Bracket, Headlamp Cleaner Relay
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
