Toyota Camry
1982-10 → 1986-10 · chassis SV1#,CV1# · catalogue 281220 · Europe
Discontinued model
Data version 1987-03
Radio Receiver & Amplifier & Condenser

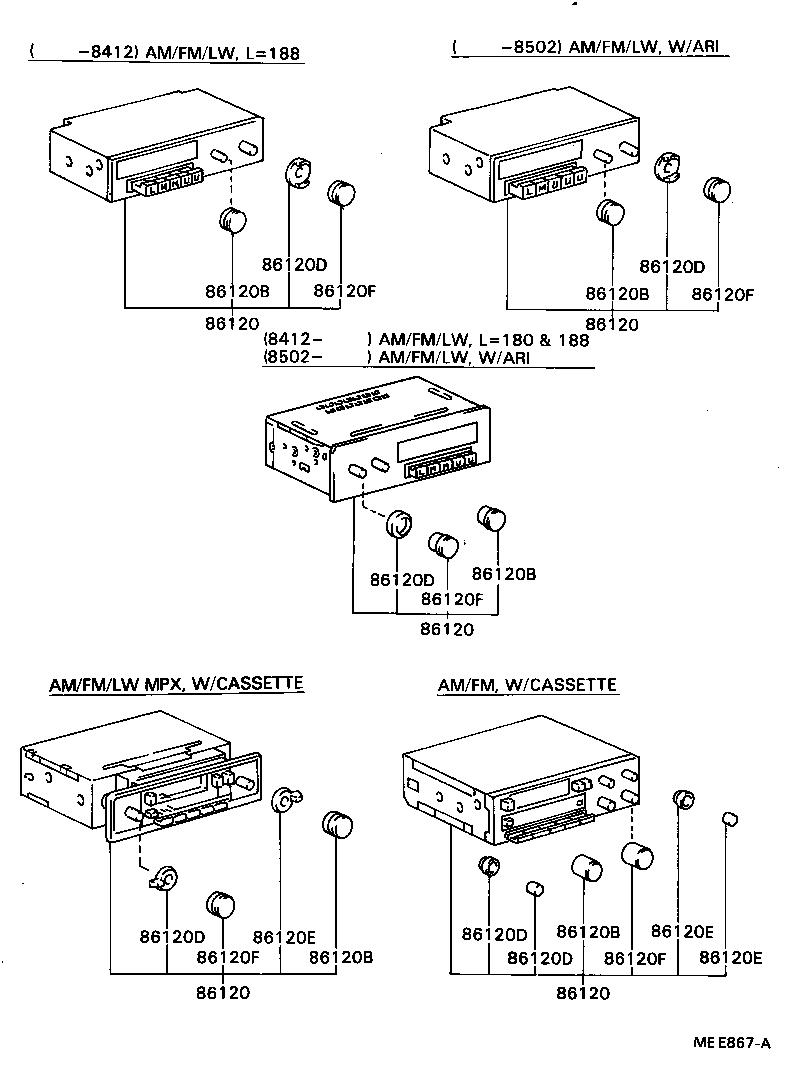

13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86120 | Receiver Assy, Radio |
| 86120B | Knob, Radio Receiver Tuning, NO.1 |
| 86120D | Knob, Radio Receiver Tone |
| 86120E | Knob, Radio Receiver Balance |
| 86120F | Knob, Radio Receiver Sub Volume |
| 86203 | Wire, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86221A | Panel, Radio Receiver |
| 86280 | Amplifier Assy, Stereo Component |
| 86280B | Knob, Amplifier Graphic Equalizer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
